Curved Double Sliding Door Shower Screen 6mm Tempered Glass 800/900/1000mm - Chrome/Matt Black Fittings

SKU: NC046-800

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

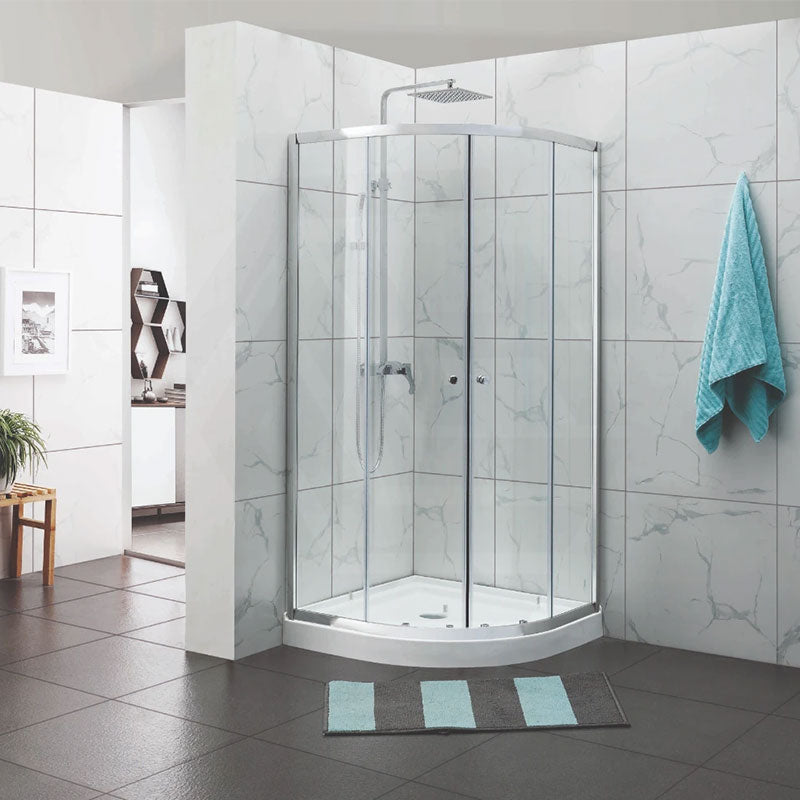

NC046 Curved Sliding Door Shower Screen

Optimize your bathroom space with the NC046 Semi-frameless Curved Sliding Door Shower Screen. Featuring a sleek curved silhouette, premium Australian Standard 6mm tempered glass, and high-durability aluminum framing, it combines modern aesthetic elegance with reliable everyday performance. Complete with flexible wall adjustments and smooth sliding mechanics.

Curved Space-Saving Design 6mm AUS/NZ Standard Glass Height 2000mm 20mm Wall Adjustment Chrome & Black Finishes Reversible Installation

Feature Highlights

Aesthetics & Space

Elegant Curved Design & 2000mm Height

The NC046 features a smooth, space-enhancing curved contour that maximizes floor space efficiency while adding a sophisticated, architectural focal point to your bathroom layout.

Standing at an impressive 2000mm high, it offers superior splash containment and an open, luxurious feel that complements modern interior trends effortlessly.

Safety Standards

6mm AUS/NZ Standard Tempered Glass

Engineered for utmost safety and durability, the screen is built from 6mm thick toughened safety glass that fully complies with strict Australian and New Zealand building standards (AUS/NZ).

An optional nano-coating treatment is available to provide hydrophobic, anti-stain protection, making water droplets slide off easily and keeping glass cleaning to a minimum.

Performance

Smooth Sliding Rollers & Easy-Hung Style

Experience effortless entry every time. The screen utilizes precision smooth-moving rollers paired with an easily-hung style mechanism for a whisper-quiet, frictionless sliding action.

The high-durability #6463 aluminum extrusions provide robust structural support while maintaining a sleek, semi-frameless visual profile.

⚙️ Please Note: All shower screens use AS/NZS 2208 certified toughened safety glass. While rare, spontaneous breakage is a recognised characteristic of tempered glass and may occur due to installation stress, impact, or natural material stress. Professional installation recommended.

Product Information

MODEL
Product Model	NC046-800 / NC046-900 / NC046-1000 / NC046B-800 / NC046B-900 / NC046B-1000
Screen Style	Semi-Frameless Curved Sliding Door
DIMENSIONS & ADJUSTMENT
Height	2000mm
Wall Adjustment	20mm wall channel adjustment on each side to adapt to out-of-plumb walls
Orientation	Reversible installation (can be set up for left or right-hand entry)
MATERIAL & FINISH
Glass Type	6mm Safety Toughened / Tempered Glass (Complies with AS/NZS 2208 building standards)
Frame & Hardware	High-grade #6463 durable aluminium extrusions
Hardware Finishes	Chrome / Matt Black
Glass Protection	Easy-clean Nano-Coating optional (available upon request at an extra charge)
TECHNICAL INFORMATION
Roller System	Smooth-sliding roller mechanism with easy-hung suspension system
KEY FEATURES
Key Features	• Space-saving curved design ideal for compact bathroom layouts. • Australian standard certified safety glass ensures maximum structural security. • Adjustable wall profiles compensate for out-of-square walls during installation.
WARRANTY
Warranty Coverage	5 Years on glass 2 Years on metal fittings 1 Year on plastic parts
Terms & Eligibility	This warranty is non-transferable and covers only the original purchaser. Proper care and maintenance instructions must be strictly followed to ensure eligibility for any warranty claims.
REMINDER
Installation Note	PLEASE ENSURE ALL MEASUREMENTS ARE VERIFIED ON-SITE BEFORE DRILLING OR FIXING WALL CHANNELS. PROFESSIONAL INSTALLATION BY A LICENSED TRADESPERSON IS HIGHLY RECOMMENDED.

Supplier's Gallery

Dimensions

Product Options

Field Guide: Customise Your Semi-Framed Curved Sliding Door Shower Screen

Maximise your bathroom floor space with this space-saving Semi-Framed Curved Sliding Door Shower Screen featuring premium 6mm Australian Standard toughened safety glass. The smooth quadrant curved sliding door design opens effortlessly within its own radius, eliminating outward door swing. Follow our 4-step configuration guide below to choose your frame profile finish, quadrant corner sizing, localized trade installation services, and protective glass treatments.

Tip: Measure along your finished tiled corner walls to ensure your shower base or tray dimensions match the outer frame adjustment range.

🎨 Step 1: Select Your Hardware Profile Finish

Coordinate your curved aluminum frame channels, top track rollers, wall profiles, and door handles to match your existing bathroom fixtures.

🎨 Finish Option

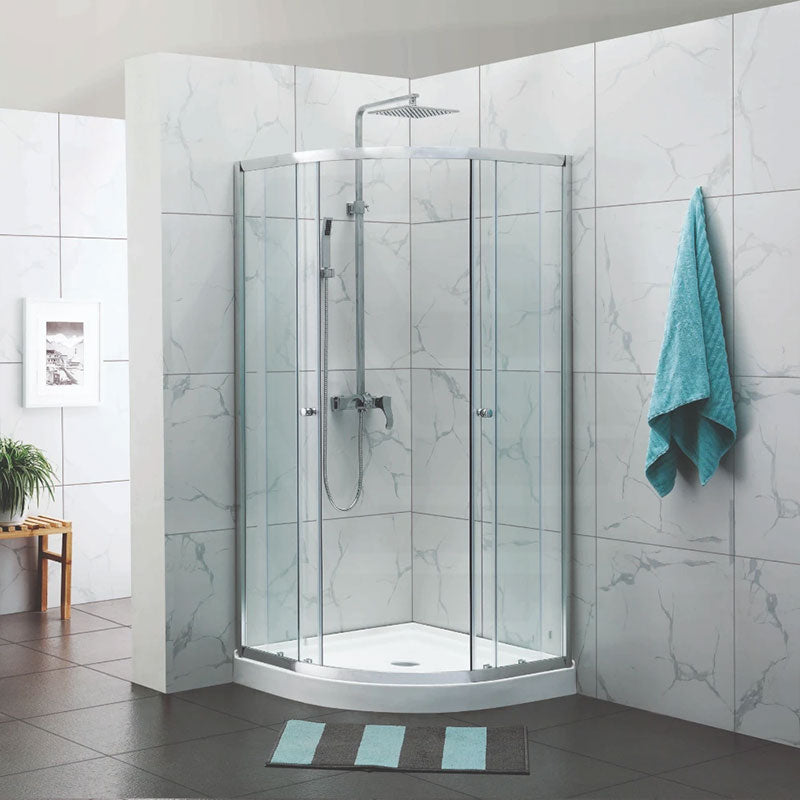

Polished Chrome

Classic high-shine silver aluminum frame and curved sliding track assemblies.

High Reflectivity Timeless Aesthetic Standard Hardware Match

✔ Select Chrome to achieve a bright, traditional aesthetic that coordinates seamlessly with classic bathroom decor.

🎨 Finish Option

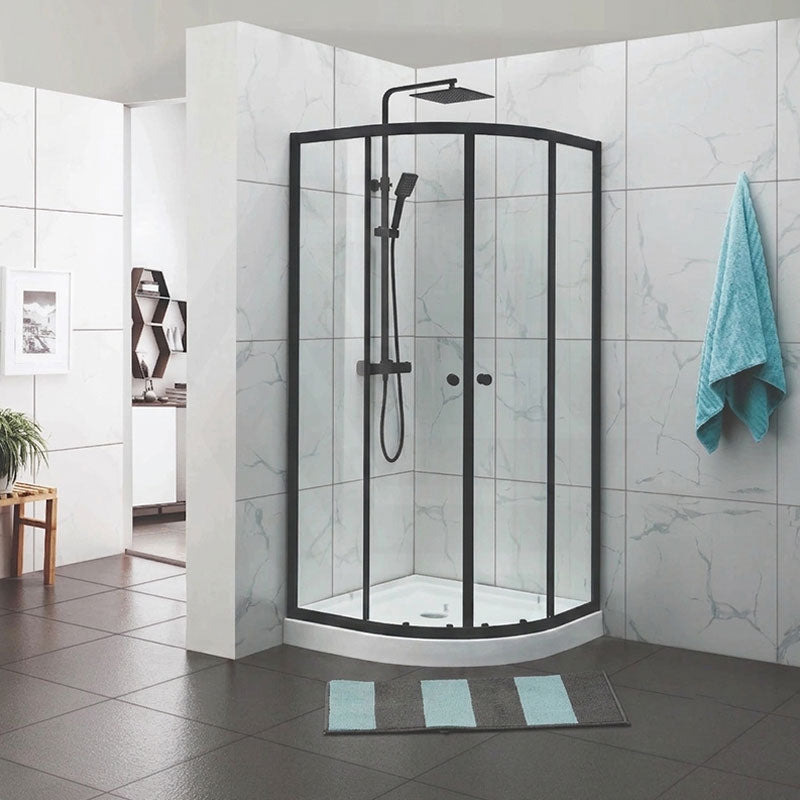

Matt Black

Bold modern architectural matte black powder-coated curved structural frame.

Sharp Graphic Lines Industrial Chic Vibe Anti-Fingerprint

✔ Select Matt Black to define your corner space with striking contemporary lines and dark tapware highlights.

📏 Step 2: Choose Your Corner Dimension Sizing

Select the optimal quadrant footprint to maximize your internal shower area while maintaining compact corner space efficiency.

800x800mm Semi-Framed Curved Sliding Shower Screen Layout

📏 Width Setup

800 x 800mm Layout

Coverage Area: Ultra-compact curved alcove footprint for tight bathroom spaces.

Maximum Space Saver Smooth Curved Glide Great for Ensuite / Powder Room

👉 Best For: Small bathroom layouts or tight corner installations where minimizing room projection is key.

900x900mm Semi-Framed Curved Sliding Shower Screen Layout

📏 Width Setup

900 x 900mm Layout

Coverage Area: Standard residential curved corner configuration with comfortable internal elbow room.

Standard Fit Balanced Access Popular Choice

👉 Best For: Standard family bathrooms replacing traditional corner enclosures with a sleek curved sliding door.

1000x1000mm Semi-Framed Curved Sliding Shower Screen Layout

📏 Width Setup

1000 x 1000mm Layout

Coverage Area: Generous, luxury quadrant arc space offering an expansive showering area.

Spacious Internal Arc Easy Entry Clearance Luxury Feel

👉 Best For: Larger bathrooms where you want the space-saving benefits of a sliding door with maximum internal showering room.

🛠 Step 3: Add Extra Trade Services (📍 Sydney Metro ONLY)

Streamline your project by selecting our fully insured, hassle-free trade support options. *All services available inside the Sydney Metropolitan Area only.

Disassemble Your Old Shower Screen Service

🛠 Trade Option

Disassemble Your Old Screen

Careful technical extraction of your existing outdated glass shield structures or tracking rails.

Tile Scratch Prevention Clean Wall Prepping

➕ Add This to save time on labor. Our technicians cleanly scrape away old silicone residues without damaging back wall tiling.

Installation The NEW Shower Screen Service

🛠 Trade Option

Installation: The NEW Screen

Professional structural anchoring, aligning, and commercial waterproof silicone sealing.

Certified Glaziers 100% Leak-Proof Lock

➕ Add This for complete peace of mind. Ensures the heavy double-hinged swivel action operates perfectly vertically straight.

🛠 Trade Option

Disposal of the OLD Screen

Responsible waste transport and green recycling removal of dangerous heavy glass debris.

Zero Cleanup For You Eco Disposal Handling

➕ Add This to skip stressful tips trips. We completely pack and haul away the old framed units off your property directly.

🚚 Logistics Option

Delivery: Urgent Courier

Priority dispatch line-haul routing handling for immediate emergency site renovation drop-offs.

Fast-Track Schedule Fragile Safety Transit

➕ Add This if your bathroom remodeling timeline is critically tight and you need rapid, secure transit straight to your doorstep.

🧪 Step 4: Upgrade with Premium Nano Coating Treatment

Protect your investment with a specialized hydrophobic glass treatment. You can choose to add this service to your configuration below.

EnduroShield Nano Coating Hydrophobic Treatment Visual Effect

🧪 Glass Protection Treatment

Add Nano Coating Treatment (+3 Business Days)

Applies a permanent, microscopic hydrophobic protective seal that causes water to turn to tight beads and roll off instantly.

Repels Hard Water & Soap Scum Cuts Cleaning Time by 90% Prevents Glass Etching & Scaling

👉 Highly Recommended: Opt-in to keep your glass crystal clear for years while wiping away limescale effortlessly. Note: Since this requires professional factory baking and application, it adds +3 business days to total processing time.

🧭 Quick Selection Service Packages Summary

Your Location & Project Objective	Recommended Selection Combination
Interstate Supply‑Only (Outside Sydney Metro)	Chrome/Black + Sizing per base + Skip Extra Services + Standard Glass
Full Turn‑Key Remodeling Pack (Sydney Metro)	Any Profile Color + Required Corner Size + Disassemble + Install + Disposal + Nano Treatment
Fast DIY Replacement Project (Sydney Metro)	Any Profile Color + Sizing per base + Urgent Delivery Courier + Standard Glass

📌 Important Technical Specifications & Compliance Guidelines

Toughened Safety Glass Compliance: All panels are crafted from heavy-duty certified 6mm thick architectural safety toughened glass matching Australian Standards (AS/NZS 2208).
Trade Services Terms Note: Disassembly, installation, and waste recycling handling options are strictly bounded to the **Sydney Metropolitan area**. Regional orders choosing these will be adjusted to supply-only freight.
Always ensure your certified tradesperson checks that the corner walls are plumb and square within the channel adjustment tolerance before anchoring side profiles.

Instruction

NC046 Resources

Technical drawings, floor angle installation layouts, and step-by-step assembly instructions for the NC046 series.

📐

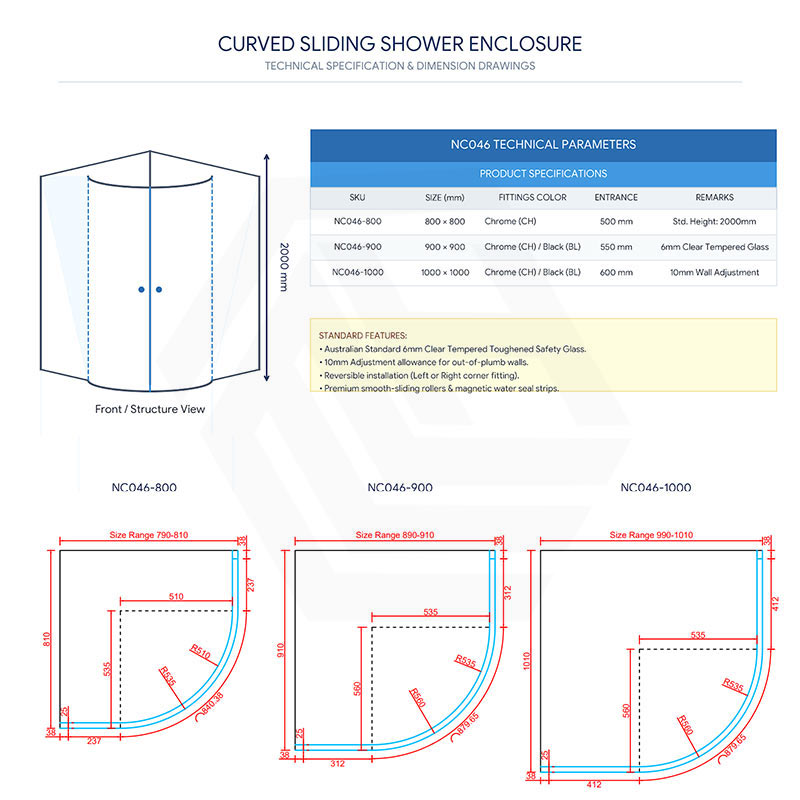

NC046 Technical Drawing (PDF)

Standard line drawings, key physical dimensions, and structural specifications for planning and verification.

View Drawing

📐

NC046 Floor Angle Drawing (PDF)

Specialized dimensional schematic for floor-mount angle configurations, rough-in positions, and clearance details.

View Angle Drawing

🛠️

NC046 Installation Manual (PDF)

Step-by-step guidance covering mounting, connection procedures, sealing requirements, and operational checks.

Download Manual

Note: Prior to commencing installation, always cross-reference the on-site layout with the official specification sheet and floor drawings. All plumbing works must be completed by a licensed plumber to comply with regional standards and preserve the product warranty.

About Brand

Covey frameless shower screen beside a seaside view

🚿

Shower Screen Expertise

With over 20 years of experience, Covey focuses on designing and supplying high-quality shower screens built for performance and durability.

📏

Professional Installation

Covey offers expert measurement and installation services, ensuring precise fit and a hassle-free experience from start to finish.

🧱

Durable Glass Construction

Using high-quality tempered glass and reliable components, Covey products are designed for safety, strength, and long-term use.

📦

Local Support

With manufacturing capabilities overseas and warehouses in Sydney and Brisbane, Covey supports both large-scale and small orders with efficient delivery.

Explore the Covey collection

Shop Covey products →

Browse the full Covey range and use filters to find the right product, finish and style.

Shipping

Delivery timeframes, order processing, pickup and delivery charges — everything about getting your order to you.

Last updated 15 July 2026

Free shipping to Greater Sydney, online orders

0–3 days to process and dispatch your order

2–7 days metro delivery after dispatch

Free shipping
Delivery times
Order processing
Extra charges
Missed delivery
Pick up
Out of stock
Need help

01 Free shipping

Free shipping to Greater Sydney on online orders only.
Large or bulky items to other regions require a freight quote. Start a Live Chat (chat icon, bottom right) and we'll quote it for you.

02 Standard delivery timeframes

Destination	Delivery time after dispatch
Metro areas (all states)	2–7 business days
Regional areas (all states)	7–15 business days

Timeframes are estimates counted in business days from the date of dispatch, not from the date of order. The actual delivery time depends on the courier carrying your parcel.

03 Order processing & delays

You'll receive an Order Confirmation Email as soon as your order goes through.
Please allow 0–3 business days for processing — in most cases we dispatch within the first 24 hours.
Once your order ships, we'll email you the tracking information.

Some delays sit outside our control:

Public holidays, peak periods and sale periods add time. During Christmas and major sales, please allow extra.
High order volumes may occasionally extend the timeframe slightly.

Remote areas: all courier networks have limits. For some remote postcodes couriers will not deliver to the door — your parcel goes to a local depot or Australia Post outlet, and you'll be notified to collect it.

04 Additional delivery charges

Charges beyond the base delivery fee may apply where:

Stair or lift access is needed — if the delivery point isn't directly accessible, or goods must be carried up stairs, this adds labour and time.
The location is difficult to reach, or two or more people are needed to deliver safely.

These are assessed case by case, quoted and agreed with you before we proceed, and billed on a separate invoice. No surprises.

05 Missed deliveries

If nobody is available at the delivery address during the agreed window, a re-delivery fee may apply.
Any extra charge will be communicated and agreed with you before a second attempt.
Please make sure you or an authorised person is present at the agreed time.

06 Pick up

We'll get your order ready as soon as possible and email you a notification with your booking number and collection details.
Please wait for that email before coming in.

MyHomeware — North Rocks Showroom & Warehouse
Unit E, 21 Loyalty Road, North Rocks NSW 2151

Warehouse hours: Mon–Fri 9:00am–5:00pm · Sat 10:00am–4:00pm

Pickup and exchange are not available on Sundays.

07 Out-of-stock & back orders

Stock moves quickly, and occasionally an item shows as available but sells out just after you order. If that happens, we'll email you with three options:

Cancel back-ordered itemsWe remove them and send everything else straight away.
Cancel the whole orderImmediate store credit, or a refund.
Wait for replenishmentWe hold your order until stock arrives.

For back-ordered items, the 365-day return period runs from the date you receive the item — not the date of purchase.

Returns & refunds Our full returns terms — the 365-day return window, restocking fees, and custom-order exclusions — live on one dedicated page. Read the Returns & Refund Policy →

Need help? Online Chat is the fastest way

Due to high call volumes, phone waiting times may be longer than usual. Our Online Chat team is available for extended hours and can usually help more quickly with delivery timeframes, freight quotes, stock checks and order updates.

Live Chat — chat icon, bottom right of your screen · Fastest response
Order & delivery enquiries — support@myhomeware.com.au
Pre-sales enquiries — sales@myhomeware.com.au

All enquiries are replied to within 1 business day.

Curved shower screens FAQs

Why are curved shower screens so popular?

Curved shower screens are popular for their soft, elegant aesthetics and ability to create a more spacious feel in the bathroom. Their rounded shape eliminates sharp corners, enhancing safety and flow. Also, frameless or semi-frameless models complement both modern and traditional designs while offering a luxurious, spa-like visual appeal.

How to measure for a curved shower screen?

To measure for a radius shower screen, take the widest point of the base curve (usually from wall to wall) and the depth from the wall to the furthest point of the curve. Also, measure the height required. Ensure the curve screen's arc matches your shower tray's radius precisely.

Does a walk-in curved shower screen save space?

Yes, walk-in curved shower screens can save your space by eliminating the need for doors that swing open. The arc design efficiently fits into corners, making the most of compact layouts while offering comfortable entry and reducing splashing in smaller bathrooms.

Which is better: curved vs. straight shower doors?

Curved shower doors are ideal for saving space and adding visual softness, while straight shower doors offer a cleaner, minimalist look and are easier to align with flat walls. The best option depends on your bathroom's layout, style preference, and whether space-saving or streamlined design is the priority.
