Arch Fluted Frameless Shower Screen Fixed Panel 10mm Tempered Glass 700/800/900/1000x2200mm - Variant Colour Fittings

SKU: CVP022N-700

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

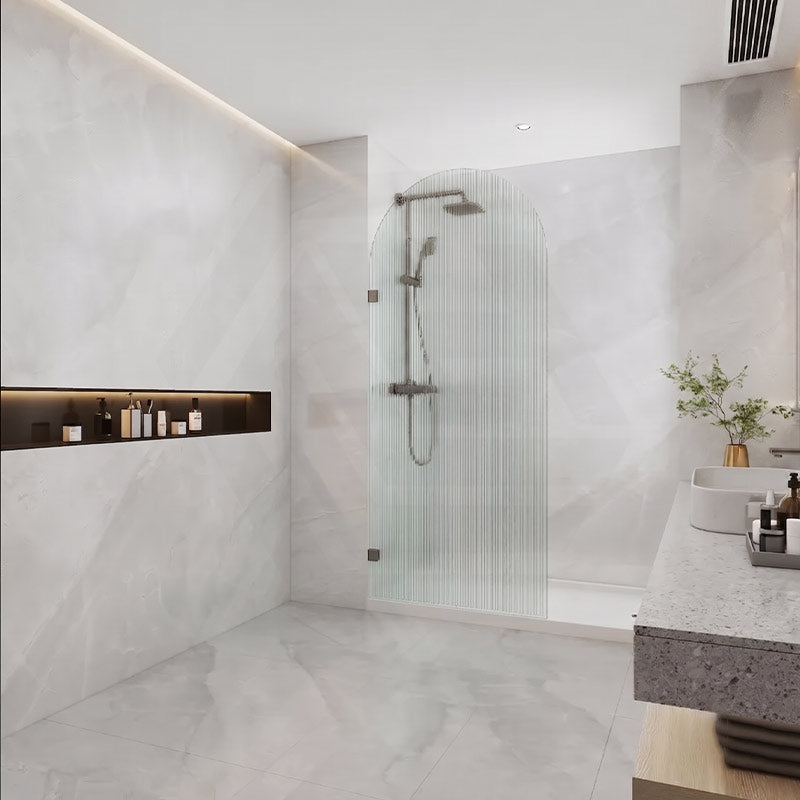

CVP022N Top Arch Fluted Frameless Walk-in Single Panel

Elevate your bathroom into a modern masterpiece with the Top Arch Fluted Walk-In Shower Screen. Combining a striking arched silhouette with textured Narrowline fluted glass and slim U-shape wall channel mounting, this 10mm Australian Standard toughened glass panel delivers elegant visual texture, subtle privacy, and seamless open-plan functionality.

Soft Curved Top Arch 10mm Fluted Narrowline Glass U-Shape Wall Channel Mount Standard 2200mm Height 7 Hardware Finish Colors AUS/NZ Safety Standard

Frameless Walk-in Single Panel Top Arch Fluted Glass UB

Feature Highlights

Aesthetics & Privacy

Top Arch Contour & Fluted Narrowline Texture

The gentle top arch profile introduces soft geometric curves that break away from traditional sharp corners, creating a dramatic architectural focal point in modern wet rooms.

Featuring vertical Narrowline fluted glass grooves, it diffuses light gracefully across the shower space while providing semi-private visual coverage for an ambient, luxury spa experience.

Top Arch Contour and Fluted Narrowline Glass Detail

Safety & Durability

10mm Australian Standard Toughened Safety Glass

Engineered for maximum structural stability and peace of mind, the panel is crafted from heavy-duty 10mm thick tempered safety glass manufactured to strict Australian and New Zealand building standards.

Standing at a full 2200mm height, it offers superior vertical splash protection while maintaining an airy, light-filled environment within your bathroom layout.

10mm Australian Standard Toughened Safety Glass Detail

Hardware & Mounting

U-Shape Wall Channel System with 7 Finish Colors

Secured with a streamlined U-shape wall bracket channel system, this installation method provides continuous, reliable support along the wall edge while preserving a frameless, clean floating presentation.

Hardware components are available in 7 designer color finishes, allowing effortless coordination with your bathroom tapware, shower heads, and accessory accents.

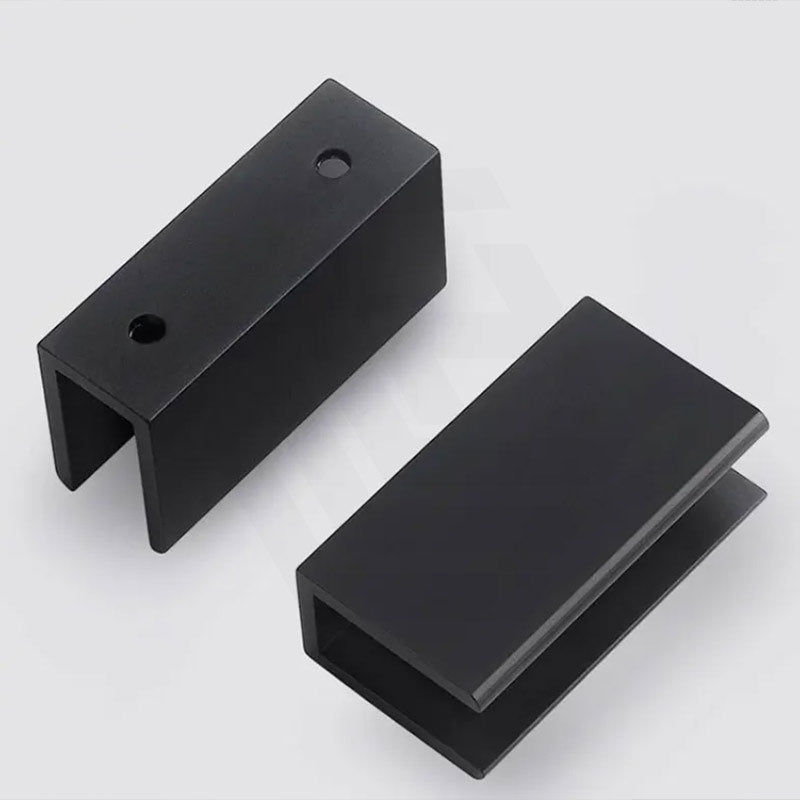

U Shape Wall Channel Mount and Hardware Finish Options

⚙️ Please Note: All shower screens use AS/NZS 2208 certified toughened safety glass. While rare, spontaneous breakage is a recognised characteristic of tempered glass and may occur due to installation stress, impact, or natural material stress. Professional installation recommended.

Product Information

MODEL
Product Name	CVP022N Top Arch Fluted / Narrowline Single Panel
Screen Style	Frameless Walk-in Top Arch Single Panel Shower Screen
DIMENSIONS & CUSTOMISATION
Standard Height	2200mm
Available Widths	700mm / 800mm / 900mm / 1000mm
Custom Size	Customisation for different sizes is accepted upon request
MATERIAL & FINISH
Glass Type	10mm Fluted / Narrowline Tempered Glass (Complies with Australian Standards)
Hardware Material	High-grade #304 Stainless Steel with U-Shape Wall Bracket installation setup
Fitting Finishes	Available in 7 distinct finish options (refer to Color Option chart)
Glass Protection	Easy-clean Nano-Coating optional (available upon request at an extra charge)
KEY FEATURES
Key Features	• Distinctive top arch design combined with elegant fluted/narrowline texture for modern architectural appeal. • Extended 2200mm height provides superior splash protection and luxury proportions. • Premium #304 stainless steel U-bracket provides robust support and seamless fixing.
WARRANTY
Warranty Coverage	5 Years on glass 2 Years on metal fittings 1 Year on plastic parts
Terms & Eligibility	This warranty is non-transferable and covers only the original purchaser. Proper care and maintenance instructions must be strictly followed to ensure eligibility for any warranty claims.
REMINDER
Installation Note	DUE TO THE HEIGHT (2200MM) AND WEIGHT OF 10MM TOUGHENED GLASS, ENSURE ADEQUATE STRUCTURAL BLOCKING BEHIND WALLS BEFORE INSTALLING WALL BRACKETS. PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED.

Supplier's Gallery

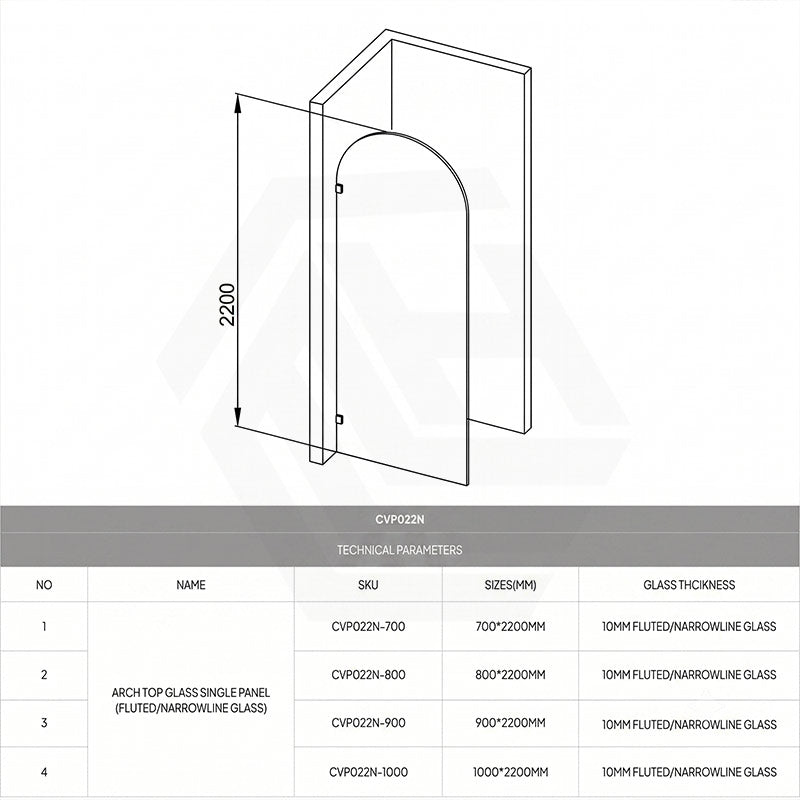

Dimensions

Product Options

Field Guide: Customise Your Frameless Walk-In Top Arch Fluted Glass Shower Screen

Infuse architectural flair into your walk-in shower with this luxury Frameless Walk-In Single Panel Top Arch Fluted Narrowline Shower Screen. Featuring 10mm Australian Standard toughened fluted glass and anchored securely with structural U-shape wall channel brackets, it creates a striking visual focal point while diffusing light and offering elevated privacy. Follow our 4-step configuration guide below to choose your channel finish, panel width, localized trade installation services, and protective glass treatments.

Tip: Ensure your mounting wall tile surface is straight and vertical before securing the U-shape wall bracket channel.

🎨 Step 1: Select Your Hardware Profile Finish

Match your slimline U-shape wall channel brackets and base fittings to your bathroom tapware and architectural hardware finish.

🎨 Finish Option

Polished Chrome

Classic mirror-like, high-shine stainless steel U-shape channel brackets.

High Reflectivity Timeless Aesthetic Universal Match

✔ Select Chrome for a bright, classic look that blends seamlessly into standard traditional or modern decors.

🎨 Finish Option

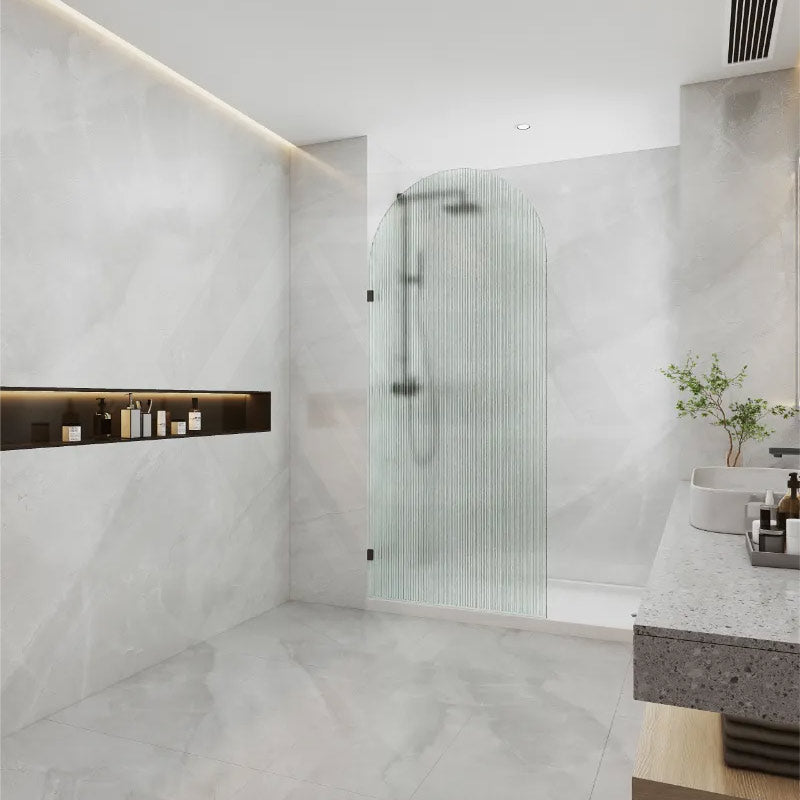

Matt Black

Contemporary architectural matte black channels highlighting the arched silhouette.

Bold Contrast Industrial Chic Anti-Fingerprint

✔ Select Matt Black to frame the fluted arched glass with striking, high-contrast modern outlines.

🎨 Finish Option

Brushed Nickel

Warm brushed metal accent offering a soft, contemporary matte metallic sheen.

Soft Warm Tone Smudge-Resistant Modern Luxury

✔ Select Brushed Nickel for a subtle, elegant look that bridges warm and cool color palettes effortlessly.

🎨 Finish Option

Gunmetal Grey

Deep metallic charcoal hue bringing an edgy, modern industrial aesthetic.

Dark Metallic Sophisticated Vibe Unique Accent

✔ Select Gunmetal for an upscale, industrial accent that stands out beyond standard black hardware.

🎨 Finish Option

Brushed Gold

Rich satin brass tone adding instant warmth and opulent hotel-style luxury.

Rich Satin Tone Opulent Elegance Statement Piece

✔ Select Brushed Gold to accentuate the arched top curve with rich, luxurious metallic warmth.

🎨 Finish Option

Light Gold

Delicate champagne gold finish delivering subtle warmth and understated elegance.

Champagne Tone Subtle Glamour Refined Appearance

✔ Select Light Gold for a refined, modern gold accent that keeps your space bright and welcoming.

🎨 Finish Option

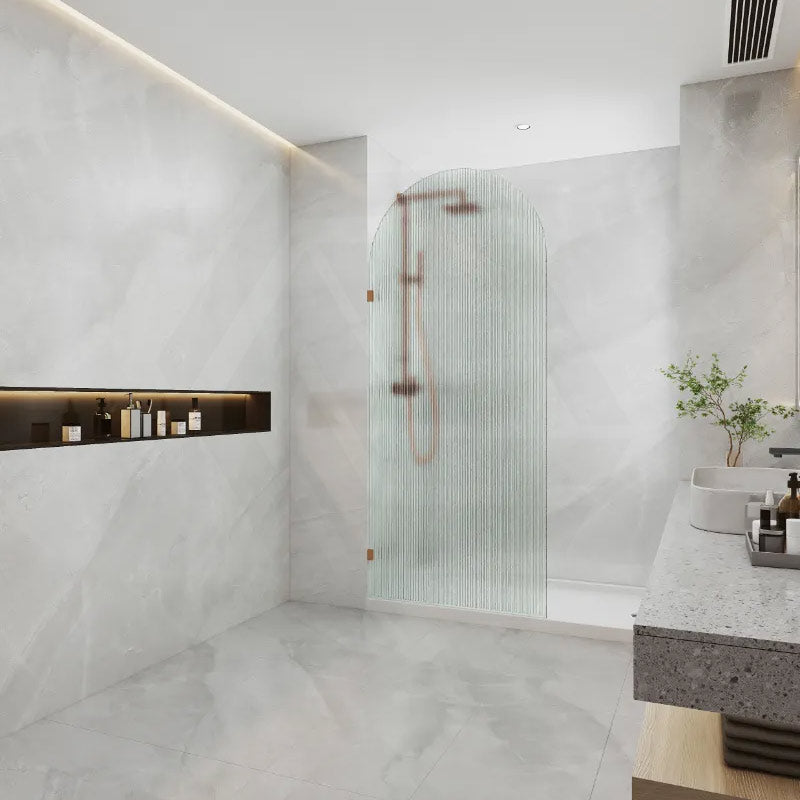

Brushed Bronze

Deep copper-infused bronze finish perfect for organic, rustic, or vintage spaces.

Rustic Warmth Deep Metallic Tone Organic Luxury

✔ Select Brushed Bronze to infuse rich texture and earthy sophistication into your bathroom design.

📏 Step 2: Choose Your Panel Width

Select the optimal panel width to balance walk-in entry opening clearance with effective spray deflection.

📏 Width Setup

700mm Panel Width

Coverage Area: Ultra-slim arched panel maximizing walk-in entrance access.

Ultra-Compact Reach Fluted Texture Detail Ideal for Small Alcoves

👉 Best For: Compact ensuite layouts or tight walk-in spaces requiring maximum entryway opening clearance.

📏 Width Setup

800mm Panel Width

Coverage Area: Streamlined walk-in glass width providing balanced spray deflection.

Space-Saving Setup Arched Statement Versatile Fit

👉 Best For: Medium-small bathrooms looking for a stylish architectural focal point with minimal footprint.

📏 Width Setup

900mm Panel Width

Coverage Area: Standard residential walk-in width balancing easy access with effective water shielding.

Standard Proportion Fluted Privacy Popular Choice

👉 Best For: Standard family bathrooms wanting an elegant architectural arched feature panel.

📏 Width Setup

1000mm Panel Width

Coverage Area: Extended arched panel offering enhanced splash control and luxury presence.

Enhanced Coverage Grand Arch Profile Resort Luxury Feel

👉 Best For: Larger wet room environments or overhead power showers requiring wider glass shield protection.

🛠 Step 3: Add Extra Trade Services (📍 Sydney Metro ONLY)

Streamline your project by selecting our fully insured, hassle-free trade support options. *All services available inside the Sydney Metropolitan Area only.

Disassemble Your Old Shower Screen Service

🛠 Trade Option

Disassemble Your Old Screen

Careful technical extraction of your existing outdated glass shield structures or tracking rails.

Tile Scratch Prevention Clean Wall Prepping

➕ Add This to save time on labor. Our technicians cleanly scrape away old silicone residues without damaging back wall tiling.

Installation The NEW Shower Screen Service

🛠 Trade Option

Installation: The NEW Screen

Professional structural anchoring, aligning, and commercial waterproof silicone sealing.

Certified Glaziers 100% Leak-Proof Lock

➕ Add This for complete peace of mind. Ensures the heavy double-hinged swivel action operates perfectly vertically straight.

🛠 Trade Option

Disposal of the OLD Screen

Responsible waste transport and green recycling removal of dangerous heavy glass debris.

Zero Cleanup For You Eco Disposal Handling

➕ Add This to skip stressful tips trips. We completely pack and haul away the old framed units off your property directly.

🚚 Logistics Option

Delivery: Urgent Courier

Priority dispatch line-haul routing handling for immediate emergency site renovation drop-offs.

Fast-Track Schedule Fragile Safety Transit

➕ Add This if your bathroom remodeling timeline is critically tight and you need rapid, secure transit straight to your doorstep.

🧪 Step 4: Upgrade with Premium Nano Coating Treatment

Protect your investment with a specialized hydrophobic glass treatment. You can choose to add this service to your configuration below.

EnduroShield Nano Coating Hydrophobic Treatment Visual Effect

🧪 Glass Protection Treatment

Add Nano Coating Treatment (+3 Business Days)

Applies a permanent, microscopic hydrophobic protective seal that causes water to turn to tight beads and roll off instantly.

Repels Hard Water & Soap Scum Cuts Cleaning Time by 90% Prevents Glass Etching & Scaling

👉 Highly Recommended: Opt-in to keep your glass crystal clear for years while wiping away limescale effortlessly. Note: Since this requires professional factory baking and application, it adds +3 business days to total processing time.

🧭 Quick Selection Service Packages Summary

Your Location & Project Objective	Recommended Selection Combination
Interstate Supply‑Only (Outside Sydney Metro)	Any Hardware Finish + Sizing per panel + Skip Extra Services + Standard Glass
Full Turn‑Key Remodeling Pack (Sydney Metro)	Any Hardware Finish + Required Panel Width + Disassemble + Install + Disposal + Nano Treatment
Fast DIY Replacement Project (Sydney Metro)	Any Hardware Finish + Sizing per panel + Urgent Delivery Courier + Standard Glass

📌 Important Technical Specifications & Compliance Guidelines

Toughened Safety Glass Compliance: All panels are crafted from heavy-duty certified 10mm thick Fluted Narrowline architectural safety toughened glass matching Australian Standards (AS/NZS 2208).
Trade Services Terms Note: Disassembly, installation, and waste recycling handling options are strictly bounded to the **Sydney Metropolitan area**. Regional orders choosing these will be adjusted to supply-only freight.
Always ensure your certified installer checks wall stud locations or timber backing behind wall tiles prior to anchoring the structural U-shape channel brackets.

Instruction

CVP022 Resources

Technical drawings, height dimensions, and step-by-step installation instructions for the CVP022 series.

📐

CVP022A&N Technical Drawing (PDF)

Dimensional specifications and height parameters for pre-installation site planning and structural alignment.

View Drawing

🛠️

CVP022 Installation Manual (PDF)

Step-by-step assembly guidance, wall mounting procedures, hardware fixings, and final testing steps.

Download Manual

Note: Prior to commencing installation, always cross-reference the site measurements with the technical drawing. All installation works must be carried out by a licensed professional to ensure compliance with building standards and manufacturer specifications.
