How to Replace a Toilet Cistern Step-by-Step Guide

Replacing a toilet cistern might seem like a daunting task, but it's one of the most manageable plumbing projects a homeowner can tackle. Whether your cistern is leaking, toilet keeps running constantly, or simply old and inefficient, a new one can make a significant difference to your bathroom's functionality and your water bill. In this comprehensive guide, I'll walk you through everything you need to know about replacing your toilet cistern, from understanding what you're working with to completing the installation with confidence.
As a home renovator and DIY enthusiast, I've found that the key to successfully replacing a cistern is preparation and understanding the process beforehand. By following the steps in this guide and taking your time, you'll be able to complete this project yourself without needing to call in an expensive plumber. However, if you encounter unexpected issues or feel uncomfortable at any stage, there's no shame in calling a professional to finish the job.

Getting Started - Tools and Safety

Before you begin replacing your cistern of toilet, you'll need to gather the right tools and materials. The basic tools you'll need include an adjustable wrench, a screwdriver (both flat and Phillips head), a bucket or container to catch water, a sponge or towel, and a new cistern complete with all its internal components. Most modern cisterns come as a complete unit, so you won't need to source individual parts. It's also helpful to have some towels or a drop cloth on hand to protect your bathroom floor from water damage.
Safety is paramount when working with your toilet. First, turn off the water supply to your toilet using the shut-off valve usually found at the base of the cistern. If you can't locate the shut-off valve or it's stuck, you may need to turn off the main water supply to your house. Before you start any work, flush the toilet several times to empty as much water from the cistern as possible. This will minimise the mess and make the job much easier to manage.

Removing the Old Cistern

Now that you've turned off the water supply, it's time to remove the old cistern. Start by flushing the toilet one more time to ensure the cistern is as empty as possible. Then, use your sponge or towel to soak up any remaining water in the cistern. Next, you'll need to disconnect the water supply line. Look under the cistern where the water supply enters, unscrew the connection using your adjustable wrench, and let any remaining water drain into your bucket.
For close-coupled cisterns (the type sitting on top of the toilet bowl), you'll need to unbolt the cistern from the pan. These bolts are usually located at the base of the cistern on both sides. Use your adjustable wrench to remove these bolts, starting with one side and then the other. As you loosen the bolts, be prepared for some water to spill out. Once the bolts are removed, carefully lift the cistern away from the pan. You may need to wriggle it gently to break the seal. Be careful not to drop the cistern as this could damage your toilet pan.

Preparing for Installation

With the old cistern removed, take a moment to inspect the top of your toilet pan. You'll see the mounting points where the cistern toilet was bolted down. Clean these areas thoroughly, removing any debris, mineral deposits, or old rubber seals. A clean surface is essential for creating a proper seal with your new cistern. If you notice any cracks or damage to the pan's mounting surface, this may require professional attention, as a damaged pan could complicate the installation.
Before installing the new cistern, check that all the internal components are in place. These typically include the fill valve (which controls water entry), the flush valve (which releases water when you flush), and the float mechanism (which signals when the lavatory tank is full). Most new cisterns come fully assembled, but it's worth checking the manufacturer's instructions to ensure everything is correctly positioned. Having the manufacturer's instructions on hand is invaluable during this process.

Installing Your New Cistern

Position your new cistern carefully over the toilet pan, aligning the bolt holes. Gently lower the cistern onto the pan, making sure it's level. You may find it helpful to have someone assist you with this step, as cisterns can be heavy and awkward to handle. Once the cistern is in position, insert the bolts through the bolt holes. Tighten these bolts gradually, alternating between sides to ensure even pressure. Don't overtighten them, as this could crack the cistern or the pan. They should be snug but not excessively tight.
Next, reconnect the water supply line. Align the connection point and screw it in hand-tight first, then use your adjustable wrench to tighten it further. Don't over-tighten this connection, as it can damage the fitting. Now turn the water supply back on and check for leaks. Look carefully around the bolts and the water supply connection for any signs of dripping. A slow leak at the water supply connection can often be tightened slightly to resolve it. If you notice a leak from under the cistern or from the bolts, you may need to turn off the water again, remove the cistern, and inspect the seal or bolt tightness.

Testing and Adjustments

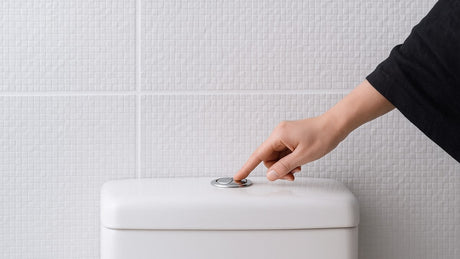

Once you've reconnected the water supply and checked for leaks, fill the cistern by flushing the toilet. Listen for the fill valve to stop your toilet constantly running once the cistern is full, which should take just a few minutes. Then test the flush by pushing the flush button. The toilet cistern repair should include emptying it completely and refill within a reasonable time. If the flush seems weak, check that the float arm isn't interfering with the flush mechanism and ensure the fill valve is fully open.
If you notice the cistern is running continuously or won't stop filling, the most likely culprit is the flush valve not sealing properly. Check that the flush valve seal is properly seated in the valve body and that there's no debris blocking it. In some cases, you may need to adjust the fill valve to prevent the water level from rising too high, which can cause water to overflow into the overflow tube. It could also be a problem such as toilet not filling with water. Most fill valves have an adjustment screw or clip that controls the water level—consult your cistern's instruction manual for guidance. Many Australian plumbers recommend descaling your cistern annually to prevent mineral buildup and ensure optimal performance.
