Azzurra WELS 6 Star Dual Flush Wall Faced Cal Pedestal Pan with Inwall Cistern & Push Button with Drainwave P-Trap Only 520x360x390mm - Gloss White

SKU: AZ-OK-9LSDU+AZ-OK-0032+AZ-OK-0155E

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

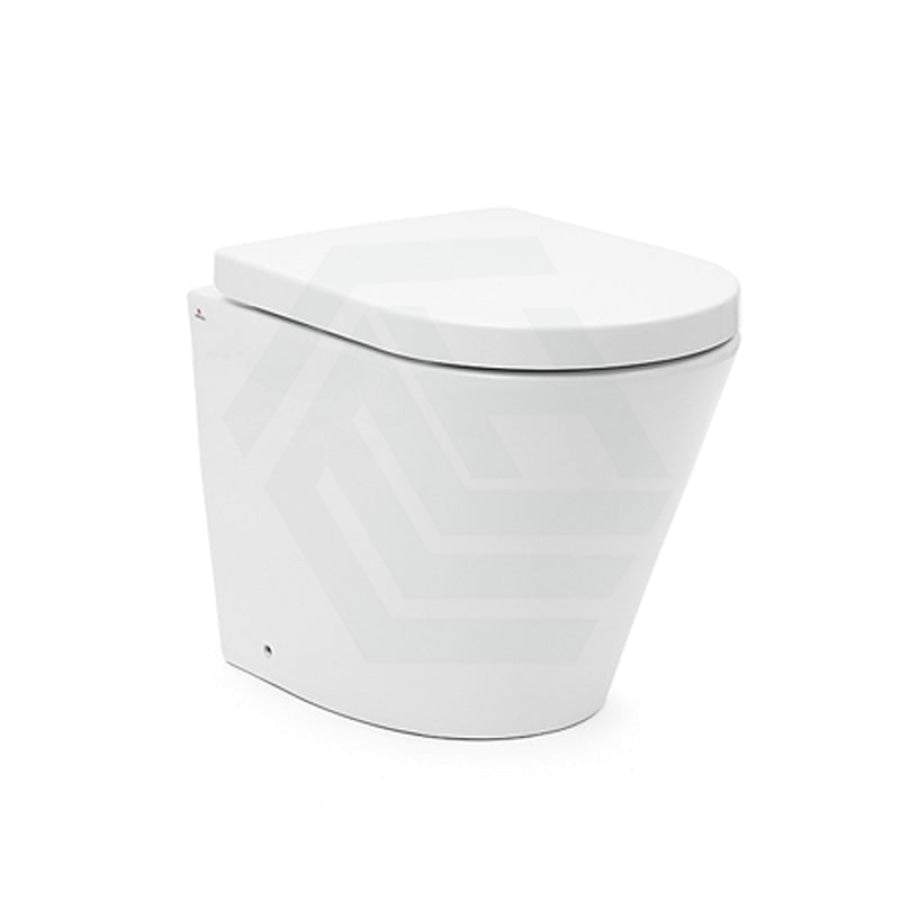

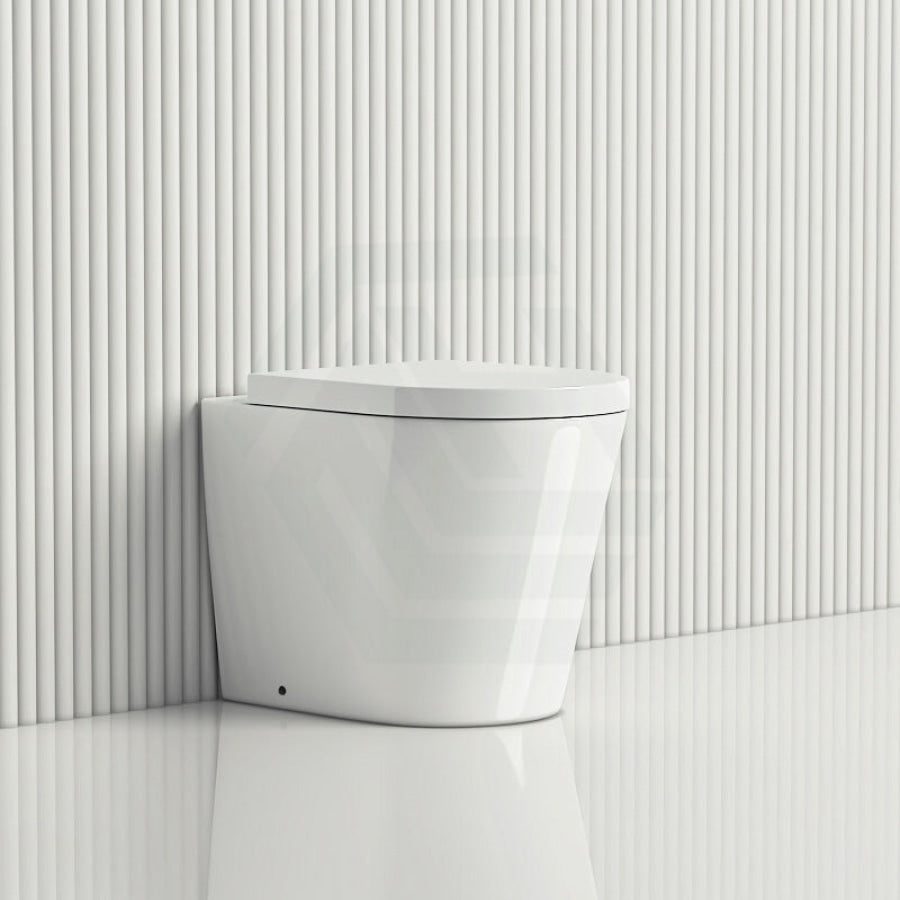

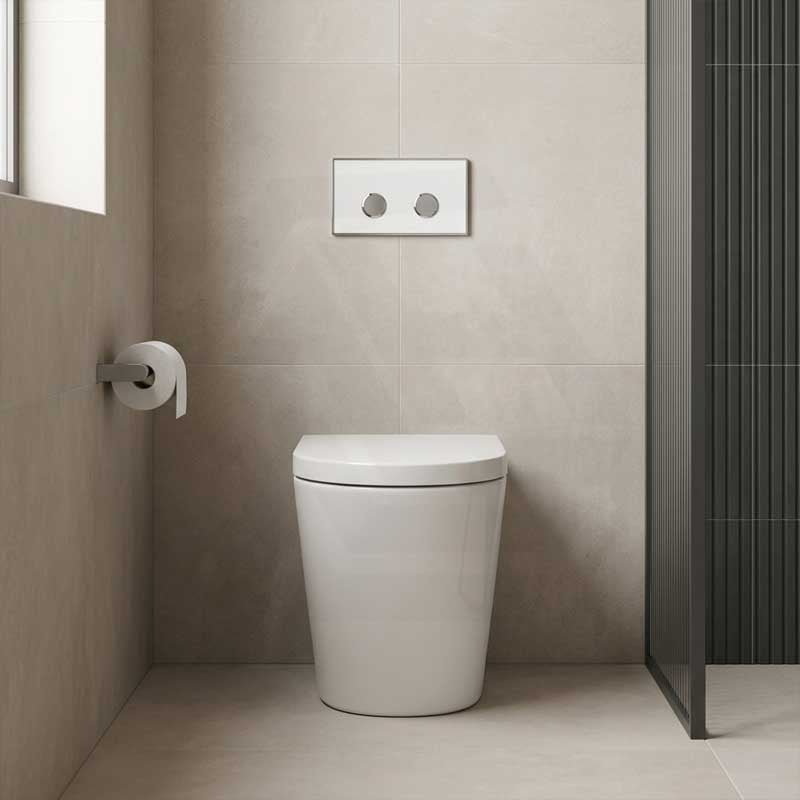

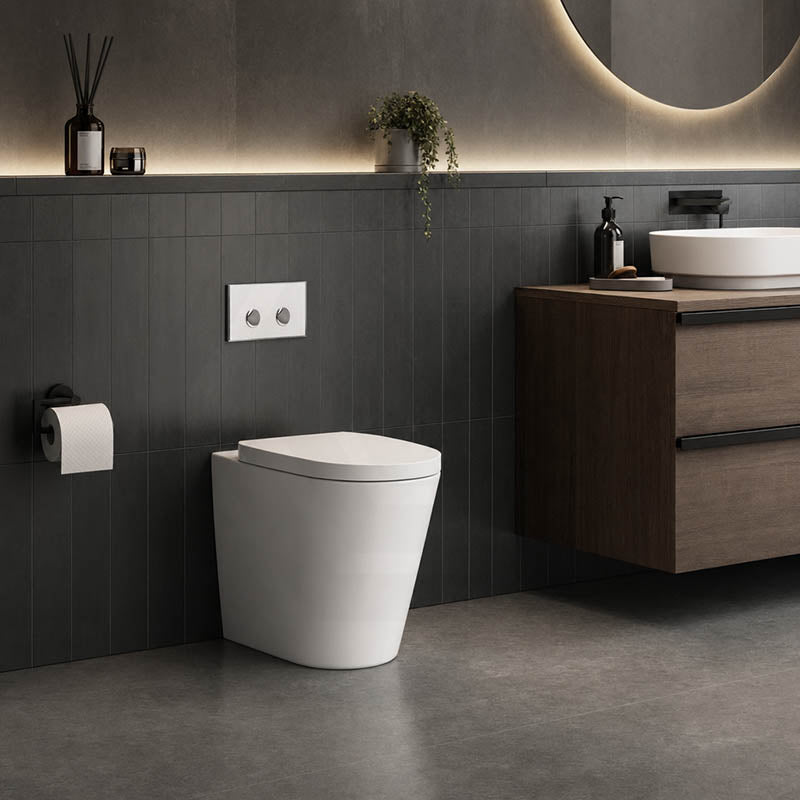

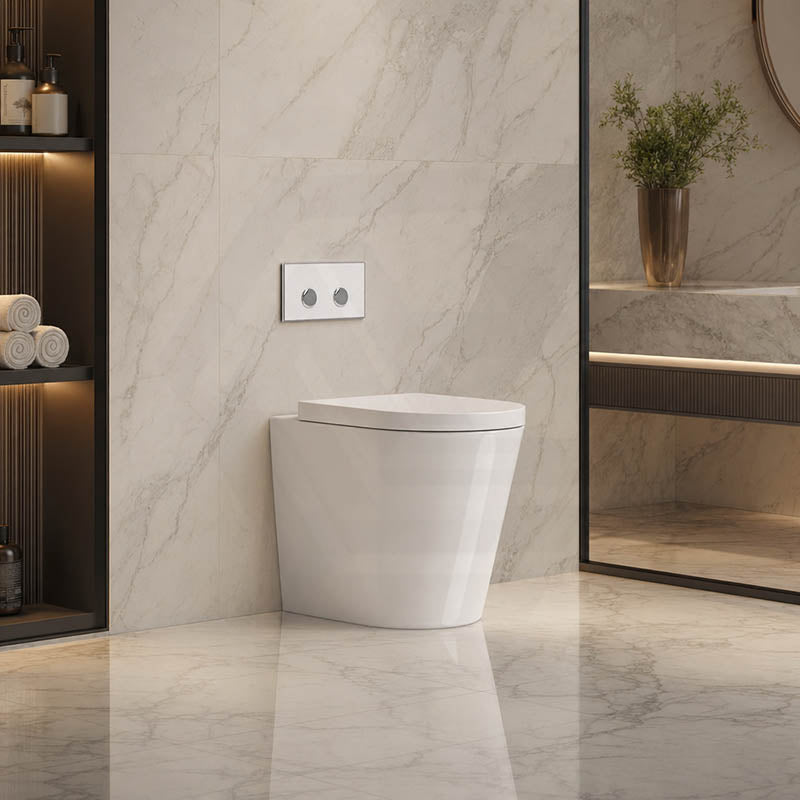

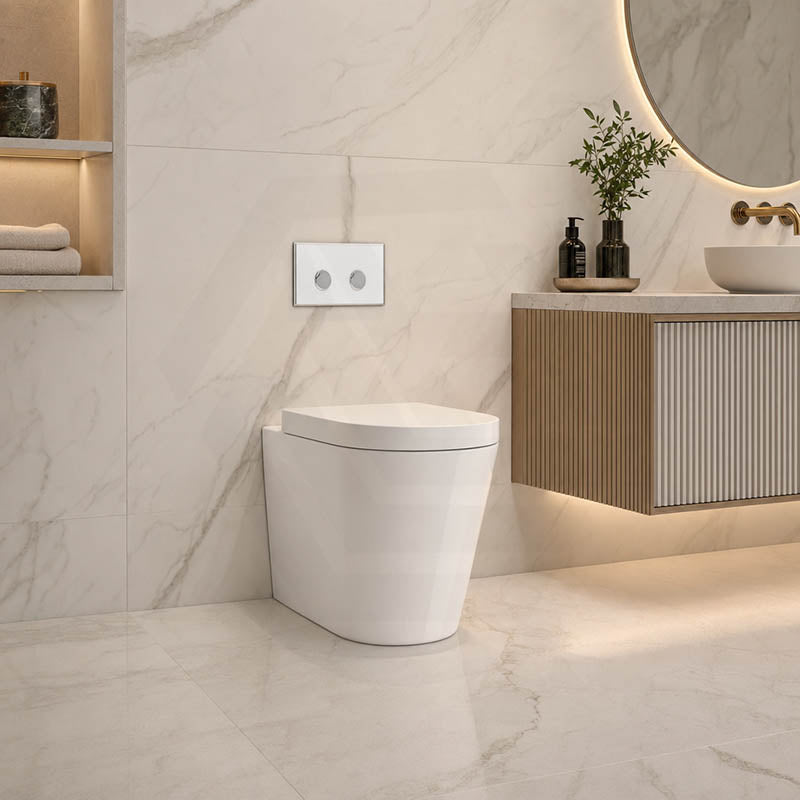

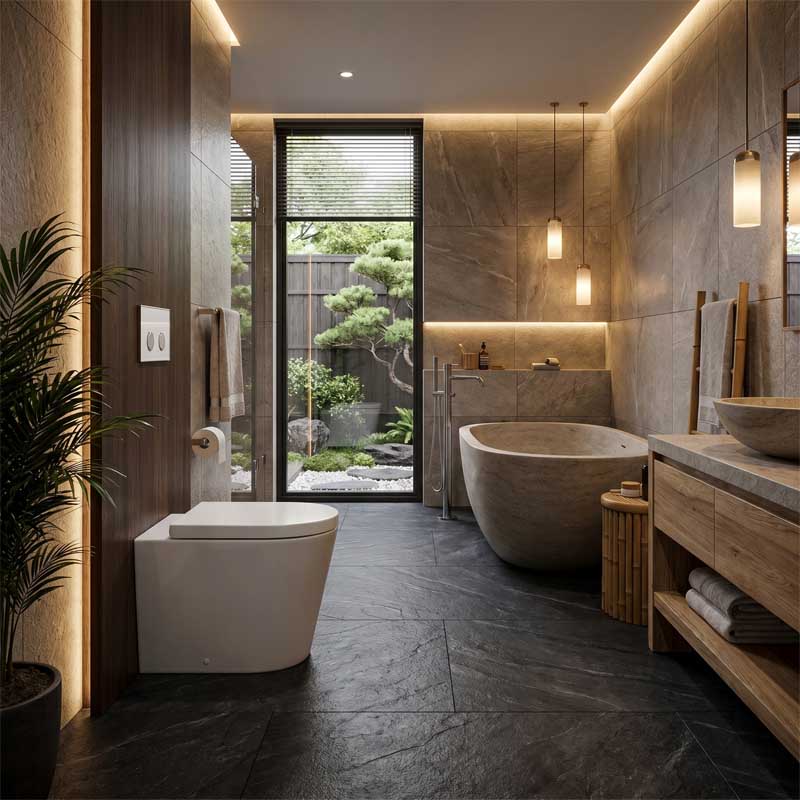

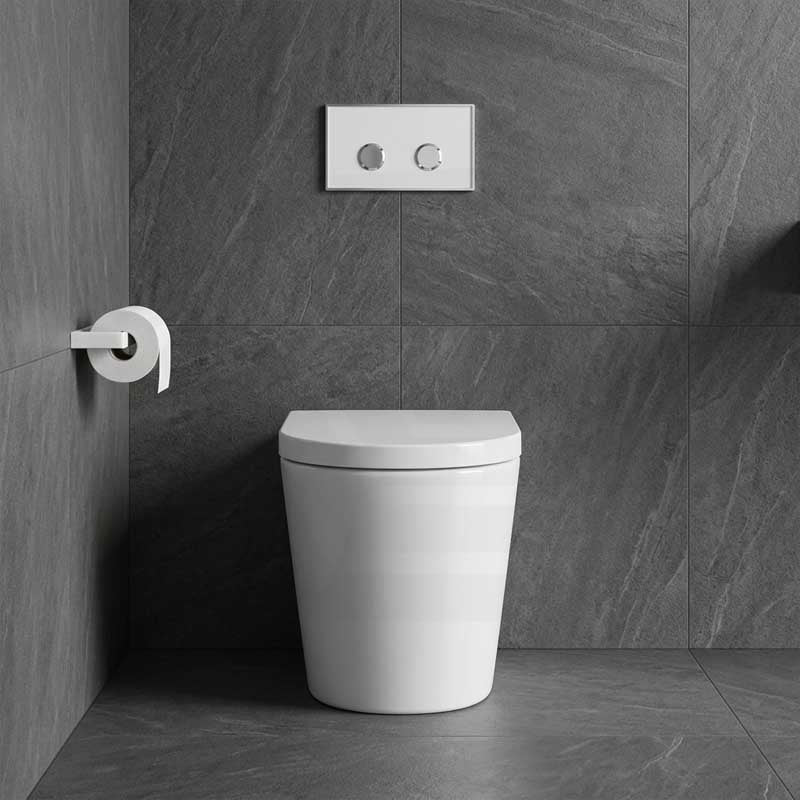

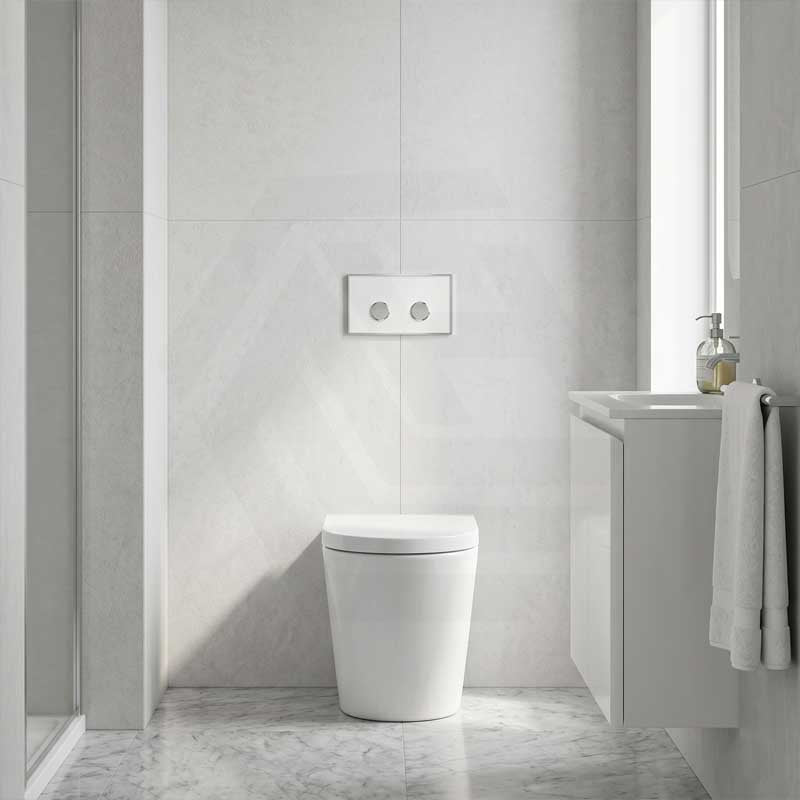

Wall Faced Cal Pedestal Pan with Inwall Cistern

Designed for modern bathrooms and high-efficiency water saving performance, this inwall toilet package combines a premium vitreous china toilet pan, concealed inwall cistern, and optional Australian-designed Drainwave Sewer Dosing Unit. Available in both 4-star standard(No Drainwave) and 6-star Drainwave configurations, it offers flexible performance options with sleek European styling, easy cleaning, and reliable everyday functionality.

4 Star / 6 Star Options Optional Drainwave System Concealed Inwall Cistern Soft Close Seat

Premium Finish

Full Vitreous China with Easy Clean Gloss Surface

Crafted from full vitreous china construction, the toilet pan offers excellent strength, durability, and long-lasting performance for residential bathrooms.

The smooth gloss white ceramic finish helps reduce surface build-up while making everyday cleaning easier and maintaining a fresh modern appearance.

Comfort

Heavy Duty Quick Release Soft Close Seat

The included heavy duty toilet seat features a soft close mechanism for quieter operation and improved long-term durability in daily use.

Quick release functionality allows easy seat removal for faster deep cleaning and improved hygiene maintenance around the pan.

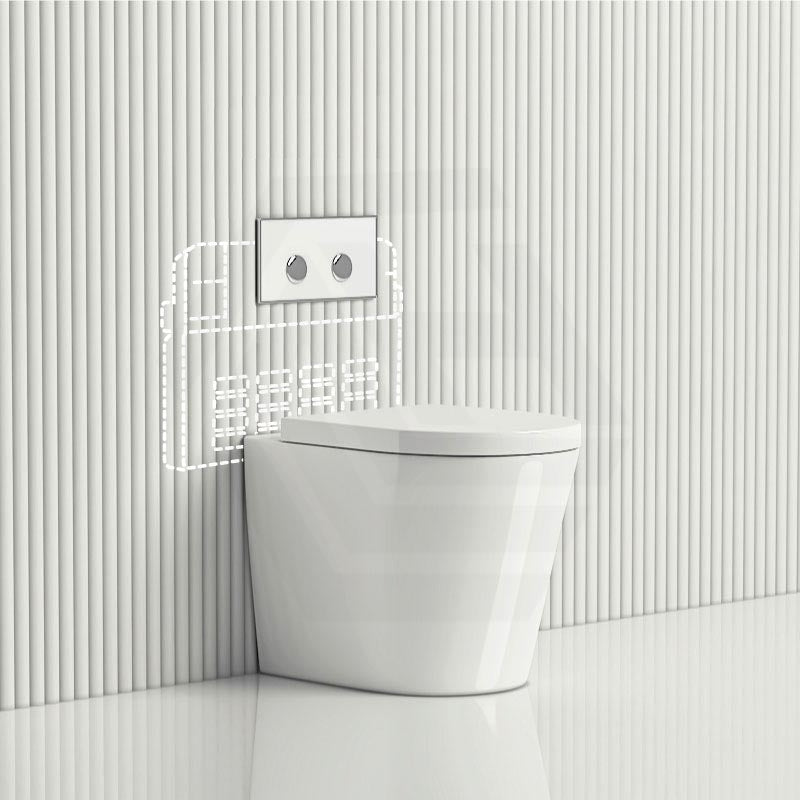

Hidden Design

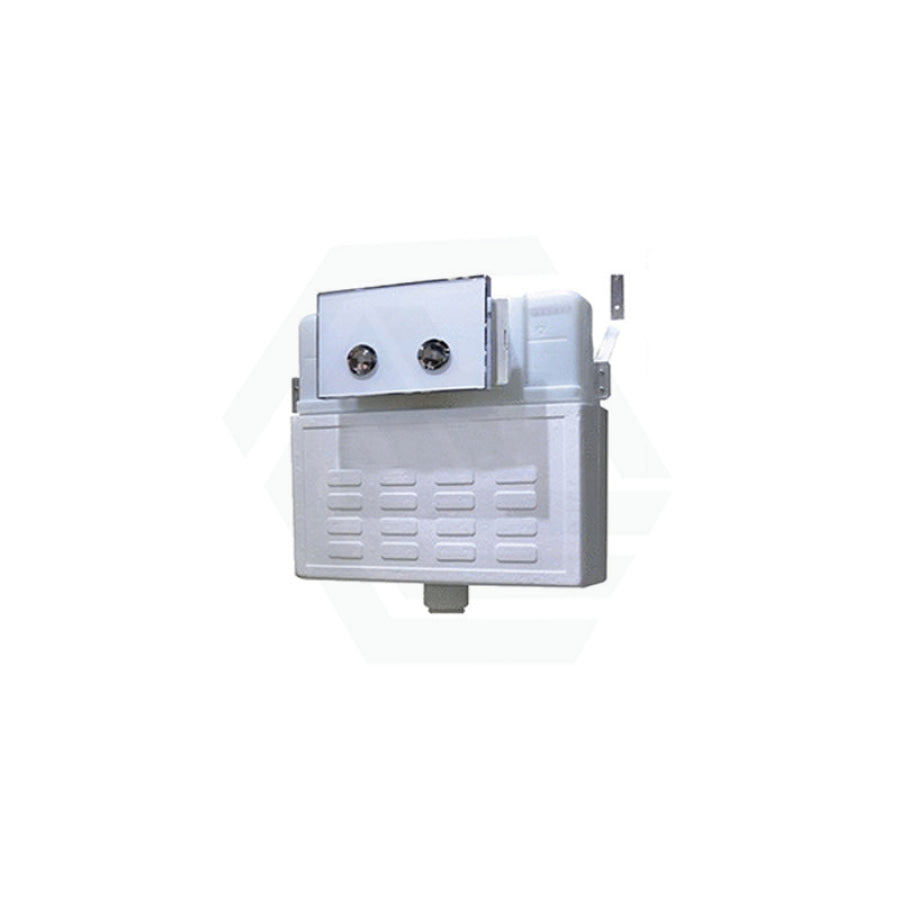

One-Piece Insulated Inwall Cistern System

The concealed inwall cistern features a one-piece tank design that improves structural strength while creating a cleaner minimalist bathroom appearance.

Its insulated tank helps prevent condensation and moisture build-up behind the wall, supporting better long-term installation performance.

Flexible Performance

Optional Drainwave System for 6 Star Efficiency

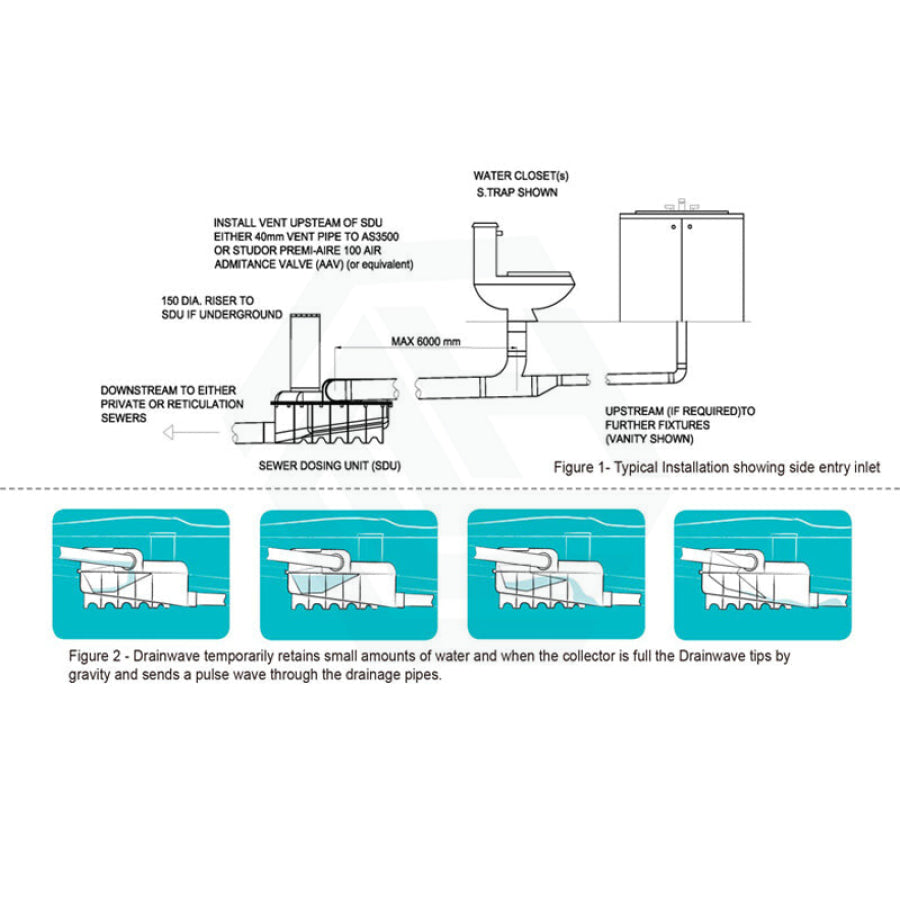

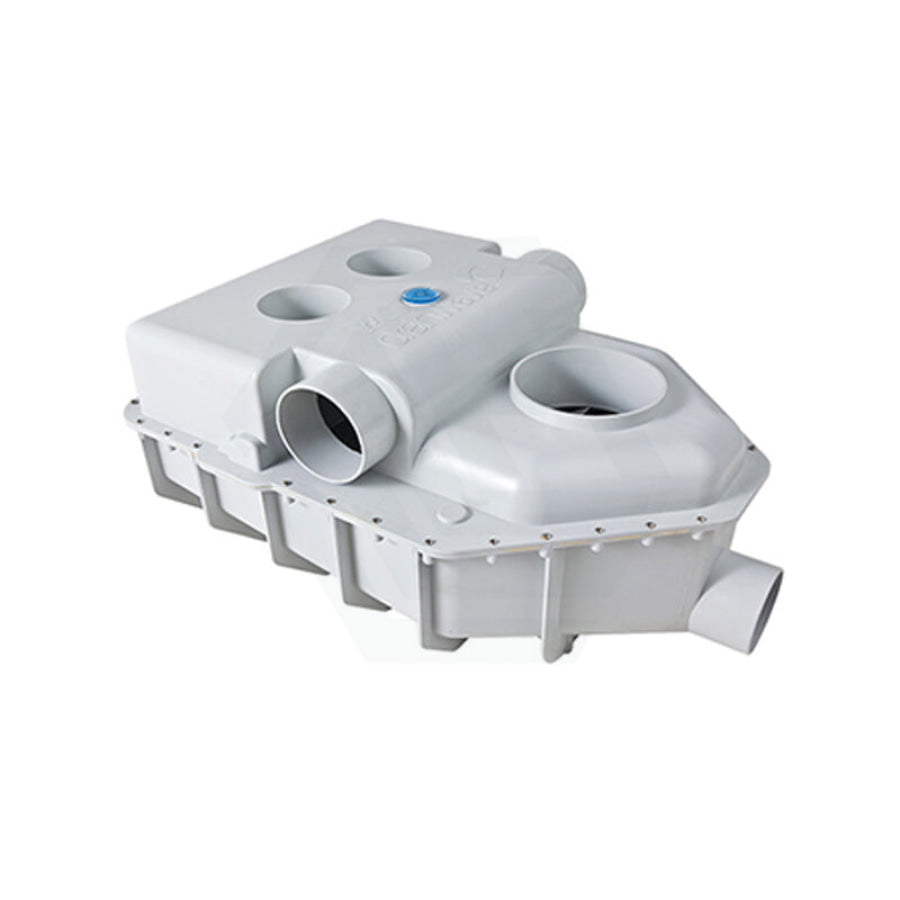

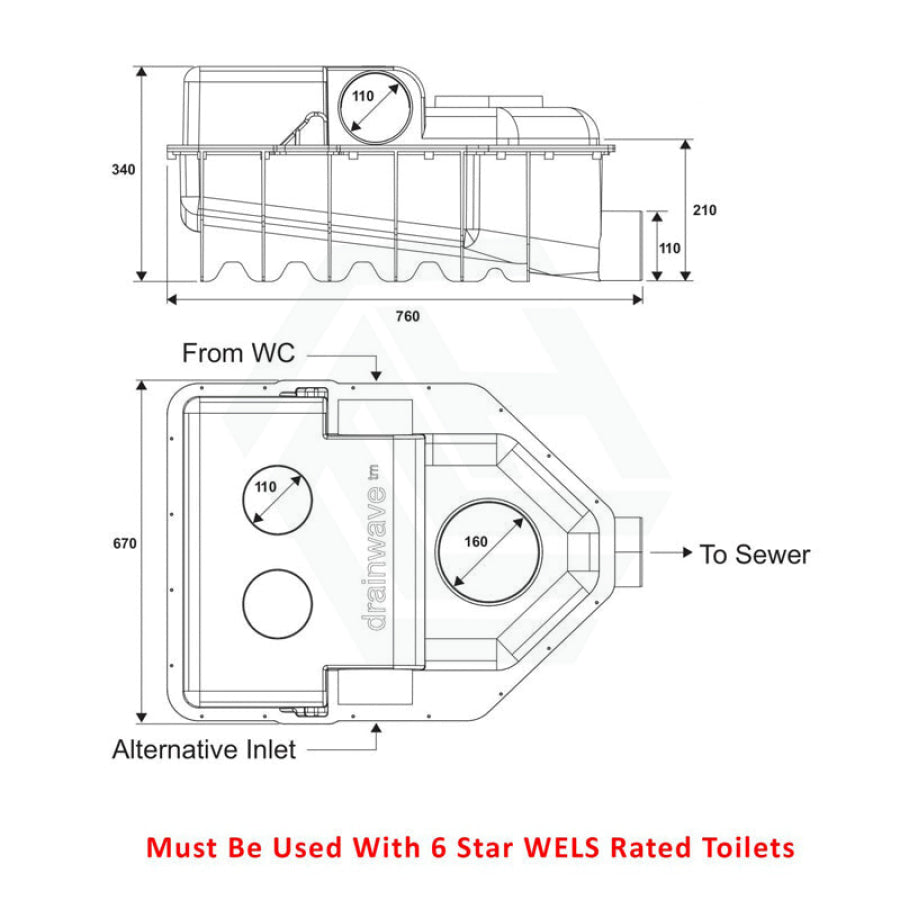

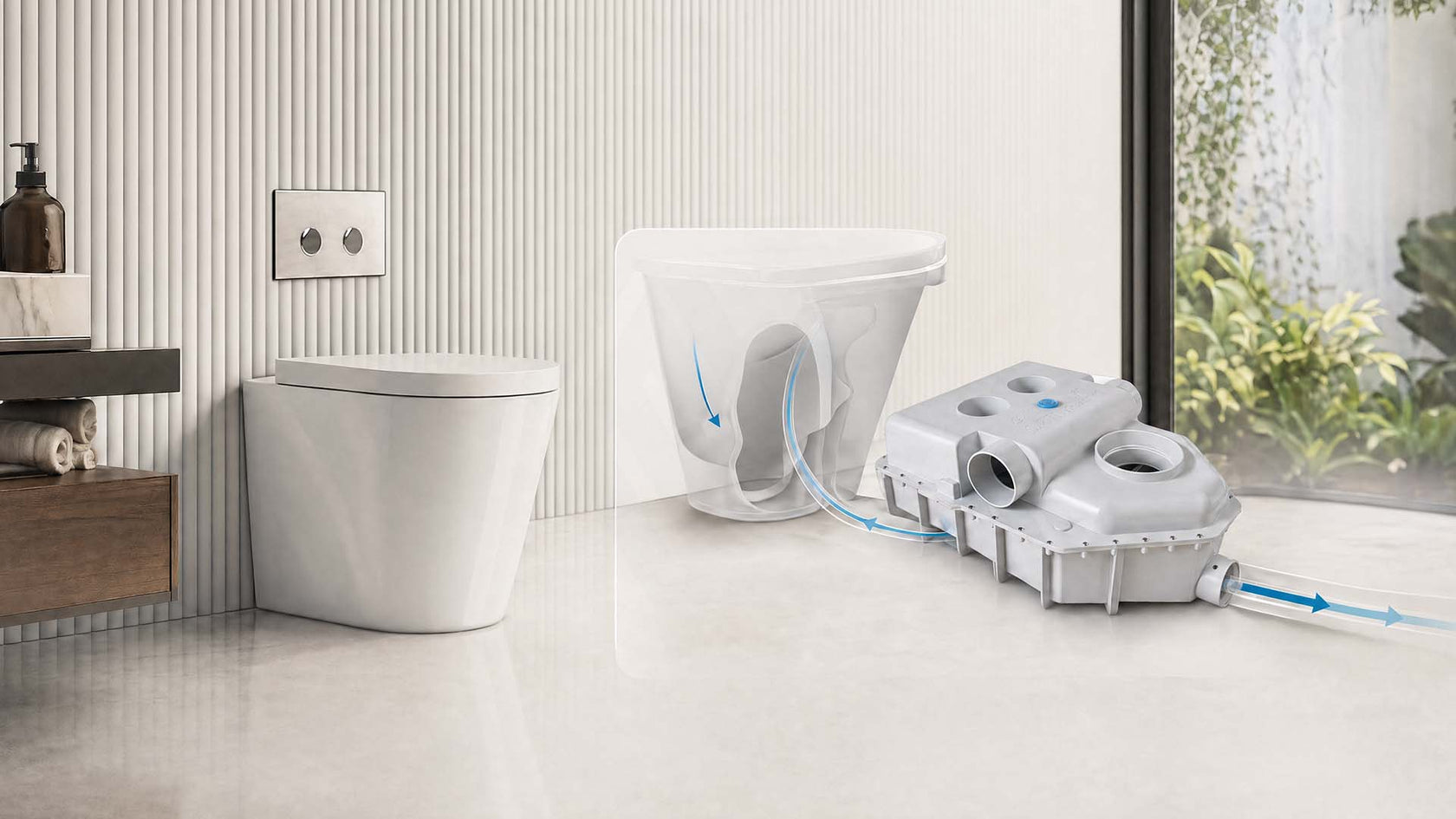

6-star version option with the Australian-designed Drainwave Sewer Dosing Unit for enhanced flushing performance.

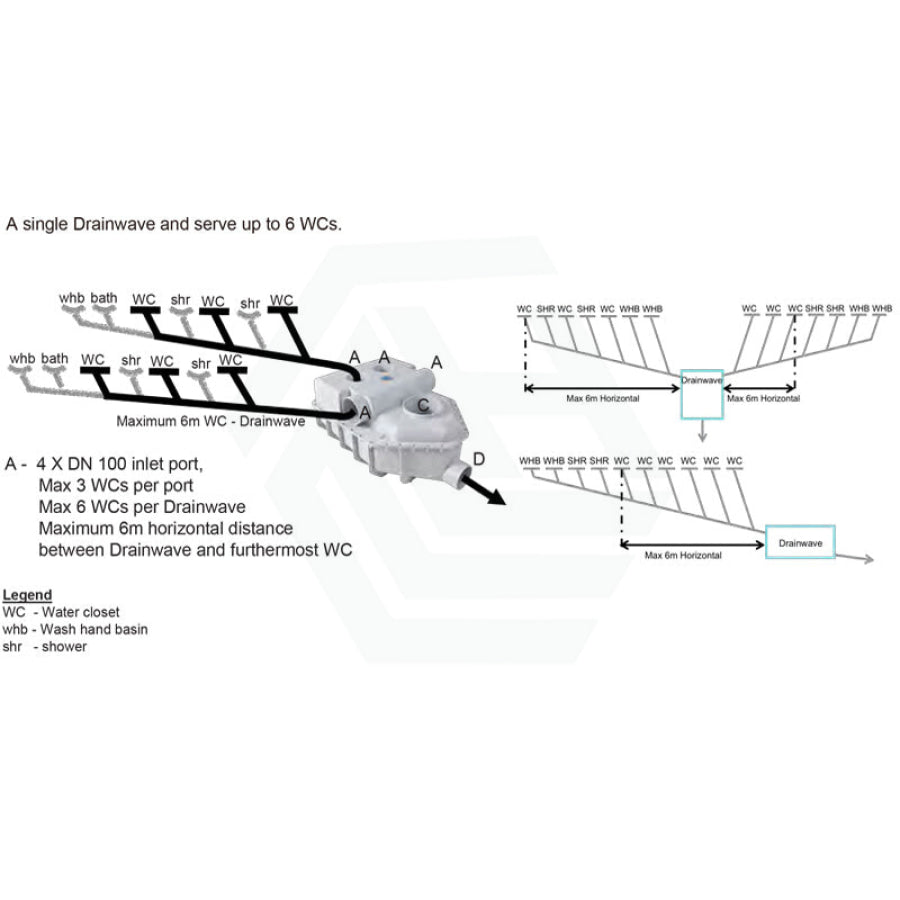

Capable of serving up to 6 toilets, the Drainwave system improves drain carry efficiency, accelerates waste flow, and helps reduce waste build-up in the drain line.

Note: To achieve a 6-star rating for your toilet, it must be installed with the Drainwave. A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.

Product Information

MODEL
Main Product Code	6 Star Inwall Toilet Package: AZ-OK-9LSDU+AZ-OK-0032+AZ-OK-0155E 4 Star Inwall Toilet Package: AZ-OK-0032+AZ-OK-0155E
MATERIAL & FINISH
Material	- Toilet: Full Vitreous China Construction - Inwall Cistern: ABS (Satin chrome colour) - Drainwave Sewer Doing Unit: PVC Construction
Colour	White
Finish	Easy Clean Ceramic Gloss Finish
TECHNICAL INFORMATION
Toilet Seat	Quick Release Heavy Duty Soft Close Seat

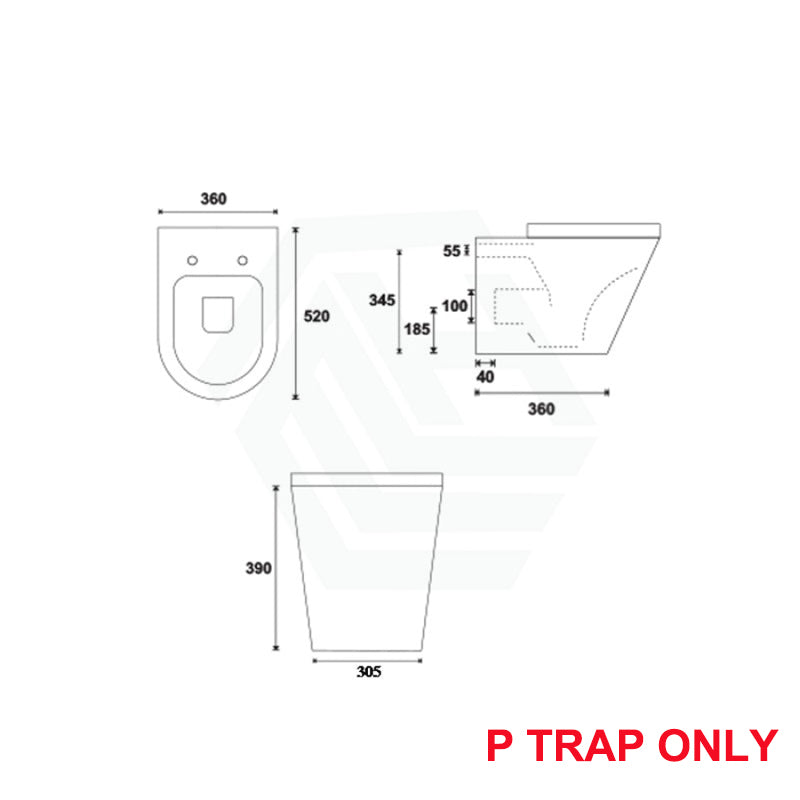

Toilet Dimensions	520x360x390mm -- A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.
Option P-Trap	TSP-P180: 180mm roughing-in

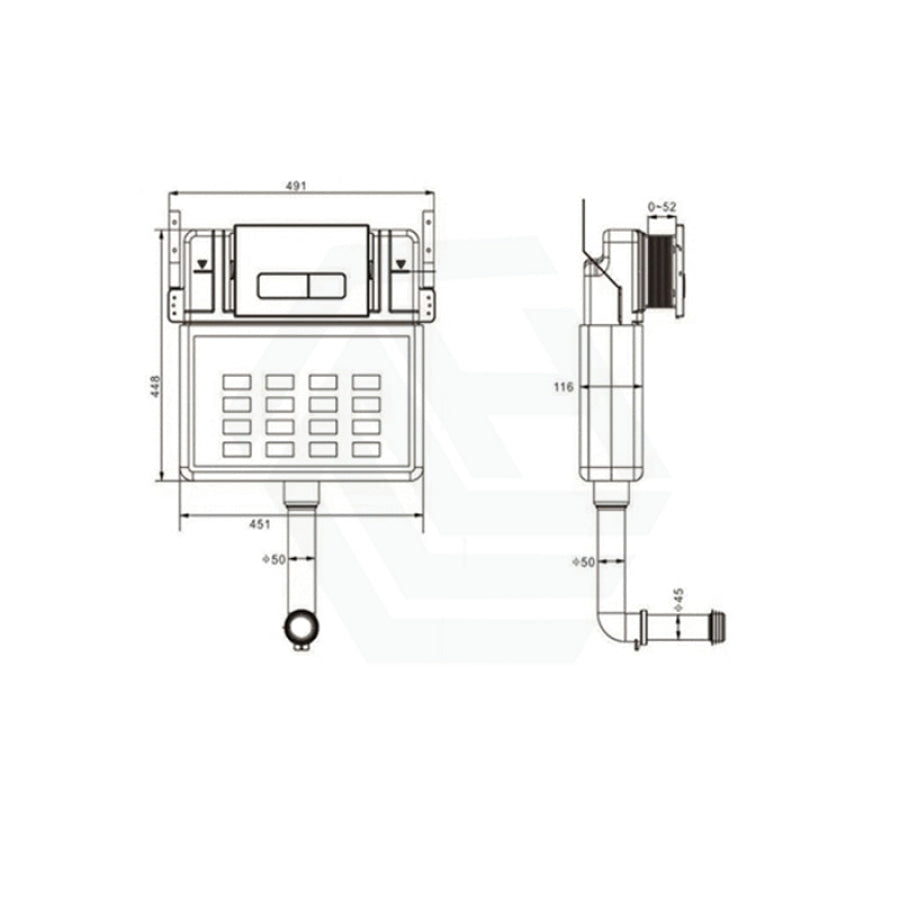

Inwall Cistern Dimensions	491x448x116mm
Push Button	Pneumatic push button included
Flush Performance (Inwall Cistern)	2L Per half flush, 3L per full flush, 2.1L per average flush
CERTIFICATION
WELS	Approved
WELS Star Rating	Toilet: 4 Star rating(if purchased alone), 3L per half flush, 4.5L per full flush, 3.5L per average flush
PACKAGE CONTENTS
Main Product	1Toilet pan; 1Inwall Cistern
Accessories	With Drainwave or No Drainwave; Pneumatic push button included
FEATURES
Feature 1	European Design (Toilet Suite/Inwall Cistern)
Feature 2	Inwall Cistern: - A one-piece tank design improves strength and durability - Insulated tank to prevent condensation and moisture behind the wall
Feature 3	Drainwave Sewer Doing Unit: - Australian Design - Australian Standards Compliant - Improves Drain Carry Efficiencies - Can serve up to 6 toilets - Maximum 6m horizontal distance between drainwave and furthermost toilet - Designed to accelerate waste through the drain line to prevent waste build-up or dry drains - Drain line flush augmentation device to compliment Ultra Low Dual Flush (3/2 L) toilets and other water efficient plumbing fixtures
WARRANTY
Lifetime Warranty	Market Leading Lifetime Warranty(Toilet Suite / Inwall Cistern)
NOTE
Note	To achieve a 6-star rating for your toilet, it must be installed with the Drainwave.

Product Videos

Azzurra Toilets(6 Star WELS Rated) - How Drainwave Works?

Azzurra Drainwave - The Greatest Plumbing Brainwave

Supplier's Gallery

Dimensions

Product Options

🚽 How to Choose the Right Toilet Package

First, choose your Toilet Package — the 6 Star option includes the Drainwave sewer dosing unit for maximum water efficiency, while the 4 Star option is the toilet suite alone. Then, select your Trap Configuration based on your plumbing setup.

Tip: The Drainwave system must be installed to achieve a 6-star WELS rating. For wall outlet installations, you'll need a P-Trap.

① Toilet Package

🔵 Option 1

6 Star Inwall Toilet Package

Includes: Inwall Cistern + Pan + Seat + Drainwave Sewer Dosing Unit

6 Star WELS Performance (when installed with Drainwave) Drainwave serves up to 6 toilets Australian Designed & Standards Compliant Prevents waste build-up & dry drains

👉 Choose this option for maximum water saving and enhanced drainage performance.

🟢 Option 2

4 Star Inwall Toilet Package

Includes: Inwall Cistern + Pan + Seat (No Drainwave)

4 Star WELS Rating Concealed Inwall Cistern Heavy Duty Soft Close Seat European Design

👉 Choose this option for standard everyday performance without Drainwave.

② Trap Configuration

🔵 Option 1

No P-Trap

Suitable for: Floor outlet plumbing configurations (no trap included)

In Wall Suite without Trap P-Trap Only

👉 Choose this option if your waste pipe comes out of the wall and you already have compatible P-Trap

🟢 Option 2

Extra Standard P-Trap 180mm

Suitable for: Wall outlet plumbing installations

Fixed 180mm rough-in P-Trap compatible Extra optional upgrade — sold separately

👉 Choose this option if your waste pipe comes out of the wall and you need a P-Trap.

🧭 Quick Selection Guide

Your Requirement	Recommended Option
Maximum water saving + Drainwave performance (6 Star WELS)	6 Star Inwall Toilet Package (with Drainwave)
Standard inwall toilet without Drainwave (4 Star WELS)	4 Star Inwall Toilet Package (without Drainwave)
Wall outlet plumbing setup (waste pipe through wall)	Extra Standard P-Trap 180mm — Add to either package

⚠️ Important Notes

6 Star WELS rating can only be achieved when installed with the Drainwave system.
Without Drainwave, the toilet suite is rated 4 Star (3L half flush / 4.5L full flush, avg 3.4L).
P-Trap 180mm is an extra optional upgrade for wall outlet installations only — sold separately.
Inwall cistern and flush button are included with both toilet packages.
Please confirm your plumbing setup before purchase.
Installation must be carried out by a qualified licensed plumber.
