Norton Tornado Rimless Ceramic Back to Wall Toilet Suite 665x390x850mm - Variant Colour

SKU: UN-NP-T3

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Tornado Rimless Back-to-Wall Toilet Suite

Crafted from the highest quality Vitreous China, this versatile toilet suite is available in Matt White, Gloss White, and Matt Black. Its sleek back-to-wall design and compact footprint maximize space without compromising on comfort or modern style.

Rimless + Tornado Flush Matt & Gloss Finishes Soft-Close Slim Seat Hygiene Plus Technology

Rimless Tornado Ceramic Back to Wall Toilet Suite 665x380x845mm - Variant Colour

CLEANING TECHNOLOGY

Quiet Flush™ & Rimless Bowl

Featuring advanced Quiet Flush™ technology that combines Rimless and Tornado flushing. This ensures a thorough, hygienic, and powerful clean with every flush while maintaining exceptionally quiet operation.

The Hygiene Plus technology creates a delicate, super easy-to-clean surface that resists bacteria and waste buildup.

USER CENTRIC DESIGN

Standard Height Comfort

The standard height design meets the needs of all family members, providing a balanced solution for everyday use. Included is a heavy-duty Slim seat with soft-close and easy-release mechanisms.

High-quality hinge covers (6mm thick, 60mm diameter) provide a refined, minimalist finish to the overall unit.

SMART INSTALLATION

Universal Inlet & Trap Options

Equipped with a universal water inlet entry for flexible plumbing. The default S-Trap supports a 100-220mm roughing-in using the included VB150 flexible connector.

Optional P-Trap (180mm) and specialized S-Traps (offsets from 60mm to 250mm) ensure this suite can be installed in a range of plumbing configurations.

Note: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.

Product Information

MODEL
Main Product Code	UN-NP-T3 / UN-NPMW-T3MW / UN-NPMB-T3MB
MATERIAL & FINISH
Material	Highest quality Vitreous China
Colour	Gloss White / Matt White / Matt Black
TECHNICAL INFORMATION
Flushing	Rimless + Tornado
Toilet Seat	Soft-close Easy-release heavy-duty Slim seat
Hinge Cover	Thickness: 6mm, Diameter: 60mm
Set-out (Default)	S-Trap: 100-220mm roughing-in
Water Inlet Position	Universal water inlet entry
Option P-Trap	TSP-P180: 180mm roughing-in. (260mm straight pipe, can be cut to size)
Option S-Trap	TSP-VB-60: 60-160mm roughing-in. (Adjustable height: 80-200mm)
Option S-Trap	TSP-VB-220: 160-250mm roughing-in. (Adjustable height: 230-250mm)
CERTIFICATION
Watermark	Approved (Licence No. 026315)
WELS	Approved (Licence No. 1743/1641)
WELS Registration No.	UN-NP-T3: L07717 UN-NPMW-T3MW / UN-NPMB-T3MB: L07665
WELS Star Rating	UN-NP-T3: 4 Star, 4.5L full / 3.1L half / 3.5L average flush UN-NPMW-T3MW / UN-NPMB-T3MB: 4 Star, 4.6L full / 3L half / 3.3L average flush
PACKAGE CONTENTS
Main Product	1Toilet pan, 1Cistern
Accessories	Standard S-Trap (100-220mm) and VB150 flexible connector included
FEATURES
Feature 1	Standard Height -- Meets the needs of all family members.
Feature 2	Hygiene Plus technology -- Delivers a super easy-to-clean surface.
Feature 3	Quiet Flush™ Technology (Rimless + Tornado)
WARRANTY
Ceramic Pans & Cisterns	20-year product replacement, 1-year parts and labour
Toilet Seat Cover	1-year product replacement, 1-year parts and labour
Toilet Accessories	1-year product or parts replacement
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.

Supplier's Gallery

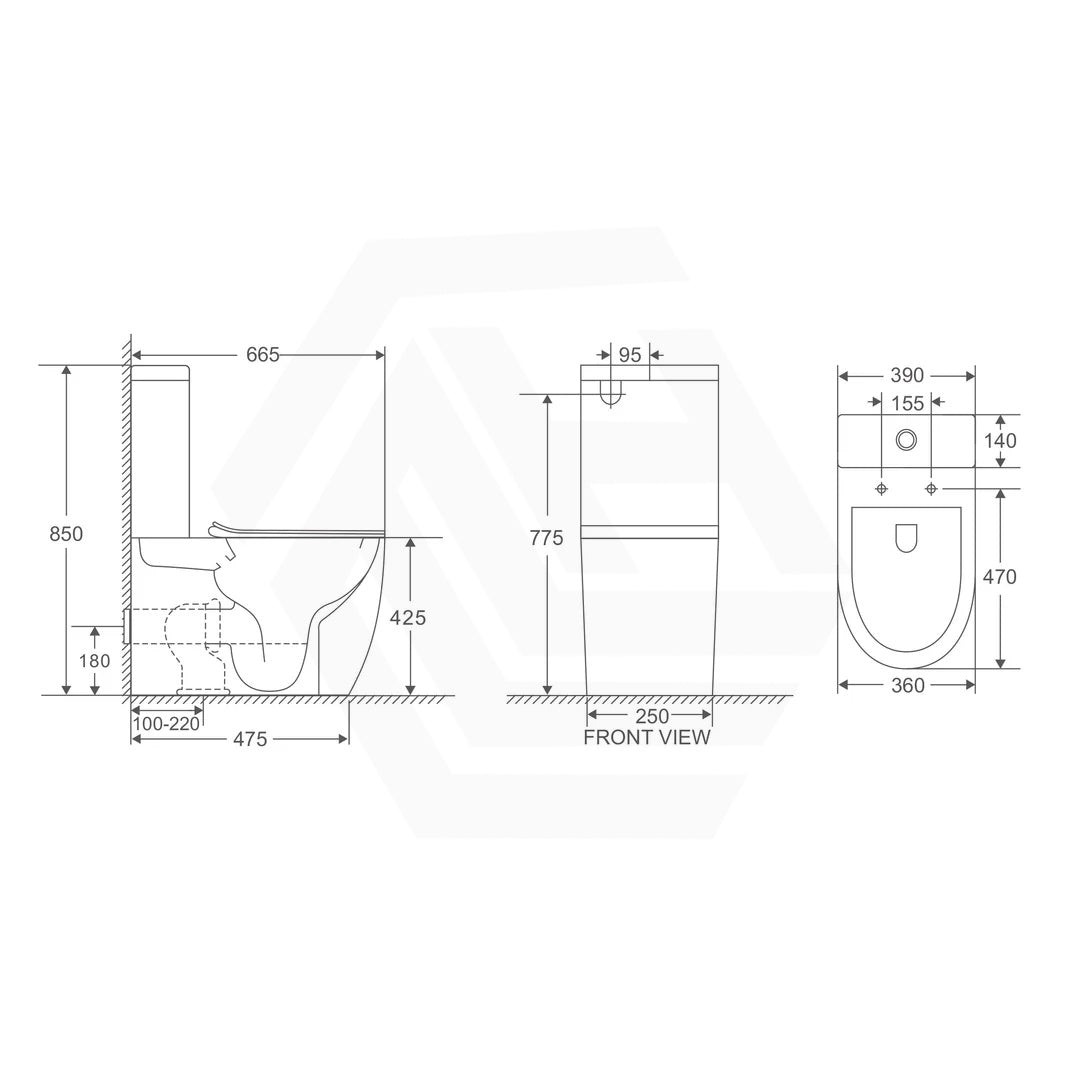

Dimensions

Product Options

📐 Choose the Correct UN-NP-T3 Series Configuration

The UN-NP-T3 Series Quiet Flush™ Toilet features advanced Rimless + Tornado technology for superior hygiene. To suit your designer bathroom, this series is available in three premium finishes: Gloss White, Matt White, and Matt Black.

To ensure a professional fit, please select your preferred colour and measure your set-out distance from the wall to the centre of the waste pipe.

🪑 Step 1 — Choose Your Toilet Colour

⚪ Option 1

Gloss White

High-Gloss Shine Easy-Clean Glaze Timeless Aesthetic

👉 Select Gloss White for a bright, traditional, and highly reflective look.

⚪ Option 2

Matt White

Satin Texture Anti-Reflective Modern Minimalist

👉 Select Matt White for a soft, contemporary, and sophisticated texture.

⚫ Option 3

Matt Black

Velvet Matte Architectural Style Impactful Design

👉 Select Matt Black for a bold, industrial, and high-end statement.

🔧 Step 2 — Choose Your Trap Option

In addition to the Default S-Trap: 100-220mm (included), we offer three optional configurations to match your plumbing:

🔵 Option 1

Standard P-Trap (180mm)

Ref: P-TRAP1-TS Wall Outlet Trimmable 260mm Pipe

👉 Choose this if your waste pipe connects through the bathroom wall.

🟢 Option 2

Custom S-Trap (60–160mm)

Ref: TSP-VB-60 Floor Outlet Height Adj: 80-200mm

👉 Choose this if your floor waste pipe is close to the wall (60-160mm).

🟠 Option 3

Custom S-Trap (160–250mm)

Ref: TSP-VB-220 Floor Outlet Height Adj: 230-250mm

👉 Choose this if your floor waste pipe is further from the wall (160-250mm).

🧭 Quick Selection Guide

Your Plumbing Setup	Recommended Option
Waste pipe through wall	P-Trap 180mm
Floor outlet 60–160mm	S-Trap (60–160mm)
Floor outlet 160–250mm	S-Trap (160–250mm)

⚠️ Warranty & Maintenance

10 Years: Replacement on Vitreous China cisterns and pans.
2 Years: Replacement on water inlet and outlet valves.
1 Year: Replacement on seat covers, flush pipes, and buttons.
A measurement deviation of ±5mm is normal in ceramic products.

Instruction

UN-NP-T3 Series & Toilet Measurement Resources

Technical specifications, installation instructions, and replacement measurement guidelines for the UN-NP-T3 series.

📐

UN-NP-T3 Specification Sheet (PDF)

Detailed dimensional schematics, physical measurements, and complete technical specifications for pre-installation planning.

View Spec Sheet

🛠️

UN-NP-T3 Installation Guide (PDF)

Step-by-step setup manual covering mounting procedures, structural fixings, alignment, and final operational checks.

Download Manual

📏

Toilet Replacement Measurement Guide (PDF)

Essential pre-purchase sizing guidelines, trap set-out measuring steps, and rough-in verification for replacement toilet suites.

View Guide

Note: Prior to commencing installation, always cross-reference on-site rough-in measurements with the official specification sheet. All plumbing and installation works must be carried out by a licensed tradesperson in accordance with local building codes to ensure product integrity and warranty validation.
