Moi Back to Wall Rimless Flushing Ceramic Toilet Suite Soft Close Seat 665x390x860mm - Gloss White

Name: Moi Back to Wall Rimless Flushing Ceramic Toilet Suite Soft Close Seat 665x390x860mm - Gloss White
Brand: Unicasa
SKU: UN-MP-T2B
Price: 301.00 AUD
Availability: InStock

SKU: UN-MP-T2B

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Back to Wall Rimless Toilet Suite

Designed for contemporary Australian bathrooms, this back to wall toilet suite features a fully rimless bowl, Hygiene Plus glaze, and a soft-close seat for easy cleaning. Its design conceals pipework while keeping the cistern exposed, delivering a sleek, modern aesthetic.

Rimless Hygienic Flush Hygiene Plus Glaze Soft-Close Seat Back To Wall

Back to Wall Rimless Toilet Suite 650x390x860mm Gloss White

Hygiene

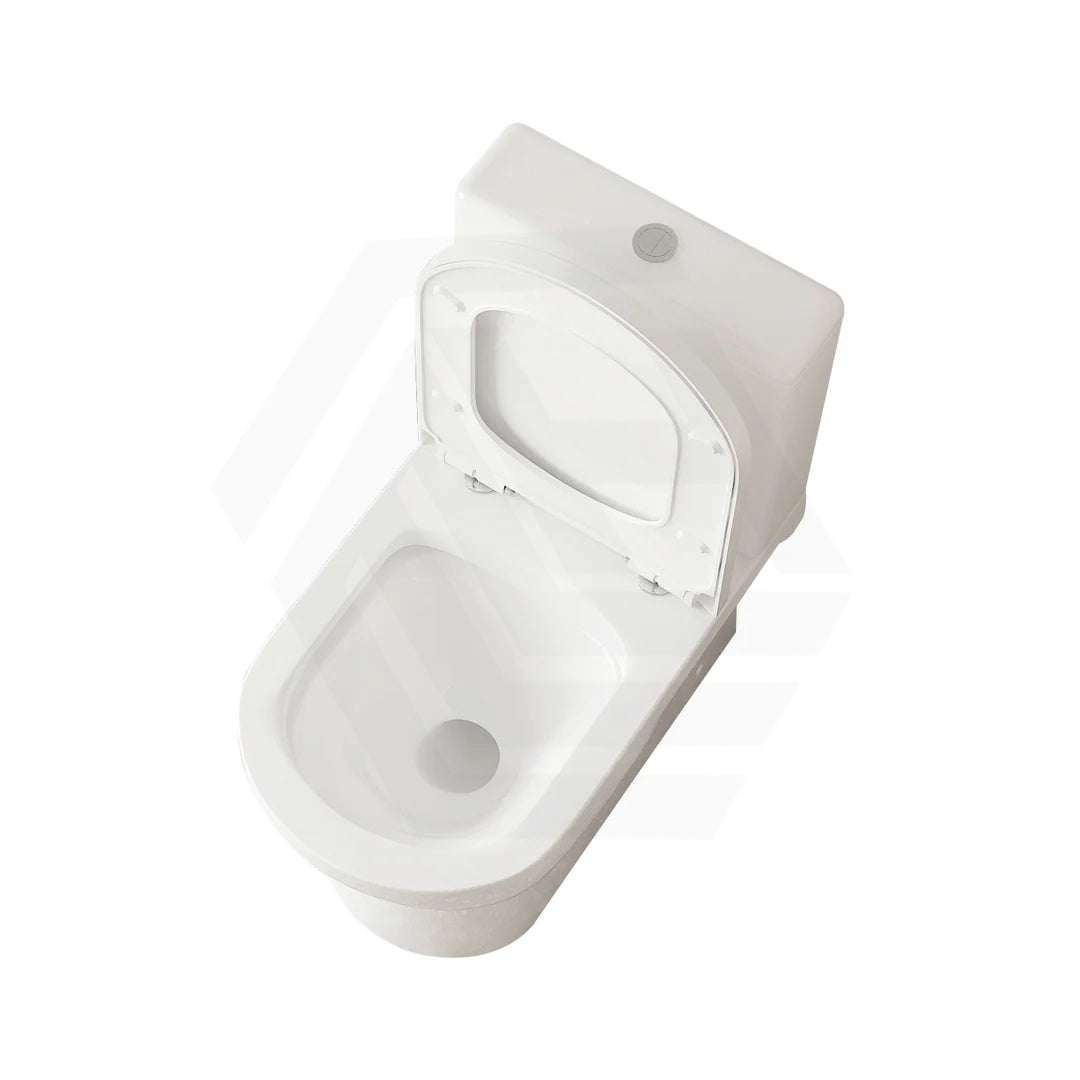

Rimless Hygienic Flush

The rimless bowl removes hidden areas where bacteria, limescale, and residue build up, with even water distribution ensuring a thorough, hygienic clean every flush.

Without a rim, cleaning is easier and more effective, reducing effort to maintain bathroom hygiene.

Rimless toilet bowl hygienic flush technology

Surface Protection

Hygiene Plus Glaze

The Hygiene Plus glaze forms an ultra-smooth, non-porous surface that resists bacteria and stains, keeping the bowl cleaner for longer.

Its easy-clean surface properties reduce scrubbing and the need for harsh chemicals, maintaining a fresh, polished look over time.

Hygiene Plus glaze ceramic toilet bowl surface

Comfort & Convenience

Soft-Close Seat

The included soft-close toilet seat uses a built-in dampening hinge mechanism to lower the lid and seat gently and silently — eliminating the noise and wear associated with a seat being dropped.

The seat is also quick-release for easy removal, making thorough cleaning around the hinge area simple and hassle-free.

Soft close toilet seat with quick release hinge

Installation

Back To Wall Configuration

The back to wall design sits flush against the wall, with exposed cistern and concealed pipework, creating a clean, streamlined look with no visible plumbing.

Fewer exposed areas make cleaning easier. Confirm plumbing compatibility and rough-in requirements before installation.

Back to wall toilet configuration concealed cistern

Note: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products. Confirm rough-in requirements with your plumber before purchase.

Product Information

MODEL
Main Product Code	UN-MP-T2B
MATERIAL & FINISH
Material	Ceramic
Colour	White
TECHNICAL INFORMATION
Flushing	Rimless Flushing
Hinge Cover	Thickness: 6mm, Diameter: 60mm
Toilet Seat	Easy-release Slim PP seat
S-Trap (Default)	100-200 roughing-in (VB150)
Water Inlet Position	Bottom Inlet Only (IF TOP INLET IS NEEDED PLEASE PURCHASE TOP INLET SET)
Option P-Trap	TSP-P180: 180mm roughing-in. (260mm straight pipe, can be cut to size to suit set-out distance)
Option S-Trap	TSP-VB-60: 180mm of ribbed cut lines, 60-160mm roughing-in. (Adjustable height: 80-200mm)
Option S-Trap	TSP-VB-220 : 120mm of ribbed cut lines, 160-240mm roughing-in. (Adjustable height: 230-250mm)
CERTIFICATION
WATERMARK	Approved
WATERMARK Licence No	WMK26315
WELS	Approved
WELS Licence No	1743
WELS Registration No	L07146
WELS Star Rating	4 Star, 4.5L/3L Dual Flush
PACKAGE CONTENTS
Main Product	1 x Wall Faced Toilet
Accessories	1 x S-Trap: 100-200 roughing-in (VB150) and some installation accessorries
WARRANTY
Ceramic Pans & Cisterns	20-year product replacement, 1-year parts and labour
Toilet Seat Cover	1-year product replacement, 1-year parts and labour
Toilet Accessories	1-year product or parts replacement
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.

Supplier's Gallery

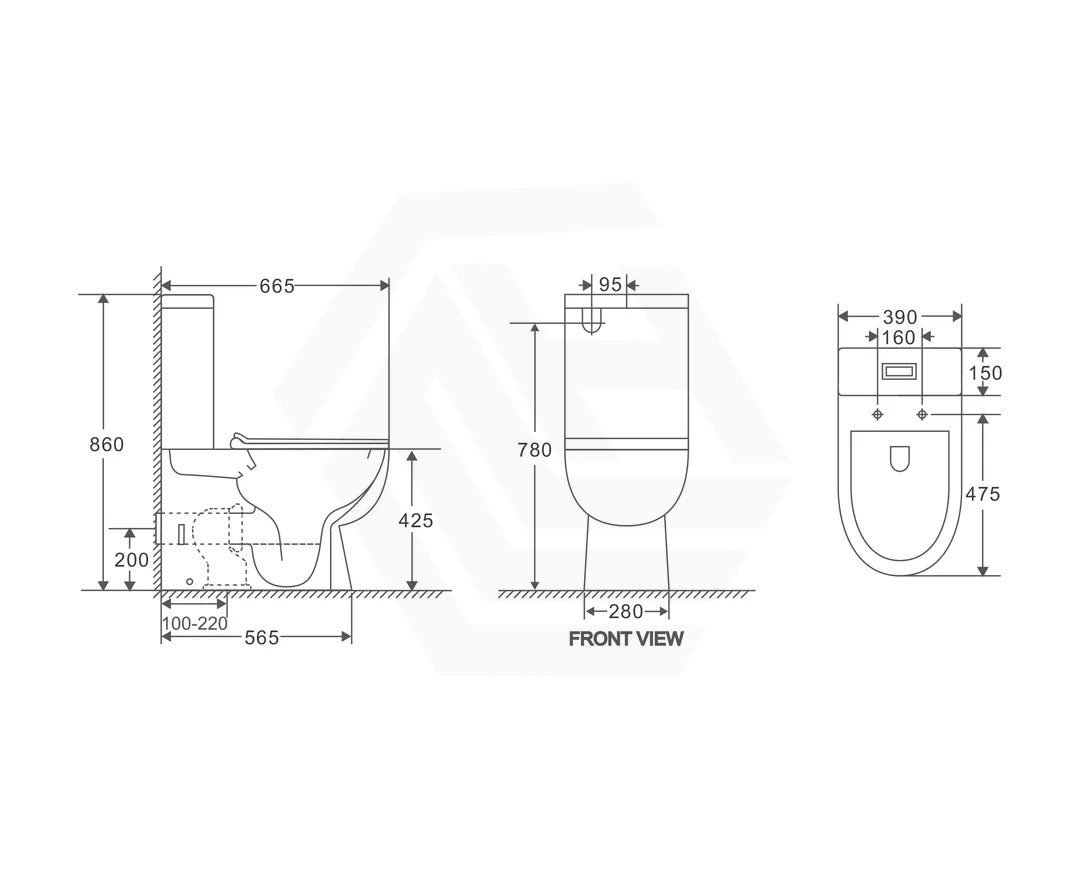

Dimensions

Product Options

💧 How to Choose the Correct Water Inlet Option

This toilet suite comes with a Top Inlet cistern connection. Please confirm your water supply location before purchase.

Tip: The water supply pipe should enter from the top of the cistern for this configuration.

🔵 Option 1

Top Inlet

Suitable for: Water supply pipe entering from the top of the cistern

Top water connection Standard cistern inlet

👉 Choose this option if your water supply pipe comes from the top.

📐 How to Choose the Correct Trap Option

Before selecting your toilet trap option, it's important to measure the set-out distance (rough-in) — the distance from the finished wall to the centre of the waste outlet on the floor.

Tip: Measure from the tiled wall (not the skirting board) to the centre of the pipe.

🔵 Option 1

Standard P-Trap (180mm)

Suitable for: Waste outlet through the wall

Fixed 180mm rough-in Includes 260mm straight pipe Pipe can be trimmed

👉 Choose this option if your waste pipe comes out of the wall.

🟢 Option 2

180mm Cut Lines S-Trap (60–160mm Rough-In)

Type: Adjustable short-range floor outlet

180mm ribbed cut lines Rough-in: 60–160mm Height: 80–200mm

👉 Choose this if your floor waste outlet measures between 60mm and 160mm.

🟠 Option 3

120mm Cut Lines S-Trap (160–240mm Rough-In)

Type: Adjustable long-range floor outlet

120mm ribbed cut lines Rough-in: 160–240mm Height: 230–250mm

👉 Choose this if your floor waste outlet measures between 160mm and 240mm.

🧭 Quick Selection Guide

Your Plumbing Setup	Recommended Option
Water supply from top of cistern	Top Inlet
Waste pipe through wall	P-Trap 180mm
Floor outlet 60–160mm	180mm Cut Lines S-Trap
Floor outlet 160–240mm	120mm Cut Lines S-Trap

⚠️ Important Notes

Always measure from the finished wall surface.
If unsure, consult your plumber before purchase.
Measurement deviation of ±5mm is normal.
Traps with ribbed cut lines must be trimmed correctly during installation.

Instruction

UN-MP-T2B Series Resources

Technical specifications, architectural dimensions, and step-by-step installation instructions for the UN-MP-T2B series.

📐

UN-MP-T2B Specification Sheet (PDF)

Detailed dimensional schematics, physical measurements, and complete technical specifications for pre-installation planning.

View Spec Sheet

🛠️

UN-MP-T2B Installation Guide (PDF)

Step-by-step setup manual covering mounting procedures, structural fixings, alignment, and final operational checks.

Download Manual

Note: Prior to commencing installation, always cross-reference on-site rough-in measurements with the official specification sheet. All plumbing and installation works must be carried out by a licensed tradesperson in accordance with local building codes to ensure product integrity and warranty validation.
