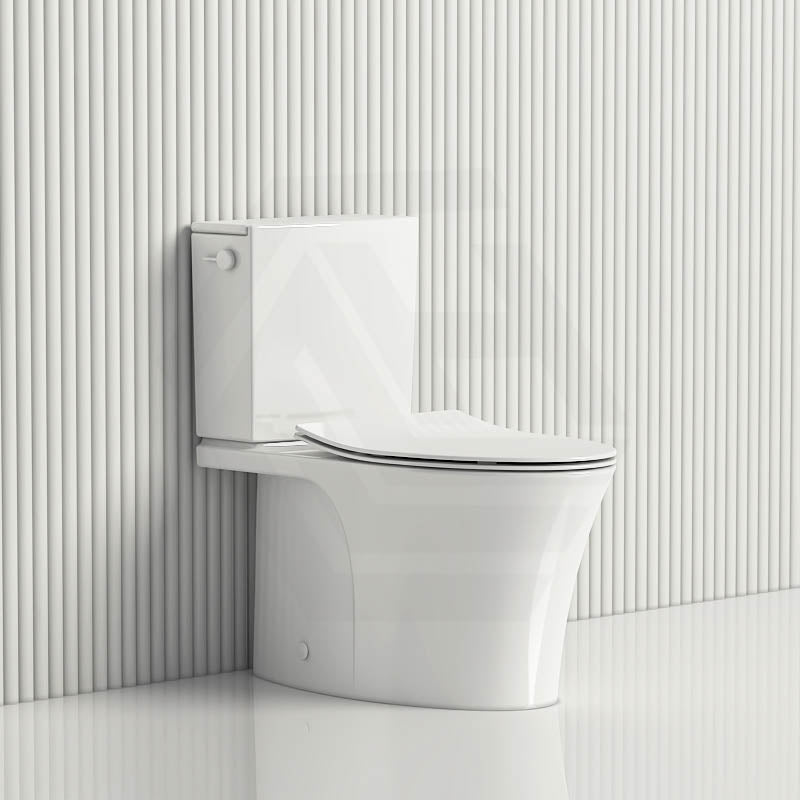

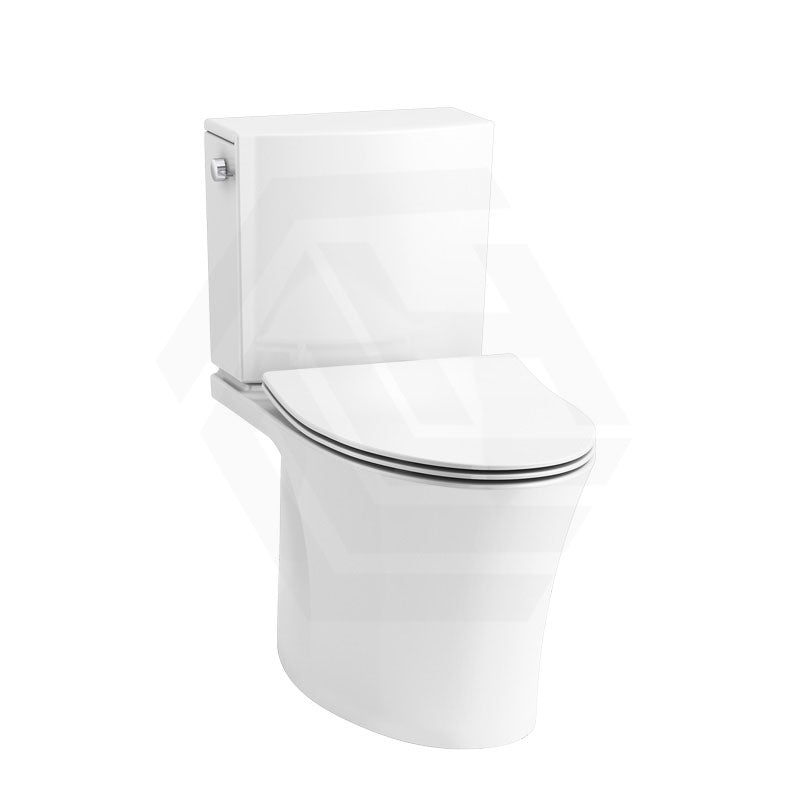

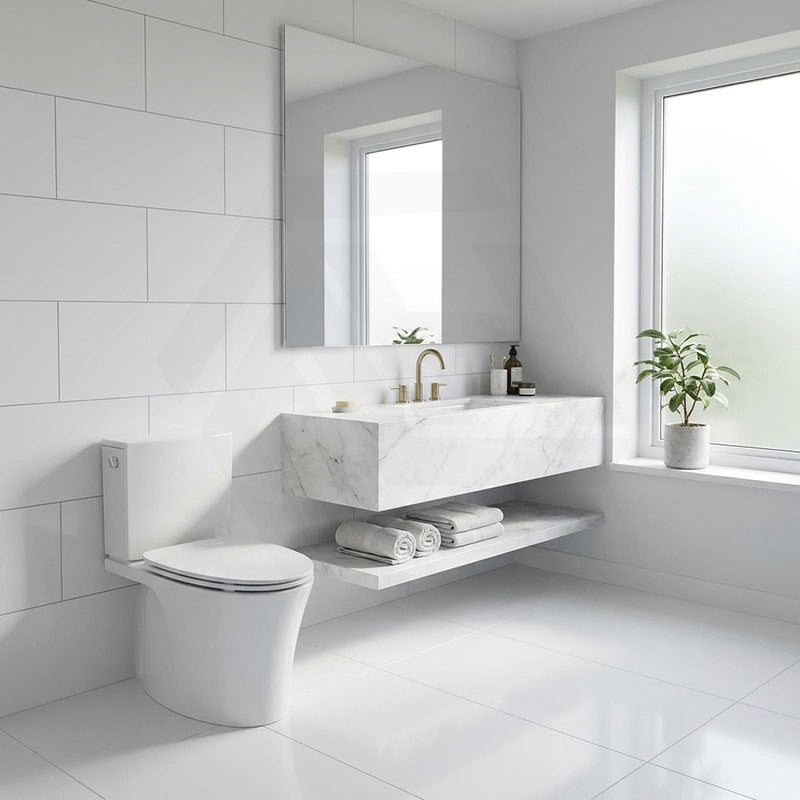

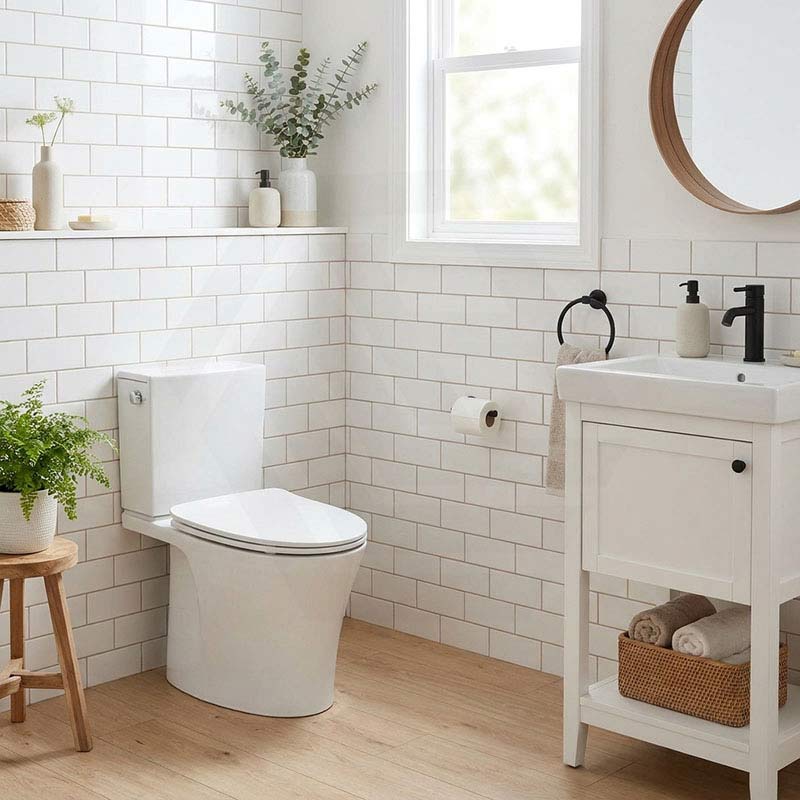

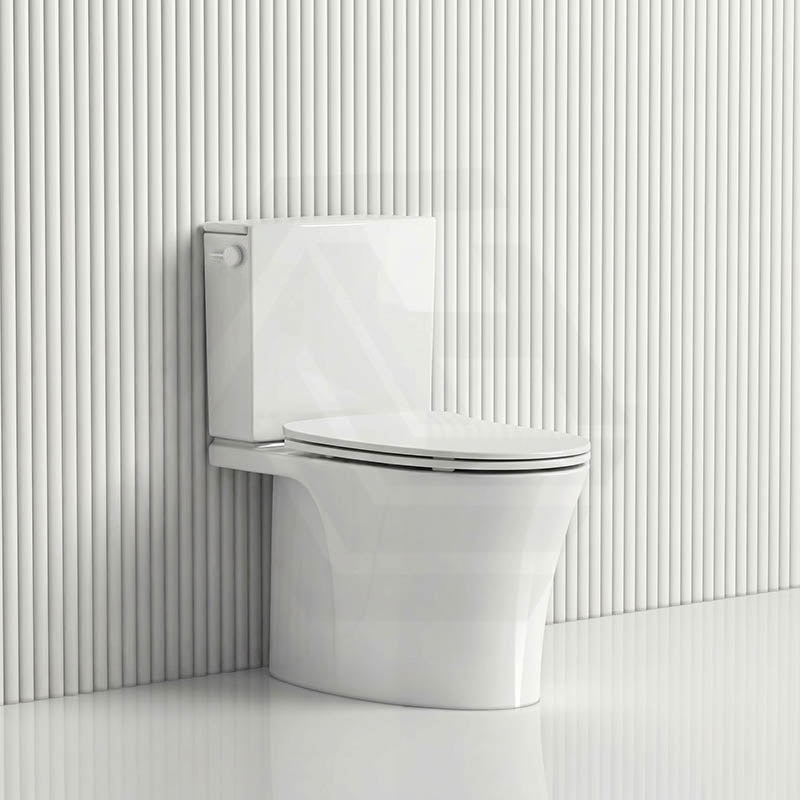

Kohler Veil Rimless Back to Wall Toilet Suite with 2 Slim Seat Available 680x380x752mm - Gloss White

SKU: KH-23623A-0

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

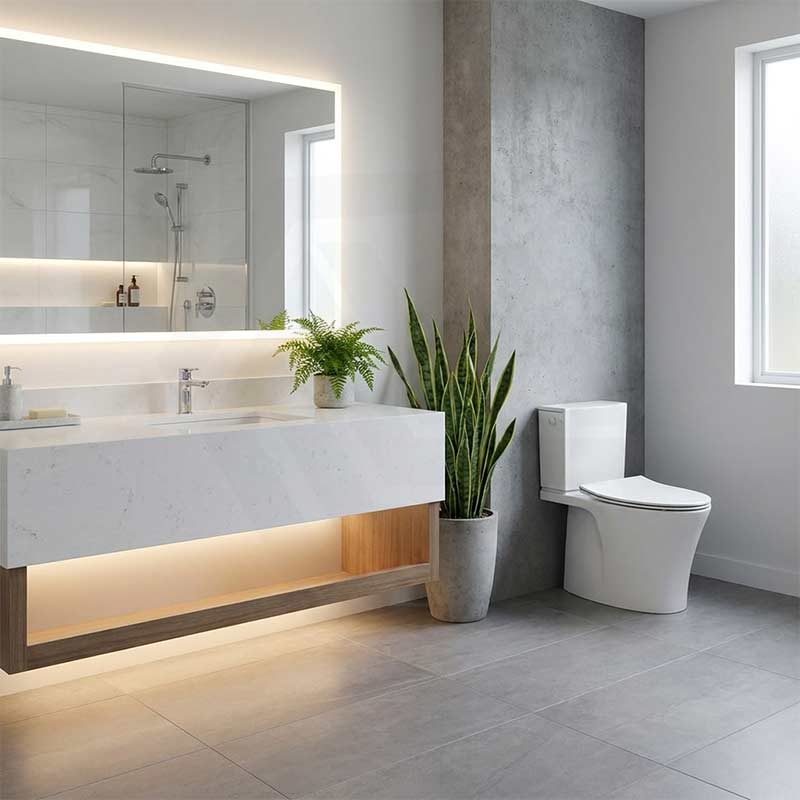

Kohler Veil Rimless Toilet Suite

The Kohler Veil embodies minimalist design with its balanced curves and back-to-wall profile. Featuring a powerful rimless flushing system and a compact 680mm depth, it offers a sophisticated, hygienic solution for contemporary Australian bathrooms. Available with two slim seat options to match your aesthetic preference.

680mm Depth Rimless Hygiene Bowl Top/Bottom Inlet Gloss White Finish

Premium Finish

Gloss White Craftsmanship

The Kohler Veil features a premium Gloss White finish that delivers a timeless, brilliant shine. This masterfully applied vitreous china glaze provides a super-smooth surface that actively resists staining, scratching, and fading over years of daily use.

Superior Hygiene

Rimless Flushing Technology

The innovative rimless design eliminates the interior rim where germs and dirt typically hide. This ensures a more thorough, powerful flush that reaches every inch of the bowl while making manual cleaning significantly easier.

Customizable Comfort

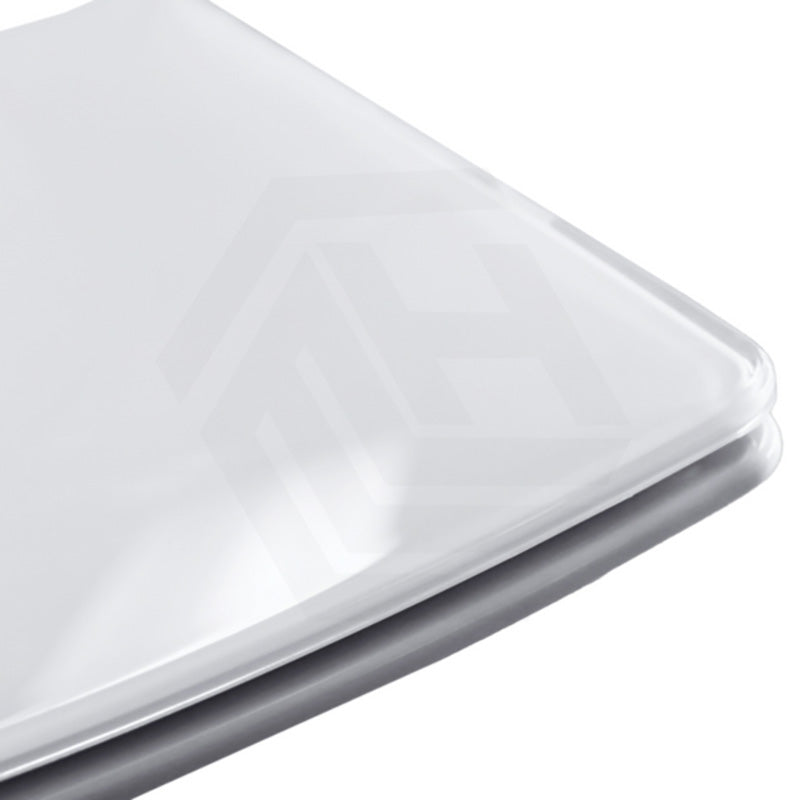

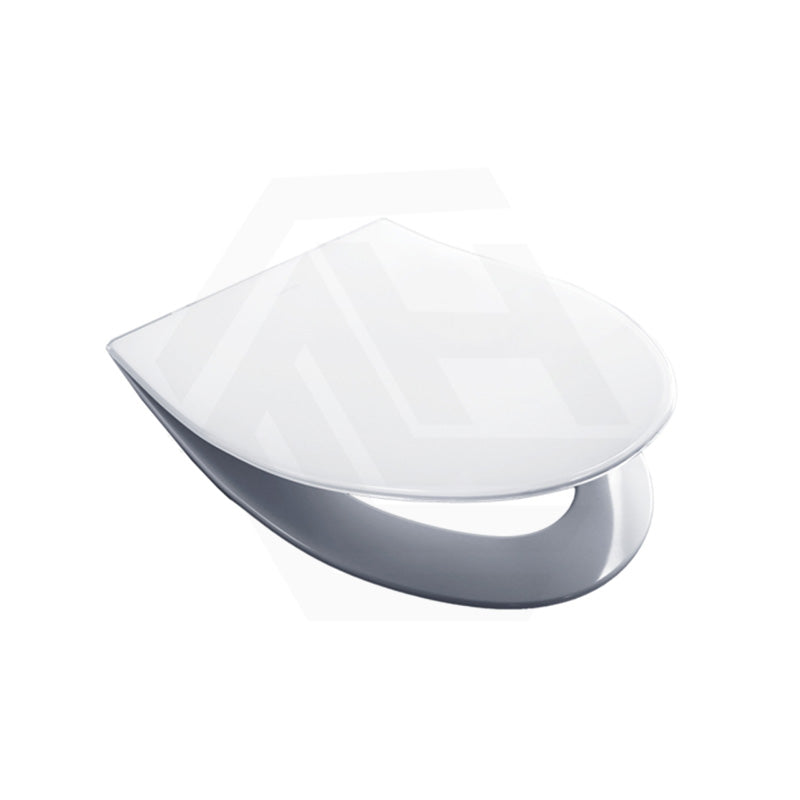

Dual Slim Seat Availability

Tailor your toilet's profile with a choice of two premium seating options: the standard Slim Seat for a minimalist look, or the Double Injection Slim Seat for enhanced durability and a premium tactile feel.

Both options feature quiet-close technology to prevent slamming and a quick-release mechanism for effortless cleaning access.

Note: Ceramic dimensions may vary by ±5mm due to the manufacturing process. Installation must be carried out by a licensed plumber in accordance with local regulations.
Please double-check the dimensions if you want to change to a colored button, as standard sizes may not fit.

Product Information

MODEL
Main Product Code	KH-23622A-0 / KH-23623A-0
MATERIAL & FINISH
Material	Vitreous China
Colour	White
Finsh	Gloss
TECHNICAL INFORMATION
Configuration	Two-piece, Elongated bowl
Flushing System	Wash Down Flushing System
S-Trap Rough-in	90-140 mm
Water Inlet	Top/Bottom inlet entry
Passageway	51 mm
Water Depth from Rim	225 mm
Flush Button Note	Please double-check the dimensions if you want to change to a colored button, as standard sizes may not fit.
CERTIFICATION
WELS Star Rating	4 Star
Water Consumption	Dual flush 3/4.5L per flush
Compliance	AS 1172.1:2014 & AS 1172.2:2014
PACKAGE CONTENTS
Main Product	Bowl (23626A-0), Tank (23625A-0), Tank cover (1369030-SP-**)
Included Parts	Toilet Seat (Slim or Double Injection) Vario pan connector & Offset pan collar
FEATURES
Feature 1	Back to Wall -- Fully skirted design for seamless appearance and easier cleaning.
Feature 2	Custom Seat -- Options for slim seat or premium double injection slim seat included.
WARRANTY
10 Years Warranty	10 Years warranty replacement on products
1 Year Warranty	1 Year replacement product or parts

Supplier's Gallery

Dimensions

Product Options

📐 How to Choose the Correct Trap Option

Before completing your toilet suite purchase, please ensure you measure your set-out distance (rough-in) — this is the distance from the finished wall to the centre of the floor waste outlet, or from the floor to the wall outlet.

Tip: Always measure from the finished tiled wall surface, not from the skirting boards.

🔵 Option 1

Standard P-Trap (185mm)

Suitable for: Waste outlet passing straight through the wall

Fixed 185mm height Direct wall connection Concealed fixings

👉 Choose this option if your waste pipe is located in the wall at a 185mm height.

🟢 Option 2

Vario S-Trap Connector (90–140mm)

Type: Adjustable short-range floor outlet

Adjustable vario bend Rough-in: 90–140mm Standard floor setup

👉 Choose this if your floor waste pipe centre measures between 90mm and 140mm from the wall.

🧭 Quick Match Guide

Your Bathroom Plumbing Setup	Recommended Option
Waste pipe goes horizontally into the wall	Standard P-Trap (185mm)
Floor waste pipe with rough-in between 90–140mm	Vario S-Trap (90–140mm)

⚠️ Installation & Compatibility Notes

Always measure from the finished wall surface, not the skirting board.
Ensure all measurements are double-checked against the technical specification sheet before plumbing rough-in.

Instruction

Technical Specifications & Guides

Detailed dimensions, flushing system data, and installation requirements for the Kohler Veil series.

📐

Kohler Veil Two-Piece Toilet Specification (PDF)

Technical data for KH-23622A-0, KH-23623A-0

Download PDF

*All dimensions are in mm. Installation must be performed by a licensed plumber according to AS/NZS standards.
