Dimension

Kohler Modena Wall Faced Smart Toilet Floor Pan with UF Seat 580x400x450mm - Gloss White

Name: Kohler Modena Wall Faced Smart Toilet Floor Pan with UF Seat 580x400x450mm - Gloss White
Brand: Kohler
SKU: KH-29001A-T4P-0
Price: 2808.00 AUD
Availability: InStock

SKU: KH-29001A-T4P-0

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Modena Wall-Faced Intelligent Smart Toilet Floor Pan

Experience ultimate luxury, hygiene, and cutting-edge automation with the Modena T4P Wall-Faced Smart Toilet. Built with a compact 580mm depth that saves up to 20% floor space, it features touchless radar and foot-sensor operation, instantaneous warm water cleansing, heated comfort seat, warm air drying, and comprehensive multi-circuit electrical safety protection.

Compact 580mm Depth Auto Lid & Foot Sensor Instant Ceramic Heating LED Display & Rotary Knob WELS 4-Star Certified Universal P/S Trap

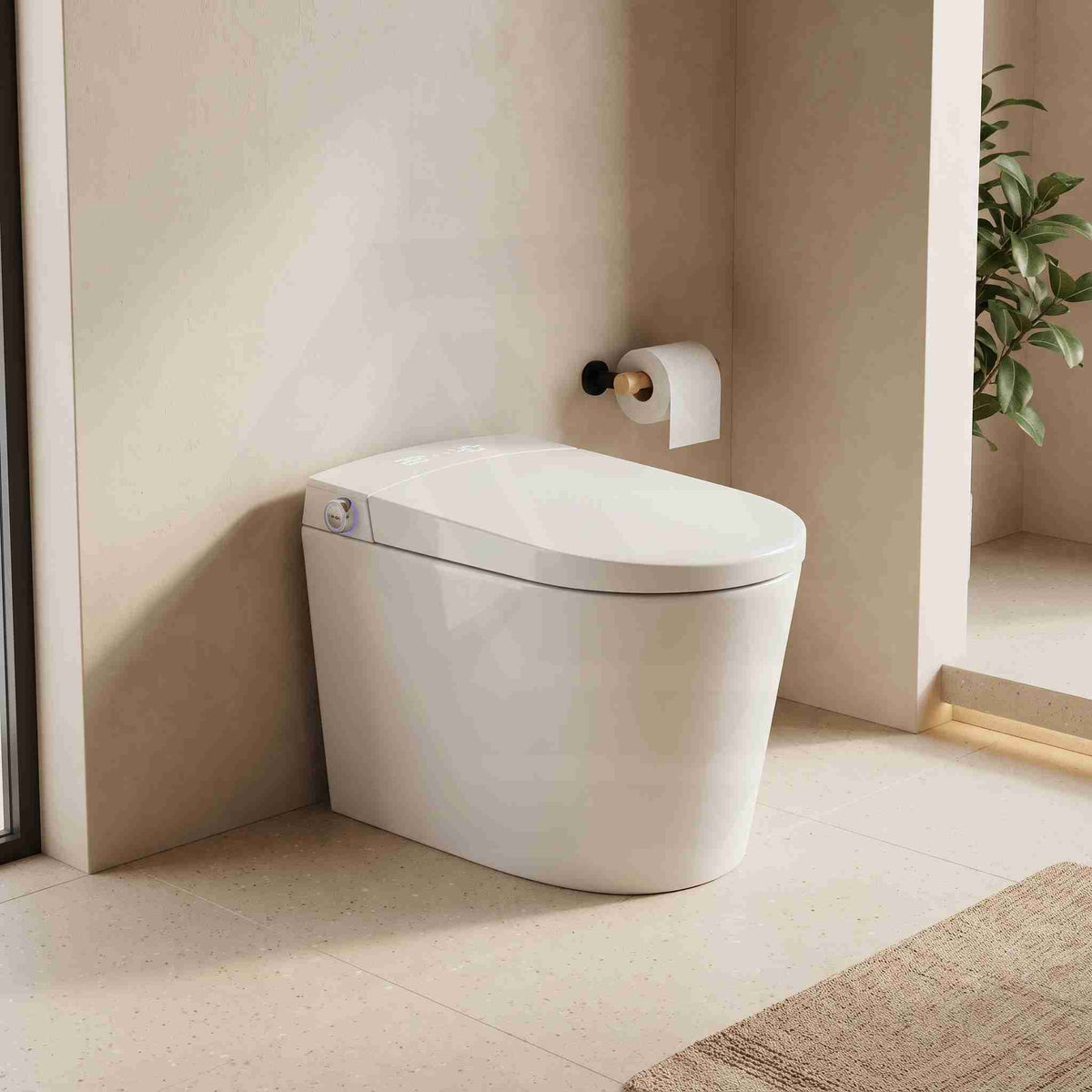

Modena T4P Wall-Faced Smart Toilet Pan Hero View

Feature Highlights

Space Efficiency

Ultra-Compact 580mm Profile for Modern Bathrooms

Engineered with a streamlined 580mm overall projection, this smart pan saves up to 20% space compared to traditional freestanding and smart suites.

The compact footprint optimizes walkway clearance and vanity proximity, making it a functional upgrade for powder rooms, ensuites, and urban apartment layouts.

Modena T4P Compact 580mm Space Saving Design Detail

Hands-Free Automation

Dual-Mode Auto Lid Opening & Foot Sensor Flush

Enjoy a completely hands-free experience. The lid automatically opens when you approach and smoothly lowers and flushes when you step away.

An integrated foot-touch sensor provides quick, hygienic lid opening and flushing without requiring manual contact or bending down.

Hands Free Auto Flip Cover and Foot Sensor Operation

Hygiene & Comfort

Instant Heated Water Wash & Warm Air Drying

The continuous instant ceramic heating system delivers warm, bubble-infused water across 4 selectable temperature levels and 4 wash functions: Rear, Feminine, Moving, and Self-Cleaning.

A multi-gear warm air dryer provides gentle, hands-free drying, paired with double water filtration and UV sterilization for complete personal hygiene.

Instant Heated Water Wash and Warm Air Drying System

⚡ ENotice: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.
Cistern Compatibility: Only compatible with KH-78077A-PNE-NA or KH-78074A-PNE-NA pneumatic in-wall cisterns.

Product Information

MODEL & FINISH
Product Name	KB Australia Modena Wall Faced Intelligent Smart Toilet Floor Pan
Colour / Finish	Gloss White
Material	Premium Vitreous China Pan with UF Soft-Close Seat
SPECIFICATION & INSTALLATION
Installation Type	Wall-Faced (Requires In-Wall Cistern)
Dimensions (mm)	580mm (L) x 400mm (W) x 450mm (H)
Rough-In Setout	• P-Trap: 180 mm • S-Trap: 60 – 170 mm
INTELLIGENT CLEANSING & DRYING
Water Heating System	Instant Ceramic Heating (4-gear temperature adjustment, smooth aerated full-bubble flow)
Washing Modes	Hip Cleaning, Female Cleaning, Mobile Oscillating Wash, and Nozzle Self-Cleaning with UV Sterilization
Drying System	Warm Air Dryer with 4 adjustable wind temperature levels
Heated Seat	Multi-flow seat heating with 4-gear temperature control & mute slow-drop soft-close lid
AUTOMATION & CONTROLS
Hands-Free Automation	Radar auto-open lid on approach, dual-mode foot sensor operation (flip/flush), auto-close & flush on leaving
Controls & Display	Liquid Crystal LED display (real-time status/temp), single rotary knob control, and omnidirectional remote controller
Night Light & Power Backup	Soft ambient night light; built-in emergency backup battery for manual flushing during power outages
SAFETY & CERTIFICATION
Waterproof Rating	IPX4 damp-proof and splash-proof certified with sealed internal electronic components
Multi-Circuit Protection	Electrical leakage protection, overheat cut-off, flame-retardant materials, anti-freeze, overcurrent, and short-circuit protection
WELS Rating	4 Star, 3.5L average flush
PACKAGE CONTENTS
Standard Inclusions	1 x Modena Smart Toilet Pan, 1 x Double Check Valve, 1 x Air Gap Valve, 1 x Vario Bend Pan Connector, 1 x 450mm Flexible Hose, 1 x Remote Controller
Optional Add-ons	Optional In-wall Pneumatic Cistern (KH-78077A-PNE-NA / KH-78074A-PNE-NA) & Flush Plates (Pebble / Lynk / SKIM Pneumatic)
REMINDER
Power Point Location	WHEN FACING THE TOILET, THE POWER POINT (GPO) WILL BE EXPOSED ON THE RIGHT-HAND SIDE, POSITIONED AT LEAST 120MM ABOVE THE FINISHED FLOOR AND WITHIN 600MM OF THE TOILET.
Electrical Connection	THE IN-WALL CISTERN ONLY SUPPLIES WATER AND DOES NOT INCLUDE ELECTRICAL CONNECTIONS. A LICENSED ELECTRICIAN IS REQUIRED TO INSTALL AND CONNECT THE 220–240V POWER SUPPLY.
Ceramic Tolerance	A MEASUREMENT DEVIATION OF ±5MM IS REGARDED AS A COMMON AND ACCEPTABLE VARIATION IN CERAMIC PRODUCTS. ALWAYS VERIFY PLUMBING LOCATIONS WITH THE PHYSICAL PRODUCT ON-SITE BEFORE ROUGH-IN.

Supplier's Gallery

Dimensions

Product Options

🚽 Configuration Guide: Waste Trap Selection (S-Trap vs P-Trap)

Selecting the correct waste outlet setout ensures your Modena Wall Faced Intelligent Smart Toilet Floor Pan aligns flush against your bathroom wall tiles without visible pipework. Choose between floor drainage (S-Trap) and rear wall drainage (P-Trap) based only on the actual waste outlet location and measured rough-in dimensions, not the building type or floor level.

S-Trap is included in the box. P-Trap is not included and must be purchased separately.

Important: For S-Trap, measure horizontally from the finished tiled wall surface to the centre of the floor waste outlet. For P-Trap, measure vertically from the finished floor level to the centre of the rear wall waste outlet.

🔌 Select Your Waste Outlet Trap Configuration

Check the actual waste outlet position and dimensions to verify collar compatibility.

Modena Smart Toilet S-Trap Floor Drainage Setup

🔌 Pipe Setup

S-Trap: 60 - 170mm Set-out

Main sewer drainage pipe exits downwards directly through the bathroom floor.

Floor Waste Outlet 60–170mm Setout Range S-Trap Included in the Box Concealed Back-to-Wall Fit

✔ Use the included S-Trap if your waste outlet is in the floor, with the centre of the waste pipe measuring between 60mm and 170mm horizontally from the finished tiled wall.

Modena Smart Toilet P-Trap Rear Wall Drainage Setup

🔌 Pipe Setup

P-Trap: 180mm Centerline Height

Main sewer drainage pipe exits horizontally straight back through the rear wall.

Rear Wall Waste Outlet 180mm Centerline Height P-Trap Sold Separately Direct Wall Connection

✔ Purchase P-Trap separately if your waste pipe runs horizontally into the rear wall with the collar centre positioned at 180mm above the finished floor level. P-Trap is not included in the box.

🧭 Quick Specification Summary Matrix

Waste Outlet Location & Measured Dimensions	Recommended Trap Selection	Hardware Inclusion Status
Floor waste outlet with its centre 60–170mm horizontally from the finished tiled wall	Use S-Trap Setup	S-Trap adjustable offset Vario bend pan connector included in the box
Rear wall waste outlet with its centre 180mm vertically above the finished floor level	Use P-Trap Setup	P-Trap not included; must be purchased separately

📌 Important Technical Specifications & Rough-In Requirements

Selection Basis: Use the actual waste outlet location and measured dimensions only. Building type and floor level do not determine the trap configuration. If the outlet position or dimensions do not match the requirements above, confirm compatibility with your plumber before ordering.
Ceramic Tolerances: Fine vitreous china is subject to a standard manufacturing tolerance of ±5mm. Verify all rough-in measurements with the physical product on site prior to fixing.
