Metlam 950x600mm 90° Assist Grab Rail Ambulant Accessories Special Needs Stainless Steel 304

SKU: ML-MLR103X_SS

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Metlam 950x600mm 90° Assist Grab Rail

The Metlam 90° Assist Grab Rail combines horizontal and vertical gripping sections in a practical angled design. Made from satin-finished 304 stainless steel, it features a 32mm diameter rail, welded mounting flanges and concealed fixings. Available in left- and right-hand options for Assist and Ambulant toilet layouts.

950x600mm 90° Profile 304 Stainless Steel 32mm Diameter Left / Right Options Concealed Fixings

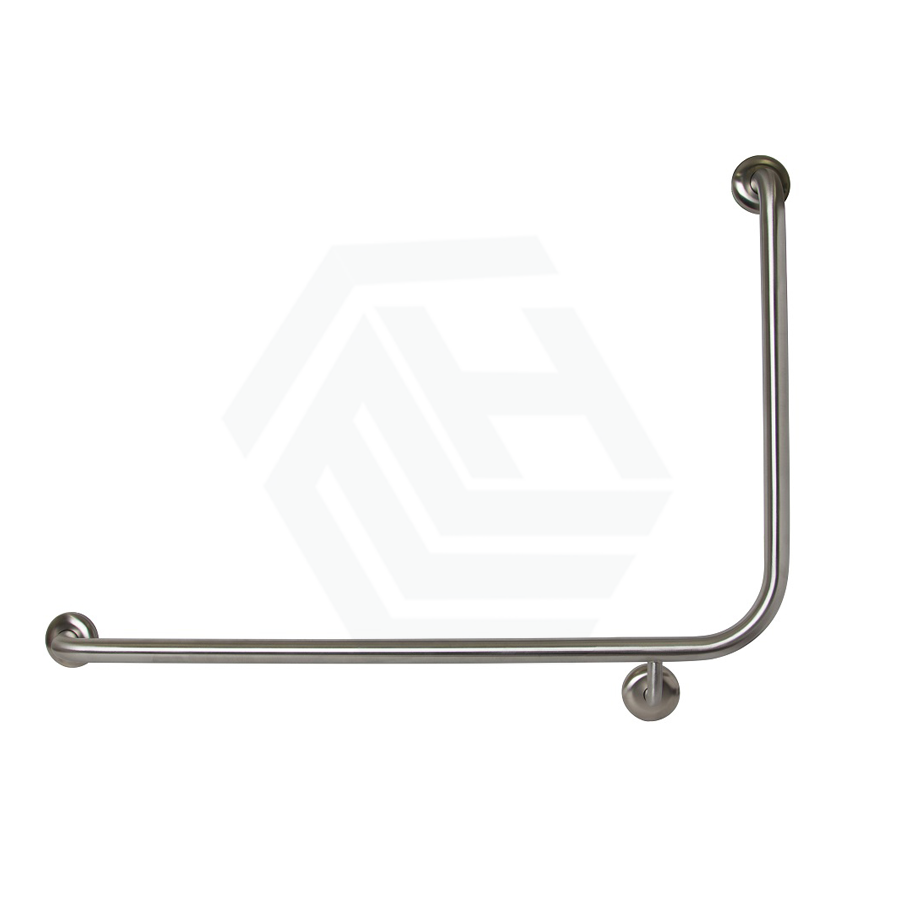

Metlam left-hand 950 by 600mm 90 degree assist grab rail in satin stainless steel

Design & Support

90° Profile for Practical Assistance

The 950x600mm angled profile provides horizontal and vertical gripping sections for Assist and Ambulant toilet applications.

A 32mm diameter rail and 55mm stand-off provide a practical handhold for domestic or commercial bathroom layouts.

Metlam assist grab rail showing horizontal and vertical gripping sections

Orientation Options

Choose Left or Right

Available as Left (ML-MLR103X_SS) or Right (ML-MLR104X_SS) to suit the planned installation.

Left and right are determined while sitting on the toilet. Confirm the required orientation and model drawing before ordering.

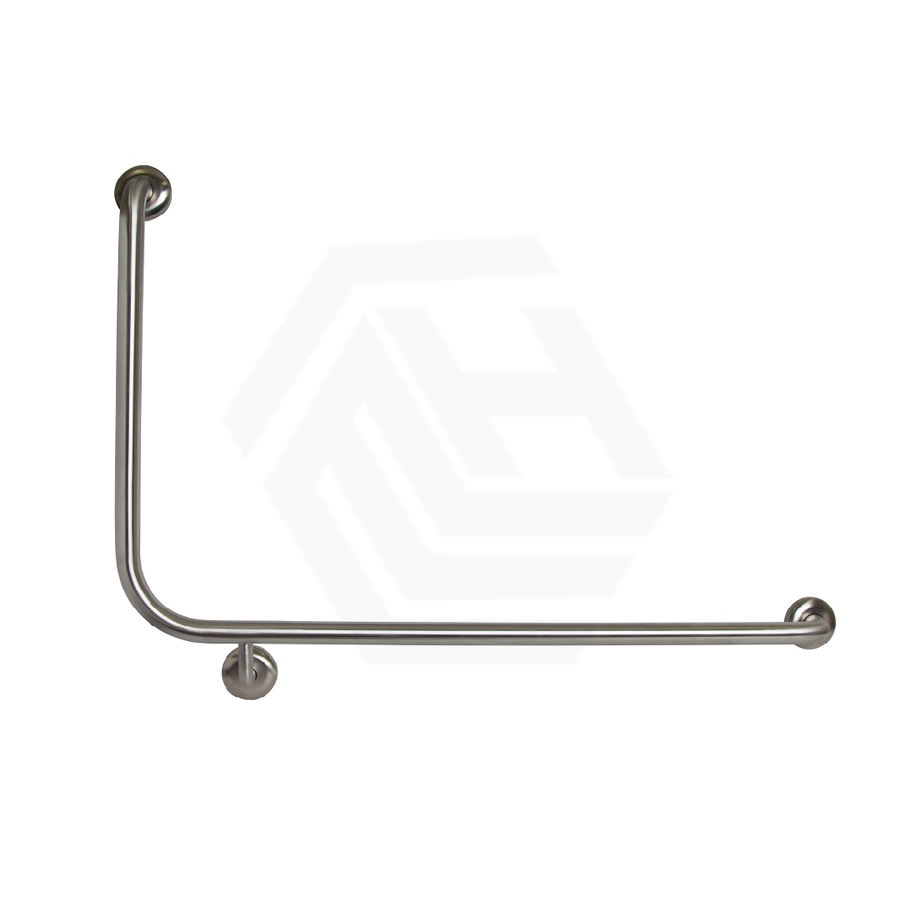

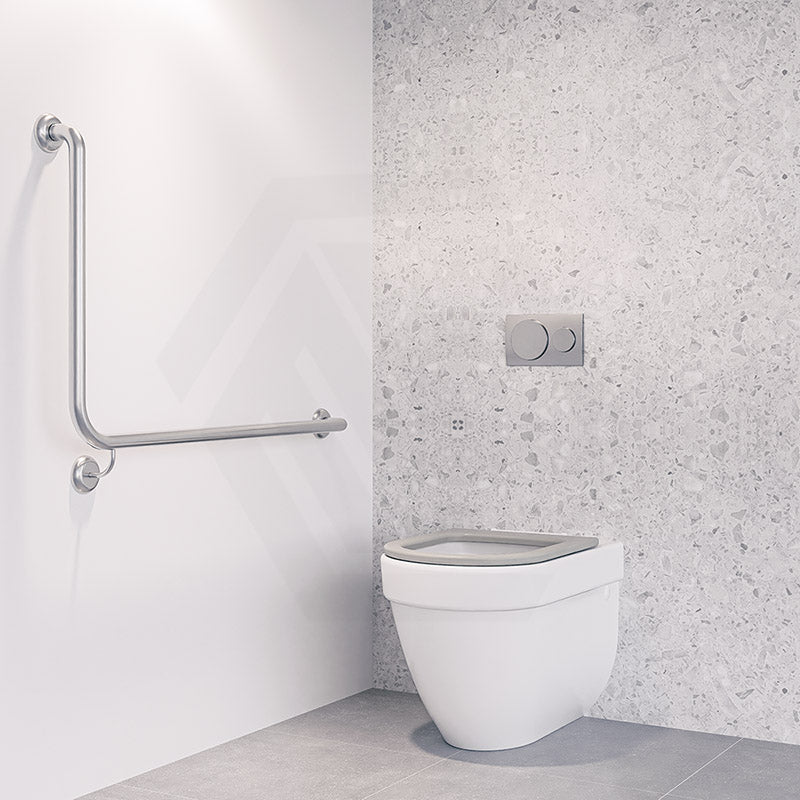

Metlam right-hand 90 degree assist grab rail, model ML-MLR104X_SS

Material & Mounting

Stainless Steel with Concealed Fixings

Quality 304 stainless steel construction and welded mounting flanges combine strength with a clean satin finish.

The concealed flange fixing system is finished with 78mm twist-lock covers, keeping mounting hardware hidden for a neat appearance.

Satin stainless steel Metlam assist grab rail with round concealed fixing covers

Note: Left and right are determined from the seated position on the toilet. Confirm dimensions, fixing positions and suitable wall support before installation. Correct positioning and installation are required for the intended AS1428.1 accessible application.

Product Information

MODEL
Main Product	Metlam 950×600mm 90° Assist Grab Rail
Main Product Code	Left: ML-MLR103X_SS Right: ML-MLR104X_SS
MATERIAL & FINISH
Material	304 Grade Stainless Steel
Finish	Satin Stainless Steel
SPECIFICATION
Product Dimensions	950×600mm
Rail Diameter	32mm Ø
Shape	90° Angled Rail
Orientation Options	Left / Right Left and right are determined while sitting on the toilet.
Installation Type	Wall Mounted / Concealed Fixing
Stand-Off	55mm
Application	Recommended for use with Assist and Ambulant toilets. Suitable for domestic or commercial installations.
TECHNICAL INFORMATION
Flange Covers	78mm Ø Twist-Lock Flange Covers
Mounting Flanges	Welded to Grab Rail for Maximum Strength
Fixing System	Secure Flange Concealed Fixing System
Accessibility	Designed for AS1428.1 Access and Mobility applications. Correct positioning, suitable wall support and installation are required.
PACKAGE CONTENTS
Main Product	1 × Grab Rail
REMINDER
Selection	Confirm the required left or right orientation from the seated position before ordering.
Installation	Check the selected model's dimension drawing, fixing positions and suitable wall support before installation.
Care & Maintenance	Refer to the Metlam Grab Rails Care & Maintenance Guide for cleaning and maintenance instructions.

Product Videos

How to install a Metlam Australia MLR103 Grab Rail

Care Guide: Keeping your Metlam Australia products looking like new

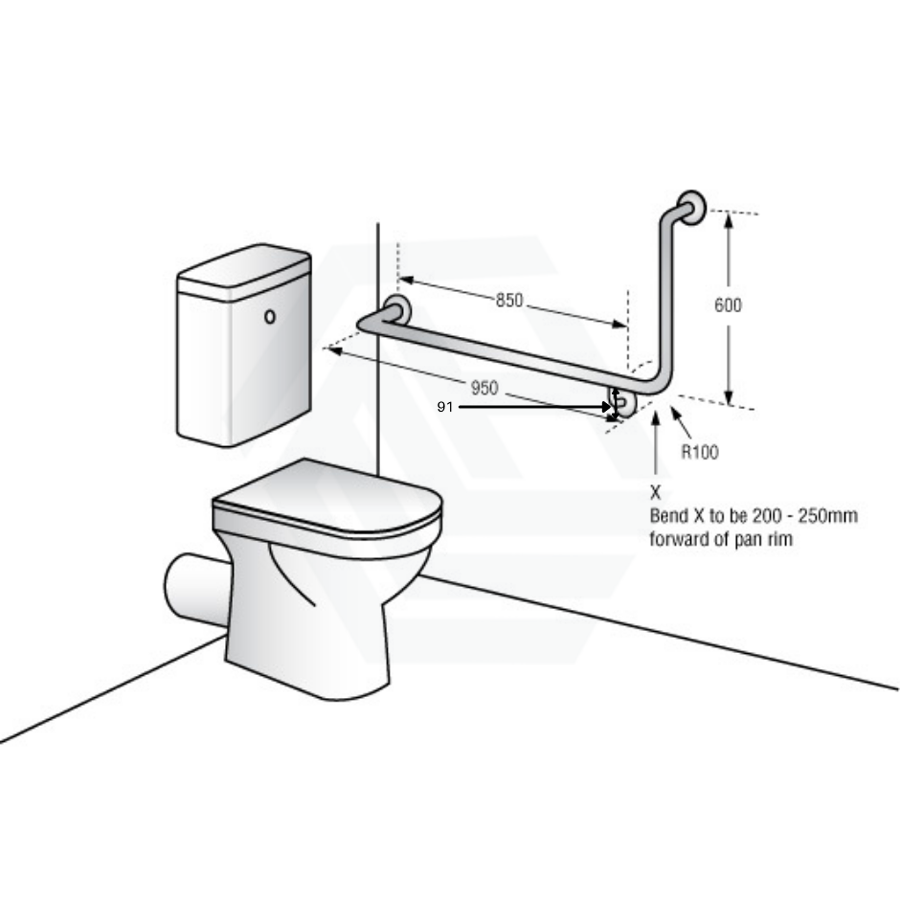

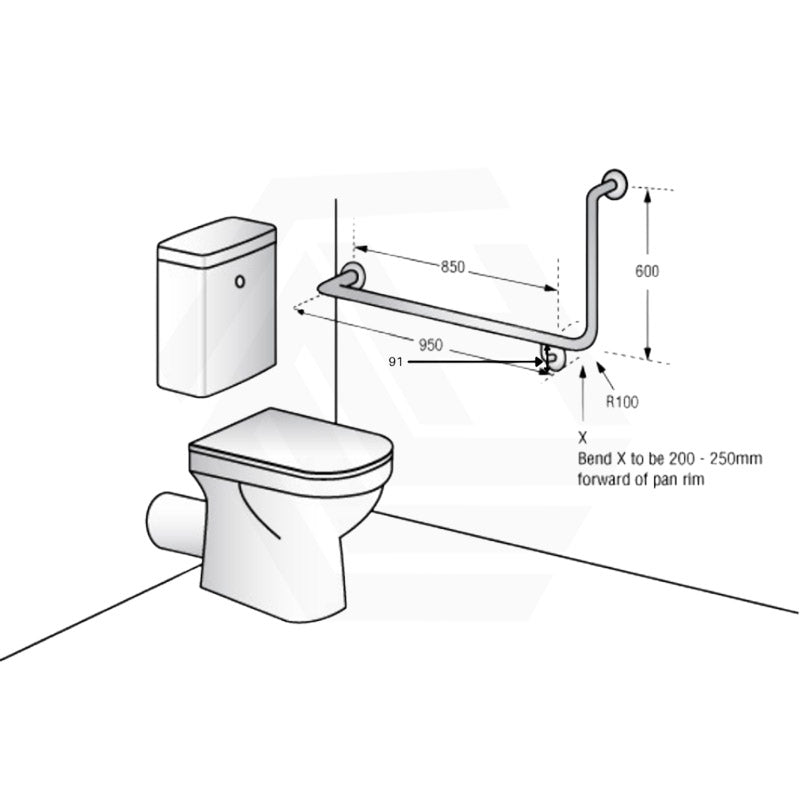

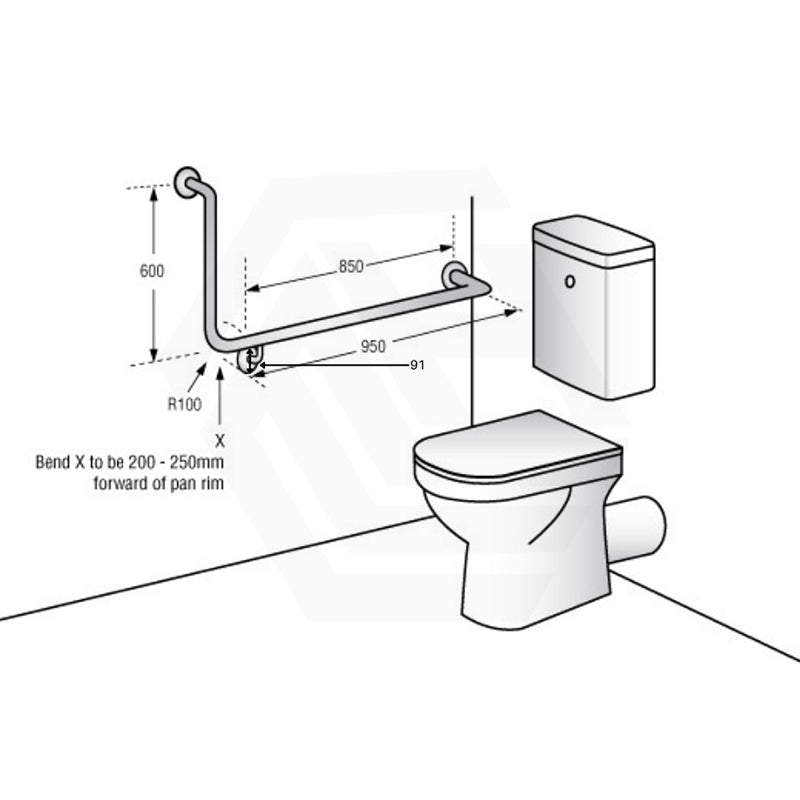

Dimensions

Product Options

Option Guide — Left or Right?

Choose the correct orientation for your Metlam 950 × 600mm 90° Assist Grab Rail. Both options feature satin-finished 304 stainless steel, a 32mm diameter rail and concealed fixings.

Important: Left and right are determined while sitting on the toilet, not while standing in front of it.

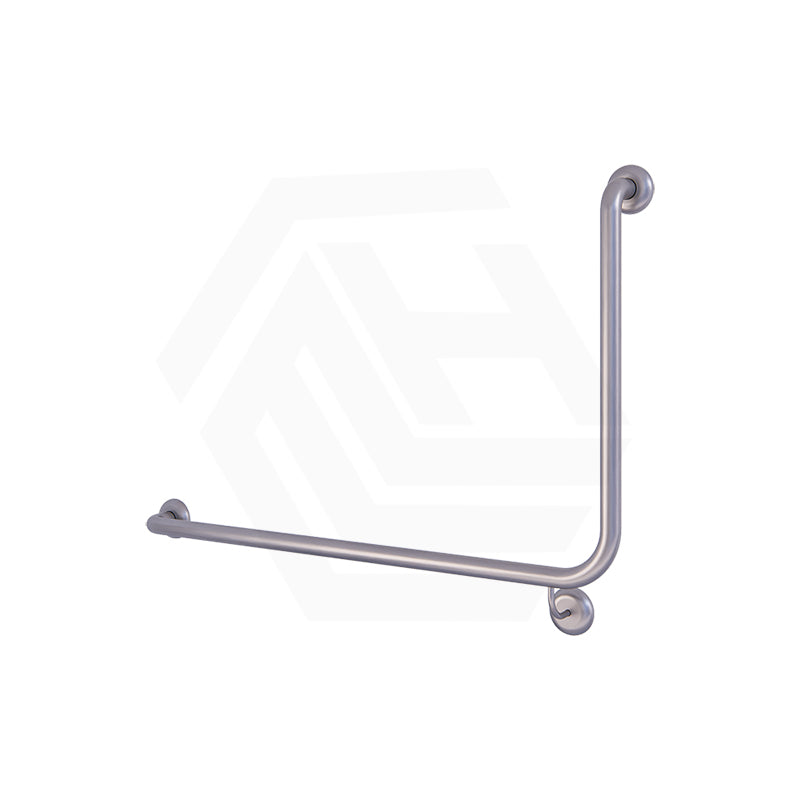

Metlam left-hand 950 by 600mm 90 degree assist grab rail, model ML-MLR103X_SS

Option 1

Left-Hand Grab Rail

Product Code: ML-MLR103X_SS

For the left-hand installation position, determined from the user's seated position on the toilet.

950 × 600mm 90° Profile Ø32mm Rail Satin Stainless Steel

Choose Left when the installation plan requires a left-hand rail. Confirm the model drawing before ordering.

Metlam right-hand 950 by 600mm 90 degree assist grab rail, model ML-MLR104X_SS

Option 2

Right-Hand Grab Rail

Product Code: ML-MLR104X_SS

For the right-hand installation position, determined from the user's seated position on the toilet.

950 × 600mm 90° Profile Ø32mm Rail Satin Stainless Steel

Choose Right when the installation plan requires a right-hand rail. Confirm the model drawing before ordering.

Quick Selection Guide

Required Orientation When Seated	Select	Product Code
Left-hand installation	Left	ML-MLR103X_SS
Right-hand installation	Right	ML-MLR104X_SS

Important Notes

Left and right are determined while sitting on the toilet.
Both options are 950 × 600mm with a 32mm rail diameter and 55mm stand-off.
Features include welded mounting flanges and 78mm twist-lock flange covers.
Recommended for use with Assist and Ambulant toilets in domestic or commercial installations.
Includes 1 grab rail in the selected orientation.
Confirm orientation, fixing positions and suitable wall support with your installer before ordering.
