FIFA Back to Wall Rimless Tornado Toilet Suite with Ergonomic Curved Seat 670x390x860mm - Gloss White

Name: FIFA Back to Wall Rimless Tornado Toilet Suite with Ergonomic Curved Seat 670x390x860mm - Gloss White
Brand: Unicasa
SKU: UN-FP-T3
Price: 665.00 AUD
Availability: InStock

SKU: UN-FP-T3

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

670mm Rimless Tornado Toilet Suite

Designed as a back to wall toilet suite for modern bathrooms, this gloss white model features a 670x390x860mm size, rimless tornado flushing, and a soft-close easy-release ergonomic curved seat for everyday comfort and easier cleaning.

670x390x860mm Rimless Tornado Flush Ergonomic Curved Seat S-Trap / P-Trap Options

Comfort

Soft-Close Easy-Release Ergonomic Curved Seat

The toilet seat is designed with an ergonomic curved shape to support natural body posture during daily use.

Its soft-close function helps reduce noise, while the easy-release design allows the seat to be removed more conveniently for cleaning.

Flushing

Quiet Flush™ Rimless Tornado Technology

The rimless and tornado flushing design delivers a powerful swirling flush for a thorough clean.

By removing hard-to-reach rim crevices, the bowl is easier to maintain and supports better bathroom hygiene.

Renovation Friendly

Flexible S-Trap & P-Trap Rough-In Options

The default S-Trap supports 100-220mm roughing-in, with additional S-Trap options available for 60-160mm and 160-250mm set-outs.

A P-Trap option is also available with 180mm roughing-in, helping suit both new builds and bathroom renovation projects.

Material & Efficiency

Gloss White Vitreous China with WELS 4 Star Rating

Made from high-quality vitreous china in a gloss white finish, this toilet suite is designed for a clean and practical bathroom look.

It is WELS approved with a 4 Star rating, using 4.4L per full flush, 3.1L per half flush and 3.5L average flush.

Note: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products. Please confirm trap type and rough-in measurement before purchase.

Product Information

MODEL
Main Product Code	UN-FP-T3
MATERIAL & FINISH
Material	Highest quality Vitreous China
Colour	Gloss White
TECHNICAL INFORMATION
Flushing	Rimless + Tornado
Toilet Seat	Soft-close Easy-release Ergonomic Curved Seat
Hinge Cover	Thickness: 5mm, Diameter: 60mm
S-Trap (Default)	100-220mm roughing-in
Water Inlet Position	Universal Water Inlet(Top/bottom/side inlet)
Option P-Trap	TSP-P180: 180mm roughing-in. (260mm straight pipe，can be cut to size to suit set-out distance）
Option S-Trap	TSP-VB-60: 180mm of ribbed cut lines, 60-160mm roughing-in. (Adjustable height: 80-200mm)
Option S-Trap	TSP-VB-220: 120mm of ribbed cut lines, 160-250mm roughing-in. (Adjustable height: 230-250mm)
CERTIFICATION
WATERMARK	Approved
WELS	Approved
WELS Licence No	1743
WELS Registration No	L47497
WELS Star Rating	4 Star, 4.5L/3L Dual Flush
PACKAGE CONTENTS
Main Product	1Toilet pan, 1Cistern
Accessories	Standard S TRAP (100-220mm roughing-in) Included
FEATURES
Feature 1	Standard Height -- Meets the needs of all family members, providing a balanced solution for everyday use.
Feature 2	Slim soft-close curved seat offering a sleek look, ergonomic comfort, and easy-clean quick-release hinges.
Feature 3	Quiet Flush™ Technology (Rimless + Tornado)
WARRANTY
Ceramic Pans & Cisterns	20-year product replacement, 1-year parts and labour
Toilet Seat Cover	1-year product replacement, 1-year parts and labour
Toilet Accessories	1-year product or parts replacement
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.

Supplier's Gallery

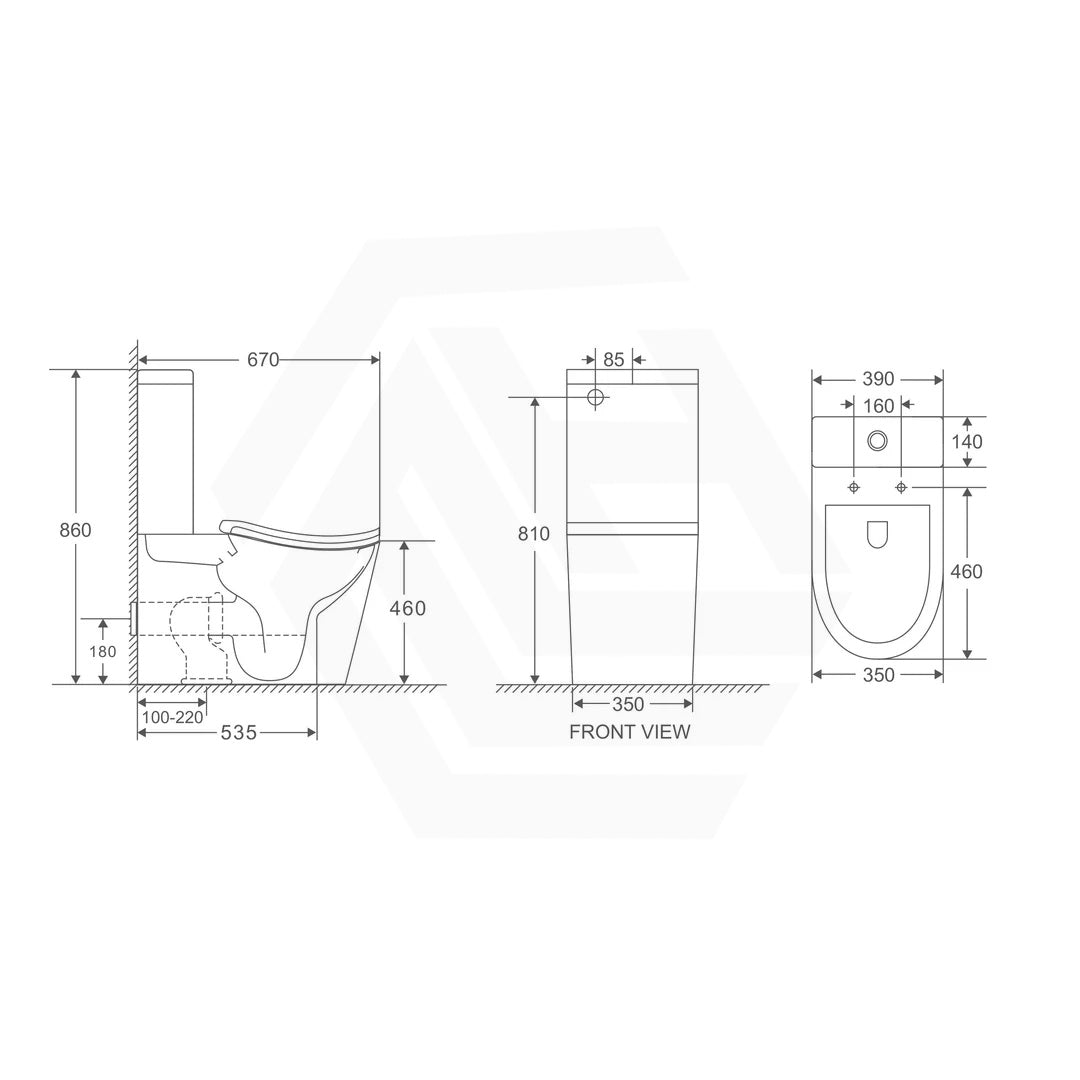

Dimensions

Product Options

📐 670mm Rimless Tornado Toilet Suite — Trap Option Guide

Before selecting your toilet trap option, it's important to measure the set-out distance (rough-in) — the distance from the finished wall to the centre of the waste outlet on the floor.

Tip: Measure from the tiled wall (not the skirting board) to the centre of the pipe.

🟢 DEFAULT

Standard S-Trap (Default)

Type: Standard floor outlet (included)

Rough-in: 100–220mm Included with toilet suite Standard floor mount

👉 Choose this option if your floor waste outlet measures between 100mm and 220mm.

🔵 P‑TRAP

Standard P-Trap (180mm)

Suitable for: Waste outlet through the wall

Fixed 180mm rough-in 260mm straight pipe Pipe can be trimmed

👉 Choose this option if your waste pipe comes out of the finished wall at 180mm.

🟢 S‑TRAP

180mm Cut Lines S-Trap (60–160mm Rough-In)

Type: Adjustable short-range floor outlet

180mm ribbed cut lines Rough-in: 60–160mm Height: 80–200mm

👉 Choose this if your floor waste outlet measures between 60mm and 160mm.

🟠 S‑TRAP

120mm Cut Lines S-Trap (160–250mm Rough-In)

Type: Adjustable long-range floor outlet

120mm ribbed cut lines Rough-in: 160–250mm Height: 230–250mm

👉 Choose this if your floor waste outlet measures between 160mm and 250mm.

🧭 Quick Selection Guide

Your Plumbing Configuration	Recommended Option
Waste pipe through wall	P-Trap 180mm
Floor outlet, 60–160mm rough-in	180mm Cut Lines S-Trap
Floor outlet, 100–220mm rough-in	Standard S-Trap (Default)
Floor outlet, 160–250mm rough-in	120mm Cut Lines S-Trap

⚠️ Important Notes

Always measure from the finished wall surface (not skirting board).
If unsure, consult your plumber before purchase.
Measurement deviation of ±5mm is normal.
Traps with ribbed cut lines must be trimmed correctly during installation.
The standard S-Trap (100-220mm) is already included with the toilet suite.

Instruction

Toilet Installation & Measurement Resources

Step-by-step installation instructions, rough-in mounting requirements, and pre-purchase replacement measurement guidelines.

🛠️

Toilet Installation Instructions (PDF)

Comprehensive installation manual detailing pan positioning, cistern mounting, internal valve hookups, and secure fixings.

Download Manual

📏

Toilet Replacement Measurement Guide (PDF)

Essential pre-purchase sizing guidelines, trap set-out measuring steps, and rough-in verification for replacement toilet suites.

View Guide

Note: Prior to commencing installation, always cross-reference on-site rough-in measurements with the official guides. All plumbing and installation works must be carried out by a licensed tradesperson in accordance with local building standards to ensure product integrity and warranty validation.
