Toilet Suite S Trap Universal Extended Pan Connector 180mm Cut Lines

Q: What is this S Trap connector used for, and do I need it?

This connector is designed for toilet suites with a straight floor waste outlet (S Trap). It acts as an extended pan connector that bridges the gap between your toilet pan and the floor waste pipe, allowing you to adjust the set-out distance (the measurement from your finished wall to the centre of the floor outlet) to between 60mm and 160mm. You may need this connector if: Your toilet suite&#39;s pan outlet does not align directly with your floor waste pipe You are replacing an older toilet and the set-out distance has changed Your plumber requires an adjustable connector to achieve the correct rough-in during installation If your waste outlet comes out of the wall rather than the floor, this connector is not suitable — please consult your licensed plumber for the correct fitting.

Q: How do I measure my toilet rough-in (set-out distance) in Australia?

The set-out distance (also called rough-in) is measured from the finished wall surface (not the skirting board) to the centre of the floor waste outlet. This connector suits set-out distances between 60mm and 160mm. If your measurement falls outside this range — particularly between 160mm and 240mm — you will need a different connector. When in doubt, have a licensed plumber confirm your measurements before purchasing.

Q: Will this S Trap connector fit my toilet suite?

This is a universal pan connector designed to suit most standard Australian toilet suites. It includes an adjustable stabilising bracket and accommodates a height range of 80mm to 200mm, making it compatible with a wide variety of pan configurations. If you are purchasing a new toilet at the same time, check out our Back to Wall Toilet Suites to find a fully compatible combination.

SKU: TSP-VB-60

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

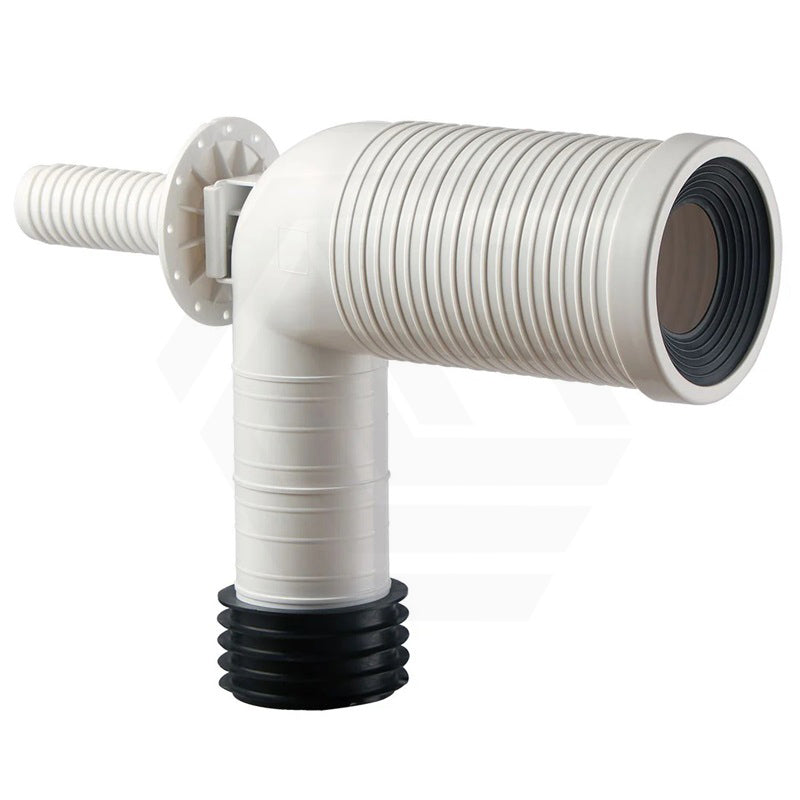

S Trap Universal Extended Pan Connector

A practical plumbing solution for Australian toilet installations. This toilet bowl parts essential converts a P Trap outlet to an S Trap floor outlet, with 180mm of ribbed cut lines for flexible depth adjustment — ideal for renovation and new installation projects where set-out distances vary.

P Trap to S Trap Conversion 180mm Cut Lines Set-Out: 60–160mm Height: 80–200mm Adjustable Bracket

Specifications

Function

Converts P Trap to S Trap

Cut Lines

180mm ribbed cut lines for pan spigot depth adjustment

Adjustable Height

80mm – 200mm

Wall-to-Waste Set-Out

60mm – 160mm

Stabilising Bracket

Adjustable bracket included

Compatibility

Universal — suits most toilet suite pan connectors

Feature Highlights

Renovation Ready

P Trap to S Trap Conversion

Designed for situations where the existing plumbing uses a P Trap (wall outlet) but the toilet suite requires an S Trap (floor outlet). This connector bridges the gap without requiring major pipe alterations — saving time and cost on renovation projects.

Flexible Adjustment

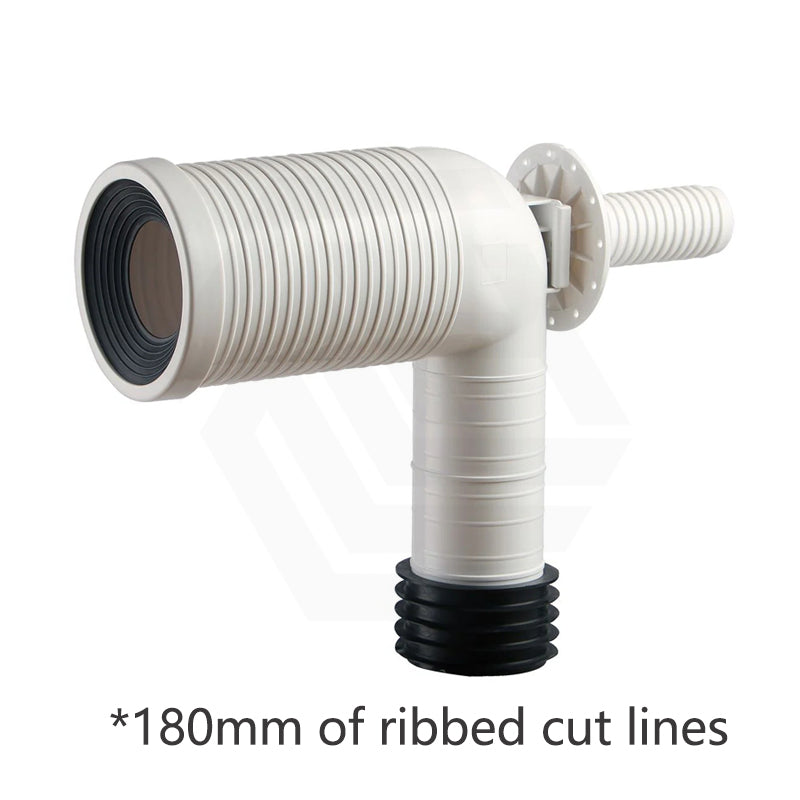

180mm Ribbed Cut Lines

The 180mm ribbed cut lines allow the connector to be trimmed on-site to match the exact pan spigot depth required. Combined with an adjustable height range of 80–200mm, it accommodates a wide variety of floor set-out configurations between 60mm and 160mm from the finished wall.

Stability

Adjustable Stabilising Bracket

An included adjustable stabilising bracket helps secure the connector in position during and after installation, reducing movement and ensuring a reliable, long-term seal between the pan and the floor waste outlet.

Universal Fit

Suits Most Toilet Suites

This pan connector is designed as a universal fitting compatible with most standard Australian toilet suites. If you are pairing this with a new toilet, view our Toilet Suites collection to find a compatible model.

Note: Always measure your wall-to-waste set-out distance before purchase. Ribbed cut lines must be trimmed correctly during installation. A measurement deviation of ±5mm is regarded as normal. If unsure, consult a licensed plumber prior to ordering.

Product Options

🔧 Do I Need This S Trap Connector?

This connector is designed for a specific plumbing scenario. Before purchasing, check your existing plumbing setup against the three situations below to confirm this is the right part for your installation.

Tip: Measure from the finished wall surface (not the skirting board) to the centre of your floor waste outlet.

✅ Scenario 1

P Trap Plumbing, Need S Trap Toilet

Your situation: Waste pipe exits through the wall (P Trap), but your new toilet suite requires a floor outlet (S Trap)

Wall outlet pipe New S Trap toilet Renovation upgrade

👉 Yes, you need this. This connector converts your wall outlet to a floor outlet to suit your new toilet.

✅ Scenario 2

Floor Outlet, Set-Out 60–160mm

Your situation: Waste pipe exits through the floor, but the set-out distance doesn't match your toilet's fixed connection point

Floor outlet Set-out 60–160mm Height 80–200mm

👉 Yes, you need this. Trim the 180mm cut lines on-site to match your exact set-out distance.

❌ Scenario 3

Set-Out Beyond 160mm

Your situation: Floor waste outlet is more than 160mm from the finished wall

Set-out >160mm Long rough-in

This connector only covers set-out distances of 60–160mm. For longer set-outs (160–240mm), a different connector is required.

⚠️ This product is not suitable. Please check our Toilet Traps range for the correct connector.

🧭 Quick Reference Guide

Your Plumbing Situation	Is This Product Suitable?
P Trap wall outlet, need S Trap floor connection	✅ Yes
Floor outlet, set-out 60–160mm from wall	✅ Yes
Floor outlet, set-out 160–240mm from wall	❌ No — different connector needed
Already have matching S Trap, no adjustment needed	❌ No — not required

⚠️ Important Notes

Always measure from the finished wall surface, not the skirting board.
Ribbed cut lines must be trimmed carefully to avoid over-cutting.
A measurement deviation of ±5mm is regarded as normal.
If unsure about your plumbing configuration, consult a licensed plumber before purchase.
This connector is compatible with most standard Australian toilet suites — view our Toilet Suites range for compatible products.
