ThermoGroup Thermowire/Thermoscreed Undertile/In Screed Heating Kit with White/Black Dual Thermostat
Description
Description

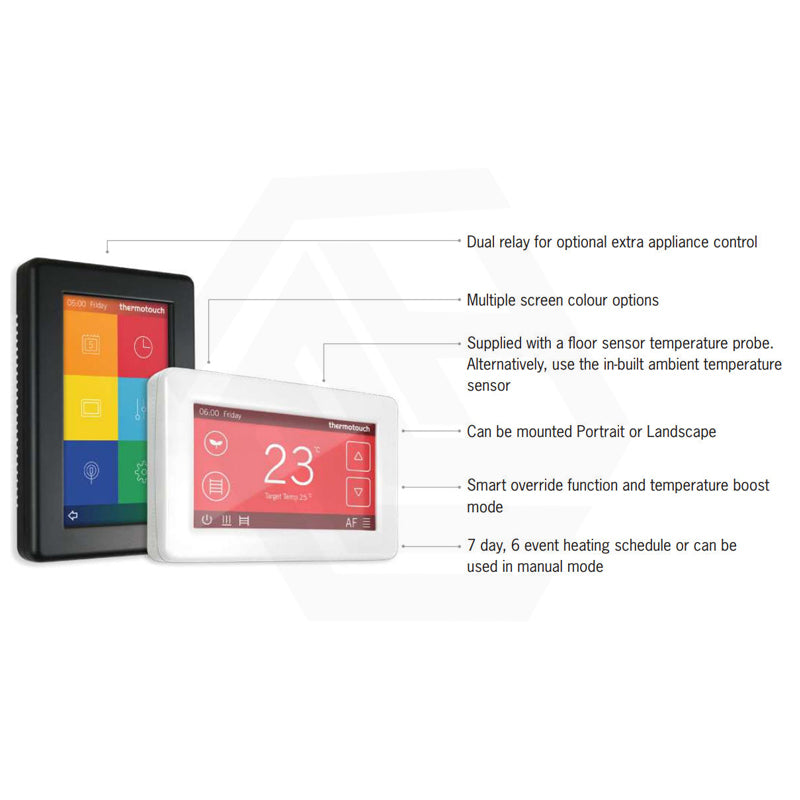

The ThermoGroup Floor Heating Kit delivers professional-grade comfort through its specialized Thermowire and Thermoscreed systems. The flexible Thermowire system is ideally suited for larger areas with its undertile installation, while the robust Thermoscreed system provides optimal performance for compact spaces through in-screed application. With heating cables available in lengths from 11m to 183m, the kit can be perfectly configured for any room dimension. The system's streamlined design, at just 3.5mm or 5.5mm thick, integrates seamlessly into your flooring without significantly raising floor levels. Control is both stylish and intuitive with the included white or black dual thermostat, which serves as a central command for your underfloor heating plus an additional electric towel rail or mirror demister.
Built for lasting performance, this heating solution combines exceptional safety with robust construction. It operates within a comfortable maximum temperature of 28°C and carries an IP68/IP67 rating, ensuring complete protection against moisture in bathroom or kitchen environments. This dual-control capability allows for a consolidated and efficient approach to managing multiple heating elements in your space. Elevate your home environment with this sophisticated system that brings together targeted warmth and versatile control for a truly customized comfort experience.
Specification:

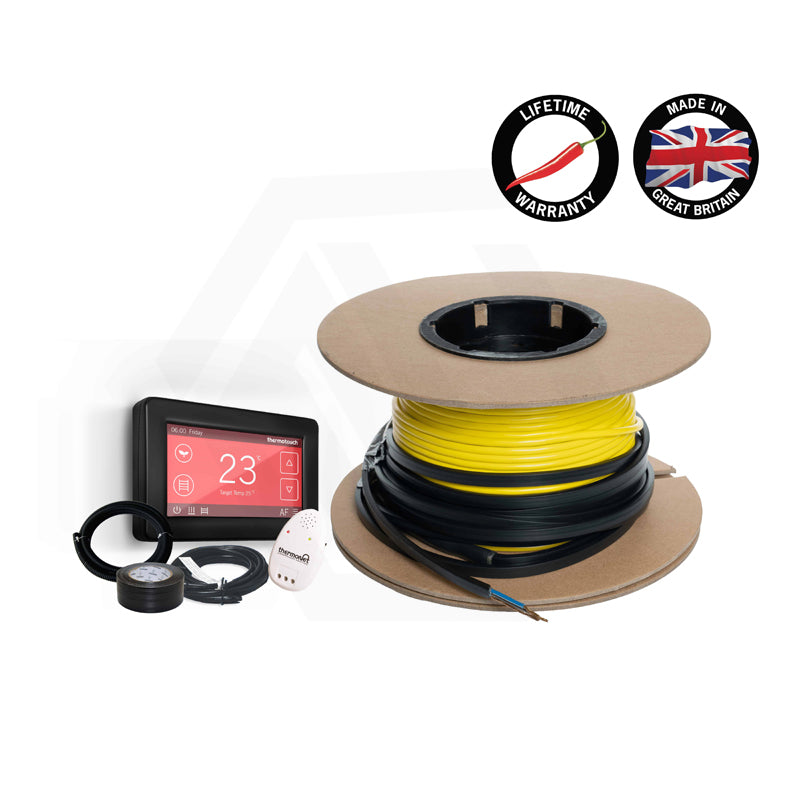

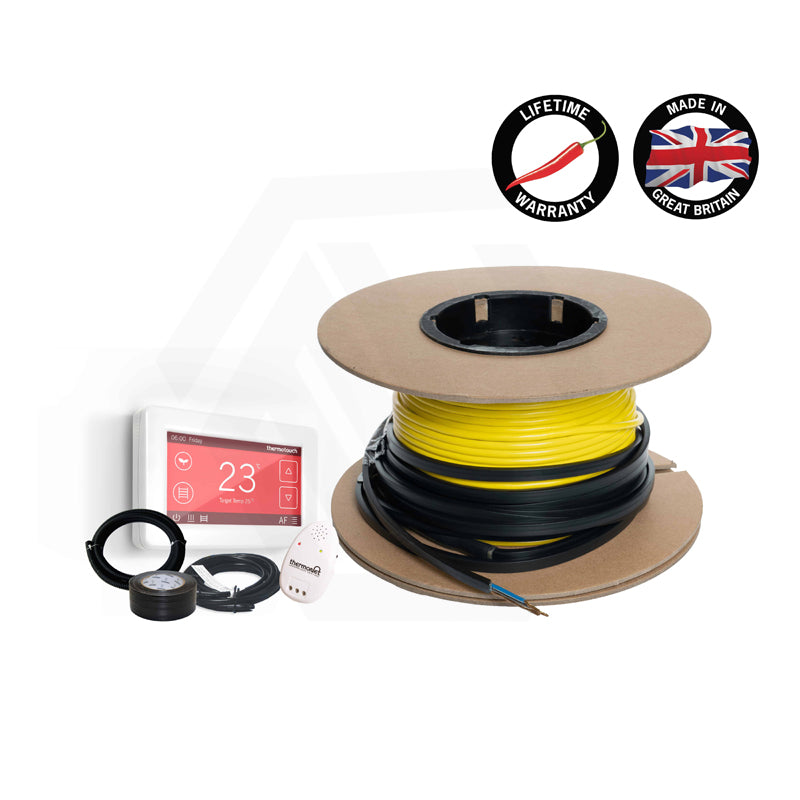

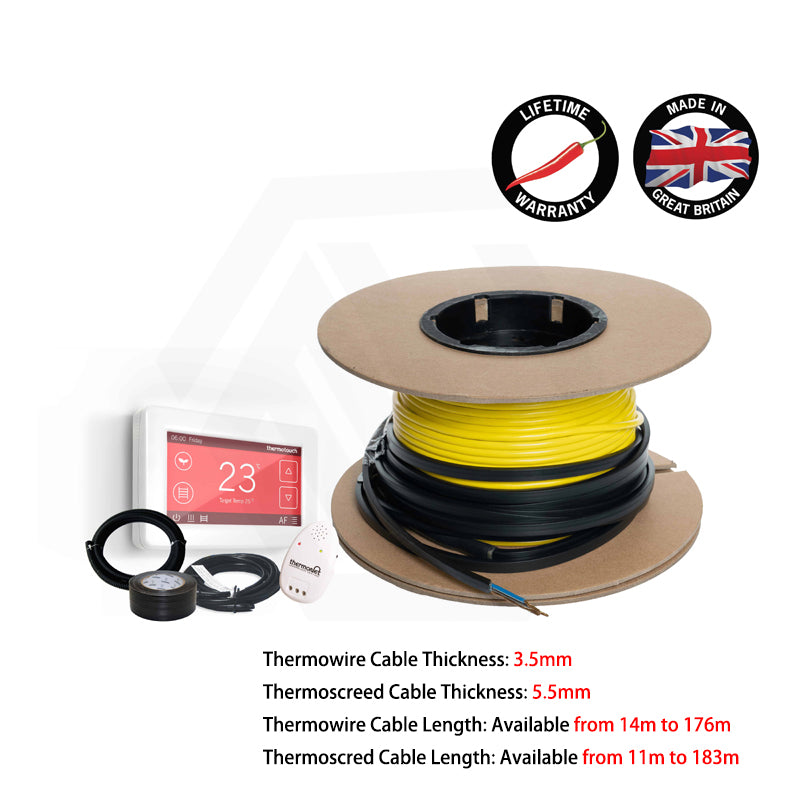

- Kit items include: Thermowire/Thermoscreed Cable, Cloth Tape, Programmable Thermostat (5245/5246), Floor Temperature Sensor, Sensor Conduit, Cable Monitor (6025), Installation Guide & Warranty Form.

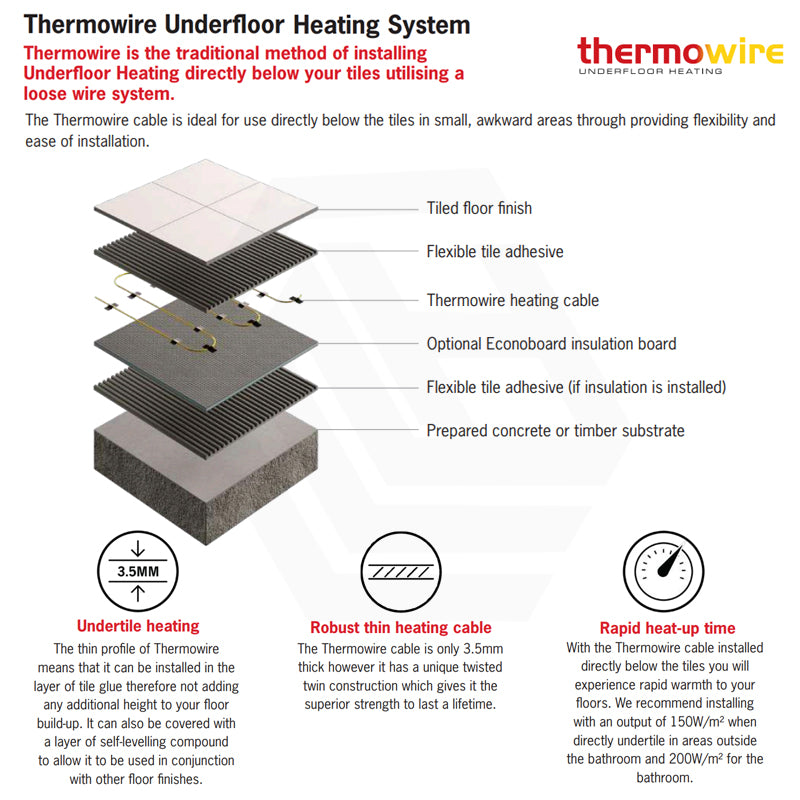

- The thin profile of Thermowire means that it can be installed in the layer of tile glue therefore not adding any additional height to your floor build up. It can also be covered with a layer of self-levelling compound to allow it to be used in conjunction with other floor finishes.
- With the Thermowire cable installed directly below the tiles you will experience rapid warmth to your floors. We recommend installing with an output of 150w/m² when undertile in areas outside the bathroom and 200w/m² for the bathroom.

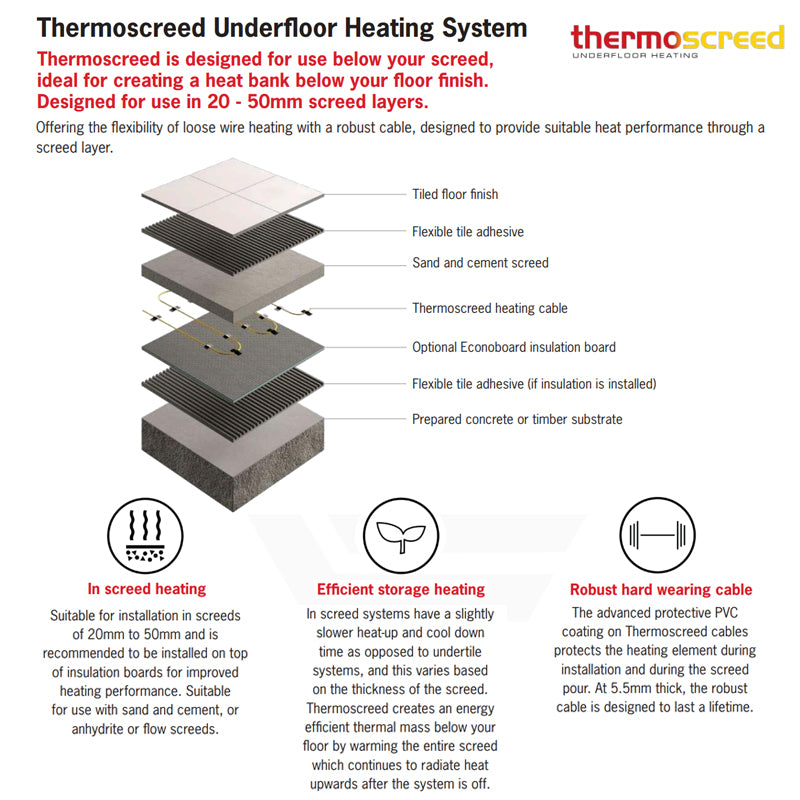

- Thermoscreed is ideal for new build projects where height build up is not limited. Designed for use in 20 – 50mm screed layers. In Screed heating systems allow the floor layer to prepare a perfectly flat floor to lay the floor covering over. Thermoscreed is suitable for almost any flooring finish including wood, carpet and vinyl.
Thermoscreed is a versatile heating cable designed for installation in the screed layer of new builds or renovation projects. It creates an energy efficient heating system by warming the screed to create a slow release thermal mass. Suitable for use with sand and cement, anhydrite and flow screeds.

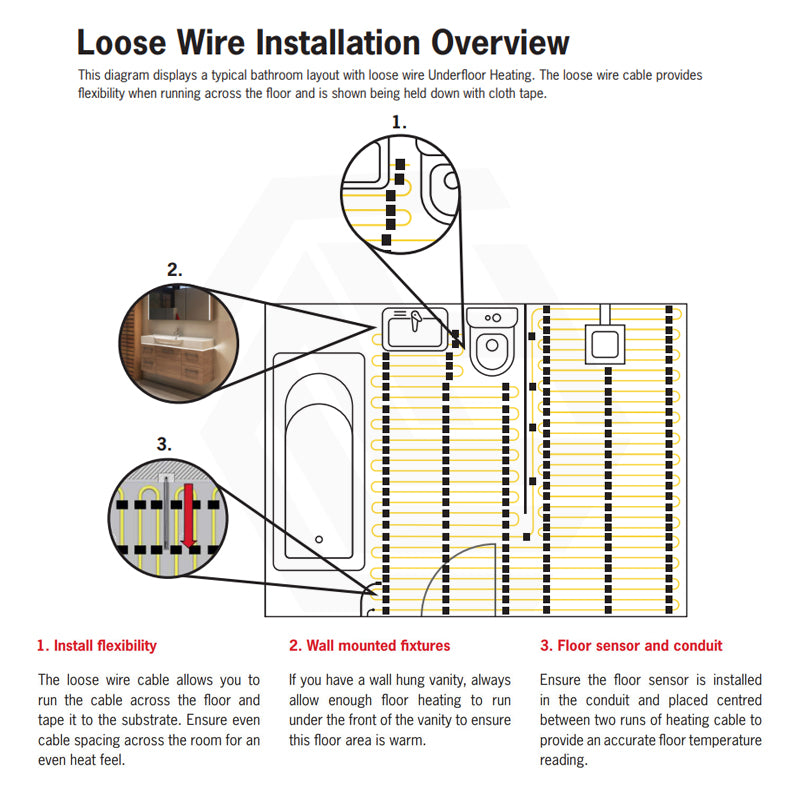

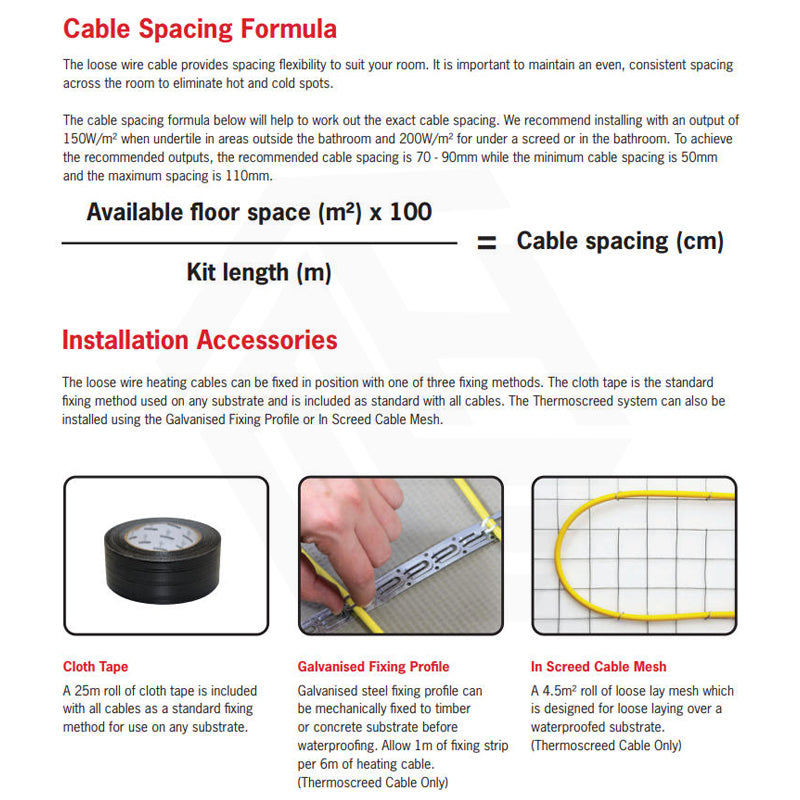

- The Thermoscreed matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating. Please note: The cloth tape is the standard fixing method and is included in the kits however alternate fixing methods are available.
Technical Data:
Thermowire (Ideal for Living Rooms)/ Thermoscreed (Ideal for Bathrooms)

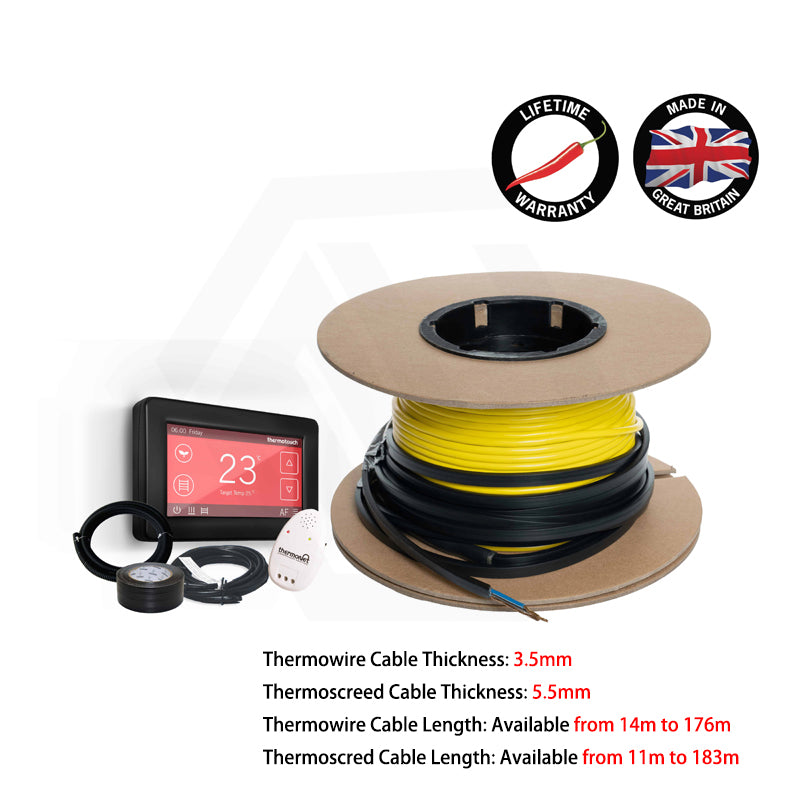

- • Cable Thickness: Thermowire-3.5mm / Thermoscreed-5.5mm
- • Max Temperature: 28°C
- • Protection Rating: Thermowire-IP68 / Thermoscreed-IP67
- • Thermoscreed Voltage: 240Volt
- • Thermoscreed Wattage: 18W/lm
- • Conductor Type: Singled Ended
- • Cold tail length: Thermowire-5m / Thermoscreed-3m
- • Lifetime Warranty on heating cable and 3 years on the Thermostat
- • 6mm/10mm Thick Coated or Uncoated Insulation Board Available
- Note: The thermostat supports up to 16 amps. If your system exceeds this, you’ll need a compatible contactor and snubber. Not sure which one to choose? Simply send us your floor plan, and our team will be happy to assist.
