Zara99 Rimless Wall Faced Toilet Pan Only 580x360x430mm - Gloss White

Name: Zara99 Rimless Wall Faced Toilet Pan Only 580x360x430mm - Gloss White
Brand: Unicasa
SKU: UN-ZAWFP
Price: 354.00 AUD
Availability: InStock

SKU: UN-ZAWFP

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Rimless Wall Faced Toilet Pan

Combining high-quality vitreous china with advanced Quiet Flush™ technology, this 580mm wall-faced pan offers a sleek, modern aesthetic for any bathroom. Available in classic Gloss White, it features a hygienic rimless flush and a soft-closing slim seat for lasting comfort.

Rimless Flush Vitreous China WaterMark Approved 4-Star WELS Rating

Hygiene Plus

High-Quality Vitreous China

Crafted from premium vitreous china, the pan features a delicate and super easy-to-clean surface. The Hygiene Plus technology applied to the finish helps keep the toilet sanitary with minimal effort.

Finished in classic Gloss White, the durable construction is designed for long-term residential use.

User Comfort

Comfortable Height & Slim Seat

The 430mm pan height is designed to be user-friendly, making it easier to sit down and stand up, particularly for seniors or taller individuals.

It comes equipped with an easy-release slim soft-closing seat, ensuring a quiet, gentle close and effortless removal for thorough cleaning.

Installation Flexibility

S-Trap & P-Trap Compatibility

To suit various Australian plumbing setups, this pan is compatible with multiple rough-in options, including a standard P-Trap (180mm) and adjustable S-Trap (60-160mm) configurations.

This versatility makes it an ideal choice for both new builds and renovation projects where existing pipework locations are fixed.

Note: Ceramic products may have a measurement deviation of ±5mm. Standard S-Trap (100-145mm) and installation accessories are included. Please confirm your required trap type and set-out before purchase.

Product Information

MODEL
Main Product Code	UN-ZAWFP
MATERIAL & FINISH
Material	High-quality vitreous china
Colour	Gloss White
TECHNICAL INFORMATION
Flushing	Rimless Flush
Toilet Seat	Easy-release slim seat (Soft Closing)
Hinge Cover	Thickness: 6mm, Diameter: 60mm
S-Trap (Default)	100-145mm roughing in
Option P-Trap	TSP-P180: 180mm roughing-in. (260mm straight pipe，can be cut to size to suit set-out distance)
Option S-Trap	TSP-VB-60: 180mm of ribbed cut lines, 60-160mm roughing-in. (Adjustable height: 80-200mm)
SIZE & DIMENSIONS
Dimensions	580x360x430mm
CERTIFICATION
WATERMARK	Approved
WATERMARK Licence No	026315
WELS	Approved
WELS Licence No	1743
WELS Registration No	L07140
WELS Star Rating	4 Star, 3.2L per average flush
PACKAGE CONTENTS
Main Product	1*Toilet pan
Accessories	Standard S TRAP (100-145mm roughing-in) and Installation Accessories Included
FEATURES
Feature 1	Comfortable Height -- A tall toilet pan makes it comfy to sit down and stand up, and user-friendly especially for tall people and seniors.
Feature 2	The finish gives a delicate and super easy-to-clean surface where it also applies Hygiene Plus technology.
WARRANTY
Ceramic Pans	20-year product replacement, 1-year parts and labour
Toilet Seat Cover	1-year product replacement, 1-year parts and labour
Toilet Accessories	1-year product or parts replacement
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.

Supplier's Gallery

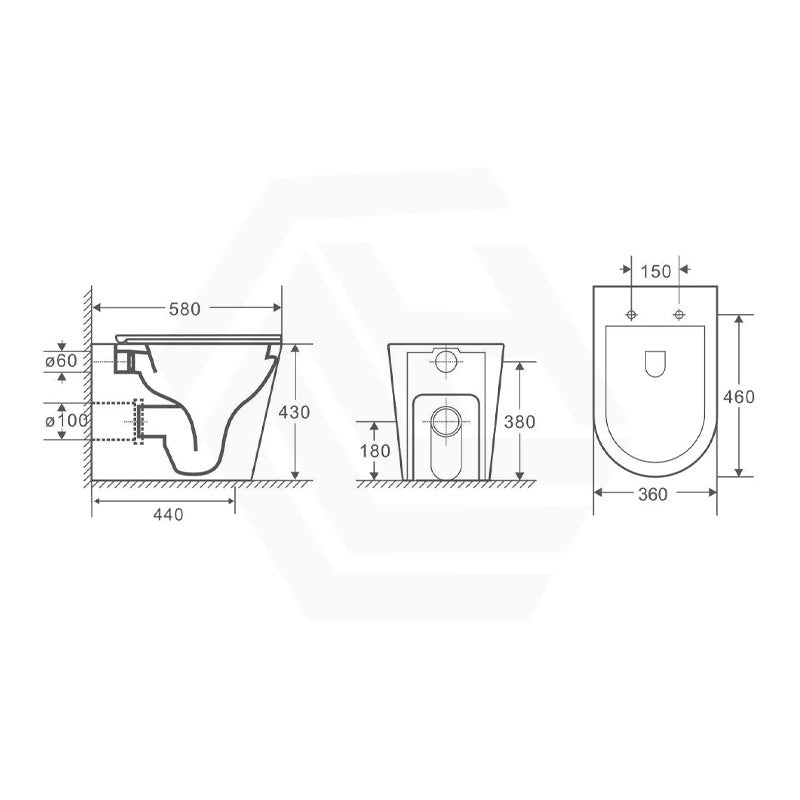

Dimensions

Product Options

📐 Choose the Correct Trap Option

Measure your set-out distance (rough-in) — the distance from the finished wall to the centre of the waste outlet on the floor.

Tip: Measure from the tiled wall (not the skirting board) to the centre of the pipe.

🔵 Option 1

Default

S-Trap

100-145mm rough-in

👉 Choose this option if no specific trap requirement is needed.

🟢 Option 2

Standard P-Trap: 180mm

Suitable for: Waste outlet through the wall

Fixed 180mm rough-in Includes 260mm straight pipe Pipe can be trimmed

👉 Choose this if your waste pipe comes out of the wall.

🟠 Option 3

180mm Cut-Line S-Trap: 60–160mm

Type: Adjustable short-range floor outlet

180mm ribbed cut lines Rough-in: 60–160mm Height: 80–200mm

👉 Choose this if your floor waste outlet measures between 60mm and 160mm.

🧭 Quick Selection Guide

Plumbing Setup	Recommended Option
100-145mm rough-in	Default S-Trap
Fixed 180mm rough-in	Standard P-Trap
Rough-in: 60–160mm	180mm Cut-Line S-Trap

⚠️ Important Notes

Always measure from the finished wall surface.
If unsure, consult your plumber before purchase.
Measurement deviation of ±5mm is normal.
Traps with ribbed cut lines must be trimmed correctly during installation.

Instruction

UN-ZAWFP Series Resources

Technical specifications, architectural dimensions, and step-by-step installation instructions for the UN-ZAWFP series.

📐

UN-ZAWFP Specification Sheet (PDF)

Detailed dimensional schematics, physical measurements, and complete technical specifications for pre-installation planning.

View Spec Sheet

🛠️

UN-ZAWFP Installation Guide (PDF)

Step-by-step setup manual covering mounting procedures, structural fixings, alignment, and final operational checks.

Download Manual

Note: Prior to commencing installation, always cross-reference on-site rough-in measurements with the official specification sheet. All plumbing and installation works must be carried out by a licensed tradesperson in accordance with local building codes to ensure product integrity and warranty validation.
