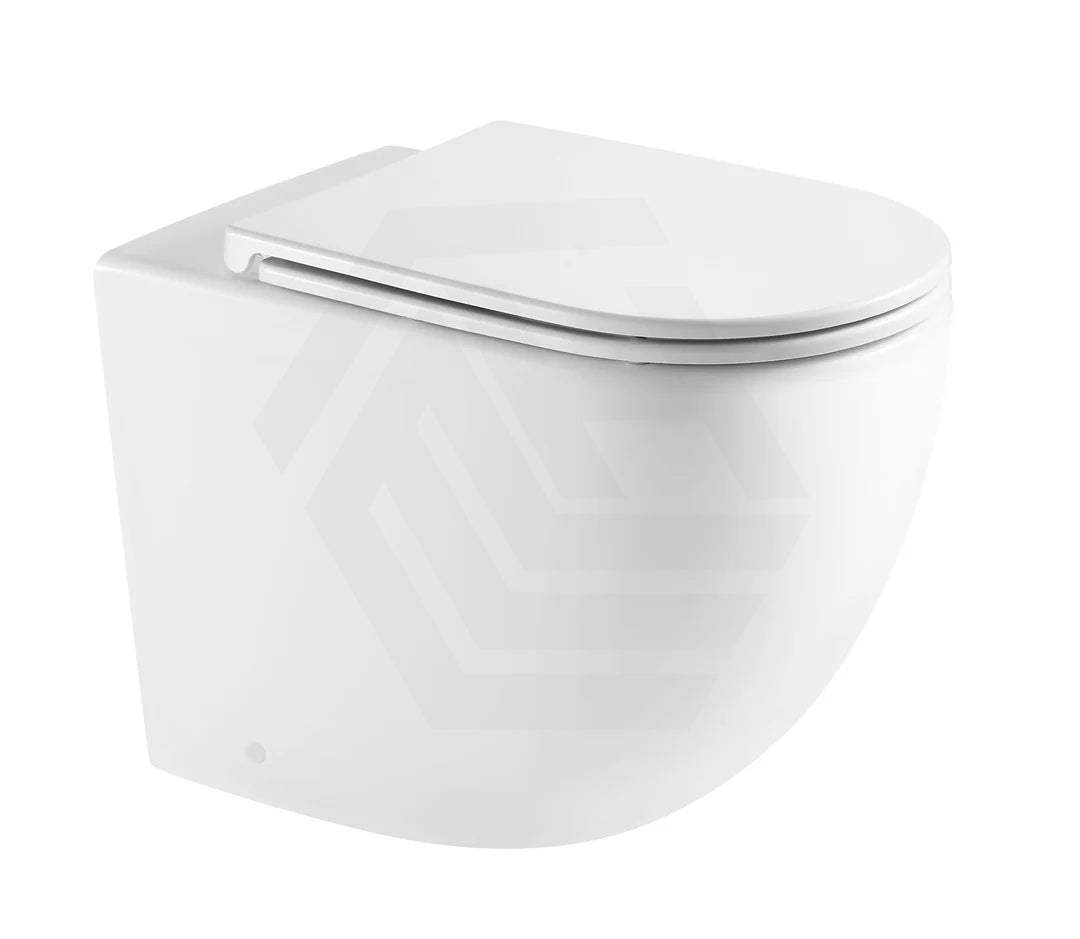

Raul99 Bathroom Toilet Wall Floor Faced Pan Only With Rimless Flushing 570x360x410mm - Gloss White

Name: Raul99 Bathroom Toilet Wall Floor Faced Pan Only With Rimless Flushing 570x360x410mm - Gloss White
Brand: Unicasa
SKU: UN-RAWFP
Price: 366.00 AUD
Availability: InStock

SKU: UN-RAWFP

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Rimless Flush Toilet

Experience the next generation of bathroom hygiene with our Rimless Flush technology. This back-to-wall pan combines a powerful, quiet rimless flush with a sleek floor-faced design, making it the perfect upgrade for modern Australian homes.

Rimless Technology Back-to-Wall Design S/P Trap Compatible

Superior Hygiene

Hygienic Rimless Bowl

Our rimless design eliminates the hidden channels where bacteria and limescale often hide. The open bowl architecture allows for easy cleaning and better water distribution, leaving no spot untouched.

Combined with an antibacterial glazed surface, this design simplifies your cleaning routine and keeps your bathroom fresher for longer.

Modern Aesthetic

Seamless Back-to-Wall Profile

The Wall Floor Faced design creates a seamless look that hides all plumbing and waste pipes. This minimalist aesthetic not only looks modern but also eliminates dust-collecting crevices around the back of the toilet.

This compact and streamlined profile is ideal for both spacious master suites and narrow powder rooms.

Note: A measurement deviation of ±5mm is considered a common variation in ceramic production. Always confirm your plumbing set-out (S-Trap or P-Trap) before final installation.

Product Information

MODEL
Main Product Code	UN-RAWFP
MATERIAL & FINISH
Material	High-quality vitreous china
Colour	White
Finish	Gloss
TECHNICAL INFORMATION
Features	Hygiene Plus technology
Flushing	Rimless
Toilet Seat	Easy-release slim seat (Soft Closing)
Hinge Cover	Thickness: 6mm, Diameter: 60mm
S-Trap (Default)	100-145mm roughing-in
Option P-Trap	TSP-P180: 180mm roughing-in (260mm straight pipe, can be cut to size)
Option S-Trap	TSP-VB-60: 60-160mm roughing-in (Adjustable height: 80-200mm)
SIZE & DIMENSIONS
Dimensions	570x360x410mm
CERTIFICATION
WATERMARK	Approved (Licence No: 026315)
WELS Star Rating	4 Star, 4.5L/3L Dual Flush
PACKAGE CONTENTS
Main Product	1* Toilet pan
Accessories	Standard S TRAP (100-145mm) and Installation accessories
WARRANTY
Ceramic Pans	20-year product replacement, 1-year parts and labour
Toilet Seat Cover	1-year product replacement, 1-year parts and labour
Toilet Accessories	1-year product or parts replacement
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.
REMINDER
NOTES	PLEASE NOTE THAT THE IN-WALL CISTERN IS NOT INCLUDED AND NEEDS TO BE PURCHASED SEPARATELY

Supplier's Gallery

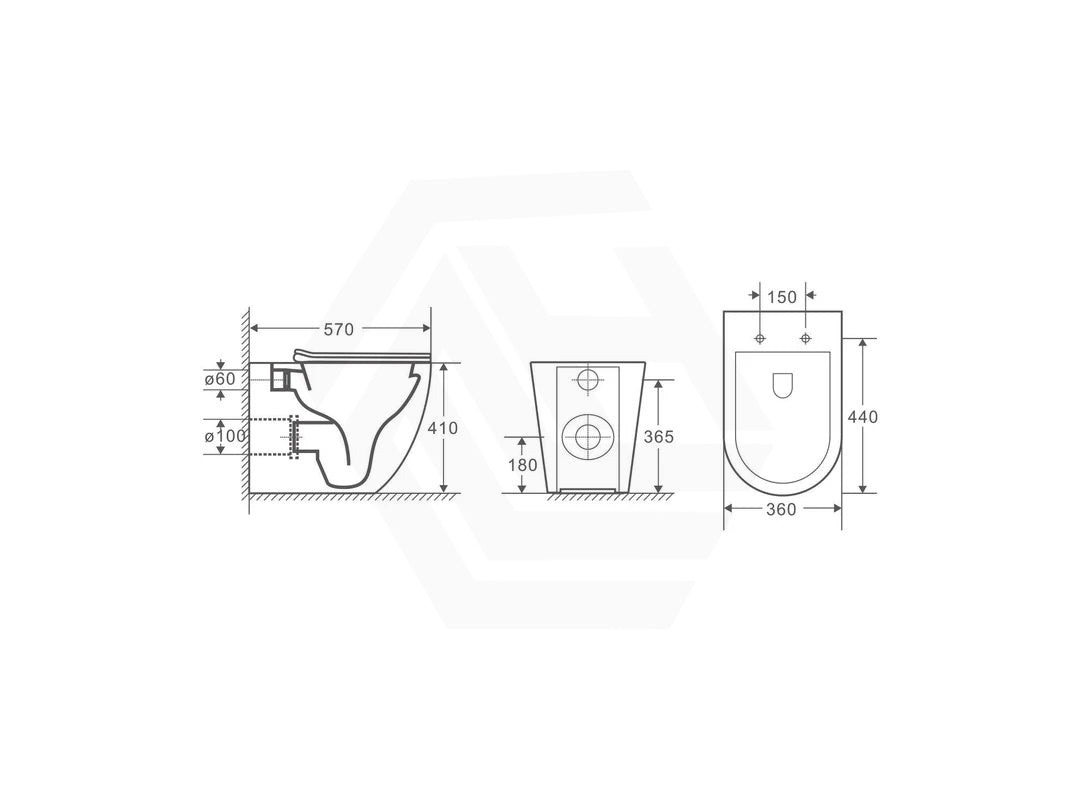

Dimensions

Product Options

📐 Trap Configuration Guide

Follow the guide below to ensure your rimless toilet pan fits your existing bathroom plumbing layout perfectly.

Select Your Trap Option

Measure the set-out distance (wall to centre of waste outlet) before selecting.

Standard Floor

Default S-Trap (100–145mm)

✅ Choose this for most standard floor outlets between 100mm and 145mm.

Short/Long Floor

S-Trap (60–160mm)

🔧 Choose this if you need extra flexibility for unique floor waste distances.

Wall Outlet

P-Trap (180mm)

🏠 Choose this if your waste pipe connects directly through the wall.

⚠️ Key Product Highlights

Premium Vitreous China: High-grade glazed ceramic for lasting durability and stain resistance.
Hygienic Rimless Design: Streamlined pan geometry makes cleaning easier and controls germ growth.
Versatile Installation: Flexible trap options compatible with various plumbing layouts.

Instruction

UN-RAWFP Series Resources

Technical specifications, architectural dimensions, and step-by-step installation instructions for the UN-RAWFP series.

📐

UN-RAWFP Specification Sheet (PDF)

Detailed dimensional schematics, physical measurements, and complete technical specifications for pre-installation planning.

View Spec Sheet

🛠️

UN-RAWFP Installation Guide (PDF)

Step-by-step setup manual covering mounting procedures, structural fixings, alignment, and final operational checks.

Download Manual

Note: Prior to commencing installation, always cross-reference on-site rough-in measurements with the official specification sheet. All plumbing and installation works must be carried out by a licensed tradesperson in accordance with local building codes to ensure product integrity and warranty validation.
