RAK Compact Slim Wall Hung Basin Ceramic 450x215x180mm - Gloss White

Name: RAK Compact Slim Wall Hung Basin Ceramic 450x215x180mm - Gloss White
Brand: RAK
SKU: FN-601301W
Price: 188.00 AUD
Availability: InStock

SKU: FN-601301W

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

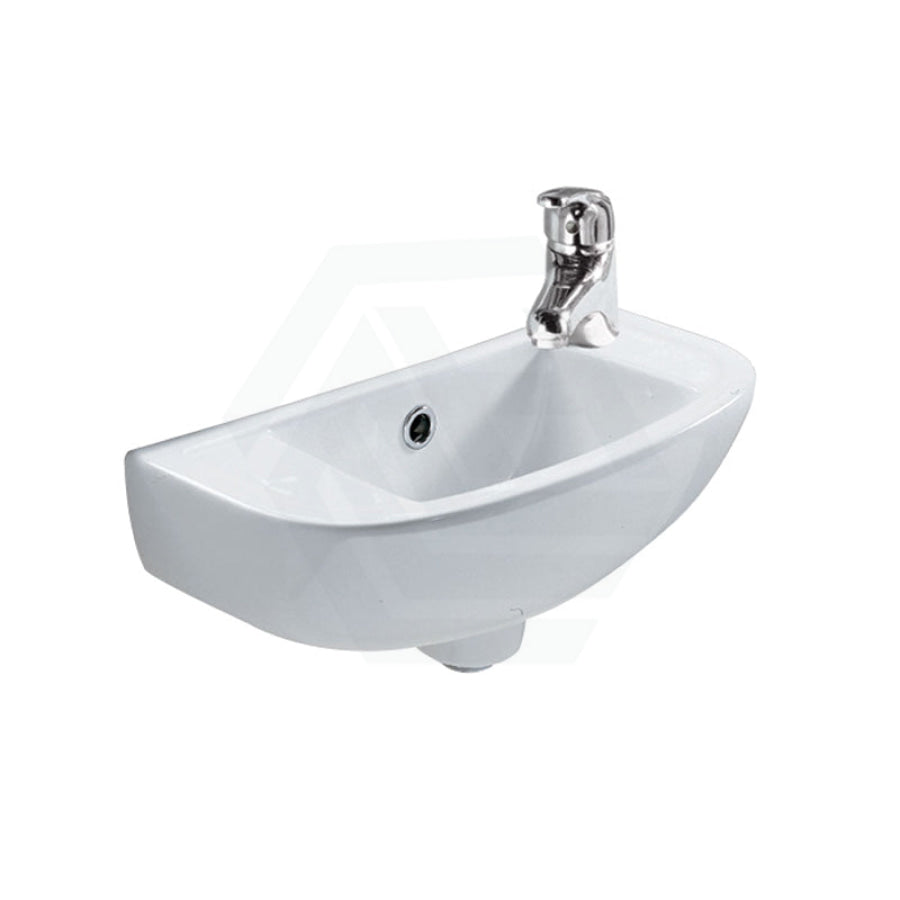

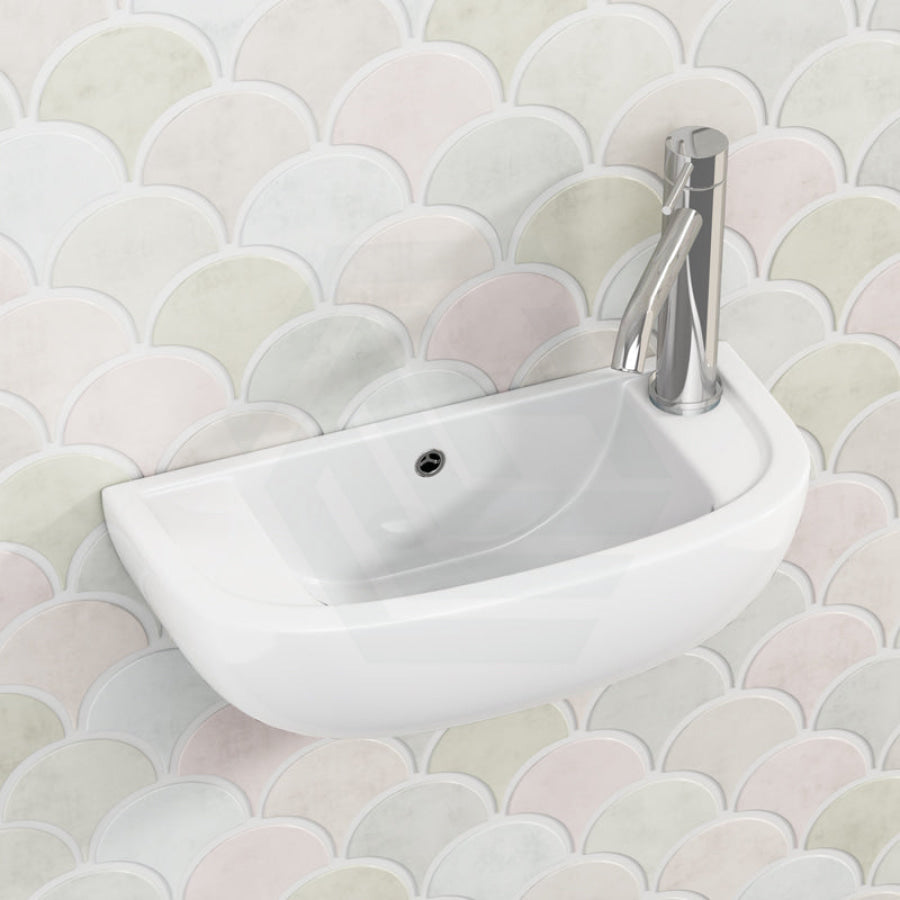

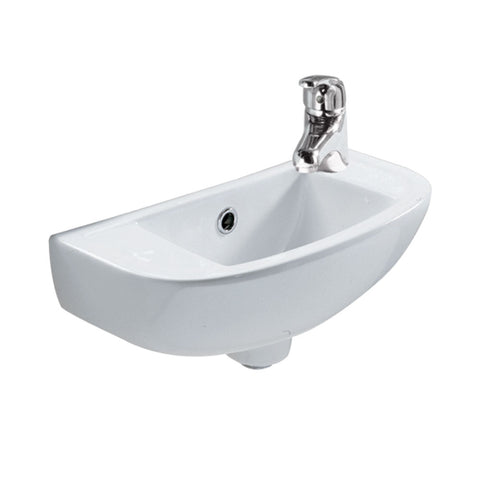

RAK Compact Slim Wall Hung Basin

The RAK Compact Slim Wall Hung Basin combines durable fine ceramic construction with a slim 450x215x180mm profile. Its wall hung design is suited to bathrooms where space is limited, while the Gloss White finish and self-cleaning glazed surface provide a clean and practical bathroom solution.

450x215x180mm Fine Ceramic Gloss White Wall Hung Slim Profile With Overflow

Material & Construction

Durable Fine Ceramic Construction

Crafted from fine ceramic, this wall hung basin provides a durable construction designed for long-lasting bathroom use.

The hard ceramic construction provides strength and endurance while maintaining the basin's clean Gloss White appearance.

Slim Wall Hung Design

450x215x180mm Slim Wall Hung Profile

Measuring 450x215x180mm, the basin features a slim profile and wall hung installation designed for bathrooms where space is at a premium.

Its special slim shape creates a compact basin profile while the wall hung design keeps the installation visually streamlined.

Glazed Surface

Self-Cleaning Glazed Surface

The basin features a self-cleaning glazed surface with Hygiene Plus technology, supporting easy cleaning and everyday bathroom maintenance.

The glazed finish provides a smooth surface while maintaining the basin's clean and glossy white appearance.

Installation & Configuration

Right-Side Tap Hole with Integrated Overflow

This wall hung basin is available with one tap hole positioned on the right side and includes an overflow hole for the basin configuration.

Wall mounting bolts are included, while the basin uses a 32mm waste size. The pop-up waste is not included.

Notes: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.

Product Information

MODEL
Main Product Code	FN-601301W (2 litres)
MATERIAL & FINISH
Material	Fine ceramic
Colour	White
Finish	Gloss
SPECIFICATION
Product Type	Wall-hung Slim Basin
Installation Type	Wall hung
TECHNICAL INFORMATION
Tap Hole	Available with one tap hole (on right side)
Overflow Hole	With Overflow
Waste Size	32mm
Shape	Special shape,slim
Pop Up Waste	Not Included
SIZE & DIMENSIONS

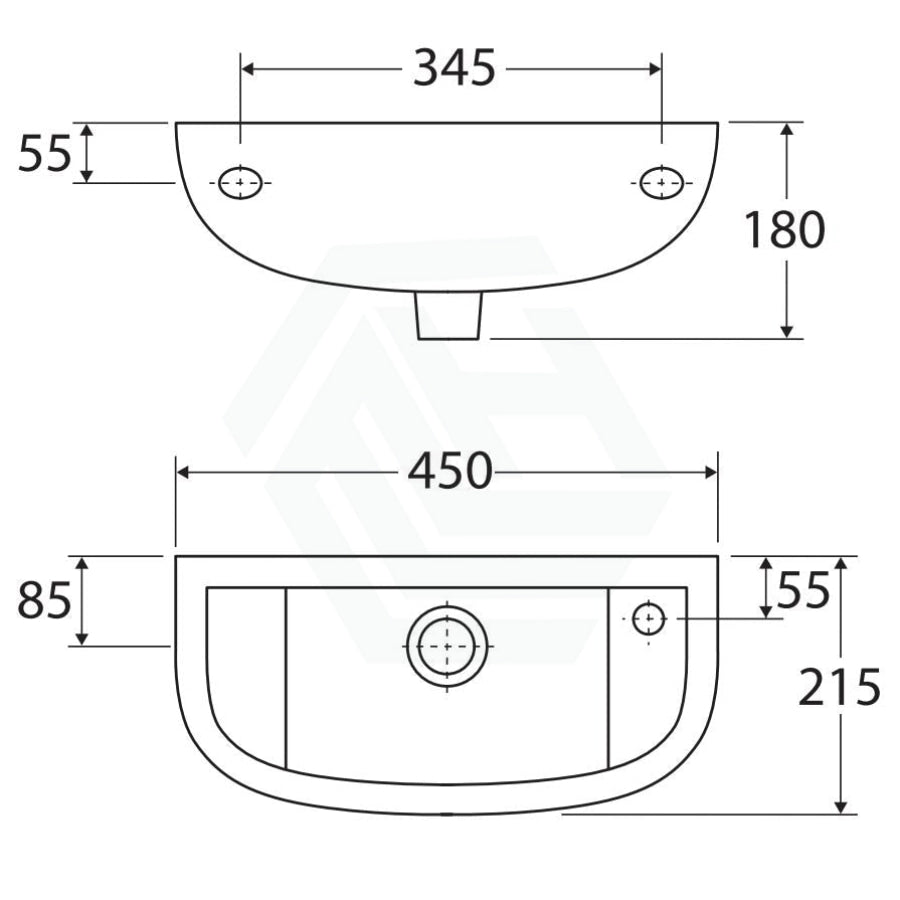

Dimensions	450x215x180mm
PACKAGE CONTENTS
Main Product	1x Basin
Accessories	Wall mounting bolts included
FEATURES
Feature 1	The hard ceramic gives it strength and long-lasting endurance.
Feature 2	Self-cleaning glazed surface, hygiene plus technology
WARRANTY
5 Years Warranty	5 Years for general use
1 Year Warranty	1 Year for surface faults like fading or any other manufacturer's fault , 1 Year on parts
Warranty Note	Extend Warranty Plans provide you with an extended warranty period. Please contact us now or get more information about the Warranty Extensions & Extra Services Upgrades on the checkout page.
reminder
Note	A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products.

Supplier's Gallery

Dimensions

Product Options

🚿 RAK Compact Slim Wall Hung Basin — Configuration Guide

The RAK Compact Slim Wall Hung Basin combines a sleek, minimalist silhouette with a compact wall-hung profile — ideal for contemporary bathrooms, powder rooms, and space-conscious layouts. Its slim rim design pairs effortlessly with matching tapware and exposed plumbing components.

💡 Tip: For exposed wall-hung installations, pair with a solid brass bottle trap and a 32/40mm universal pop-up/pull-out waste (sold separately).

🚰 Step 1: Select Your Waste Finish

Universal fit suitable for 32mm and 40mm waste outlets

🚰 Waste Option 1

32/40mm Gloss White Universal Basin Waste

Finish: Gloss White · Size: 32/40mm

Gloss White 32/40mm Universal Basin Waste

👉 Select Gloss White for a seamless all-white basin aesthetic.

🚰 Waste Option 2

32/40mm Chrome Universal Basin Waste

Finish: Chrome · Size: 32/40mm

Chrome 32/40mm Universal Basin Waste

👉 Select Chrome to coordinate with classic polished chrome tapware and accessories.

🚰 Waste Option 3

32/40mm Matt Black Universal Basin Waste

Finish: Matt Black · Size: 32/40mm

Matt Black 32/40mm Universal Basin Waste

👉 Select Matt Black to create a sharp monochromatic accent paired with dark tapware.

🔧 Step 2: Select Your Universal Bottle Trap Finish

Crafted from solid brass for exposed wall-hung installations. Click a colour below to preview the matching finish.

Universal Bottle Trap — M#1(Gunmetal-Grey)

🔧 Trap Finish

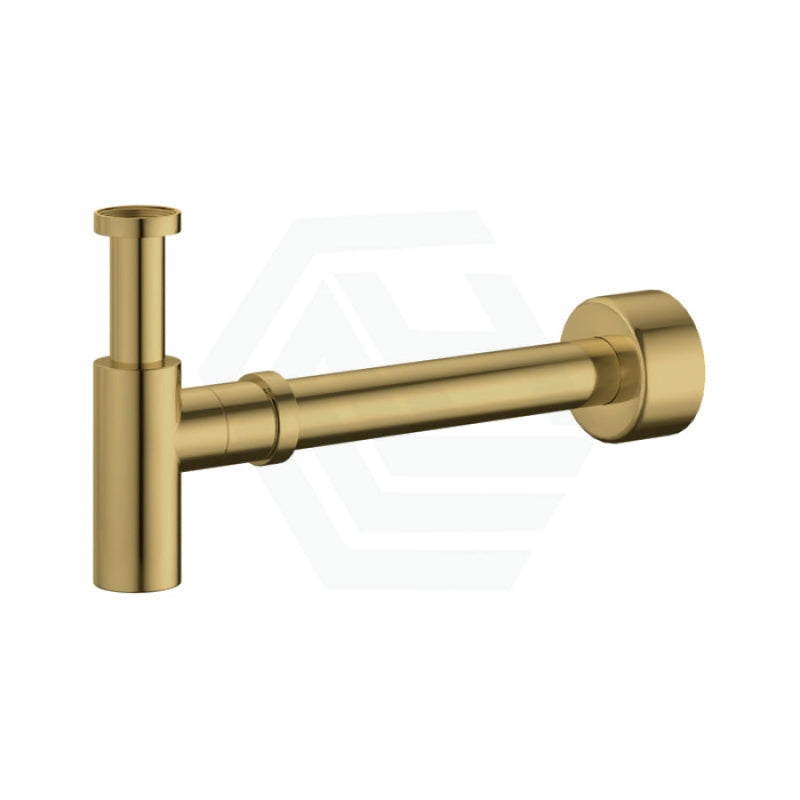

Universal Bottle Trap — G#2(Gold)

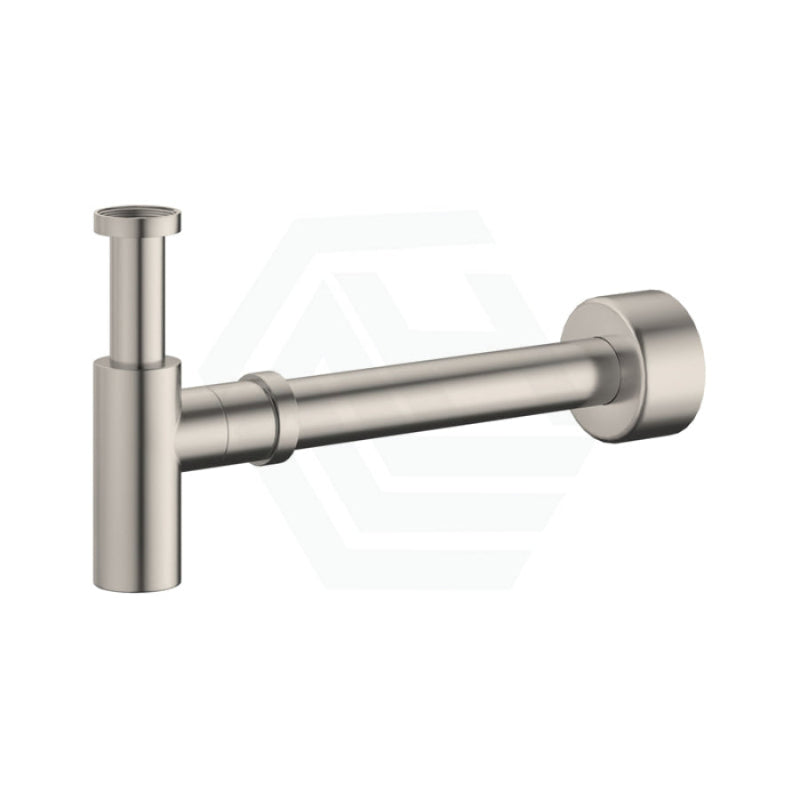

Universal Bottle Trap — N#1(Nickel)

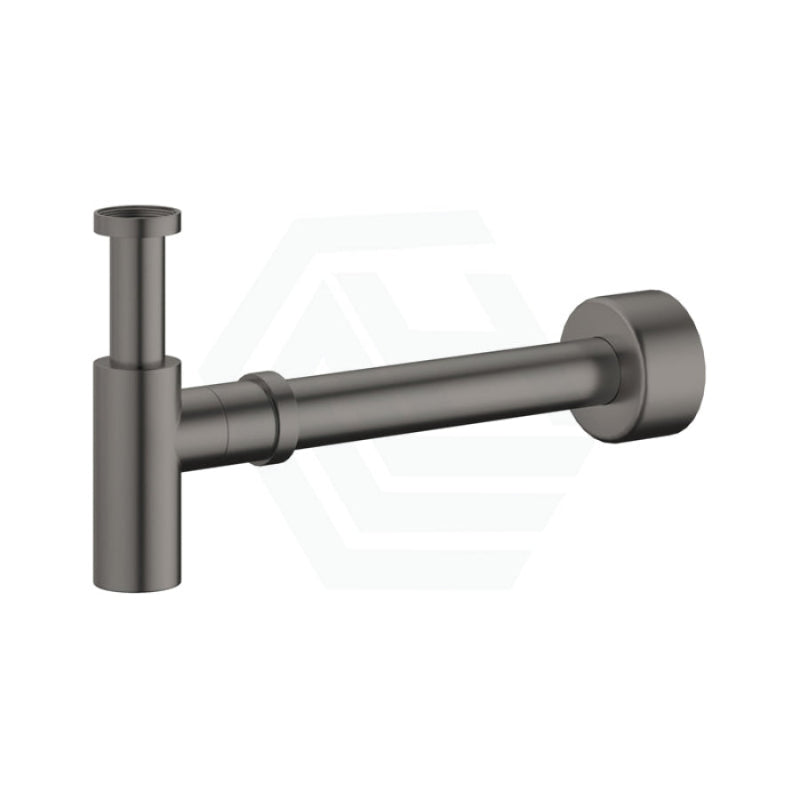

Universal Bottle Trap — M#1(Gunmetal-Grey)

Material: Solid Brass
Warm, luxurious brushed gold finish creating an opulent accent beneath wall-hung basins.

Material: Solid Brass
Subtle, muted brushed steel tone offering soft texture and excellent fingerprint resistance.

Material: Solid Brass
Deep graphite industrial hue that adds moody contemporary depth beneath floating basins.

G#2(Gold) N#1(Nickel) M#1(Gunmetal-Grey)

Solid Brass Body Brushed Gold Universal 32/40mm

Solid Brass Body Brushed Nickel Universal 32/40mm

Solid Brass Body Gunmetal Grey Universal 32/40mm

👉 Select Gold to pair with brushed brass tapware and luxury bathroom accessories.

👉 Select Nickel for a soft metallic presence coordinating with brushed nickel mixers and framing.

👉 Select Gunmetal for a refined dark metallic look that bridges chrome and matte black styles.

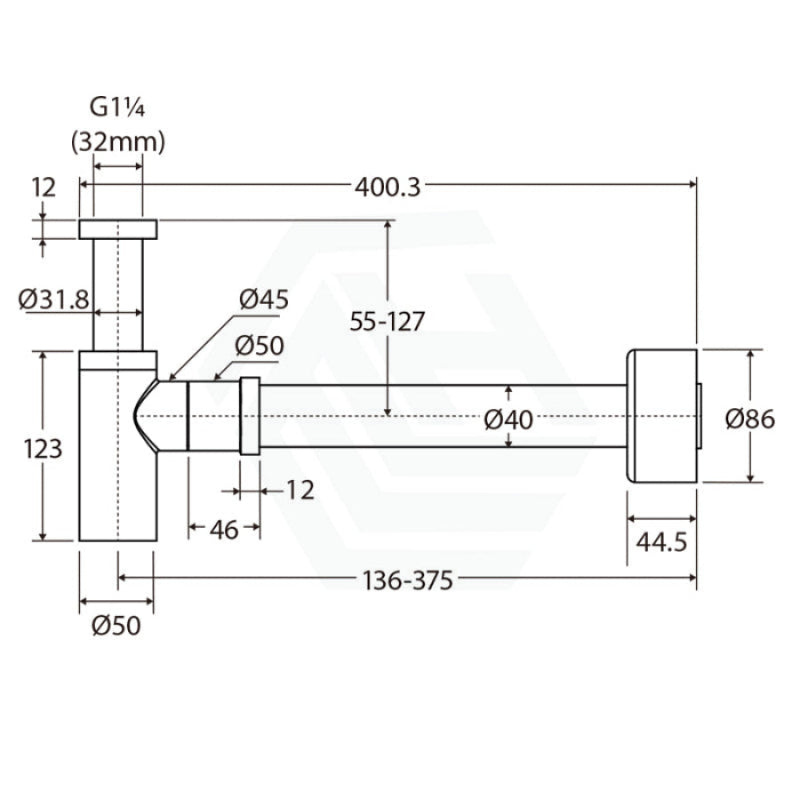

📐 Dimensional Drawing

Universal Bottle Trap — Dimensions

Adjustable vertical and horizontal pipe sections suit standard 32mm and 40mm wall drain connections. Refer to the diagram for exact connection and adjustment dimensions.

🧭 Quick Selection Guide — Basin + Waste + Bottle Trap Combinations

Design Scheme	Recommended Combination	Visual Impact
Luxury Warm Organic	Basin + 32/40mm Gloss White Universal Basin Waste + G#2(Gold) Bottle Trap	Opulent brass warmth complementing natural stone tiles and brushed gold fixtures.
Contemporary Brushed / Soft Metallic	Basin + 32/40mm Chrome Universal Basin Waste + N#1(Nickel) Bottle Trap	Understated architectural refinement with low-reflective, fingerprint-resistant elegance.
Industrial Dark / High Contrast	Basin + 32/40mm Matt Black Universal Basin Waste + M#1(Gunmetal-Grey) Bottle Trap	Deep charcoal tones delivering dramatic depth against white or matte black ceramic.
Seamless All-White Minimalist	Basin + 32/40mm Gloss White Universal Basin Waste + N#1(Nickel) Bottle Trap	Clean, bright, unified look with a subtle metallic accent beneath the basin.
Modern Chrome Classic	Basin + 32/40mm Chrome Universal Basin Waste + N#1(Nickel) Bottle Trap	Timeless polished chrome harmony with understated brushed nickel contrast.
Moody Dark Bathroom	Basin + 32/40mm Matt Black Universal Basin Waste + M#1(Gunmetal-Grey) Bottle Trap	Rich charcoal tones creating a cohesive, dramatic, contemporary statement.

📌 Technical Specifications & Installation Notes

Wall Nogging Requirement: Wall-hung basins carry substantial cantilever weight. Installers must ensure heavy-duty timber noggings are fixed between wall studs prior to securing the mounting bolts.
Universal Waste Compatibility: The universal waste is configured to suit standard 32mm and 40mm waste outlets and can be fully disassembled from above for hair and debris removal.
Bottle Trap Rough-in: The solid brass universal bottle trap includes adjustable vertical and horizontal pipe sections suitable for standard 32mm and 40mm wall drain connections.
Watertight Seal: Apply non-acidic sanitary neutral-cure silicone along the back wall junction to protect behind-wall tiling against moisture penetration.
Professional installation by a licensed plumber is recommended.
