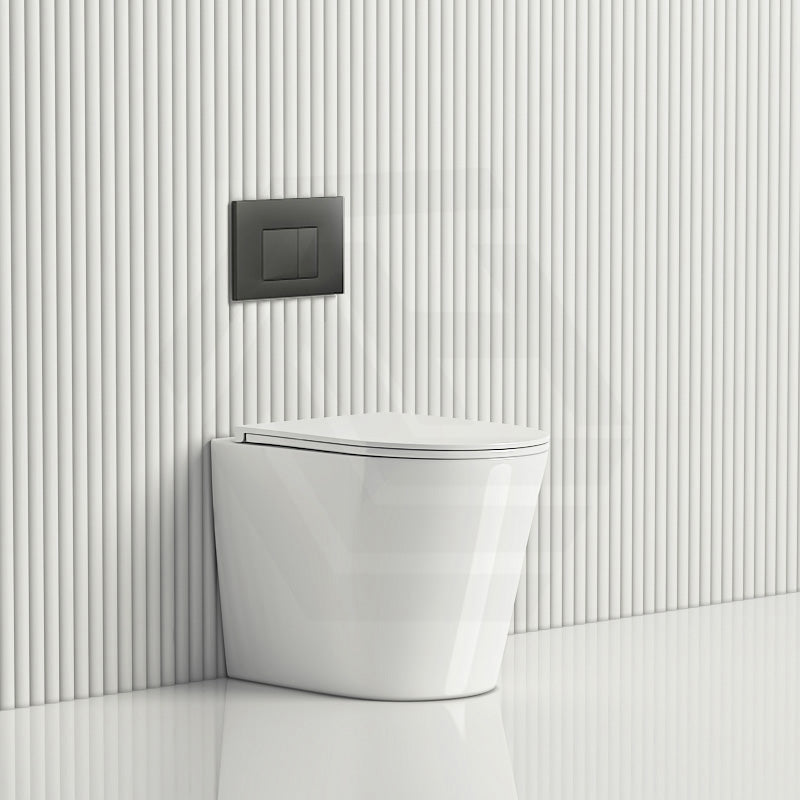

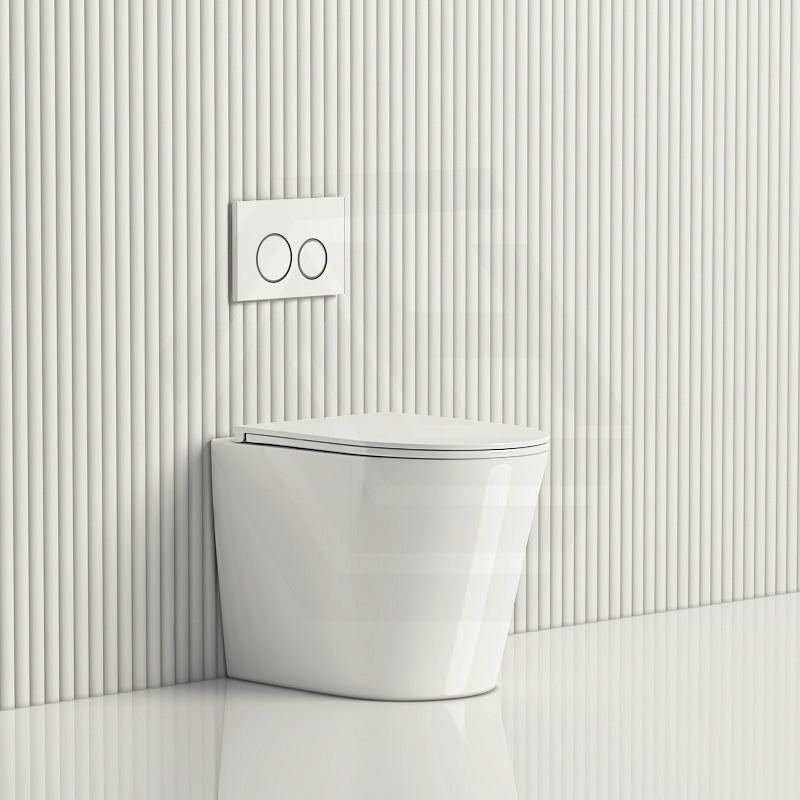

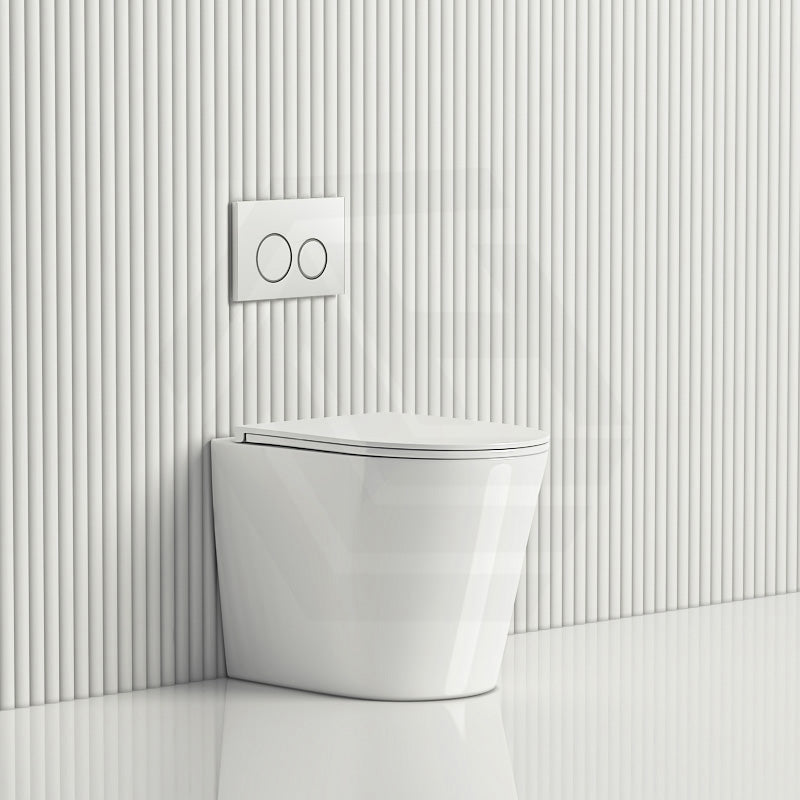

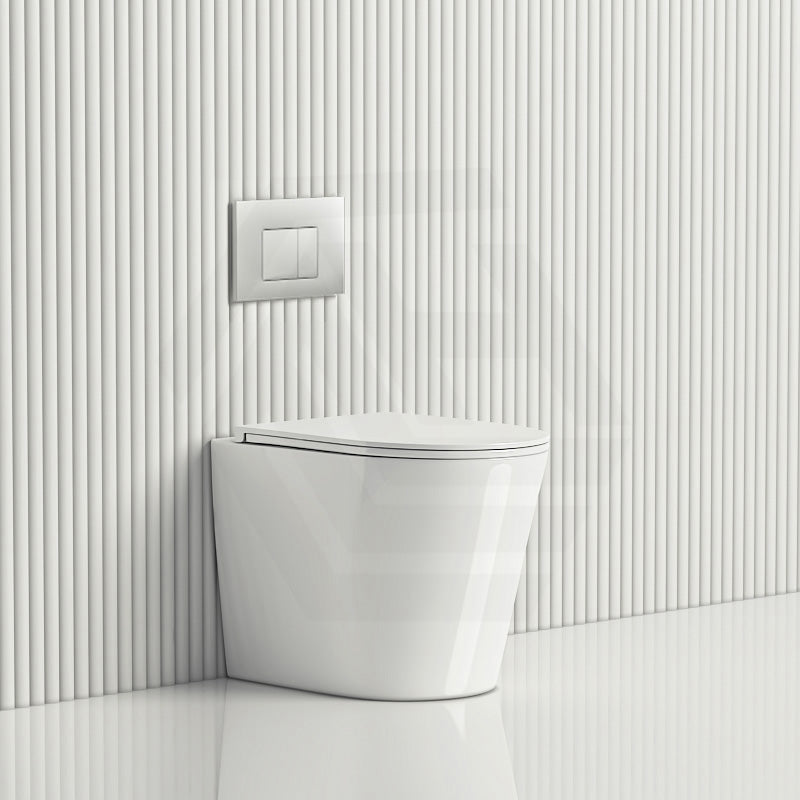

R&T Inwall Cistern Toilet Suite
This toilet package combines an R&T frameless inwall concealed cistern with a gloss white rimless tornado wall faced toilet pan and push button. It is designed for a clean in-wall installation, with a mechanical front flush cistern, slim soft close UF seat, and flexible trap compatibility for bathroom renovations and new builds, making it one of the ideal toilets for sale for modern bathrooms.

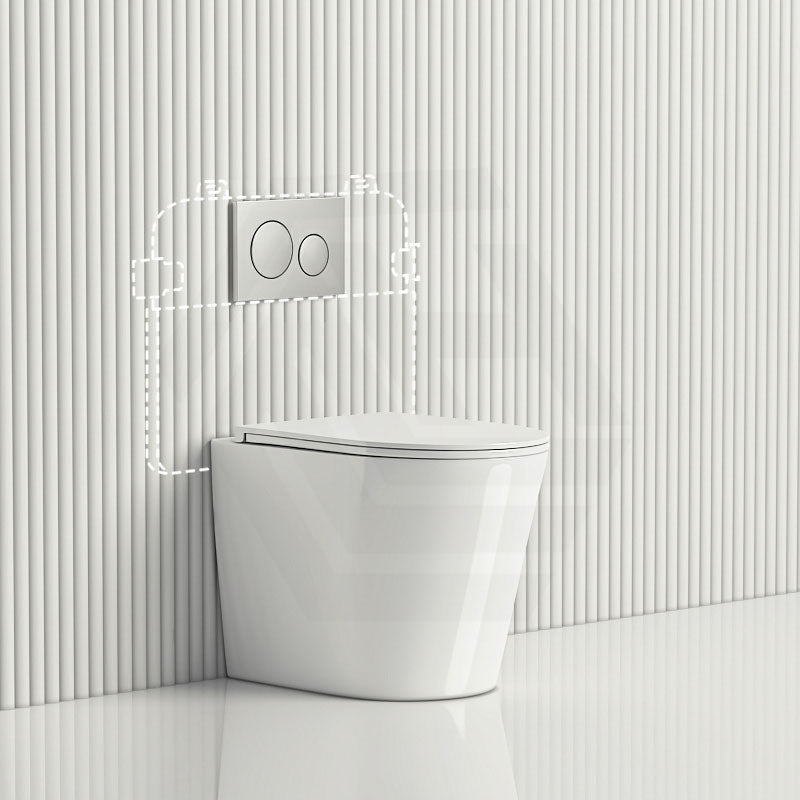

R&T Frameless Inwall Concealed Cistern
The R&T frameless inwall concealed cistern uses a reliable European flush mechanism and is installed inside the wall for a cleaner bathroom look.
The cistern is designed for mechanical front flush operation and requires a minimum wall cavity of 100mm.
Rimless Tornado Pan for Easier Cleaning
The rimless tornado flush creates a powerful swirling flush that helps clean the inner bowl more thoroughly with every use.
The rimless design removes hidden rim areas and is designed to prevent water from splashing over the edge while supporting a more hygienic clean.
S-Trap and P-Trap Compatibility
This toilet pan supports flexible rough-in options with S-Trap and P-Trap compatibility, making it suitable for both renovation and new build installations.
The default S-Trap is included with a 100–145mm set-out, while a standard P-Trap 180mm option is also available.

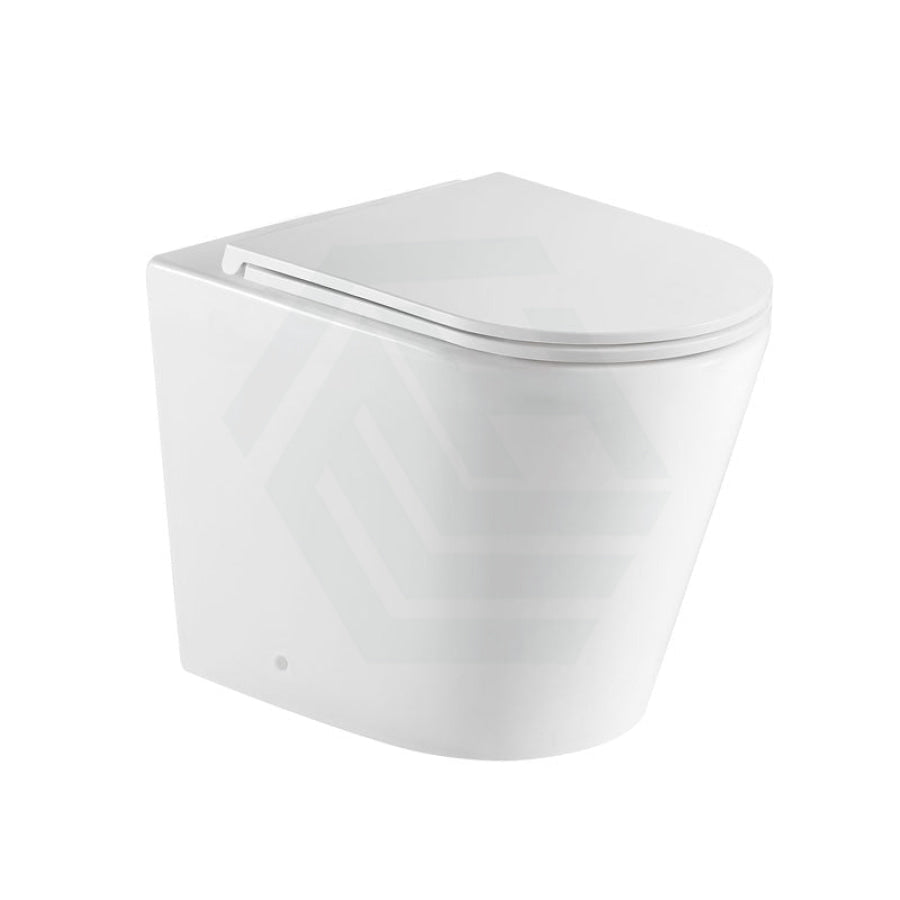

Gloss White Ceramic Pan with Slim Soft Close Seat
The wall faced floor toilet pan is made from fine ceramic with a high-quality vitreous china surface and a gloss white finish.
It includes a slim soft close UF toilet seat for quieter daily use and a neater overall profile.
| MODEL | |
|---|---|
| Main Product Code | Toilet Pan: TS1003D-TR ; R&T Cistern: MIC-G30032 |
| MATERIAL & FINISH | |
| Material | Fine Ceramic toilet pan |
| Colour | Gloss White toilet pan, Chrome / matt black / gloss white of buttons |
| SPECIFICATION | |
| Product Type | Back to wall toilet pan / Inwall Concealed Cistern |
| Surface Material | High-quality vitreous china |
| Cistern Operation | Mechanical Front Flush |
| Operating Pressure of Cistern | 10-1000Kpa |
| TECHNICAL INFORMATION | |
| Installation | Wall floor (faced) toilet pan / Cistern : In-wall, A minimum wall cavity of 100mm is required. |
| Flushing | Rimless Tornado Pan For More Hygienic Cleaning. Maximum cleaning result of the inner bowl is achieved through the Rimless Design, which prevents water splashing over the edge. |
| Toilet Seat | Slim Soft close UF toilet seat |
| S-Trap (Default) | Included, 100-145mm Set-out |
| Option S-Trap |
TSP-VB-60: 180mm of ribbed cut lines, 60-160mm roughing-in. (Adjustable height: 80-200mm) |
| Option Button | Chrome / Matt Black / Gloss White buttons |
| SIZE & DIMENSIONS | |
| Overall Size | Toilet Pan: 580x360x420mm / R&T Cistern: Please check the drawing for more details / Buttons: 245x165x9mm |
| CERTIFICATION | |
| WATERMARK | Approval |
| WATERMARK Licence No | Toilet Pan: WMK26168 |
| WELS | Approval |
| WELS Licence No | Toilet Pan: 1743 / R&T Cistern: 0313 |
| WELS Registration No | Toilet Pan: L07660 / R&T Cistern: L05964 |
| WELS Star Rating | 4 Stars |
| WELS Water Consumption | Toilet Pan: 4.5/2.9 Litres Dual Flush, 3.2 Litres Average Flush / R&T Cistern: 4.5L/Full Flush,3L/Half Flush, 3.8L Average Flush |
| PACKAGE CONTENTS | |
| Main Product | 1 x Wall faced floor toilet pan / 1 x Inwall cistern / 1 x Button |
| Installation Accessories | Flush pipe, key seal & fixings included |
| Accessories | 1 x S-Trap (Optional) |
| FEATURES | |
| Feature 1 | R&T Cistern: Options of mechanical, pneumatic or electronic buttons give greater design freedom. |
| Feature 2 | R&T Cistern compatible with all mechanical and pneumatic R&T buttons available in Australia. |
| WARRANTY | |
| 15 Years Warranty | 15 years warranty for general use of the ceramic toilet pan ; 15 years on cistern tanks and frames |
| 3 Years Warranty | 3 years on valve products |
| 1 Year Warranty | 1 year warranty on parts |
| Warranty Note | Extent Warranty Plans provides you with an extended warranty period. Please contact us now or get more informations about the Warranty Extensions & Extra Services Upgrades at checkout page. |
| REMINDER | |
| Notes | *Product dimensions are approximate and can vary slightly due to manufacturing variances. Information provided in this data sheet is representative of the product available at the time and date of printing, 11/08/2018. Myhomeware reserves the right to vary specify cations at any time without notice. |
📐 R&T Frameless In‑Wall Cistern — Product Option Guide
This guide helps you select the correct push button style and toilet trap option for your R&T Frameless In‑Wall Concealed Cistern with Rimless Tornado Wall‑Faced Toilet Pan.
Verify your plumbing setup and desired button finish before ordering.
🔘 1. Choose Your Push Button Style
Chrome Plate Chrome Trim – Round
Round dual‑flush button — chrome plate with chrome trim
Chrome Plate – Square
Square dual‑flush button — chrome plate
Gloss White Plate – Square
Square dual‑flush button — gloss white plate
Gloss White Plate Chrome Trim – Round
Round dual‑flush button — gloss white plate with chrome trim
Matt Black Plate – Square
Square dual‑flush button — matt black plate
Matt Black Plate Chrome Trim – Round
Round dual‑flush button — matt black plate with chrome trim
🚽 2. Select Your Toilet Trap (Rough‑In)
Standard P‑Trap 180mm
Wall outlet — fixed 180mm rough‑in
180mm Cut Lines S Trap (60–160mm Rough‑In)
Floor outlet — adjustable with 180mm ribbed cut lines
🧭 Quick Selection Guide (Traps)
| Your Plumbing Setup | Recommended Trap Option |
|---|---|
| Waste pipe through wall, centre at 180mm | Standard P‑Trap 180mm |
| Floor outlet, rough‑in 60–160mm | 180mm Cut Lines S Trap |
⚠️ Important notes before ordering
