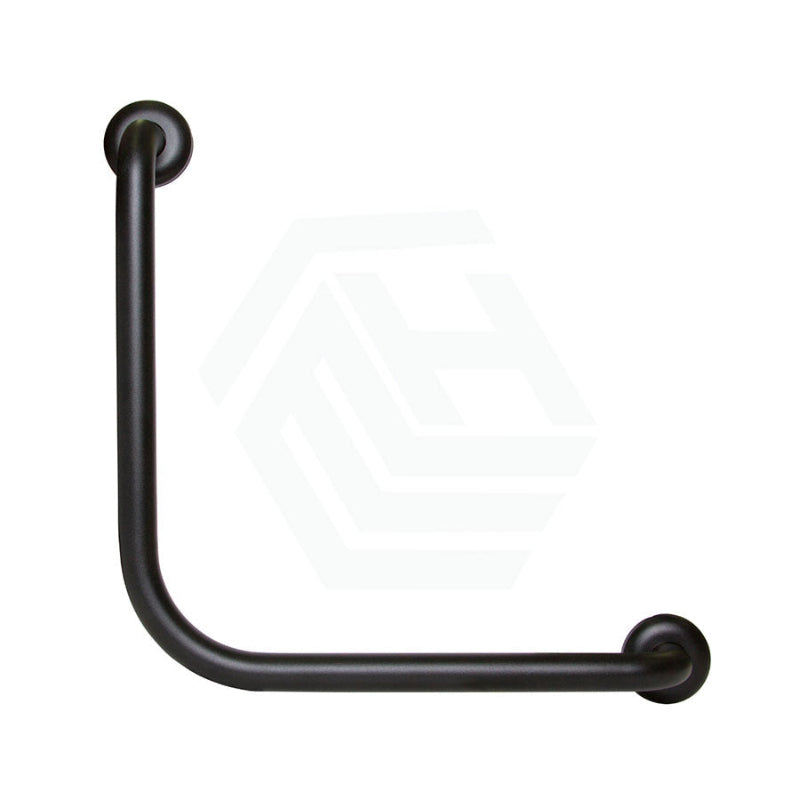

Metlam Universal 90° Ambulant Grab Rail
The Metlam 450 × 450mm Universal 90° Ambulant Grab Rail combines a practical angled form with a clean wall-mounted finish. Constructed from #304 grade stainless steel, the Ø32mm rail provides unobstructed hand passage along its full length. Its universal configuration suits left- or right-hand installation, while concealed fixings keep mounting hardware out of view. Choose Designer Matte Black or Satin Stainless Steel to complement your bathroom fittings.
Universal 90° Form, Continuous Hand Passage
Horizontal and vertical sections meet in a 90° angled form, providing handhold positions along both sections. The Ø32mm rail allows unobstructed hand passage along its full length.
The universal configuration suits either left- or right-hand installation without selecting a separate handed model. Confirm the orientation and mounting position against the product drawing and your planned ambulant cubicle layout.
#304 Stainless Steel, Two Distinct Finishes
Choose Satin Stainless Steel for a subtle metallic look, or Designer Matte Black to coordinate with darker fittings and create contrast against lighter walls. Both options feature #304 grade stainless steel construction.
The rail can withstand a force of 1,100N applied in any direction without deformation, loosening or rotation. Suitable wall support and fixings remain essential to the installed assembly.
Concealed Fixings with Twist-Lock Covers
The concealed fixing system is finished with Ø78mm twist-lock flange covers, keeping mounting hardware hidden for a neat appearance at the wall.
Before installation, have a qualified installer confirm the wall substrate, fixing selection and mounting positions. The supporting surface and fixings must be suitable for the required loads.
📐 Application Scope

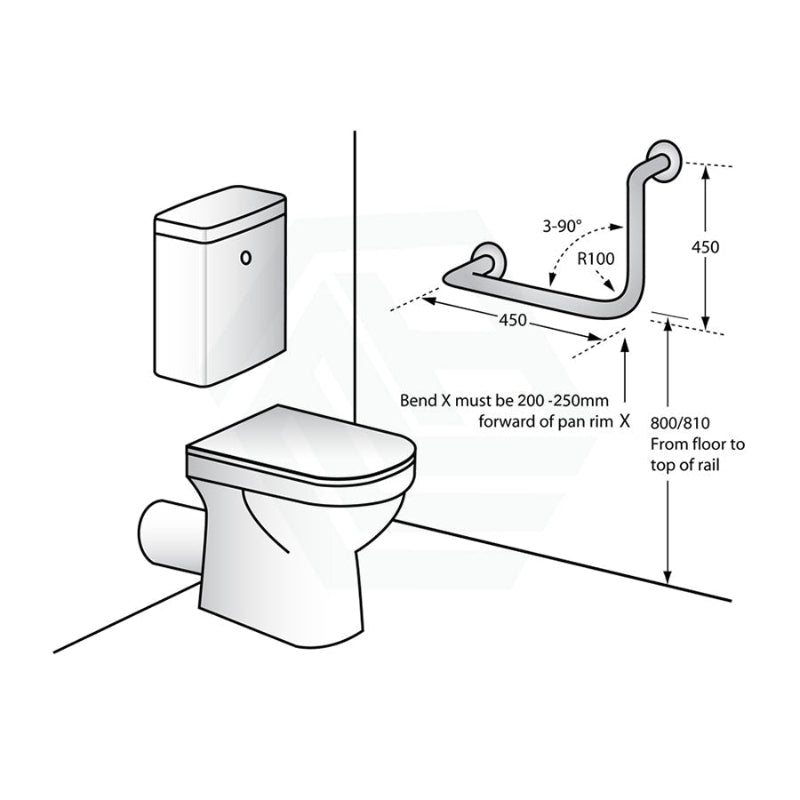

Deemed to satisfy Disability Standard AS1428.1 for ambulant
cubicle specification only.
🧭 Orientation & Positioning
Universal design suits left- or right-hand installation.
Confirm the orientation, mounting height and clearances
for the intended layout before fixing.
🔧 Installation
The installer must ensure the wall substrate and fixings
are suitable for the required loads. The stated 1,100N
force resistance is not a user weight rating.
🧼 Care & Maintenance
Follow the Metlam grab rail care and maintenance guide
for cleaning instructions appropriate to the selected finish.
🎨 Images & Finish
Images show the available finish options. Select your
required finish when ordering. Actual colour may vary
due to lighting, photography and screen settings.
Product Information
Product Information
| MODEL | |
|---|---|
| Main Product | Metlam 450 × 450mm Universal 90° Ambulant Grab Rail |
| Brand | Metlam |
| MATERIAL & FINISH | |
| Material | 304 Stainless Steel |
| Finish | Designer Matte Black / Satin Stainless Steel |
| SPECIFICATION | |
| Product Dimension | 450 × 450mm |
| Rail Diameter & Hand Clearance | Ø32mm grab rail with unobstructed hand passage along the full length |
| Force Resistance | Can withstand a force of 1,100N applied in any direction without deformation, loosening or rotation |
| Rail Angle | 90° |
| Configuration | Universal — suits left- or right-hand installation |
| Installation Type | Wall Mounted / Concealed Fixing |
| Stand-Off | 55.2mm |
| TECHNICAL INFORMATION | |
| Mounting | Concealed Fixing |
| Flange Covers | 78mm Diameter Twist-Lock Flange Covers |
| Rail Form | Horizontal and vertical sections joined by a 90° bend |
| Intended Application | Ambulant toilet cubicle support, subject to suitability and installation requirements |
| Standards Compliance | This unit is accessible compliant when installed in accordance with AS1428.1. guidelines |
| WARRANTY | |
| 7-Year Warranty | 7-year commercial warranty against defects in material and workmanship |
| 1-Year Warranty | Surface finishes are covered by a 1-year warranty |
| Warranty Notes | Please refer to the attached official warranty document for full details. Metlam's latest warranty terms and conditions apply. |
| REMINDER | |
| Orientation | Confirm the required installation orientation against the product drawing before fixing. |
| Wall Support & Fixings | The installer must ensure the wall substrate and selected fixings are suitable for the required weight-bearing loads. |
| Positioning | Mounting height, location and clearances must be confirmed for the intended layout and user requirements. |
| Colour Variation | Actual colour may vary due to lighting, photography and screen settings. |

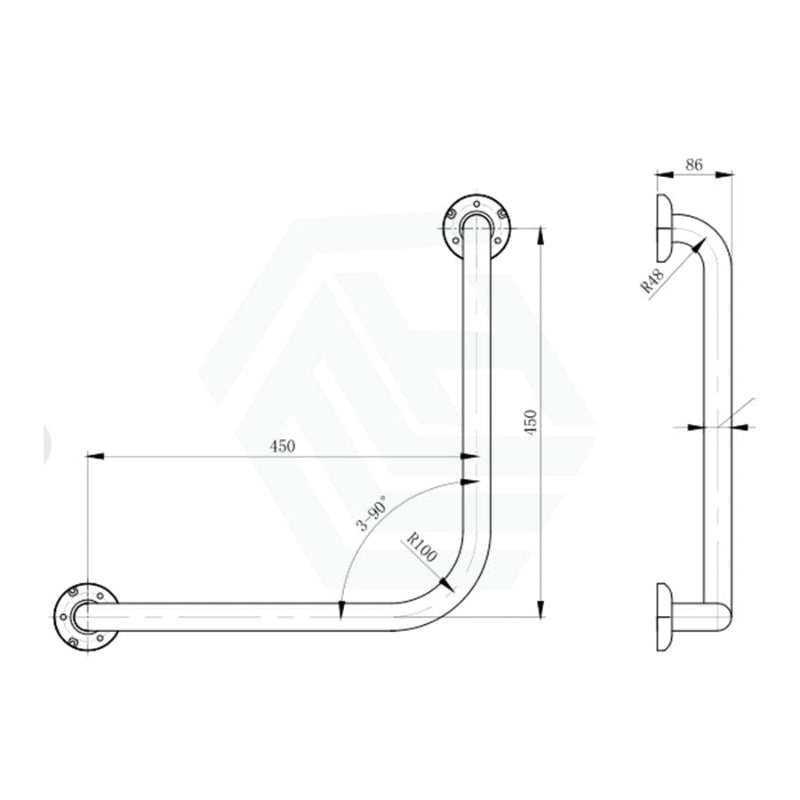

Dimensions
Dimensions
Product Options
Product Options
🧭 Choose Your Grab Rail Finish
The Metlam 450 × 450mm Universal 90° Ambulant Grab Rail suits left- or right-hand installation, so there is no separate left- or right-hand model to select. Choose your preferred finish, then have your installer confirm the orientation and mounting position.
💡 Both finish options feature 304 stainless steel construction, a 32mm rail diameter and concealed fixings with 78mm twist-lock flange covers.
A Subtle Metallic Finish

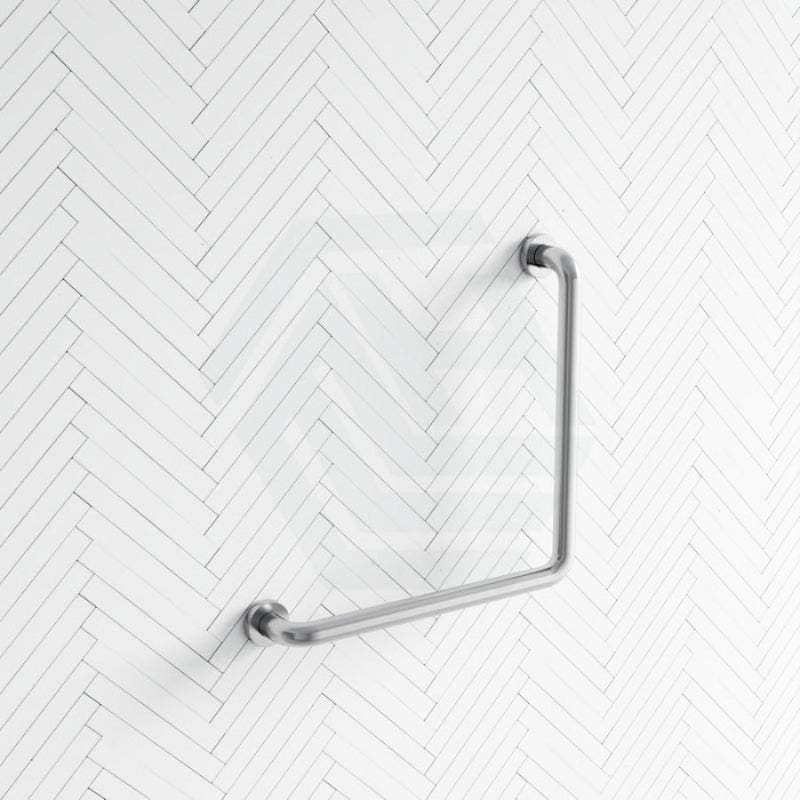

Choose Satin Stainless Steel for a restrained metallic look that coordinates with stainless steel bathroom accessories and neutral colour schemes.
A Defined Black Accent

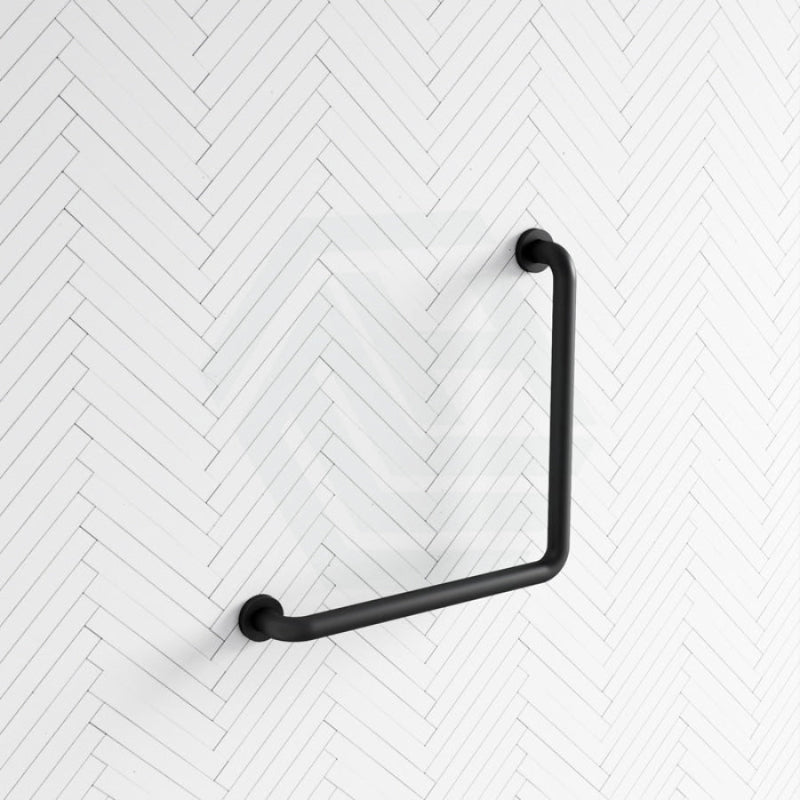

Choose Designer Matte Black to coordinate with black tapware and accessories, or create a contrasting detail against lighter wall finishes.
📐 Is This the Right Rail for Your Layout?
| Your Requirement | Selection Guidance |
|---|---|
| Left- or right-hand installation | This universal model suits either orientation. Confirm the arrangement against the product drawing. |
| A 90° angled handhold | The right-angle form combines horizontal and vertical rail sections. Confirm that this shape suits the intended support needs. |
| An ambulant toilet layout | This is an ambulant grab rail. Have your installer or access specialist confirm its suitability and positioning for the specific layout. |
| Replacing an existing grab rail | Compare the 450 × 450mm dimensions and fixing positions before ordering. Existing mounting holes may not align. |
🧭 Orientation
Left and right refer to the installation arrangement, not
the user's dominant hand. Confirm the orientation before fixing.
🔧 Installation
The wall substrate and fixings must be suitable for the
required loads. A qualified installer should confirm
structural support, mounting height and clearances.
💡 Individual Suitability
A universal orientation does not mean the rail suits every
user or bathroom. Seek advice from an occupational therapist
or access specialist where appropriate.
🎨 Finish Selection
Choose the finish to suit your bathroom fittings.
Actual colour may vary due to lighting and screen settings.
Instruction
Instruction
Product Documents
Download the resources below for care, warranty and installation guidance.
