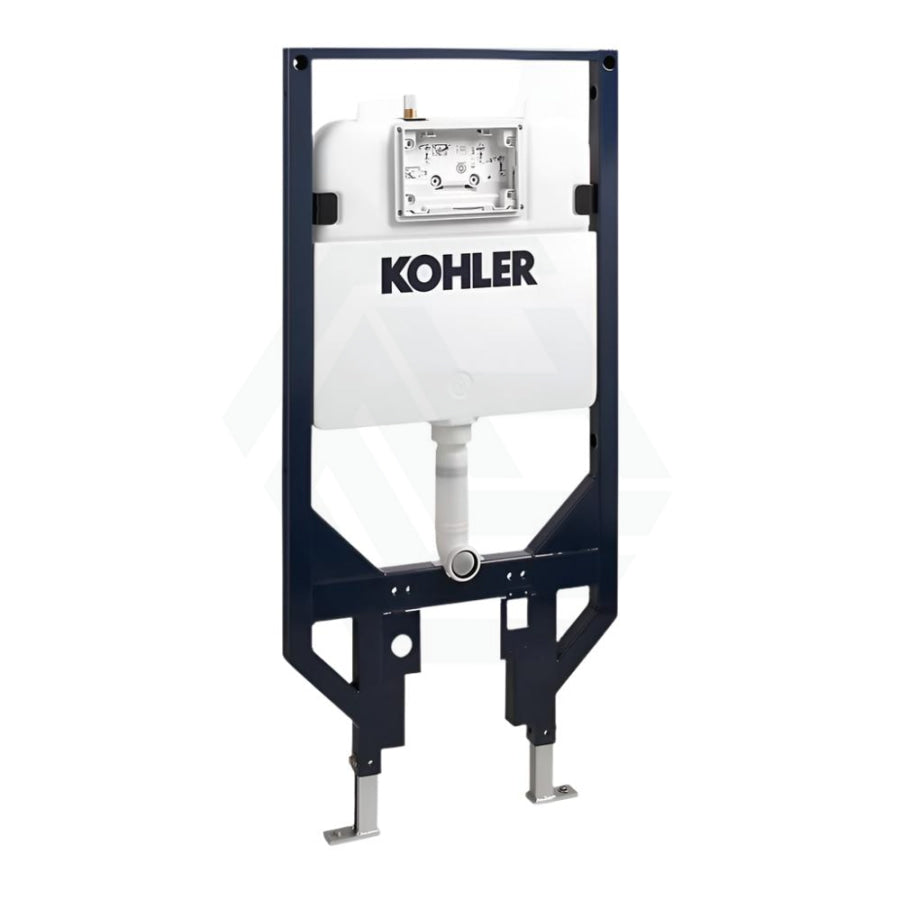

Kohler Framed In-Wall Cistern and Carrier System for Veil Intelligent Toilet Pans

SKU: KH-18647A-NA
$1,283
Care & Protection Plans Plan Guide

Reliable long-term support to keep your home essentials protected and worry-free beyond purchase.
View All 17 Concealed In Wall Cisterns Australia
Pick Up Usually Ready in ~1-5 Days

  • Fast Dispatch

  • 365-Day Returns

  • Price Match +5% Off

  • Live Chat Mon-Fri to 10PM

  • Sydney Warehouse & Showroom

  • Worry-Free After-Sales

Specifications

Features

Designed with a large, easy-access actuator plate opening, the insulated cistern is completely concealed within the wall and provides economical water savings with 0.8/1.6 gallon dual flushing, ensuring seamless integration between the toilet bowl and cistern.

FEATURES

  • Robust steel tube frame.

  • Insulated tank to prevent sweating.

  • Large flush actuator plate opening can be removed for easy access to the inner cistern.

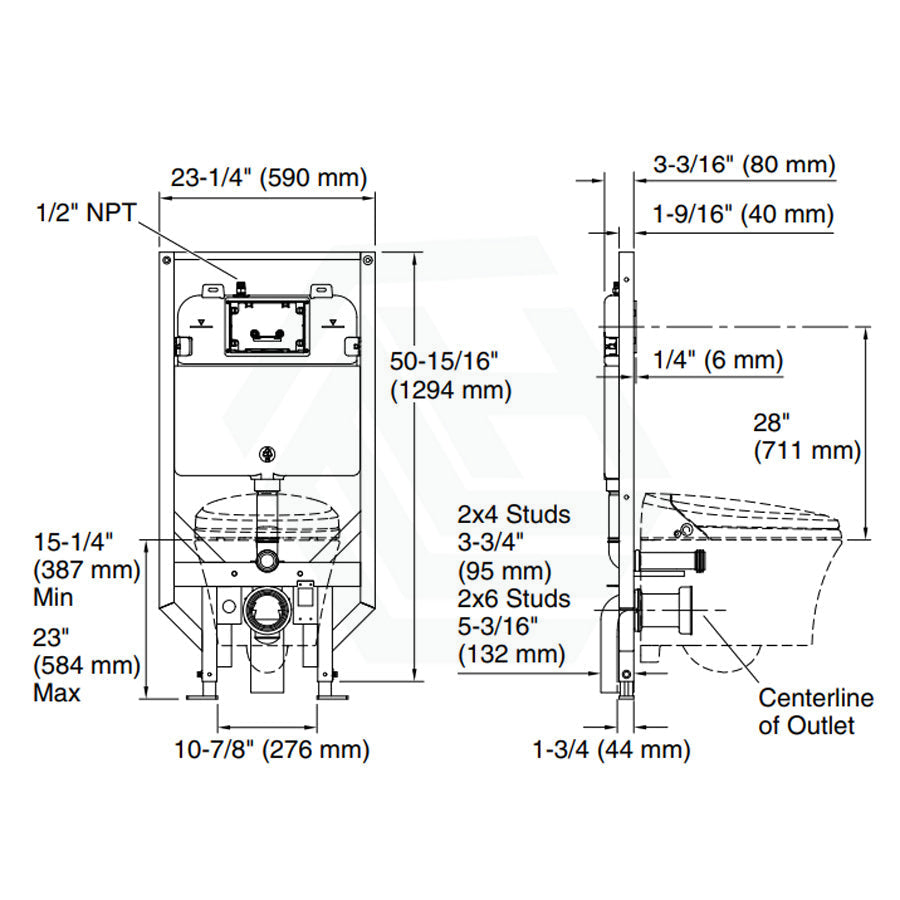

  • Adjustable height allows the bowl to be set anywhere from 15" to 23" from floor.

  • Dual-flush actuator offers a choice of 0.8 or 1.6 gallons per flush (gpf).

  • Requires KH-76395A-NA / KH-20313A-0 Veil Intelligent toilet (sold separately).

Technology

  • Dual-flush technology allows you to choose between a full- or partial-flush.

Installation

  • Durable steel frame carrier is installed on either 2"x4" or 2"x6" studs behind the wall. See installation guide for more detailed information.

  • When installed per KOHLER's installation instructions, the KOHLER in-wall tank and carrier system can support up to 880 lbs. without damage.

  • Supply line not included.

Water Conservation & Rebates

  • Complete Veil Intelligent toilet system meets WaterSense requirements.

  • WaterSense toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.

  • Eligible for consumer rebates in some municipalities.
