Dimension
Videos

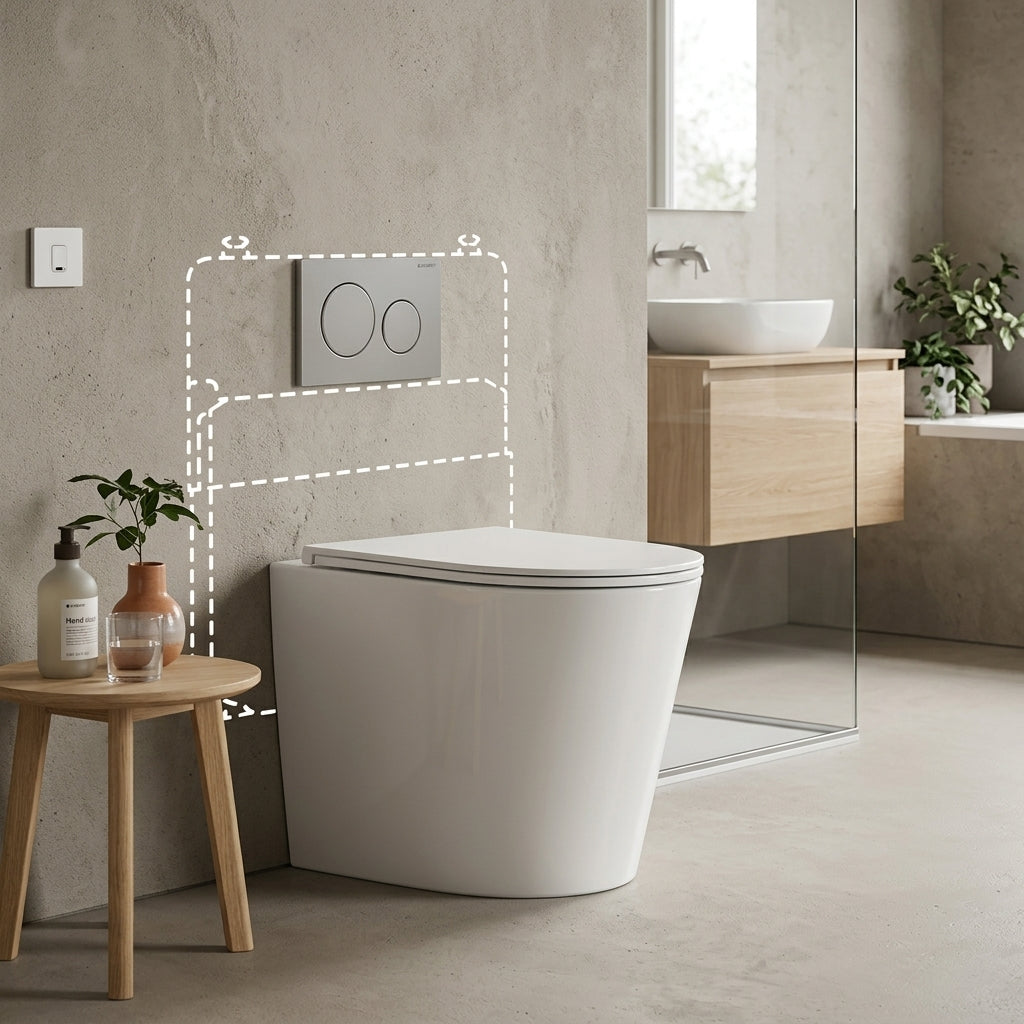

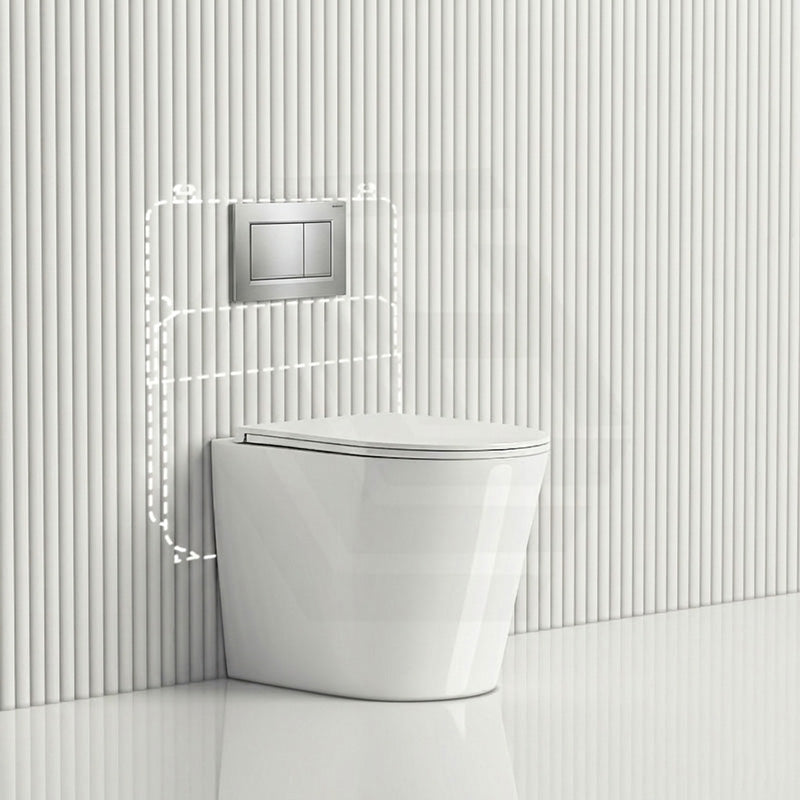

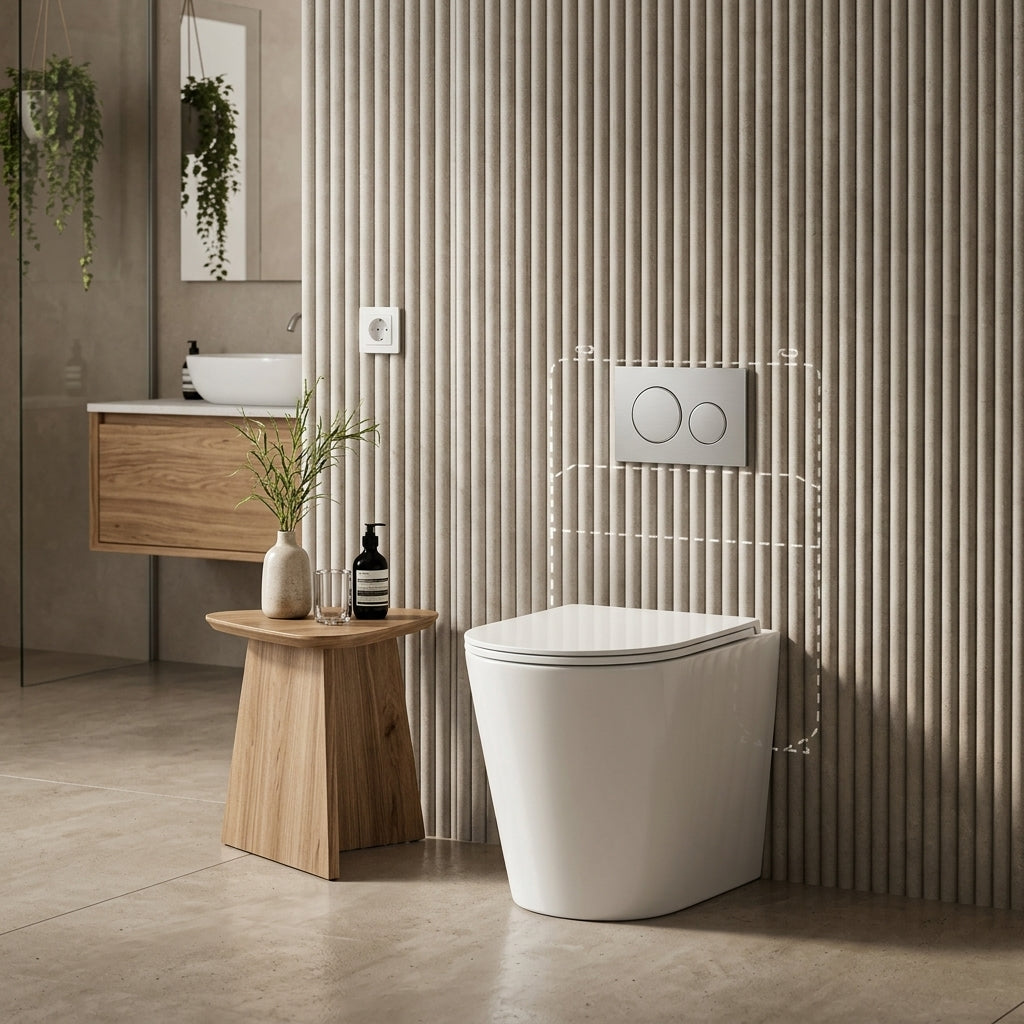

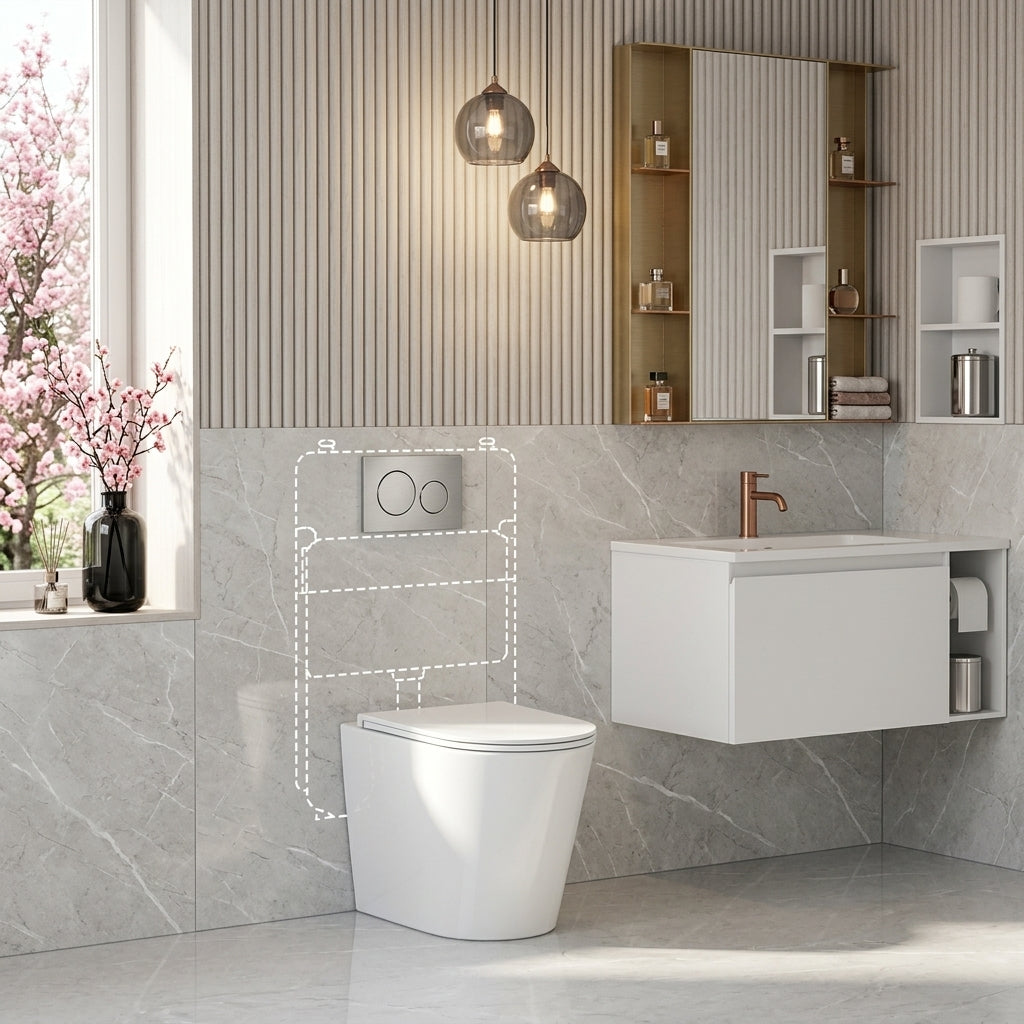

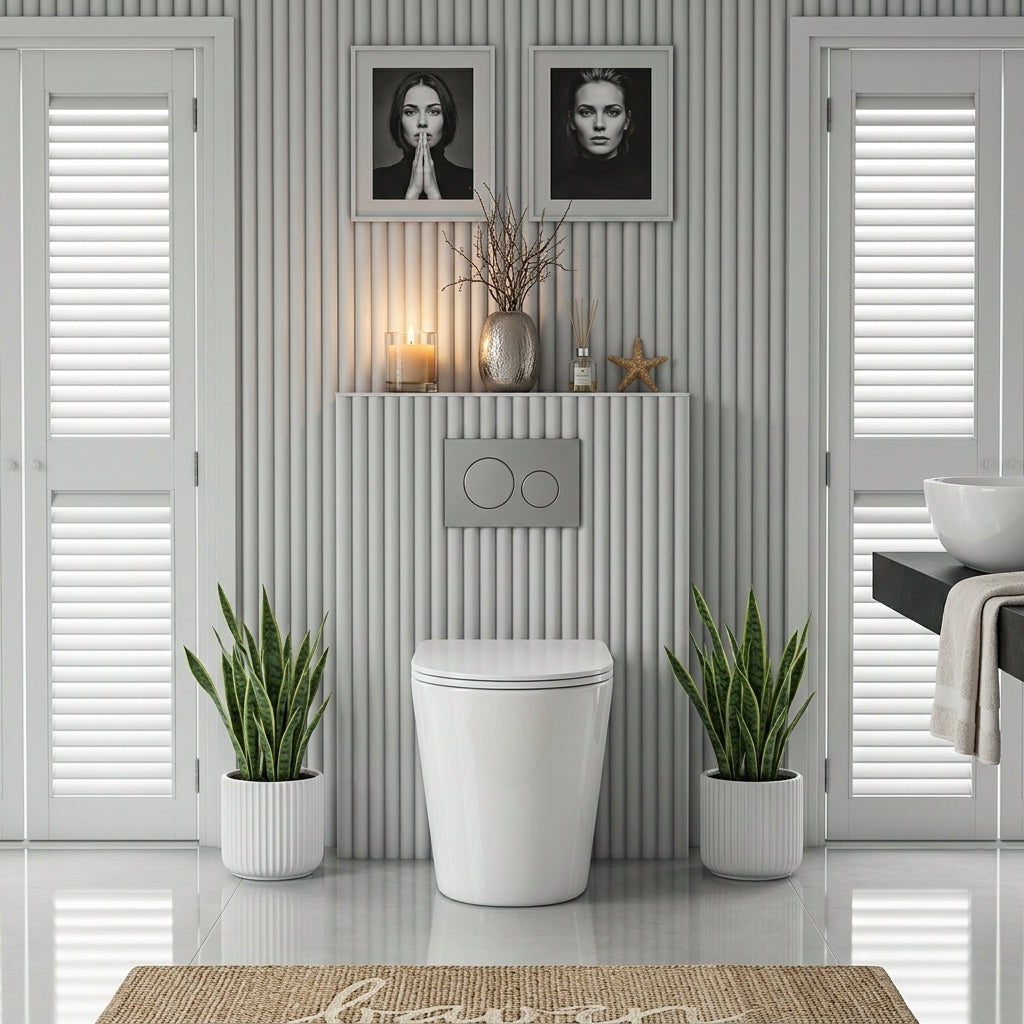

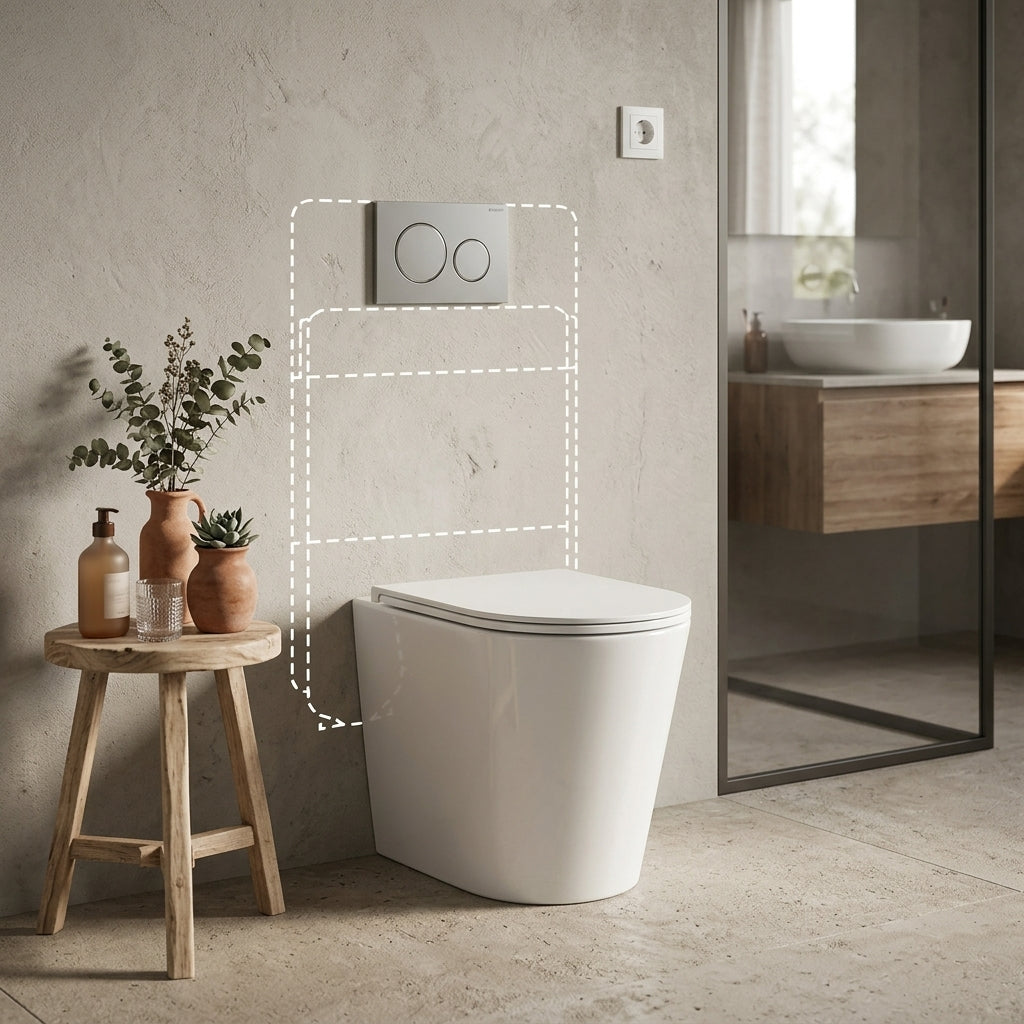

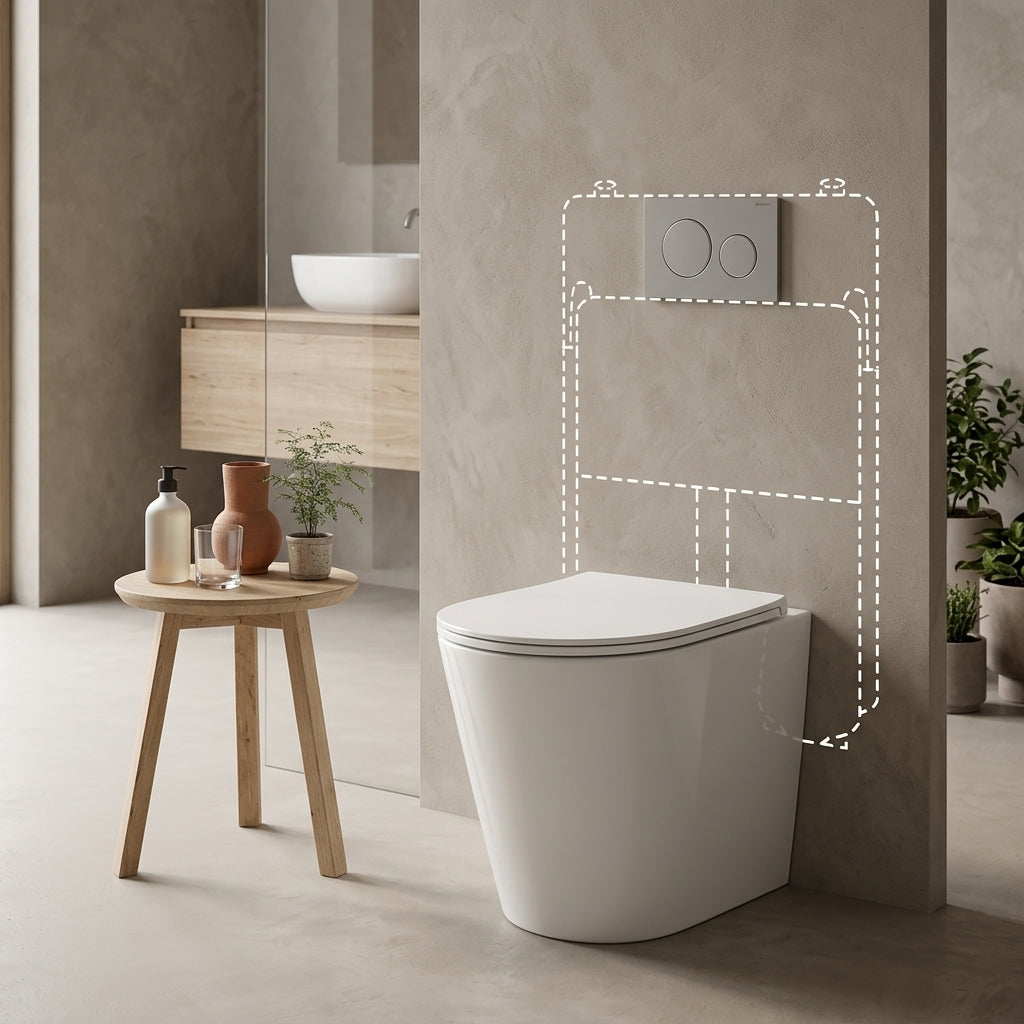

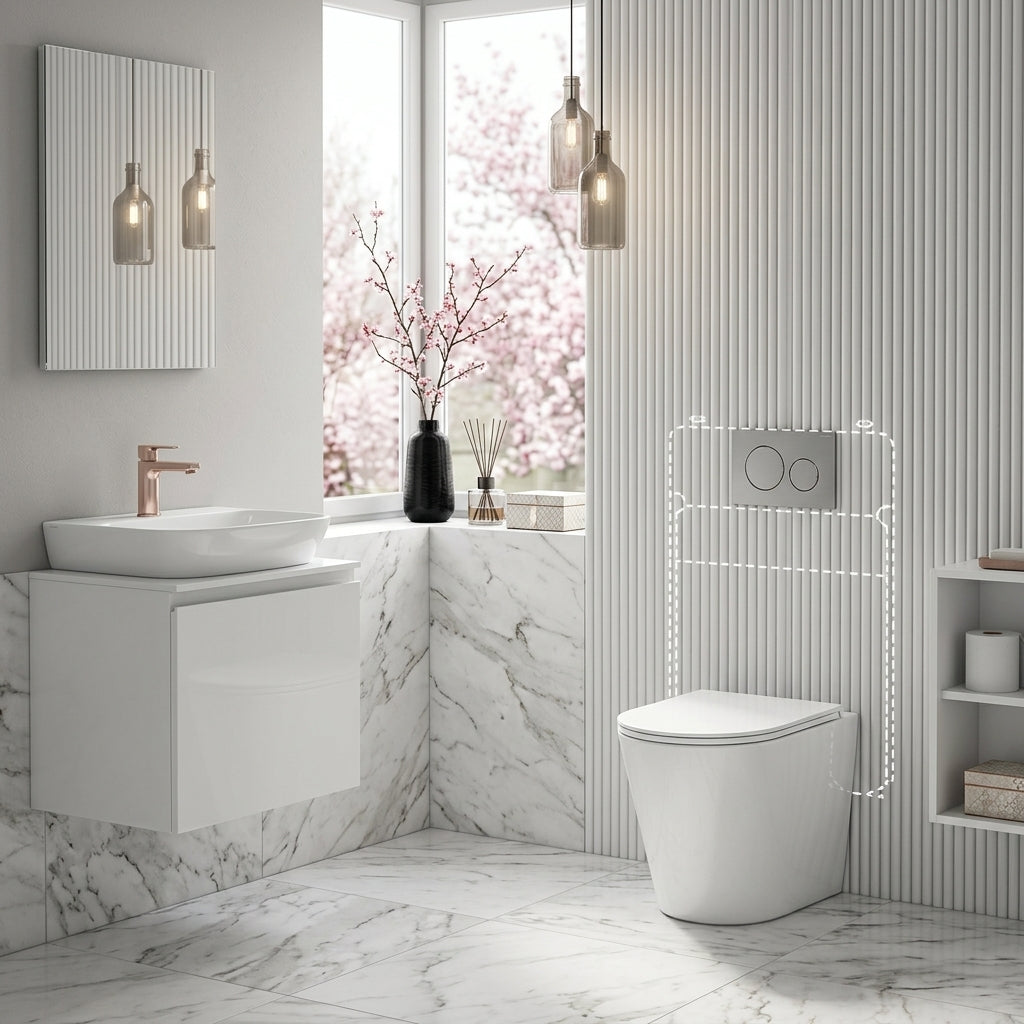

Geberit Sigma8 Inwall Cistern with Rimless Tornado Wall Faced Toilet Pan & Push Button 580x360x420mm - Gloss White

SKU: Sigma8+TS1003D-TR+UN-Sigma20KH
$881 $759
Option Guide
Pick Up Usually Ready in ~1-5 Days
TS1003D-TR AVAILABLE ON 29 MAY

  • Fast Dispatch

  • 365-Day Returns

  • Price Match +5% Off

  • Live Chat Mon-Fri to 10PM

  • Sydney Warehouse & Showroom

  • Worry-Free After-Sales

Specifications

Features

Geberit Sigma8 Inwall Cistern with Rimless Tornado Wall Faced Toilet Pan

This in-wall toilet package combines a Geberit Sigma8 concealed cistern, a gloss white rimless tornado wall faced toilet pan, and a push button option. Designed for a sleek back-to-wall installation, it supports a clean bathroom look while keeping the cistern hidden inside the wall.

Geberit Sigma8 Cistern

Rimless Tornado Flush

580x360x420mm Pan

4 Star WELS Rating

Concealed Cistern

Geberit Sigma8 In-Wall Cistern

The Geberit Sigma8 in-wall cistern is described as easy to install, tough and virtually maintenance free. Its concealed design helps create a cleaner bathroom appearance by keeping the cistern hidden within the wall.

The cistern is compatible with mechanical and pneumatic Sigma buttons available in Australia, offering greater design freedom when selecting a matching flush button.

Hygienic Flushing

Rimless Tornado Flush Technology

The rimless tornado pan uses a powerful swirling flush design to support a more hygienic and thorough clean. The rimless structure removes hidden rim areas where residue can collect.

The product information notes that the Rimless Tornado Design helps achieve maximum cleaning results inside the bowl while preventing water from splashing over the edge.

Wall Faced Design

Space-Saving Back-to-Wall Installation

The wall faced floor pan is designed for use with an in-wall concealed cistern, creating a sleek, streamlined look while helping maximise bathroom floor space.

The toilet pan measures 580x360x420mm and features a gloss white finish with high-quality vitreous china construction.

Certified Performance

4 Star WELS Rated Dual Flush

This package carries WELS approval with a 4 star WELS rating. The toilet pan is listed with 4.5/2.9 litres dual flush and 3.2 litres average flush.

The Sigma8 cistern is listed with 4.5L full flush, 3L half flush and 3.4L average flush. WaterMark approval is also included in the product information.

Note: Product dimensions are approximate and may vary slightly due to manufacturing variances. A minimum wall cavity of 80mm is required for the Sigma8 in-wall cistern. Confirm installation requirements, trap option and button selection before purchase.

Product Information

MODEL
Main Product Code Toilet Pan: TS1003D-TR ; Geberit Cistern : Sigma8
MATERIAL & FINISH
Material Fine Ceramic toilet pan
Colour Gloss White of toilet pan / Chrome buttons
SPECIFICATION
Product Type Back to wall toilet pan / Inwall Concealed Cistern
Surface Material High-quality vitreous china
Cistern Operation Mechanical Front Flush
Operating Pressure of Cistern 10-1000Kpa
TECHNICAL INFORMATION
Installation Wall floor (faced) toilet pan / Cistern : In-wall, A minimum wall cavity of 80mm is required.
Flushing Rimless Tornado Pan For More Hygienic Cleaning. Maximum cleaning result of the inner bowl is achieved through the Rimless Tornado Design, which prevents water splashing over the edge.
Toilet Seat Slim Soft close UF toilet seat
S-Trap (Default) Included, 100-145mm Set-out
Option P-Trap

P-TRAP1-TS: 180mm roughing-in. (300mm straight pipe,can be cut to size to suit set-out distance)

Option S-Trap

TSP-VB-60: 180mm of ribbed cut lines, 60-160mm roughing-in. (Adjustable height: 80-200mm)

Option Button
Sigma20KH (Chrome plate with matt trim) / Sigma30KH (Chrome plate with matt trim) / Sigma20MBM (Matt black plate offset trim) / Sigma30MBM (Matt black plate offset trim)
SIZE & DIMENSIONS
Overall Size Toilet Pan: 580x360x420mm / Sigma8 Cistern: Please check the drawing for more details
CERTIFICATION
WATERMARK Approval
WATERMARK Licence No Toilet Pan: 026315
WELS Approval
WELS Licence No Toilet Pan: 1743 / Sigma8 Cistern: 0021
WELS Registration No Toilet Pan: L07660 / Sigma8 Cistern: L05087
WELS Star Rating 4 Stars
WELS Water Consumption Toilet Pan: 4.5/2.9 Litres Dual Flush, 3.2 Litres Average Flush / Sigma8 Cistern: 4.5L/Full Flush,3L/Half Flush, 3.4L Average Flush
PACKAGE CONTENTS
Main Product 1 x Wall faced floor toilet pan / 1 x Inwall cistern / 1 x Button
Installation Accessories Flush pipe, key seal & fixings included
Accessories 1 x S-Trap / P-Trap (Optional)
FEATURES
Feature 1 Sigma8 Cistern: Options of mechanical, pneumatic or electronic buttons give greater design freedom.
Feature 2 Sigma8 Cistern compatible with all mechanical and pneumatic Sigma buttons available in Australia.
WARRANTY
15 Years Warranty 15 years warranty for general use of the ceramic toilet pan ; 15 years on cistern tanks and frames
3 Years Warranty 3 years on valve products
1 Year Warranty 1 year warranty on parts
Warranty Note Extent Warranty Plans provides you with an extended warranty period. Please contact us now or get more informations about the Warranty Extensions & Extra Services Upgrades at checkout page.
REMINDER
Notes *Product dimensions are approximate and can vary slightly due to manufacturing variances. Information provided in this data sheet is representative of the product available at the time and date of printing, 11/08/2018. Myhomeware reserves the right to vary specify cations at any time without notice.

Product Videos

Supplier's Gallery

Dimensions

Product Options

📐 Geberit Sigma8 — Product Option Guide

This guide helps you select the correct button style and toilet trap option for your Geberit Sigma8 In‑Wall Cistern with Rimless Tornado Wall‑Faced Toilet Pan.

Verify your plumbing setup and desired button finish before ordering.

🔘 1. Choose Your Push Button Style

Geberit Sigma8 Inwall Cistern With Rimless Wall Faced Toilet Pan Push Button Cisterns & Pans
✨ Button Option

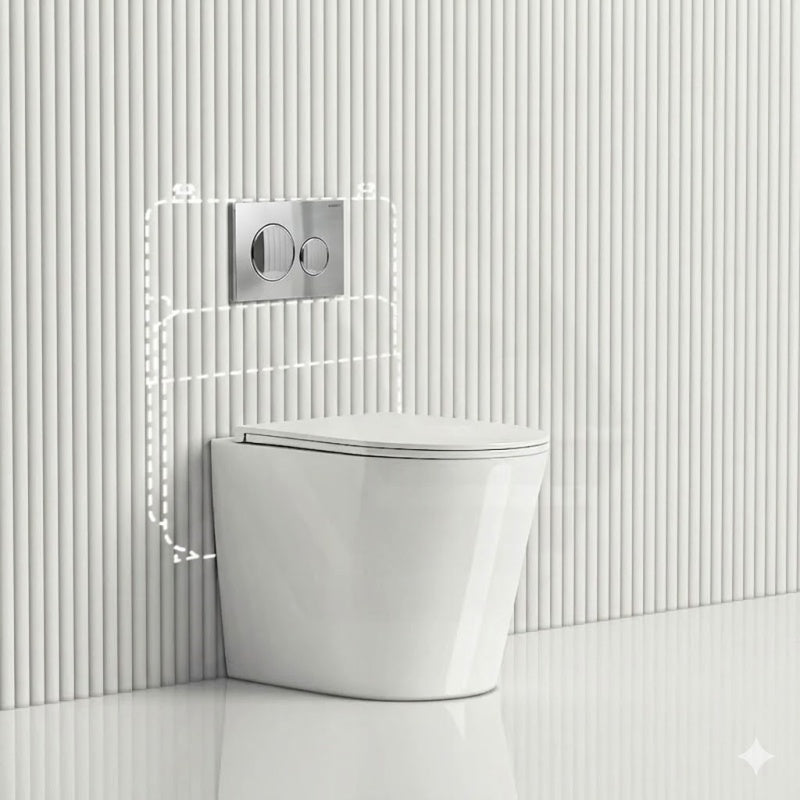

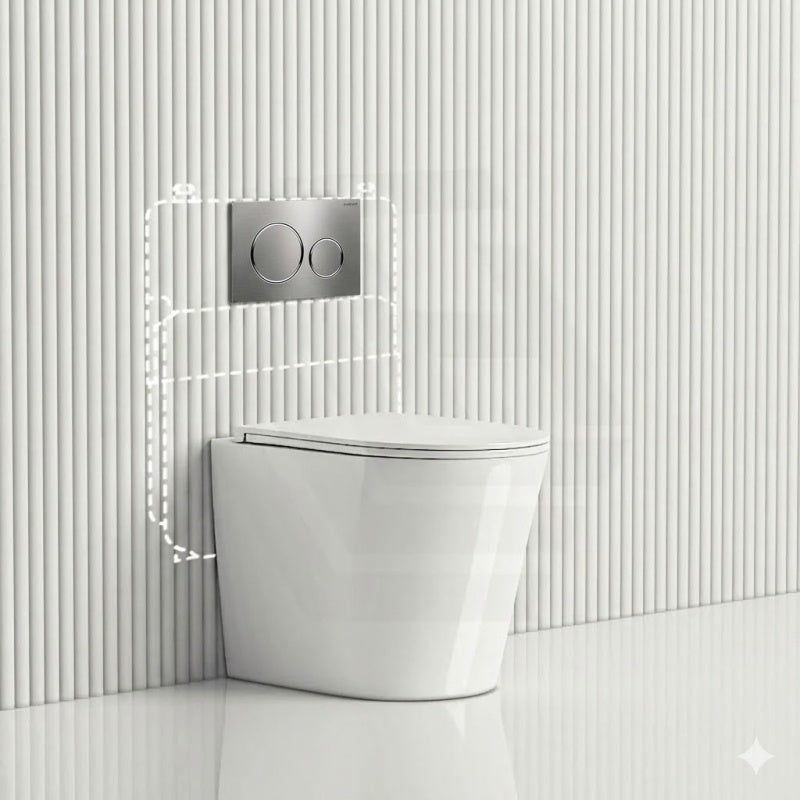

Chrome Plate Matt Trim Round Button

Round dual‑flush — chrome plate with matt trim

Round shape Chrome finish Matt trim accent
✔ Compatible with Geberit Sigma8 in‑wall cistern.
🎨 Button Option

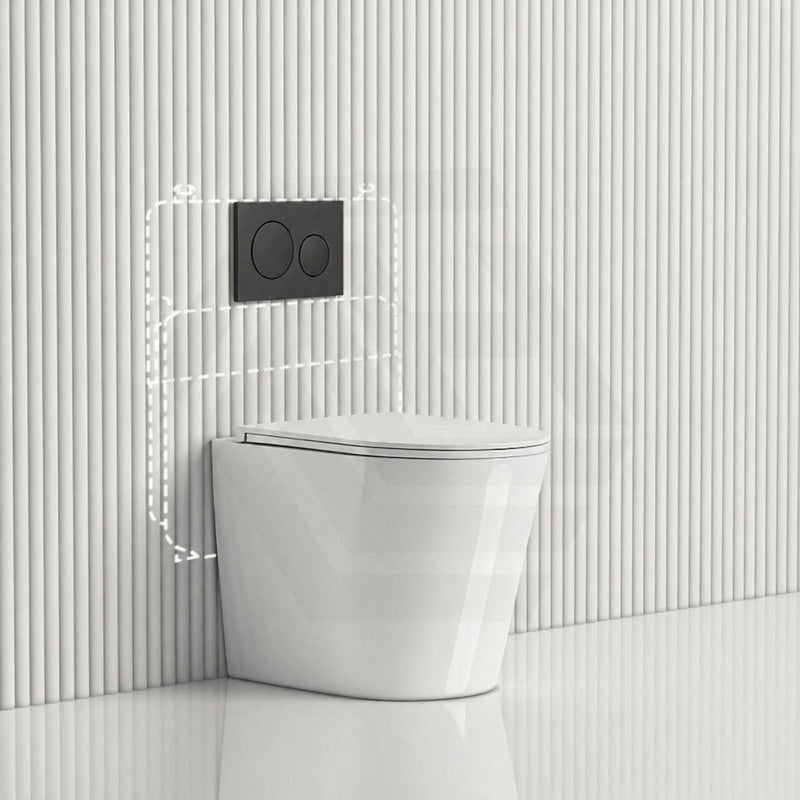

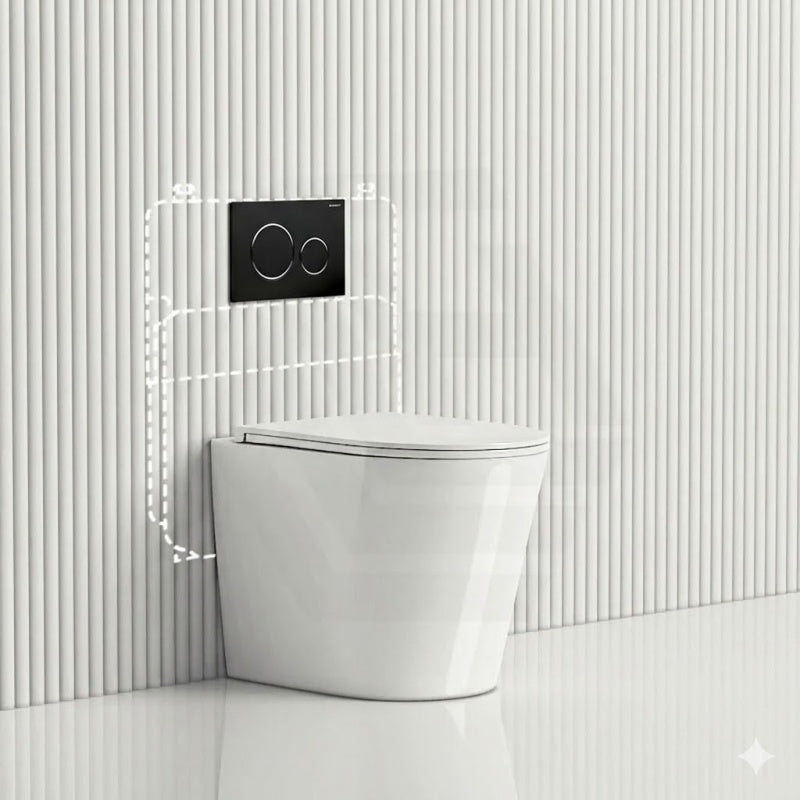

Matt Black Plate Offset Trim Round Button

Round dual‑flush — matt black plate with offset trim

Round shape Matt black plate Offset trim design
✔ Compatible with Geberit Sigma8 in‑wall cistern.
🔲 Button Option

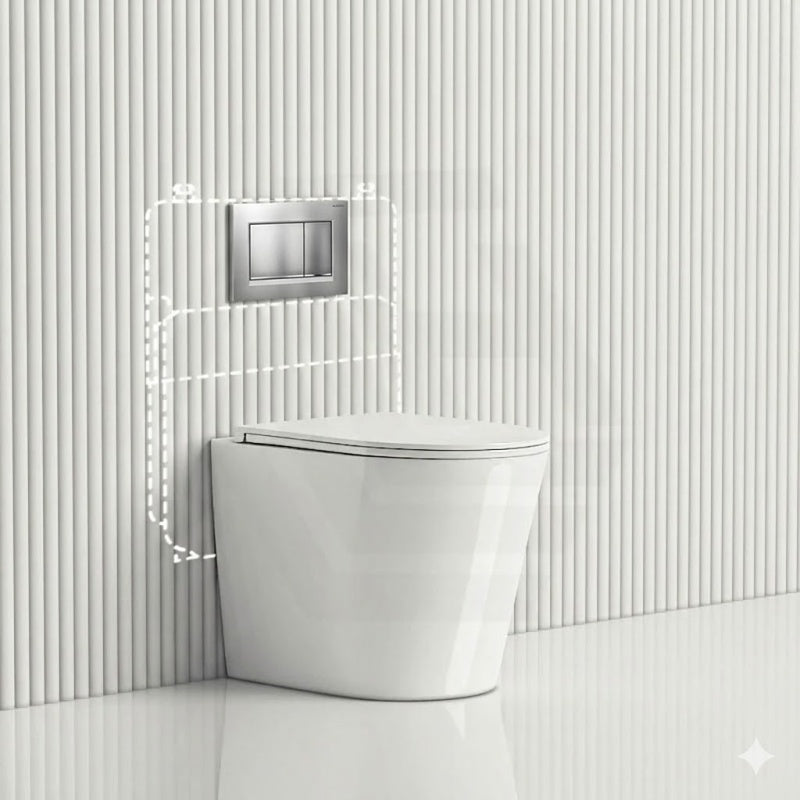

Chrome Plate Matt Trim Square Button

Square dual‑flush — chrome plate with matt trim

Square shape Chrome finish Matt trim accent
✔ Compatible with Geberit Sigma8 in‑wall cistern.

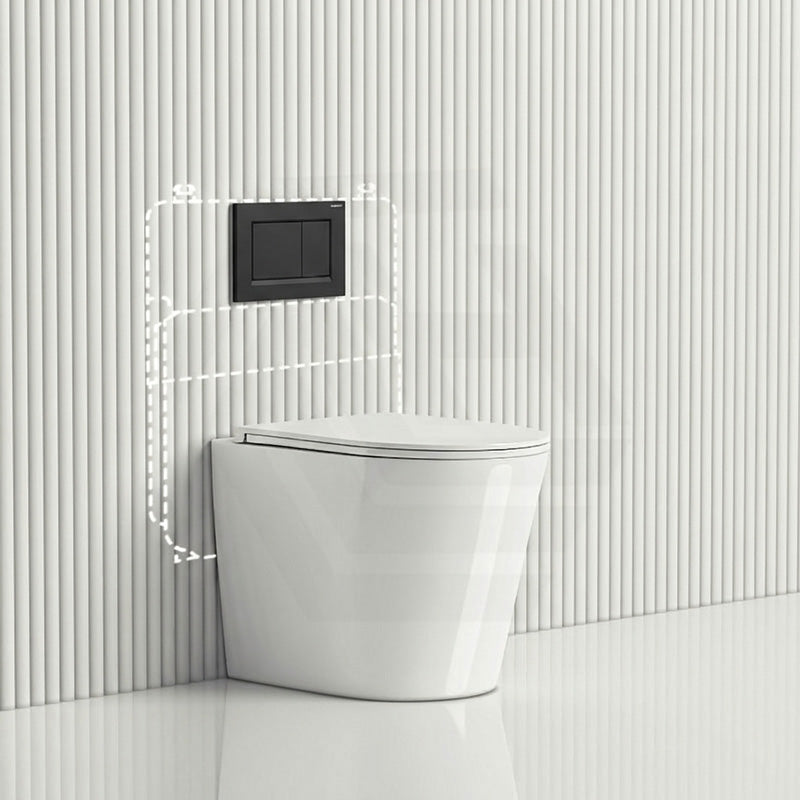

⚫ Button Option

Matt Black Plate Offset Trim Square Button

Square dual‑flush — matt black plate with offset trim

Square shape Matt black plate Offset trim design
✔ Compatible with Geberit Sigma8 in‑wall cistern.

🚽 2. Select Your Toilet Trap (Rough‑In)

🔵 P‑TRAP

Standard P‑Trap 180mm

Wall outlet — fixed 180mm rough‑in

Fixed 180mm For wall discharge Includes straight pipe
👉 Choose this if your waste pipe comes out of the finished wall at 180mm.
🟠 S‑TRAP

180mm Cut Lines S Trap

Floor outlet — adjustable with 180mm ribbed cut lines

180mm cut lines Adjustable rough‑in 60–160mm Height adjustable 80–200mm
👉 Choose this if your floor waste outlet measures between 60mm and 160mm.

🧭 Quick Selection Guide (Traps)

Your Plumbing Setup Recommended Trap Option
Waste pipe through wall, centre at 180mm Standard P‑Trap 180mm
Floor outlet, rough‑in 60–160mm 180mm Cut Lines S Trap

⚠️ Important notes before ordering

  • Always measure from the finished wall surface (not skirting board) to the centre of the waste pipe.
  • A measurement deviation of ±5mm is normal for ceramic products and trap tolerances.
  • For the 180mm Cut Lines S Trap, the ribbed section must be trimmed correctly during installation.
  • If unsure about your plumbing setup, consult a licensed plumber before purchasing.
  • The push button is included with the Sigma8 cistern – select your preferred style from the four options above.

Buying Guide

Shipping

MyHomeware Delivery/Returns/Refund Policy
Standard Delivery

2 - 7 Business Days for Metro Area's (ALL STATES).
7 - 15 Business Days for Regional Area's (ALL STATES).

Missed Delivery

If a scheduled delivery is missed due to the recipient not being available at the designated location during the agreed delivery time, an additional re-delivery fee may be applied. We kindly ask our customers to ensure they or an authorized representative are present at the delivery location at the specified time to avoid these additional costs. Any extra charges will be communicated and agreed upon prior to the second attempt of delivery.

Additional charges may apply under certain circumstances in addition to the base delivery fees. These special conditions include but are not limited to:

  • Elevator/stair delivery: If the delivery location requires the use of stairs, or if the location is not directly accessible by elevator, this will increase labor and time costs.
  • Difficult delivery locations: If the delivery location is particularly hard to reach, or if it requires more than one person to safely deliver the goods, this will require additional resources.

Please note that these circumstances will result in extra delivery fees. These charges will be evaluated on a case-by-case basis and, if applicable, will be billed separately to the customer in a supplementary invoice. We appreciate your understanding and cooperation on these matters.

Pick Up

Once order received, we will process and get the order ready for you ASAP. When your order is ready for collection, we'll send you an email notification, with the Booking number and all the details, so you may come and collect in time.

Order Processing and Delays

After you have completed your order through our website, you'll receive a system generated Order Confirmation Email.

Once the order has been shipped, we'll send you a Notification with the tracking information for your reference.

Order processing: Please allow 0-3 business days for your online order to be processed. In most cases it will be within the first 24hrs as we aim to get every order off as soon as possible.

Approximate delivery timeframe: After order has been shipped, standard shipping time normally take up to 2 - 7 business days in metro areas (all states), and 7 - 15 business days in regional areas (all states). The actual delivery time will depend on the courier that carries your parcel.

*Please Note:
All orders will be processed and sent as soon as possible after received. The Timeframe estimates from when the parcel is sent and only account for Business Days. We will do our best to ensure delivery within estimated delivery time, these do not include delays that outside our control. Factors such as public holidays and peak delivery times might cause delays. During Christmas and sale periods please allow extra time for your parcels to arrive. We aim to get your orders out ASAP, as we know how important it is to receive your items promptly. Please know that not always, but in some instances the volume of orders we receive may increase the delivery timeframe marginally.

There are limitations on all courier networks and for some remote delivery areas, the couriers will not deliver to door. In these cases, they will deliver to a local depot or to the local Australia Post office and you will be notified to collect your parcels.

Due to stock list updates and a high volume of demand for many products, there are times that the items you wish to purchase may show available but suddenly run out of stock just after you placed the order.

If your order was successfully placed, but the item turns out to be no stock, we will notify you via email with the following options:

  • Cancel back order items: We will remove the back order (BO) items and send out the available products to you first.
  • Cancel the entire order: We will cancel the entire order from that warehouse for immediate store credit or a money refund.
  • Wait for Replenishment: You may choose to wait for the BK item to restock.
Returns & Refund Policy

1. You are welcome to return products for a refund if they are;

  • (1) Deemed faulty,
  • (2) Damaged,
  • (3) Have missing parts,
  • (4) Incorrect product/s were sent to you in error
  • (5) Due to the following reasons, including but not limited to; product does not fit, change of mind, product is no longer required, or is unsuitable etc.
Products being returned need to be in a resalable condition; with original packaging intact. Please include your proof of purchase with the return of goods.

2. Customers can contact our Sales Support team via Email sales@myhomeware.com.au, or support@myhomeware.com.au; regarding a return, or make contact via Online Chat, Phone, or simply complete and forward the Online Return Form.

3. Return/Exchange is flexible depending on the status of the product/s.

3.1   Products in Unused and Resalable Condition:

You have 365 days to return your purchase for a full refund, as long as the product is in original condition, no writing or damage to the packaging, uninstalled and resalable condition. Feel free to contact us within 1 year of receipt regarding the return, the team will reply and advise the return/exchange process.

3.2   Product has been installed, however still in OK condition, Come with all parts.
  • 1-3 Months: Can return for refund, NO 'Restocking fee' will apply.
  • 3-12 Months: Accept returns. A 15% 'Restocking fee' will apply and the team will refund less than 15% restocking fee.
  • Over 12 months: Return and Refund WILL NOT be accepted unless the product is deemed defective.
Please Note: Days should be counted from the original date of purchase, or, for any back ordered items from the date item/s were received.

4. MyHomeware is not liable for any incidental, indirect, consequential, or damages of any nature and from the sale of the products.

5. Warning:

5.1   Custom orders and Special orders

Custom orders and Special orders are NOT RETURNABLE and CANNOT BE CANCELLED for any reason once placed due to the custom and made to order processes involved.

  • Custom orders/items including but not limit to, stone top with cut tap/waste hole(s); custom made vanity/stone top; custom made shower screen; smart bidet seat; custom cut to size shower grates etc...
5.2   Bulk Orders/Deliveries

Some restrictions will apply to bulk orders/deliveries. If the total return amount is Over $5000 including freight cost, 15% Restocking Fee will be applied accordingly, refund will be made after deducting 15% restocking fee.

Rimless Tornado Toilets FAQs

Are tornado toilets rimless?

Yes, most modern tornado toilets are rimless. Tornado flushing works best in a rimless bowl because water is directed in a controlled swirling motion around the entire bowl, improving coverage and hygiene. Some older designs may differ, but most current tornado toilets use a rimless design.

Do rimless toilets splash more?

Rimless toilets are designed to minimise splashing when paired with the correct flush system. Tornado and swirl flush technologies control water direction and speed, reducing splash compared to traditional rimmed toilets. Proper installation and correct water pressure also play an important role.

Does tornado flush use more water?

No, tornado flush systems do not use more water. Most rimless tornado toilets at MyHomeware are WELS 4-star rated, typically using around 4.5L for a full flush and about 3L for a half flush, delivering strong cleaning performance while remaining water efficient.

What are rimless Tornado toilets good for?

Rimless Tornado toilets are ideal for households wanting better hygiene, easier cleaning, and quieter flushing. They suit family bathrooms, ensuites, rentals, and modern renovations, especially where water efficiency and low maintenance are priorities.

Are rimless toilets easier to clean?

Yes, rimless designs eliminate hard-to-reach areas under the rim where dirt and bacteria build up. This makes cleaning faster and more hygienic, a key reason they are increasingly popular in Australian homes.
