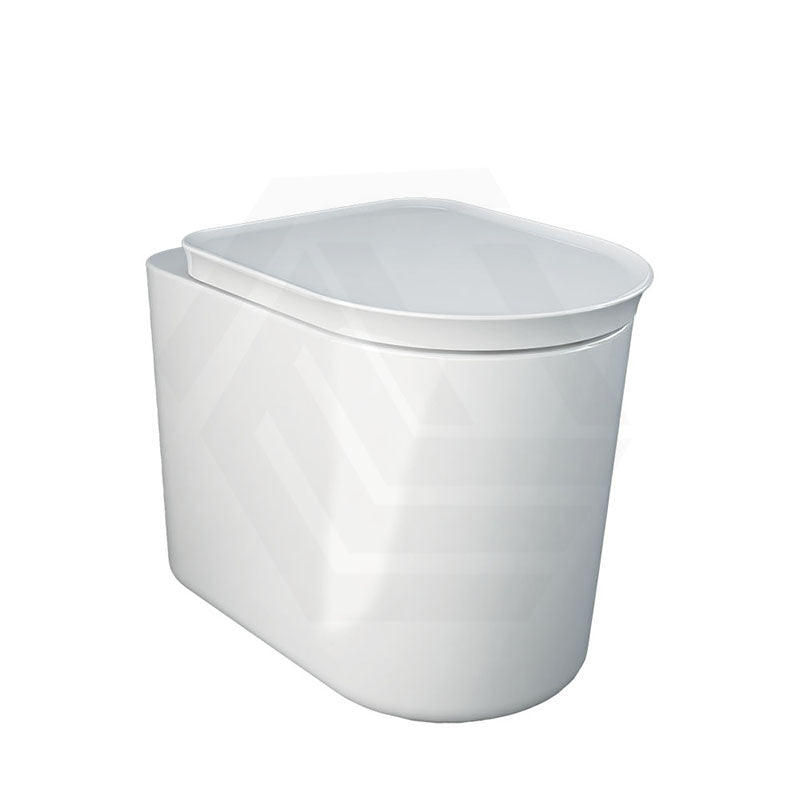

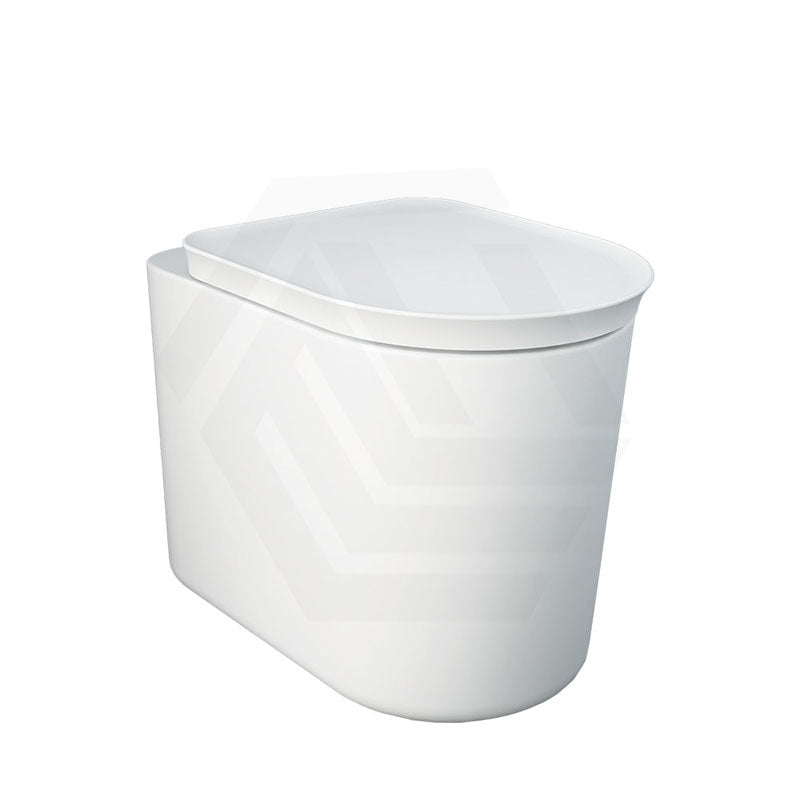

RAK Valet Rimless Wall-Faced Pan with Soft Close Seat 560x363x420mm - Gloss White/Matt White

Q: What is a toilet pan?

A toilet pan is the lower part of the toilet that connects to the floor or wall and handles waste removal. In many Australian bathrooms, the toilet pan is paired with a cistern or installed as part of a wall-faced or wall-hung system. The toilet bowl often refers to the upper section that holds water before flushing. While the terms are sometimes used interchangeably, “pan” specifically refers to the section connected to your plumbing setup.

Q: Are toilet pans a good choice for my bathroom?

Yes — a toilet pan Australia buyers love is one that matches their space, style, and comfort needs. Toilet pans come in different heights (standard, comfort, or low-profile), depths, and widths. You can choose between designs like a wall faced toilet pan for a seamless look, or a wall hung toilet pan to save space and make cleaning easier. Measuring your available space and plumbing configuration is essential before purchasing.

Q: What types of toilet pans are available?

Popular toilet pan Australia options include: Wall-hung toilet pans: Suspended above the floor for a floating, modern look; Floor mounted or wall faced toilet pans: Sit on the floor with concealed plumbing for a streamlined style; Close coupled pans: Connect directly to a toilet cistern for easy installation. Each type of toilet pan serves different space, style, and maintenance preferences, making it easier to find the right fit for your bathroom.

Q: How long should a toilet pan last?

A high-quality toilet pan Australia homeowners install can last 10 to 15 years or more with proper care. Lifespan depends on factors such as material quality, usage frequency, cleaning habits, and whether the pan is exposed to hard water or harsh cleaning chemicals. A wall faced toilet pan with durable glazing and brand-backed warranties typically offers longer-lasting performance.

SKU: FN-RKT1347A-PS

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

RAK Valet Wall-Faced Toilet Suite

Experience the perfect fusion of Italian aesthetic craftsmanship and practical durability with the RAK Valet Wall-Faced toilet suite. Featuring a beautifully streamlined, easy-clean skirted design, this suite offers a sophisticated centerpiece for any modern bathroom. Available in crisp Alpine Gloss White or elegant Matte White.

Wall-Faced Skirted Design Alpine Gloss or Matte White Italian Minimalist Aesthetic Nano-Glazed Surface Soft-Close Quick Release Hidden Installation Points

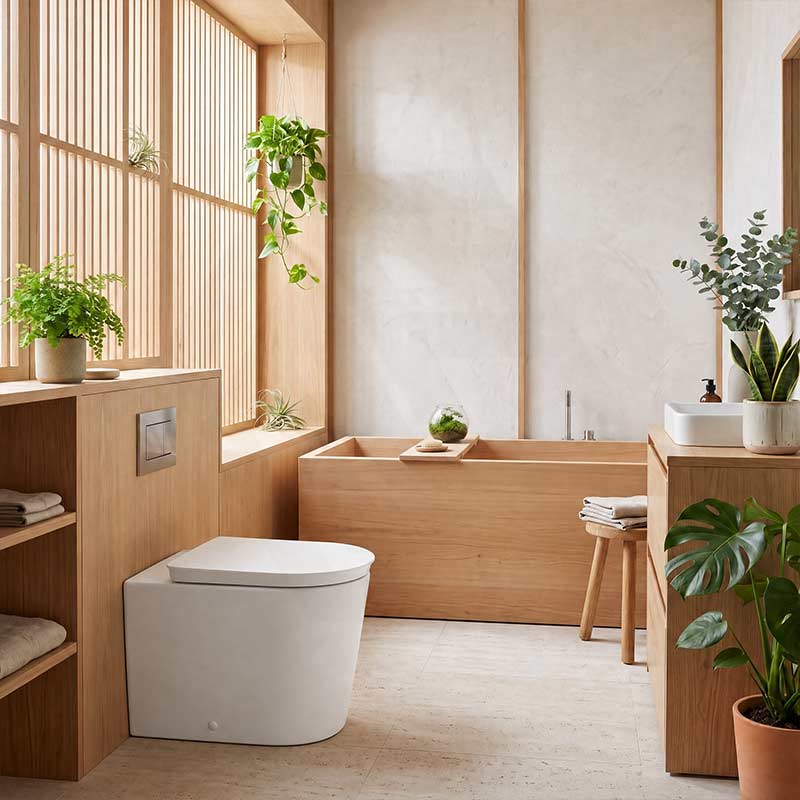

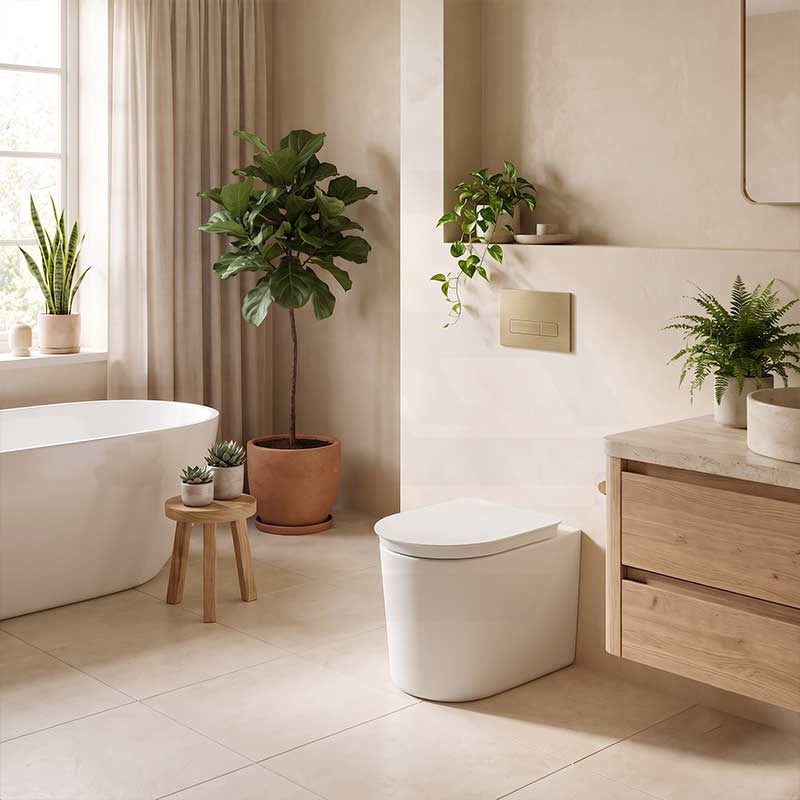

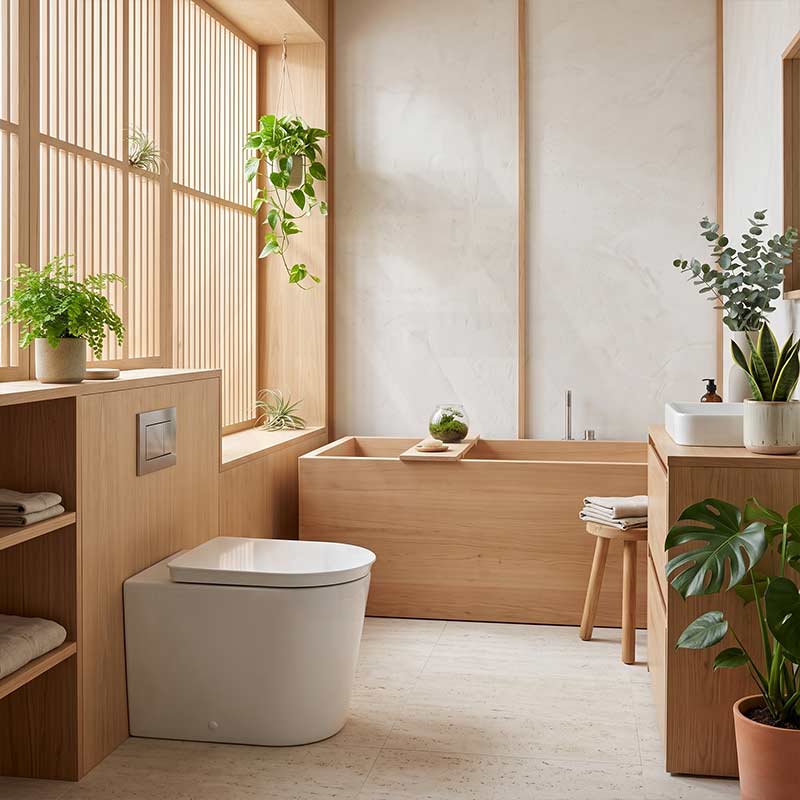

RAK Valet Wall-Faced Toilet Suite Alpine Gloss and Matte White

Feature Highlights

Space Architecture

Seamless Wall-Faced Skirted Profile

The Valet is engineered with a fully skirted, wall-faced profile that sits flush against your bathroom wall. This design completely eliminates the awkward side-panel gaps found in traditional toilets.

By removing external structural grooves and plumbing clutter, the unit achieves a clean, unified architectural look that not only enhances modern visuals but also makes the exterior cleaning process simple and efficient.

Surface Styling

Alpine Gloss or Sophisticated Matte White

Your sanctuary, your design choice. The Valet suite is available in two bespoke finishes to capture the ideal light and tone for your renovation. Select the radiant, classic Alpine Gloss White for a crisp, high-shine finish.

For a contemporary, textural update, the Matte White finish offers a soft, velvet-touch surface that is non-reflective and adds profound depth to modern bathroom interiors.

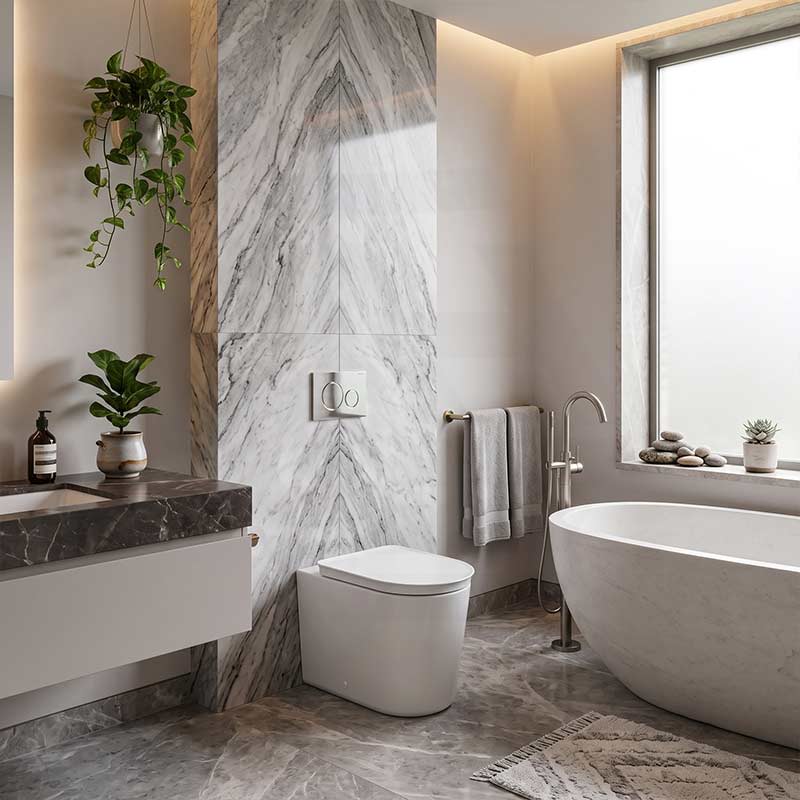

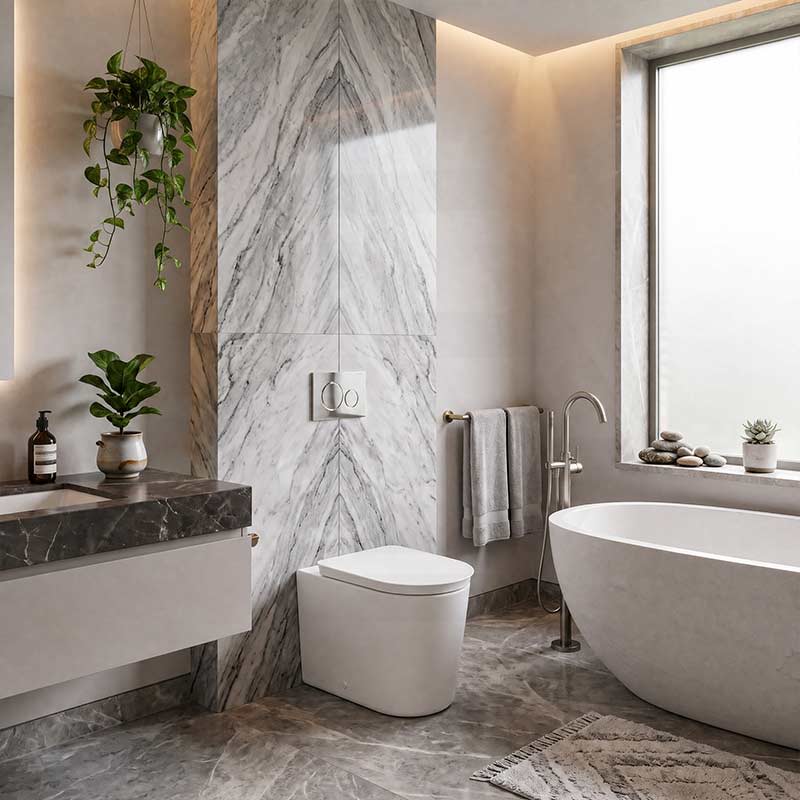

Alpine Gloss White and Matte White Finish Comparison

Hygiene Engineering

Advanced Nano-Glazed Easy-Clean Ceramic

Hygiene is the foundation of quality. The Valet bowl is coated with a high-durability nano-glaze that prevents bacterial adhesion and minimizes the calcification of mineral deposits.

This hydrophobic surface ensures that water and waste glide effortlessly into the trap, drastically reducing the scrubbing frequency required to keep your toilet bowl looking brand new.

Advanced Nano Glazed Ceramic Hygiene Performance

Operational Comfort

Whisper-Quiet Soft-Close & Quick Release

The soft-close mechanism ensures the lid descends slowly and quietly, preventing slamming and extending the product's lifespan. The quick-release feature allows for simple, thorough cleaning of hard-to-reach areas, keeping your bathroom pristine with minimal effort.

Designed for comfort, this durable seat is the perfect upgrade for a cleaner, quieter, and more modern home.

Soft Close Quick Release Seat Technology

📐 Installation Notice: This wall-faced suite is designed for standard floor or wall plumbing outlets. Please ensure your project specifications include the correct trap connector and flushing bend alignment to match your specific bathroom drainage layout prior to installation.
⚙️ Finish Selection: Please verify your preferred finish (Alpine Gloss White or Matte White) before adding to your project order to ensure consistent aesthetics with your other bathroom hardware.
✨ Maintenance Tip: The nano-glazed ceramic surface is highly resilient but best maintained with non-abrasive liquid cleaners and a soft cloth. Do not use metal scourers or harsh chemical bleaches, as these will degrade the protective glaze layer.

Product Information

MODEL
Product Name	RAK Valet Wall-Faced Toilet
MATERIAL & FINISH
Material	Premium Ceramic
Finish Options	Alpine Gloss White / Matte White
SPECIFICATION
Installation Type	Wall Faced / Floor Mounted
Trap Type	Available in both P-Trap and S-Trap configurations
TECHNICAL INFORMATION
Flushing Technology	Rimless hygienic flush for superior bowl coverage and easy maintenance
Design Profile	Concealed design with hidden fixations (no lateral holes for a seamless look and effortless cleaning)
Toilet Seat	Quick-release, soft-close toilet seat for easy removal and silent closing
CERTIFICATION & EFFICIENCY
WELS Rating	WELS 4 Star — 4.5L full / 3L half / 3.5L average flush
FEATURES
Feature 1	Seamless minimalist silhouette designed to sit completely flush against the wall.
Feature 2	World-class manufacturing quality expertly engineered for Australian bathrooms.
WARRANTY
Vitreous China	5 years replacement parts or product, 1 year labour
Seats & Accessories	1 year replacement parts or product
REMINDER
Country of Origin	Made in UAE
Ceramic Note	A MEASUREMENT DEVIATION OF ±5MM IS REGARDED AS A COMMON AND ACCEPTABLE VARIATION IN CERAMIC PRODUCTS. ALWAYS VERIFY WITH THE PHYSICAL PRODUCT ON-SITE BEFORE INSTALLATION.

Supplier's Gallery

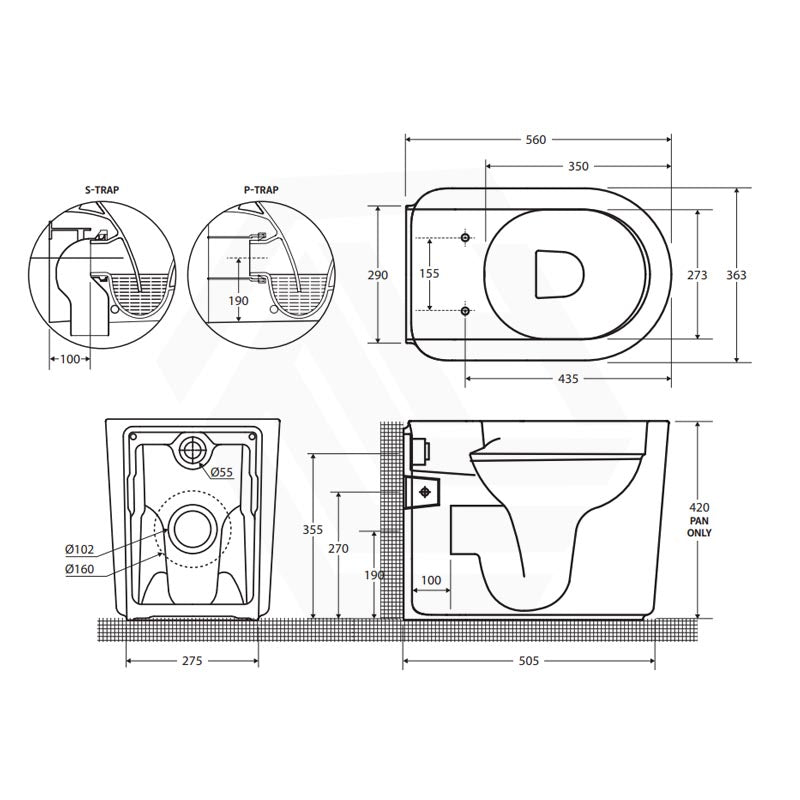

Dimensions

Product Options

Field Guide: Configure Your RAK Valet Wall-Faced Toilet Pan

The RAK Valet Wall-Faced Toilet seamlessly combines a floor-anchored architectural presence with RAK’s advanced Rimless Flushing Technology. Designed to sit completely flush against the back wall while concealing the cistern inside a wall cavity or furniture duct, it delivers an ultra-hygienic, silent vortex flush. Follow our 2-step configuration guide below to choose your ceramic finish and waste trap setup.

Note: Wall-faced suites require an in-wall concealed cistern system (sold separately). Confirm your rough-in waste outlet direction before ordering.

🎨 Step 1: Select Your Ceramic Color Finish

Choose the ceramic surface texture that best coordinates with your bathroom basins, vanity, and wall tile finishes.

🎨 Finish Option

Alpine Gloss White

Classic, ultra-smooth and highly reflective sanitary glaze.

Vibrant & Bright Classic Porcelain Match Easy to Wipe Clean

✔ Select Alpine Gloss White for a bright, timeless look that matches standard gloss basins and traditional ceramic lines.

🎨 Finish Option

Matte White

Understated, contemporary satin surface with a premium stone-like feel.

Architectural Grade Satin-Soft Texture Modern Minimalist

✔ Select Matte White for an ultra-modern, high-end designer statement that coordinates beautifully with natural stone, matte basins, and concrete tiles.

🔌 Step 2: Select Your Waste Pipe Trap Setup

Identify where your main sewer waste pipe exits the room. Selecting the correct trap guarantees a seamless, gap-free back-to-wall fit.

RAK Valet Wall Faced Toilet S-Trap Floor Waste Configuration

🔌 Pipe Setup

S-Trap (Floor Waste Outlet)

The waste pipe routes downwards directly into the floor boards.

Floor Drain Exit Includes S-Trap Bend Concealed Bottom Drain

👉 Select S-Trap if your bathroom's sewer connection is located in the floor underneath the pan.

RAK Valet Wall Faced Toilet P-Trap Rear Wall Waste Configuration

🔌 Pipe Setup

P-Trap (Rear Wall Outlet)

The waste pipe routes horizontally straight back through the rear wall tiles.

Rear Wall Exit Horizontal Coupling Direct Wall Line

👉 Select P-Trap if your plumbing waste pipe exits horizontally into the rear wall structure behind the toilet.

🧭 Quick Package Configuration Summary

Your Installation Requirement	Recommended RAK Valet Combination
Drain connection is located in the floor	Select your preferred Finish + S-Trap Set-up
Drain connection exits straight out through the wall	Select your preferred Finish + P-Trap Set-up
Modern architectural, high-end organic stone layouts	Select Matte White Finish + Trap variant to suit build
Classic, bright, timelessly elegant bathrooms	Select Alpine Gloss White Finish + Trap variant to suit build

📌 Technical Specifications & Professional Installation Notes

RAK Rimless Vortex Flush: Engineered with a completely rimless inner bowl to ensure maximum water coverage, hygienic anti-bacterial cleaning, and quiet operation (WELS 4-star rated).
Wall-Faced Back-to-Wall Design: Sits 100% flush against the rear wall tiles, eliminating hard-to-reach dust gaps behind the pan for easy floor mopping.
Premium Soft-Close Urea Seat: Includes a matching slim Urea Formaldehyde (UF) seat with quick-release pin hinges for easy removal and cleaning.
In-Wall Cistern Match: Fully compatible with premium concealed in-wall cisterns, such as the Geberit Sigma or R&T in-wall frame systems (sold separately).
Always instruct your licensed plumber to verify the exact waste outlet set-out dimensions on-site before securing the ceramic pan with structural silicone.

Instruction

FN-RKT1347 Resources

Technical drawings, precise dimensions, and product specifications for the FN-RKT1347 series.

📐

FN-RKT1347 Spec Sheet (PDF)

Detailed dimensional layout, physical measurements, and complete technical specifications for architectural planning.

View Spec Sheet

📐

FN-RKT1347MW Spec Sheet (PDF)

Detailed dimensional layout, physical measurements, and complete technical specifications for architectural planning.

View Spec Sheet

Note: Prior to commencing installation, always cross-reference the on-site layout with the official specification sheet. All plumbing works must be completed by a licensed plumber to comply with regional standards and preserve the product warranty.
