The extra height raised pan makes sitting down and standing up easier for elderly or mobility‑impaired users, reducing strain on knees and back. This design improves everyday comfort for all users while maintaining a sleek, modern appearance.

This model meets the requirements of AS 1428.1‑2009, the Australian standard for design and access provisions for people with disabilities. Compliance ensures the toilet pan is suitable for a wider range of users, including those with mobility challenges, and helps future‑proof your bathroom against accessibility needs.

Equipped with swirl flushing technology that delivers powerful, quiet cleaning with less water, effectively washing the entire bowl while minimizing splashing and noise. The wall‑faced pan design integrates seamlessly with concealed cistern systems.

Designed as a versatile toilet with s trap and p trap compatibility, this model can easily adapt to a wide range of bathroom plumbing layouts.

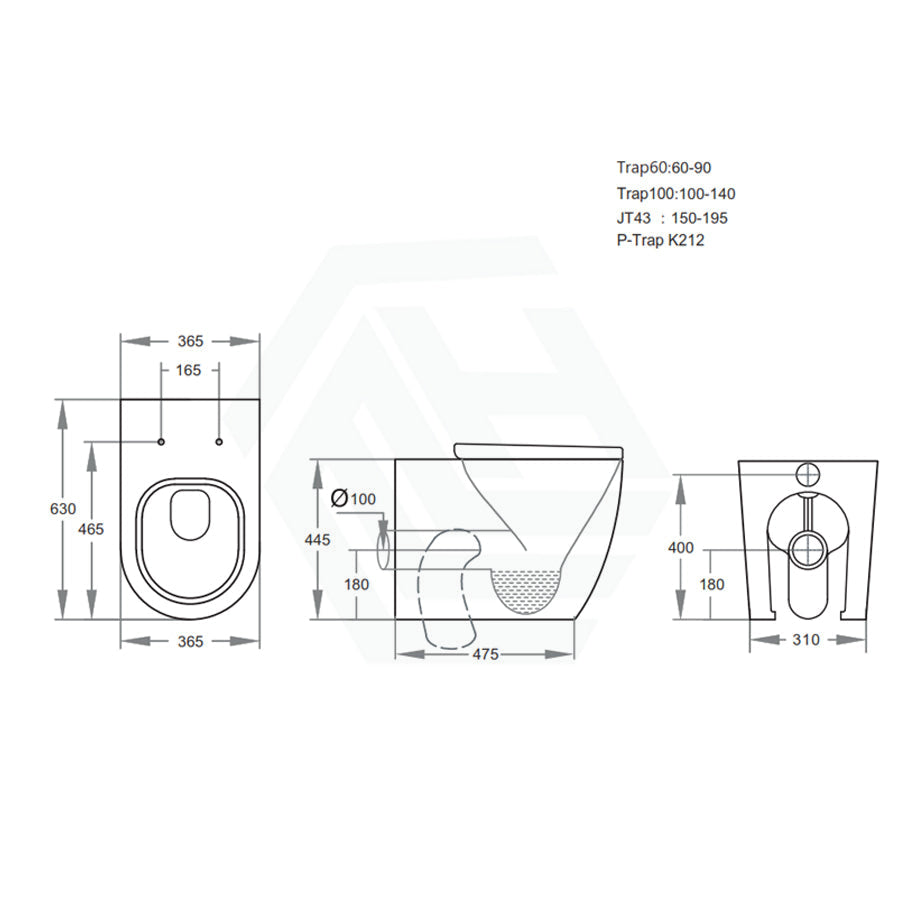

Flexible rough‑in configuration to match your plumbing: Default S‑Trap 100‑140mm roughing‑in included. Optional P‑Trap (180mm roughing‑in), S‑Trap‑60 (60‑90mm), and JT43 S‑Trap (150‑195mm) available. Cistern and flush buttons required and sold separately.

| MODEL | |
|---|---|
| Main Product Code | CE-KDK107T |
| MATERIAL & FINISH | |
| Material | Vitreous China |
| Colour | White |
| Finish | Gloss |
| TECHNICAL INFORMATION | |
| Toilet Seat | Default / UF Standard Seat |
| Hinge Cover |
Default Seat: 55mm Diameter UF Standard Seat: 8mm Thickness, 55mm Diameter |
| S-Trap (Default) | 100-140mm roughing-in |
| Option P-Trap |
CE-K212: 180mm roughing-in. (260mm straight pipe,can be cut to size to suit set-out distance) |
| Option S-Trap |
CE-S-Trap-60: 60-90mm roughing-in |
| Option S-Trap |
CE-JT43-Trap: 150-195mm roughing-in |
| CERTIFICATION | |
| Compliance | AS 1428.1-2009 Compliant, Australian standard |
| WELS | Approved |
| WELS Licence No | 1156 |
| WELS Registration No | L06772 |
| WELS Star Rating | 4 Star, 4.5L per full flush, 3L per half flush, 3.3L per average flush |
| PACKAGE CONTENTS | |
| Main Product | 1*Toilet pan (Cistern and flush buttons required and sold separately) |
| Accessories | Included: Default S TRAP (100-140mm roughing-in) |
| FEATURES | |
| Feature 1 | Extra Height Raised Pan -- Makes sitting down and standing up easier for elderly or mobility-impaired users, reducing strain on knees and back. |
| Feature 2 | Swirl Flushing -- Delivers powerful, quiet cleaning with less water, effectively washing the entire bowl while minimizing splashing and noise. |
✨ Select Your Elvera Floor Pan Configuration

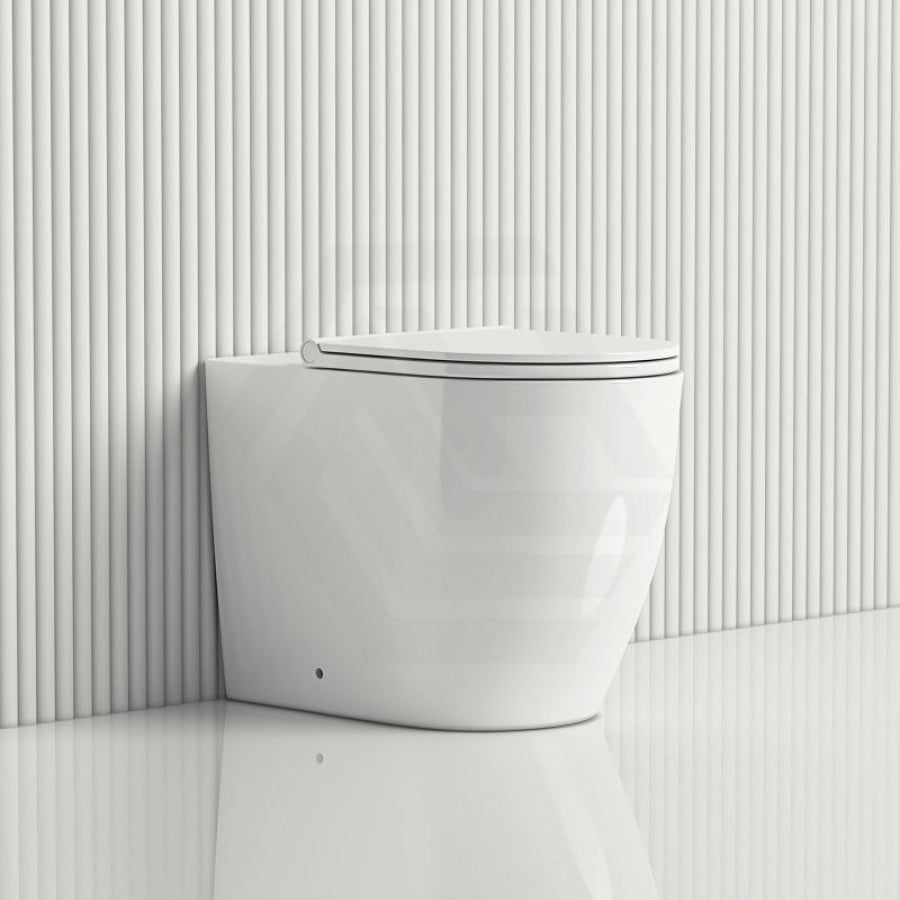

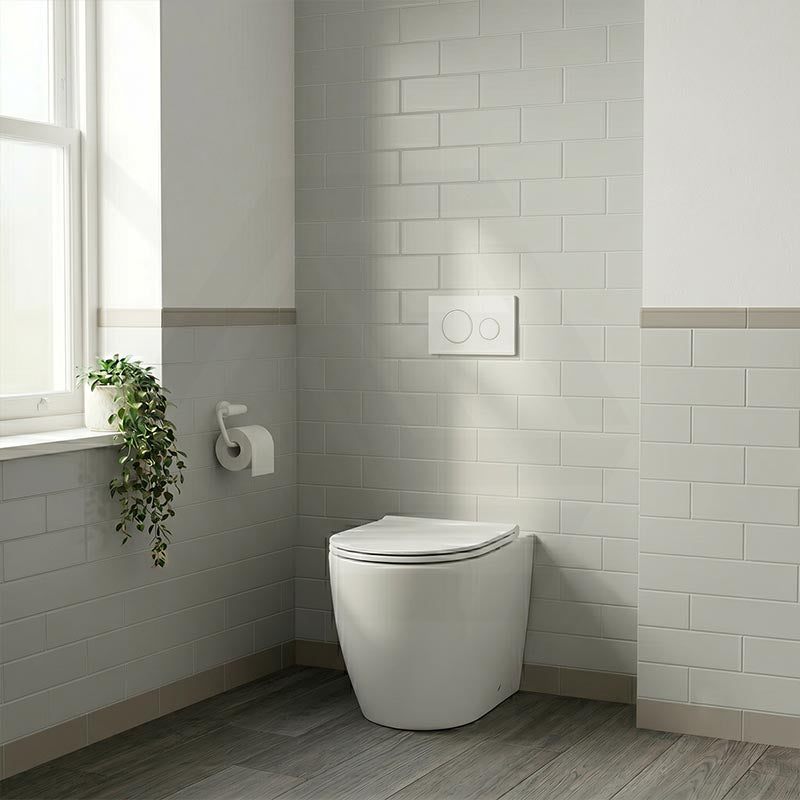

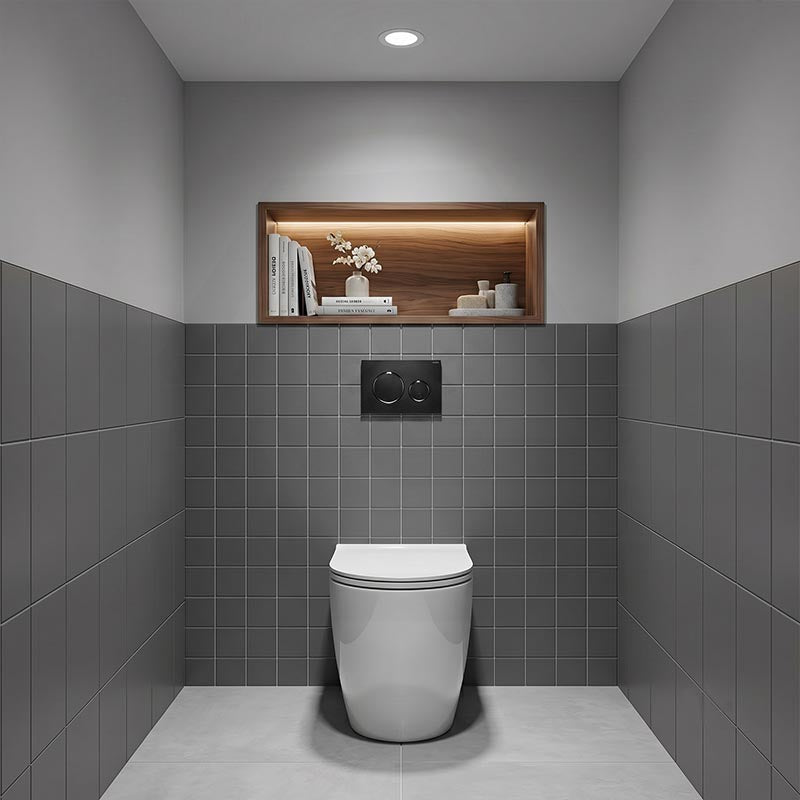

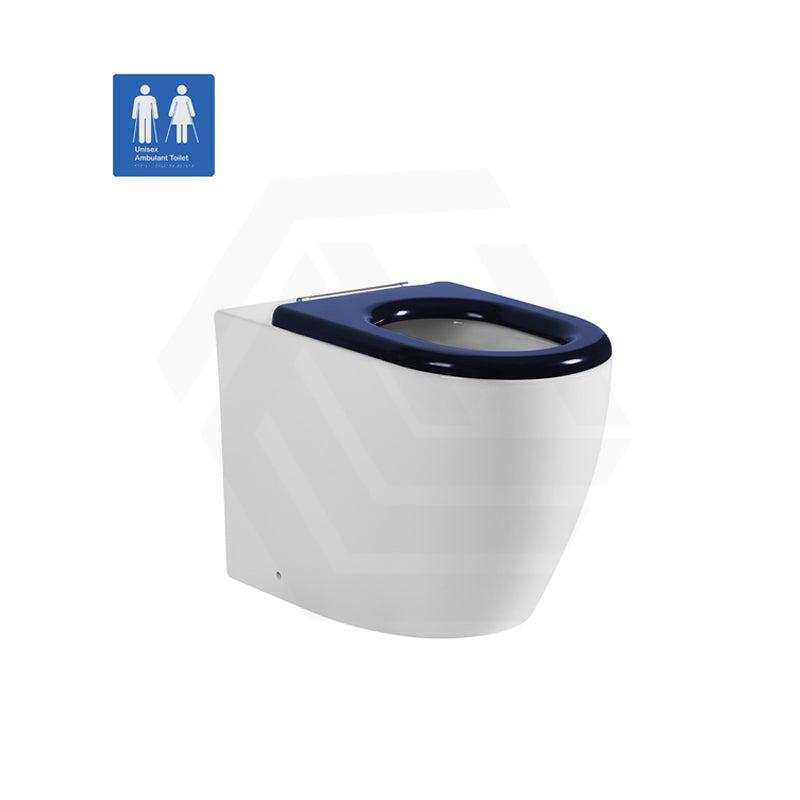

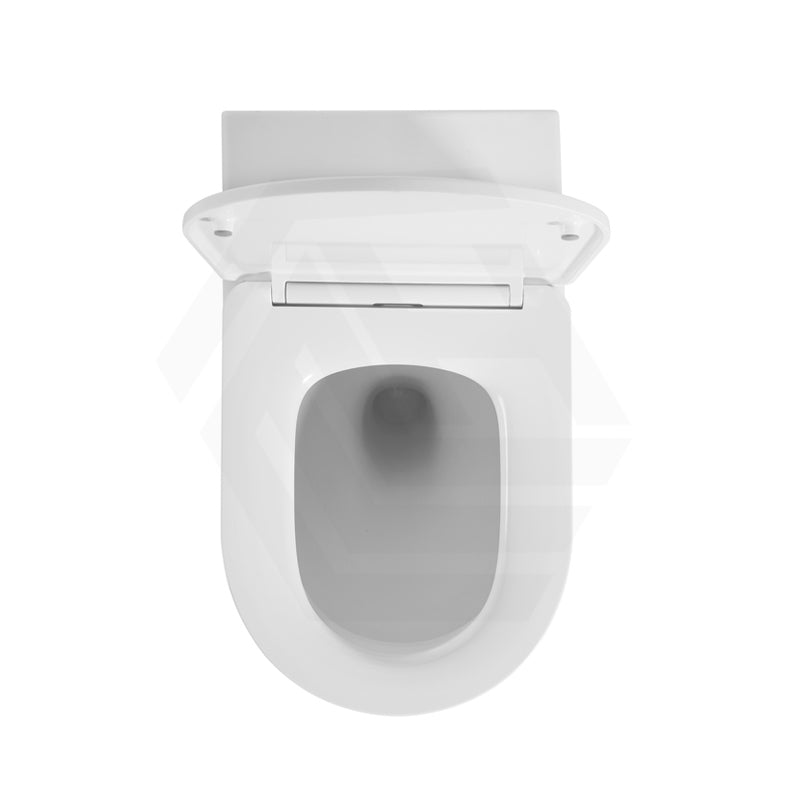

The Elvera Tornado Wall-Faced Floor Pan features an extra‑height raised pan, swirl flushing technology and a 4‑star WELS rating (4.5L full / 3L half flush). Choose your toilet seat type first, then select the correct trap option to match your plumbing setup.
Tip: Cistern and flush buttons are sold separately — trap options are available for both floor and wall waste pipes.
① Toilet Seat

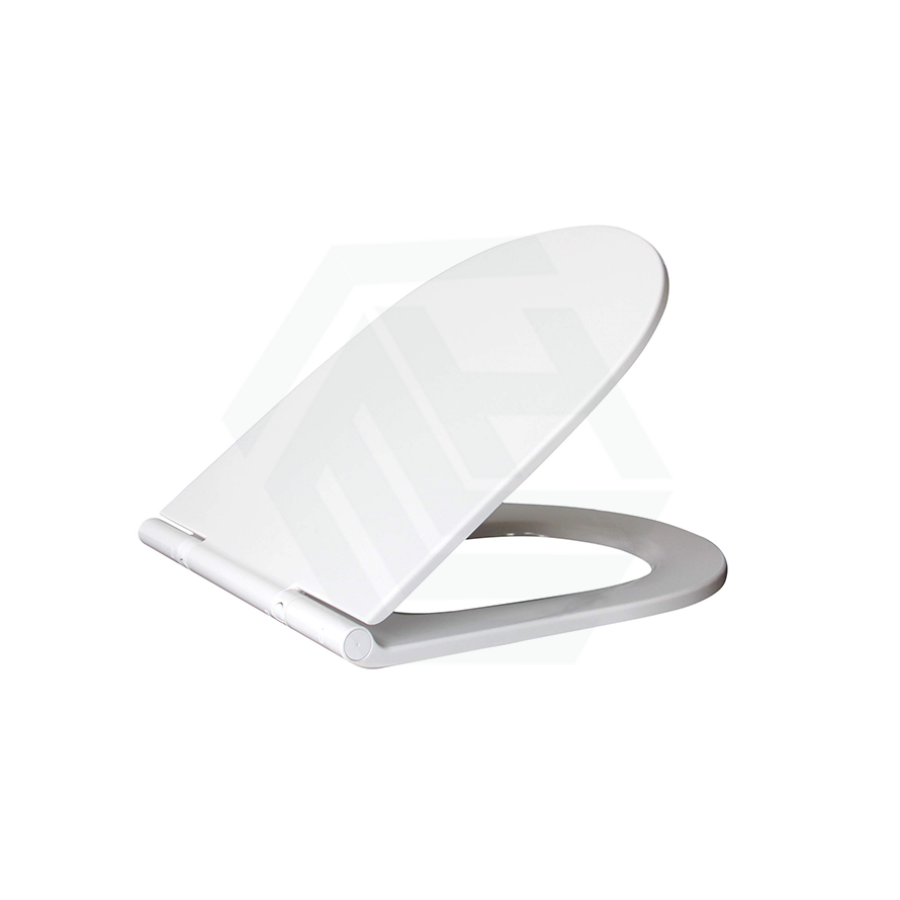

Default Seat
Type: Default toilet seat

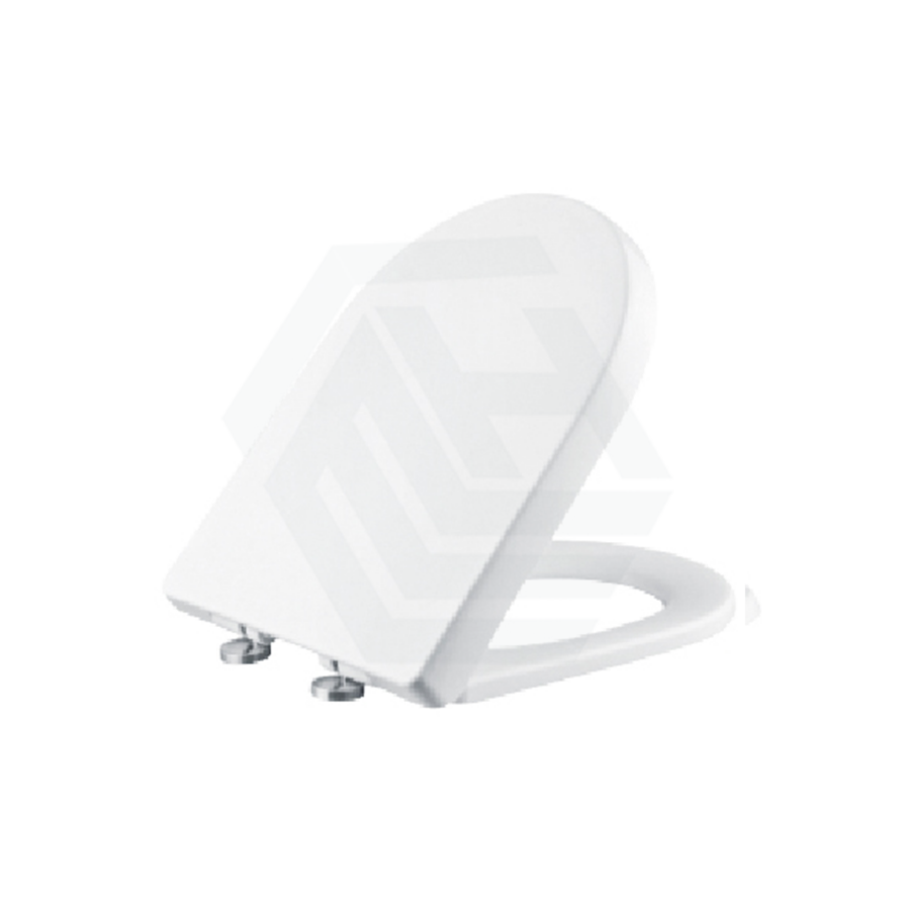

UF Standard Seat (CE-SC803)
Type: UF standard seat
② Trap Configuration (Plumbing)

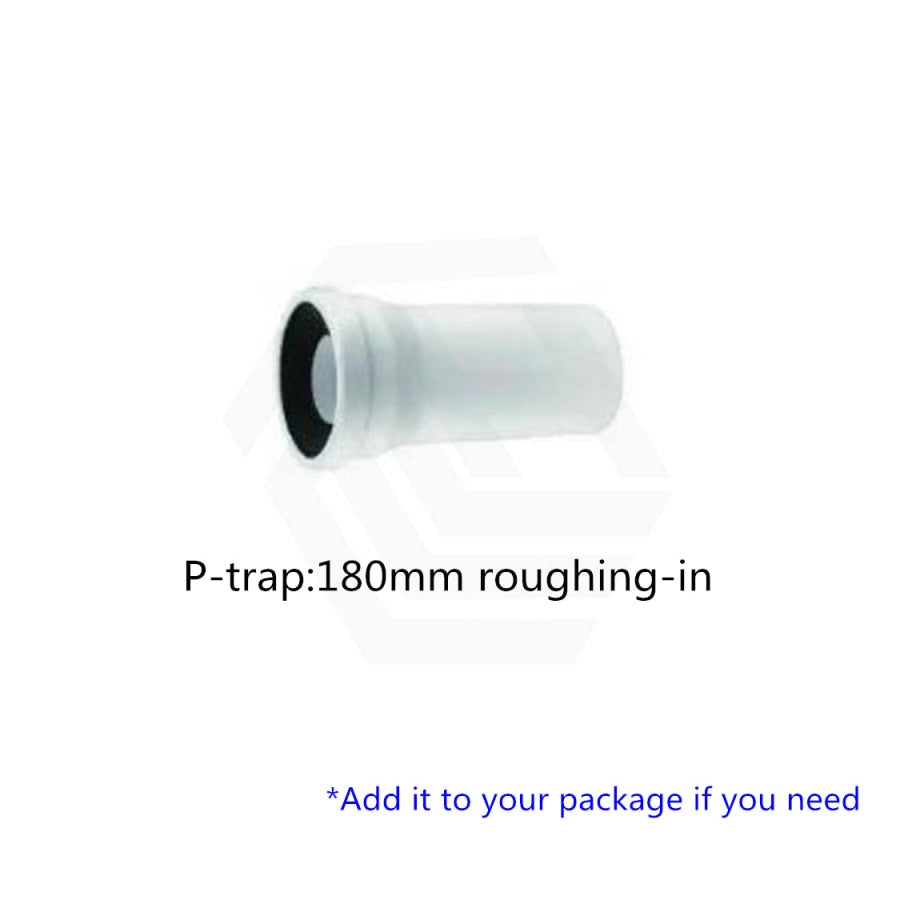

P‑Trap · 180mm Rough‑In (CE-K212)
Type: Wall outlet (optional — sold separately)

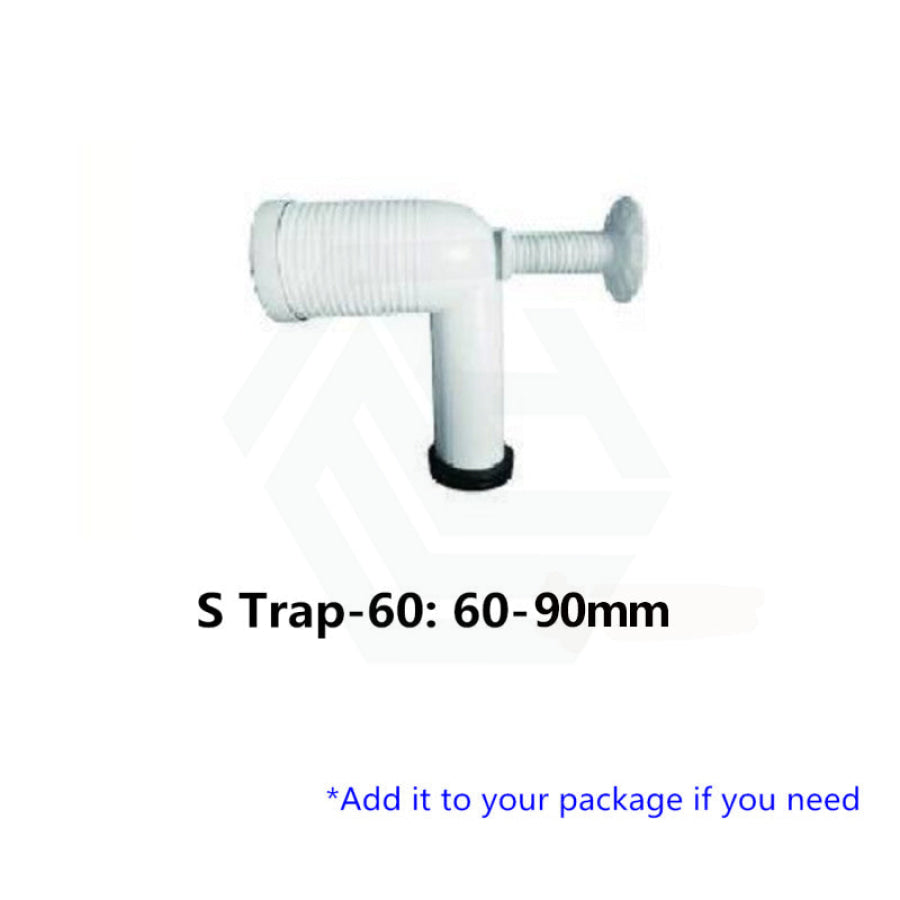

S‑Trap · 60‑90mm Rough‑In (CE-S-Trap-60)
Type: Floor outlet (optional — sold separately)

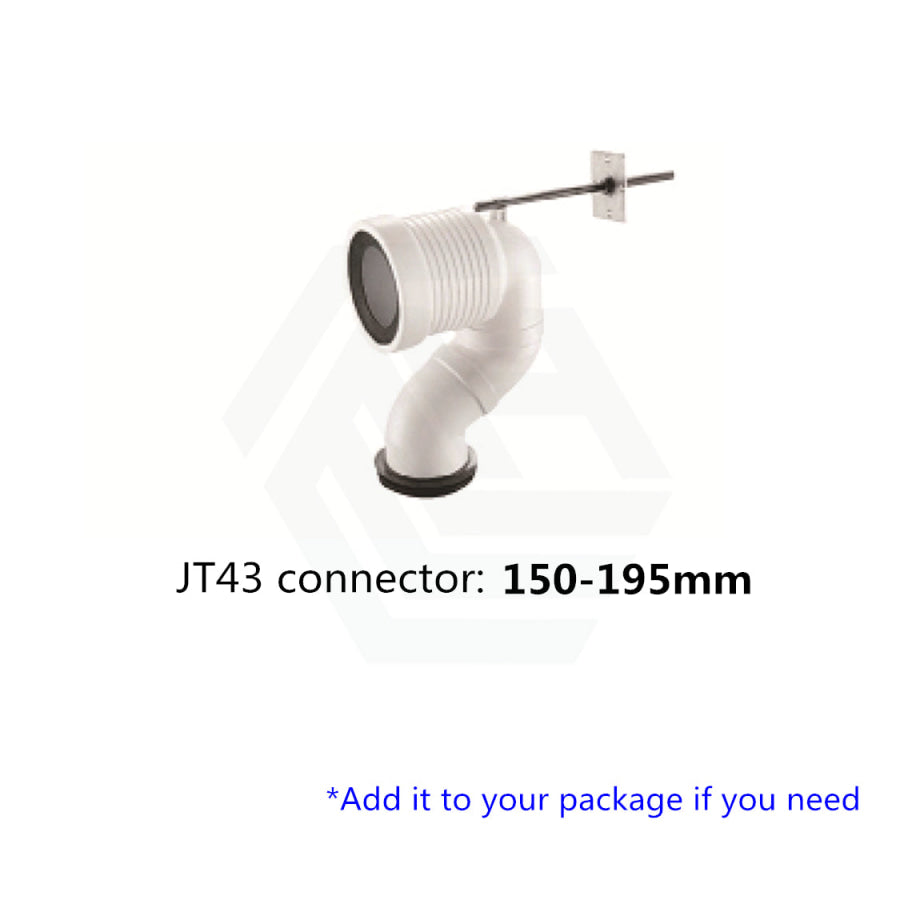

JT43 S‑Trap · 150‑195mm Rough‑In (CE-JT43-Trap)
Type: Floor outlet (optional — sold separately)
🧭 Quick Reference
🔧 Selection Summary: Floor outlet → S‑Trap (choose rough‑in range) | Wall outlet → P‑Trap (180mm)
| Selection | Recommendation |
|---|---|
| Toilet Seat | Default Seat for standard setup; UF Standard Seat for upgraded durability and comfort |
| Plumbing Setup | Optional: Wall outlet → P‑Trap 180mm | Floor outlet 60–90mm S-Trap-60 | Floor outlet 150–195mm → JT43 S‑Trap | |
