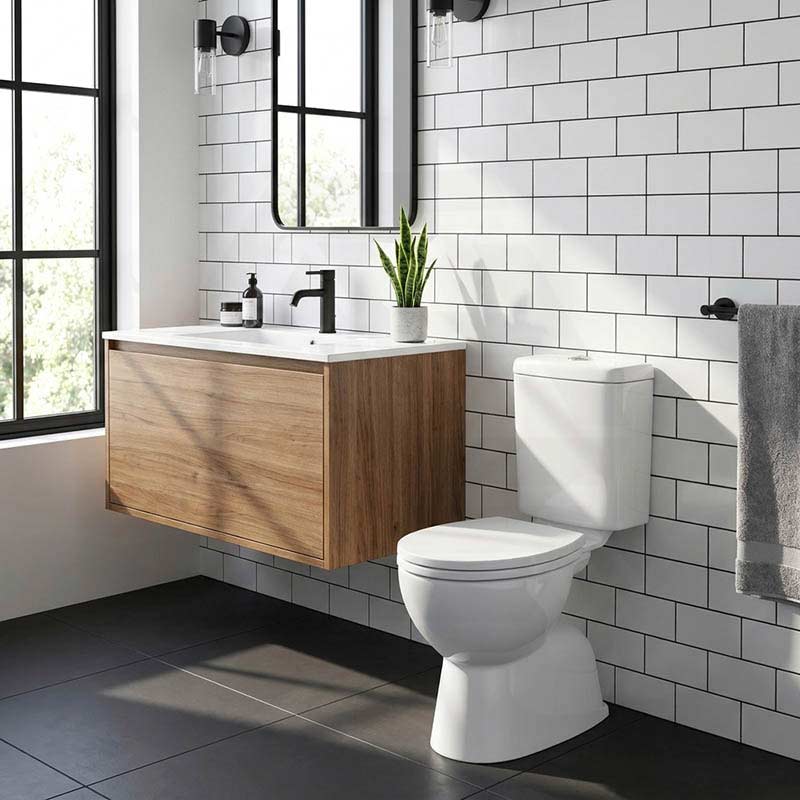

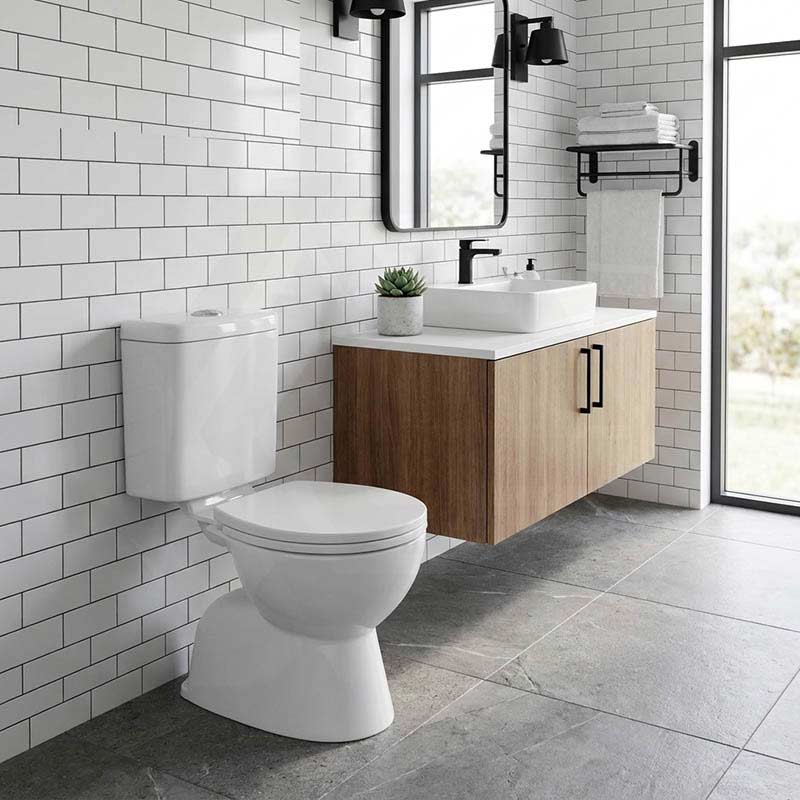

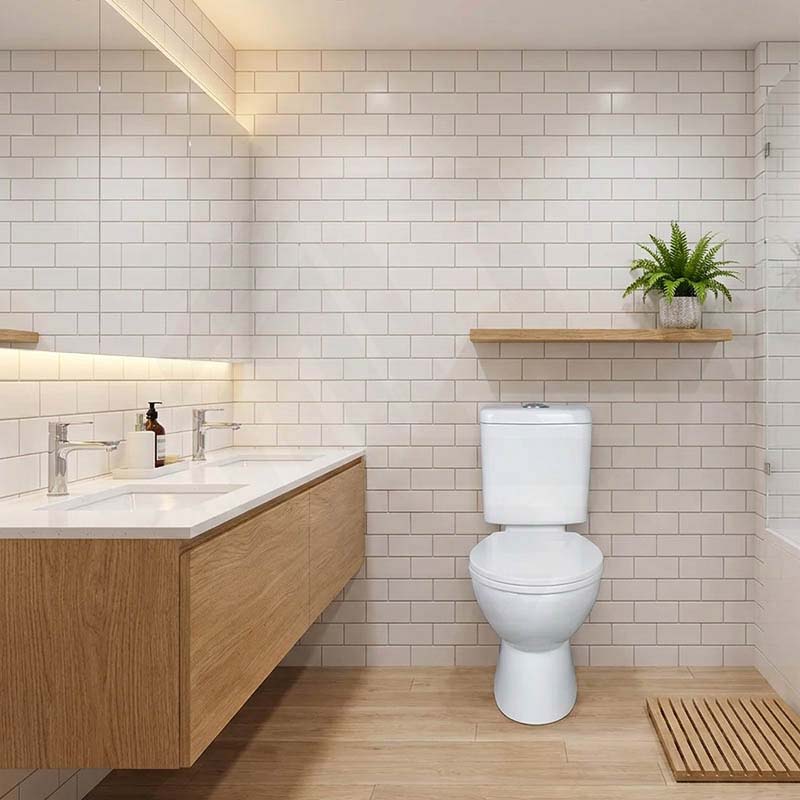

Fienza Stella Adjustable Link Toilet Suite 635x360x855mm - Gloss White

Name: Fienza Stella Adjustable Link Toilet Suite 635x360x855mm - Gloss White
Brand: Fienza
SKU: FN-K001
Price: 288.00 AUD
Availability: InStock

SKU: FN-K001

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

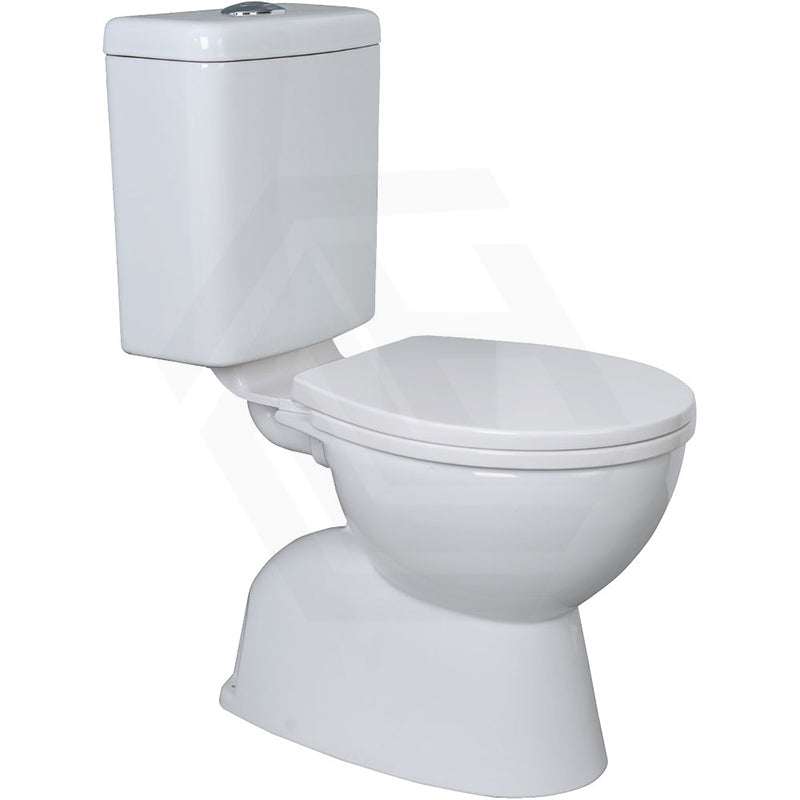

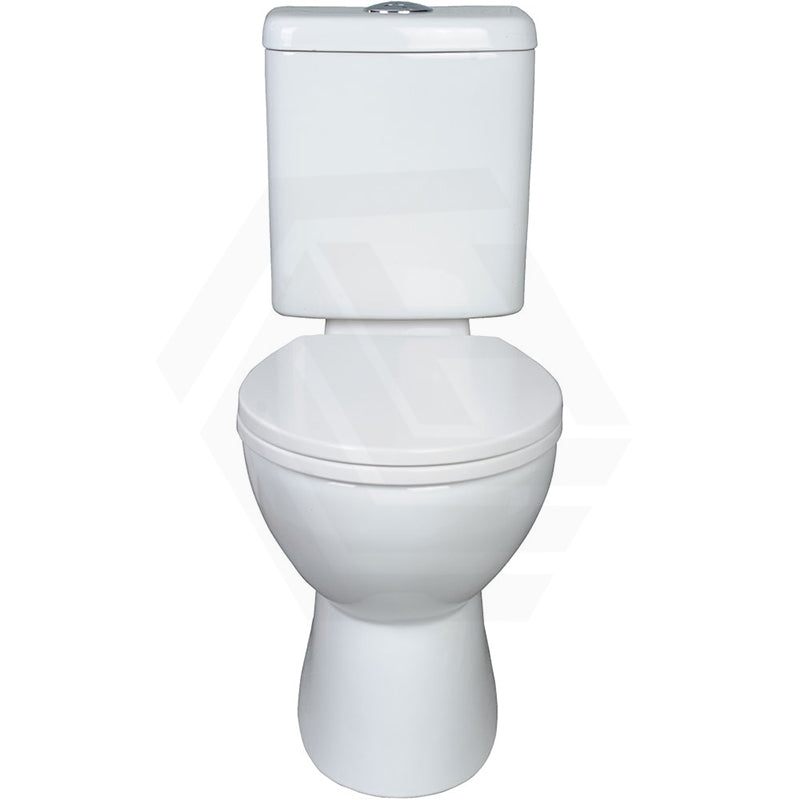

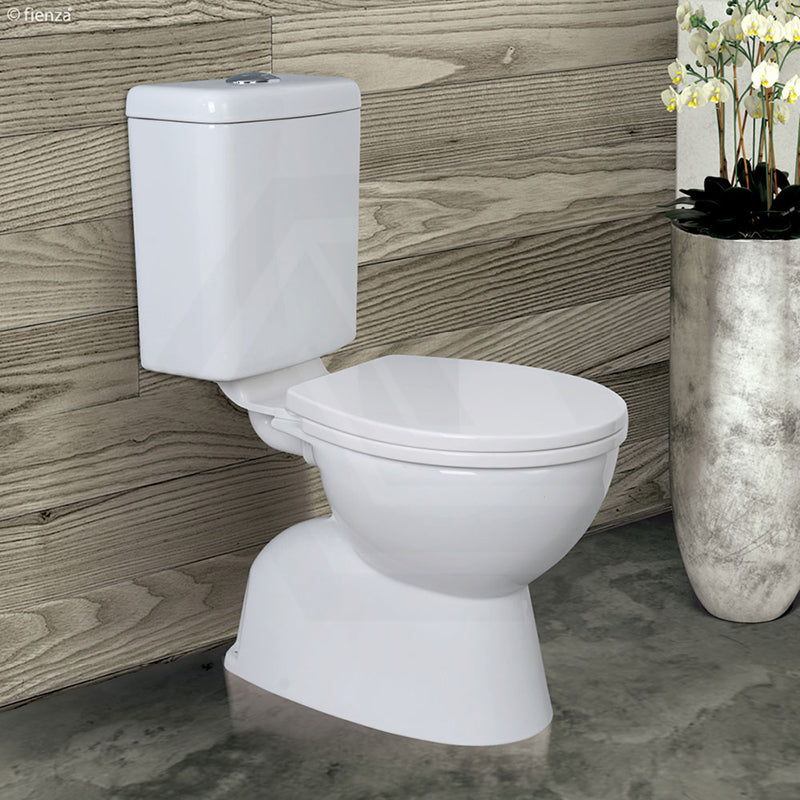

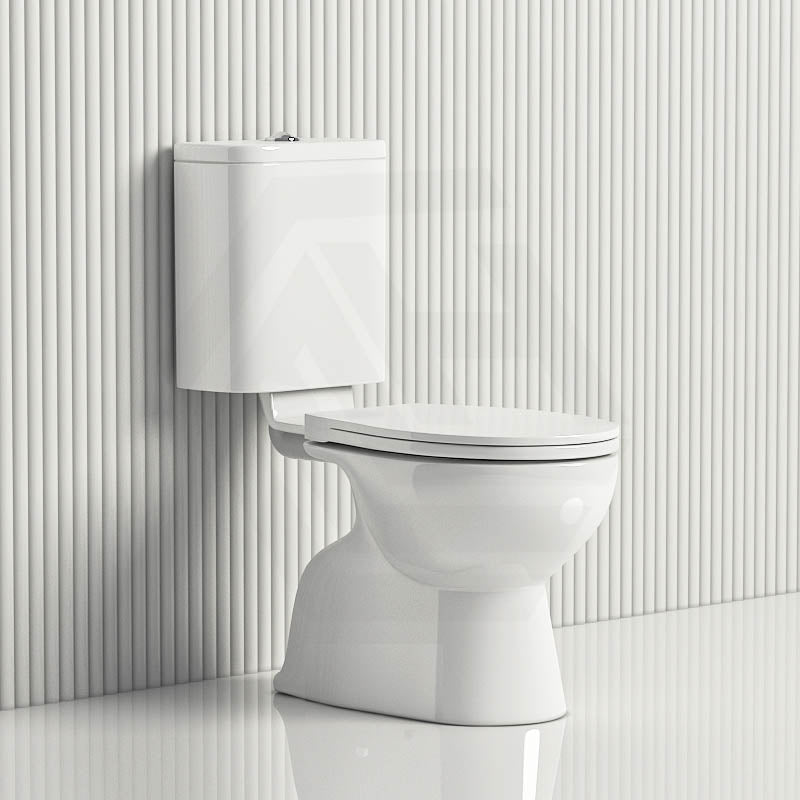

Fienza Stella Adjustable Link Toilet Suite

Enhance your bathroom renovation with the Fienza Stella Adjustable Link Toilet Suite. Designed for maximum installation flexibility, this classic two-piece suite features an adjustable link pipe, making it the perfect solution for retrofitting older plumbing setups. Finished in a timeless Gloss White, it combines practical functionality with everyday comfort.

Adjustable Link Set-Out Gloss White Finish Box Rim Pan Soft Close Seat

Renovation Ready

Adjustable Link Configuration

The adjustable link design provides superior flexibility for trap set-outs, allowing you to connect the cistern to the pan across varying distances.

This makes the Stella suite an ideal choice for bathroom upgrades where existing floor or wall plumbing cannot be easily relocated, saving you time and renovation costs.

Classic Aesthetic

Timeless Gloss White Finish

Crafted from high-quality vitreous china, the Stella suite features a durable Gloss White glazed finish.

This classic surface not only brightens your bathroom space but also offers excellent resistance to stains and scratches, ensuring long-lasting visual appeal and easier maintenance.

Performance

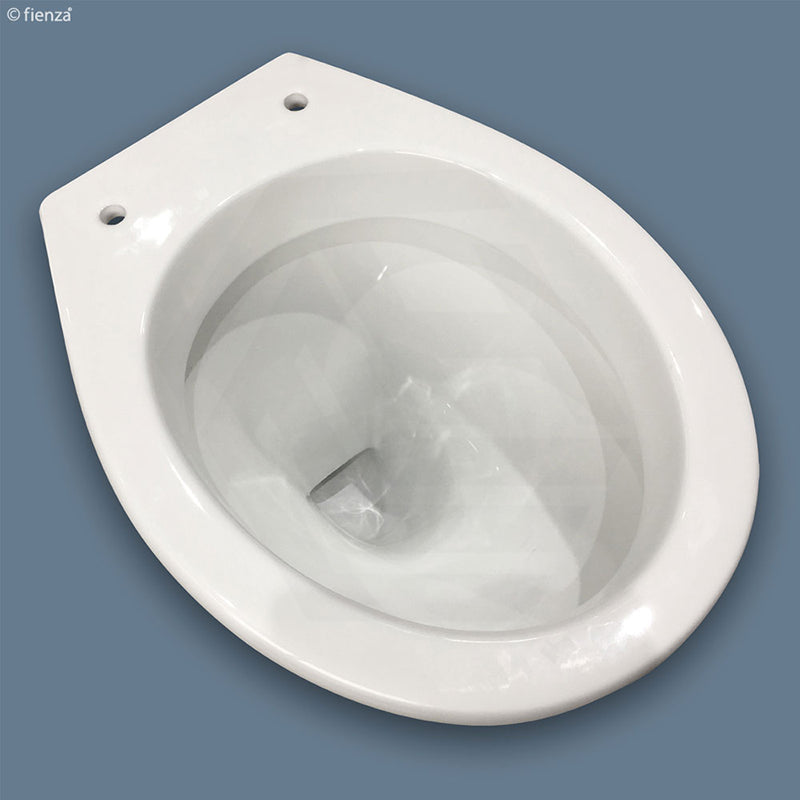

Efficient Box Rim Flushing

Equipped with a traditional and highly reliable box rim flushing mechanism, this toilet ensures a powerful and even distribution of water around the bowl.

The comprehensive wash-down action provides reliable hygiene and efficient clearing performance with every flush.

Everyday Comfort

Soft-Close Seat Included

Designed for quiet operation, the included soft-close seat prevents accidental slamming, extending the life of the toilet and maintaining a peaceful bathroom environment.

The ergonomic seat design provides everyday comfort for the whole family.

Note: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products. Please confirm your existing plumbing set-out and trap type before purchasing to ensure compatibility.

Product Information

MODEL
Main Product Code	FN-K001
MATERIAL & FINISH
Material	Vitreous China
Colour	Gloss White
TECHNICAL INFORMATION
Flushing System	Boxed rim pan with High quality R&T flush mechanism
Toilet Seat	UF soft close seat with quick release
S-Trap Set-out	Concealed S-Trap only: 140-255mm rough-in
Water Inlet Position	Left or right bottom inlet
CERTIFICATION
WELS Star Rating	4 Star rated
Water Consumption	4.4L/full flush, 3L/half flush (3.3L average flush)
PACKAGE CONTENTS
Main Product	1Toilet pan, 1Toilet cistern
Accessories	Included: Flush pipe, Connection plate, UF seat cover, Fixing screws
FEATURES
Feature 1	Adjustable Link Design -- Provides flexibility for varying set-out distances between 140-255mm.
Feature 2	Ultra Quiet Flush -- Equipped with a high-quality R&T mechanism for reliable and quiet operation.
WARRANTY (RESIDENTIAL)
Vitreous China	5 years replacement parts or product, 1 year labour
R&T Cisterns (Valves)	3 years replacement parts or product, 1 year labour
Seats & Accessories	1 year replacement parts or product

Supplier's Gallery

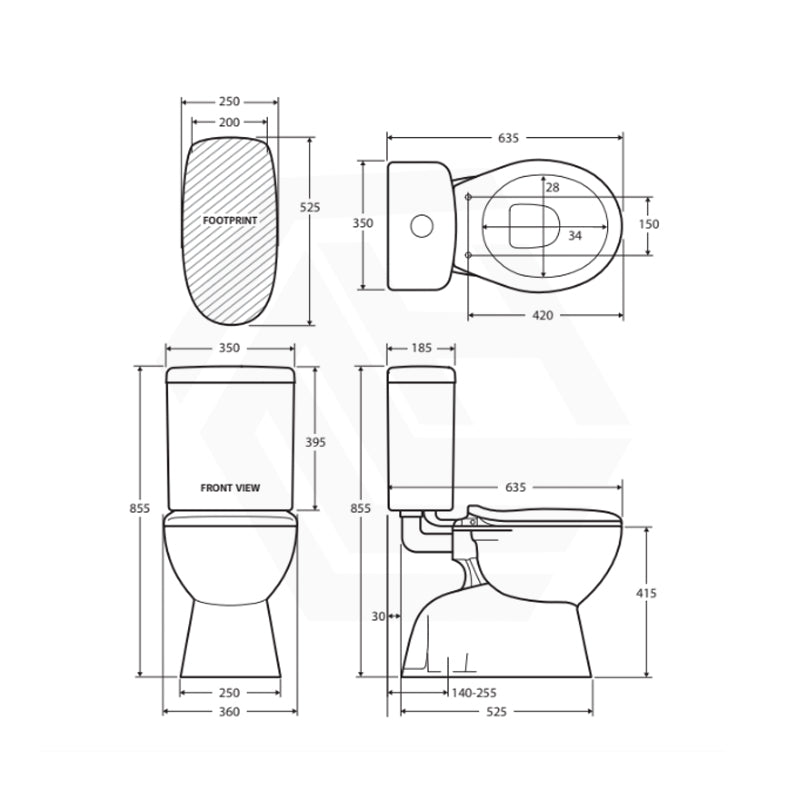

Dimensions

Instruction

Technical Documents & Installation Guides

Essential resources for the correct measurement and installation of the Fienza Stella Adjustable Link Toilet Suite.

📄

Installation Guide - Stella Adjustable Link Toilet (PDF)

Includes detailed diagrams for S-Trap set-out (140-255mm), seat assembly, and wall-hung cistern installation.

Download PDF

Note: Ceramic products carry a +/-10mm manufacturing tolerance.

Buying Guide

Product Buying Guides
Understanding Connector Toilet Suites: Definition, Design, and Benefits

By Carly Williams

Learn about connector toilet suites, including their definition, design, and benefits. Discover why these versatile and cost-effective toilet systems are a practical choice for various bathroom installations.
3 mins read
16 July, 2024

About Brand

Twin vanity setup with Fienza basins, mirrors, and lighting in a designer bathroom

🔥

Crafted Quality

Every Fienza product is designed with meticulous attention to detail and built using premium materials, ensuring a refined finish and long-lasting durability.

🎨

Modern Design

Fienza blends contemporary aesthetics with comfort, creating bathroom spaces that feel both stylish and relaxing — a true personal sanctuary.

⚙️

Innovation & Technology

Through advanced manufacturing and modern design processes, Fienza continuously pushes design boundaries while maintaining practical functionality.

🌱

Sustainable Approach

With a focus on responsible production and long-term usability, Fienza integrates sustainability into both design and manufacturing.

Explore the Fienza collection

Shop Fienza products →

Browse the full Fienza range and use filters to find the right product, finish and style.

Shipping

Delivery timeframes, order processing, pickup and delivery charges — everything about getting your order to you.

Last updated 15 July 2026

Free shipping to Greater Sydney, online orders

0–3 days to process and dispatch your order

2–7 days metro delivery after dispatch

Free shipping
Delivery times
Order processing
Extra charges
Missed delivery
Pick up
Out of stock
Need help

01 Free shipping

Free shipping to Greater Sydney on online orders only.
Large or bulky items to other regions require a freight quote. Start a Live Chat (chat icon, bottom right) and we'll quote it for you.

02 Standard delivery timeframes

Destination	Delivery time after dispatch
Metro areas (all states)	2–7 business days
Regional areas (all states)	7–15 business days

Timeframes are estimates counted in business days from the date of dispatch, not from the date of order. The actual delivery time depends on the courier carrying your parcel.

03 Order processing & delays

You'll receive an Order Confirmation Email as soon as your order goes through.
Please allow 0–3 business days for processing — in most cases we dispatch within the first 24 hours.
Once your order ships, we'll email you the tracking information.

Some delays sit outside our control:

Public holidays, peak periods and sale periods add time. During Christmas and major sales, please allow extra.
High order volumes may occasionally extend the timeframe slightly.

Remote areas: all courier networks have limits. For some remote postcodes couriers will not deliver to the door — your parcel goes to a local depot or Australia Post outlet, and you'll be notified to collect it.

04 Additional delivery charges

Charges beyond the base delivery fee may apply where:

Stair or lift access is needed — if the delivery point isn't directly accessible, or goods must be carried up stairs, this adds labour and time.
The location is difficult to reach, or two or more people are needed to deliver safely.

These are assessed case by case, quoted and agreed with you before we proceed, and billed on a separate invoice. No surprises.

05 Missed deliveries

If nobody is available at the delivery address during the agreed window, a re-delivery fee may apply.
Any extra charge will be communicated and agreed with you before a second attempt.
Please make sure you or an authorised person is present at the agreed time.

06 Pick up

We'll get your order ready as soon as possible and email you a notification with your booking number and collection details.
Please wait for that email before coming in.

MyHomeware — North Rocks Showroom & Warehouse
Unit E, 21 Loyalty Road, North Rocks NSW 2151

Warehouse hours: Mon–Fri 9:00am–5:00pm · Sat 10:00am–4:00pm

Pickup and exchange are not available on Sundays.

07 Out-of-stock & back orders

Stock moves quickly, and occasionally an item shows as available but sells out just after you order. If that happens, we'll email you with three options:

Cancel back-ordered itemsWe remove them and send everything else straight away.
Cancel the whole orderImmediate store credit, or a refund.
Wait for replenishmentWe hold your order until stock arrives.

For back-ordered items, the 365-day return period runs from the date you receive the item — not the date of purchase.

Returns & refunds Our full returns terms — the 365-day return window, restocking fees, and custom-order exclusions — live on one dedicated page. Read the Returns & Refund Policy →

Need help? Online Chat is the fastest way

Due to high call volumes, phone waiting times may be longer than usual. Our Online Chat team is available for extended hours and can usually help more quickly with delivery timeframes, freight quotes, stock checks and order updates.

Live Chat — chat icon, bottom right of your screen · Fastest response
Order & delivery enquiries — support@myhomeware.com.au
Pre-sales enquiries — sales@myhomeware.com.au

All enquiries are replied to within 1 business day.

Connector Toilets FAQs

What is a link connector toilet?

A link connector toilet, also called a link suite toilet, joins the cistern and the toilet pan with an exposed connector pipe. This toilet design is a practical and versatile choice for many Australian bathrooms, offering flexibility in installation, allowing adjustments for P-trap or S-trap setups while keeping costs down.

Are all toilet connectors the same size?

No, toilet connectors are not all the same size. While many modern Australian toilets use standard sizes, variations exist depending on the model, trap type, and brand. That’s why it’s essential to check compatibility before purchasing to ensure a proper fit and leak-free installation.

How to measure toilet connector size?

To measure a toilet connector size, first determine the trap type (P-trap or S-trap). Measure the set-out distance—the gap from the wall to the centre of the waste outlet for S-traps, or from the floor to the centre of the outlet for P-traps. This measurement ensures you select the right connector length.

How to install a link suite toilet?

Installing a link suite toilet involves connecting the cistern to the pan with the link connector pipe.

First, position the pan over the trap, ensuring alignment.
Then, attach the cistern securely and connect the link pipe.
Seal joints properly, and check for leaks.

Note: Always follow Australian plumbing standards, and it's better to ask a licensed plumber for the connector toilet installation or replacement.
