Dimension

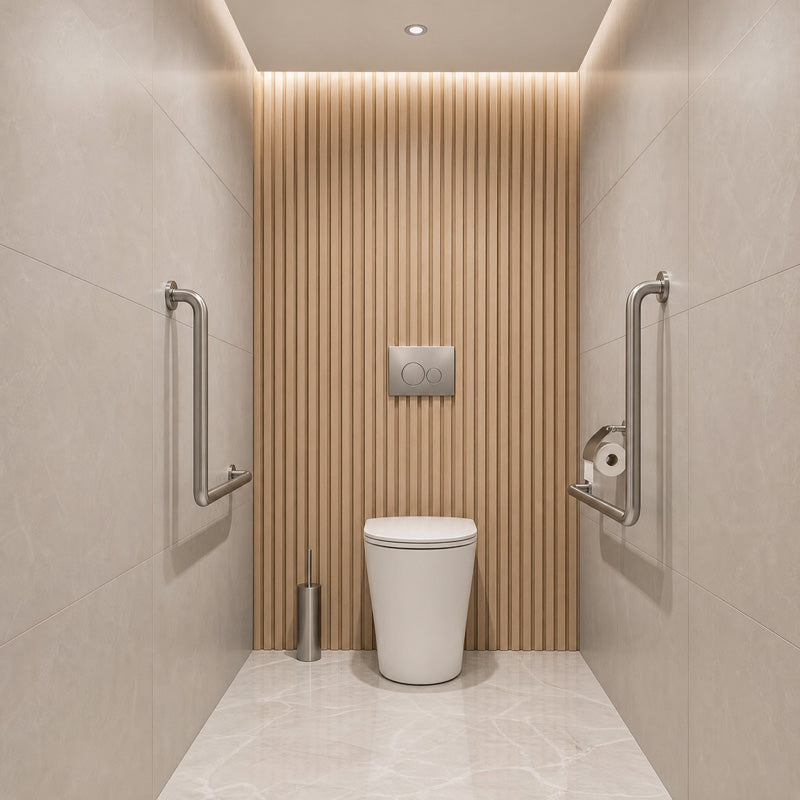

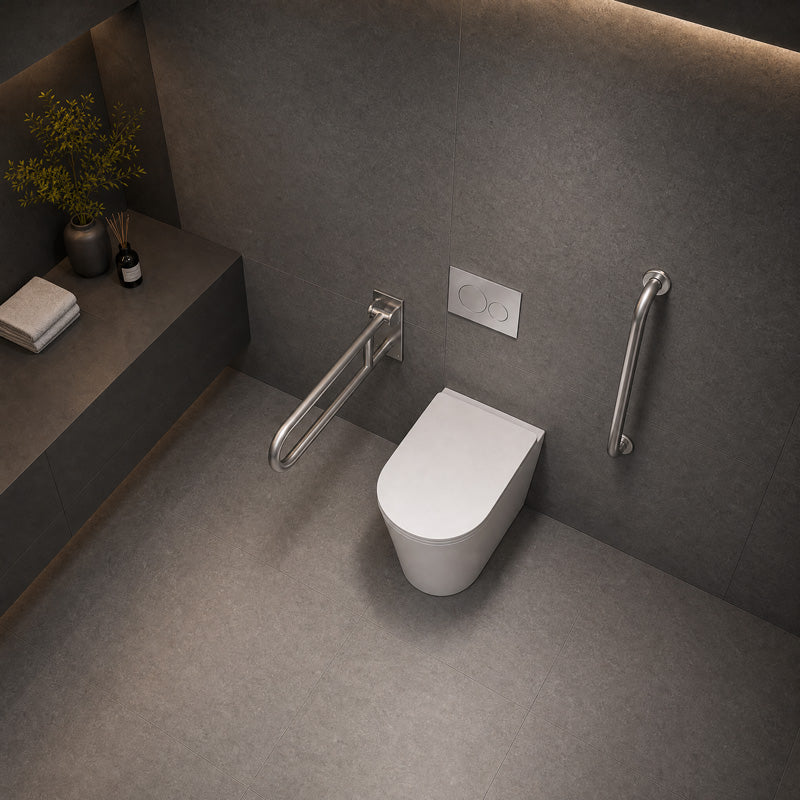

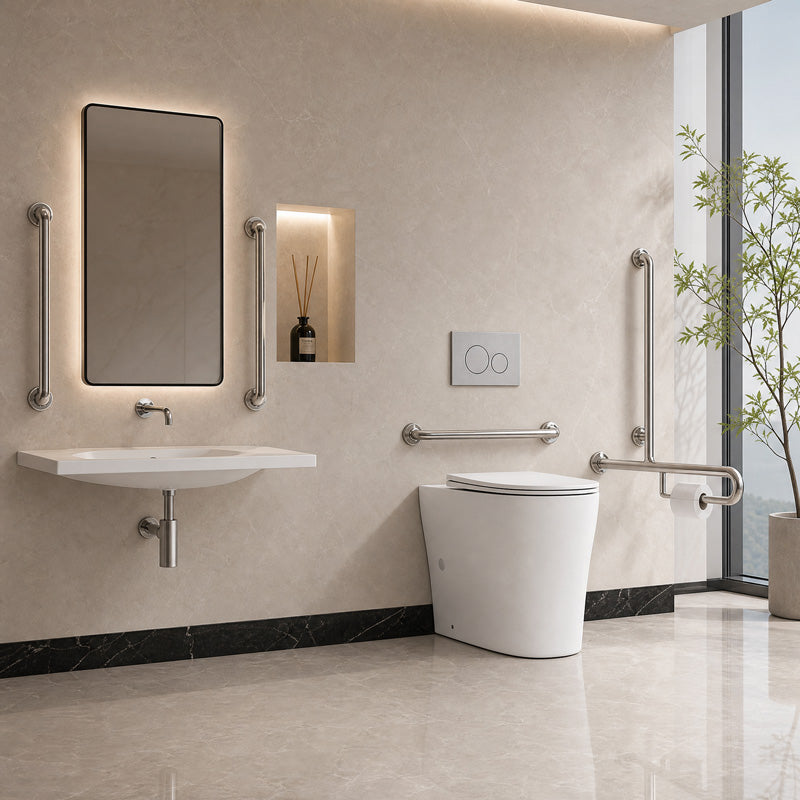

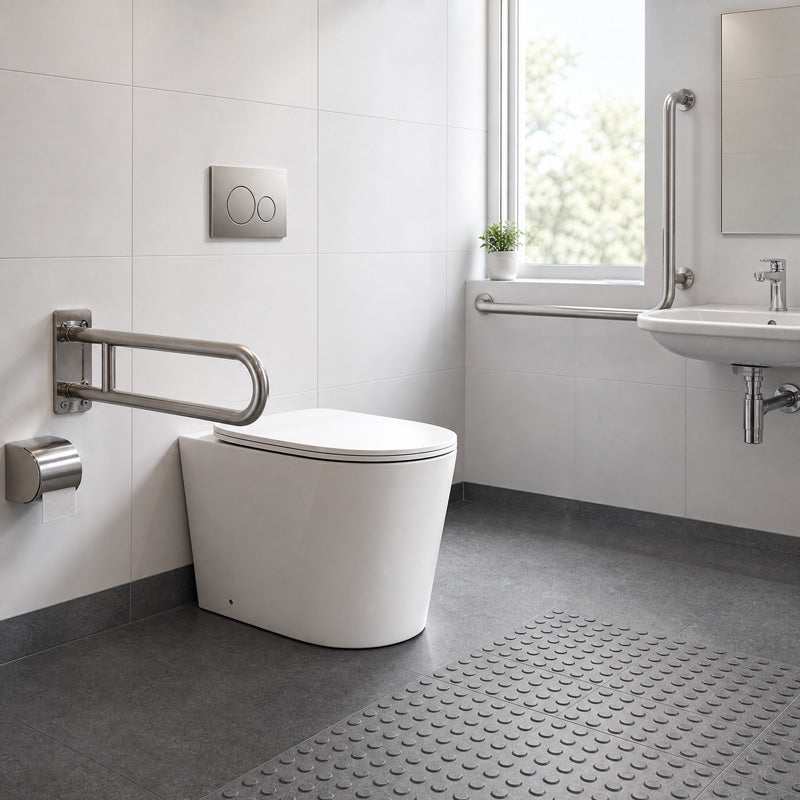

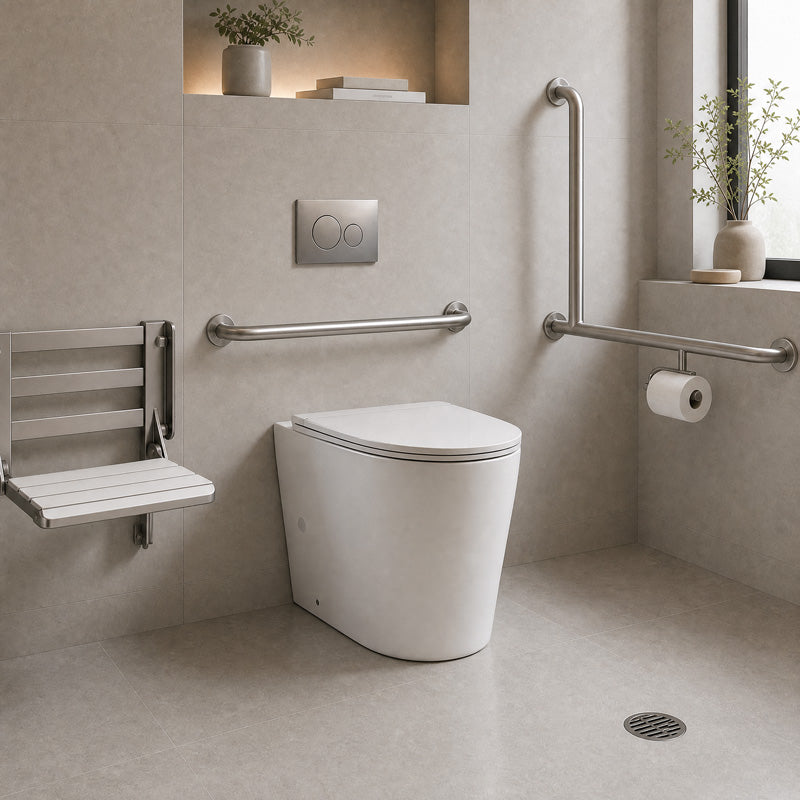

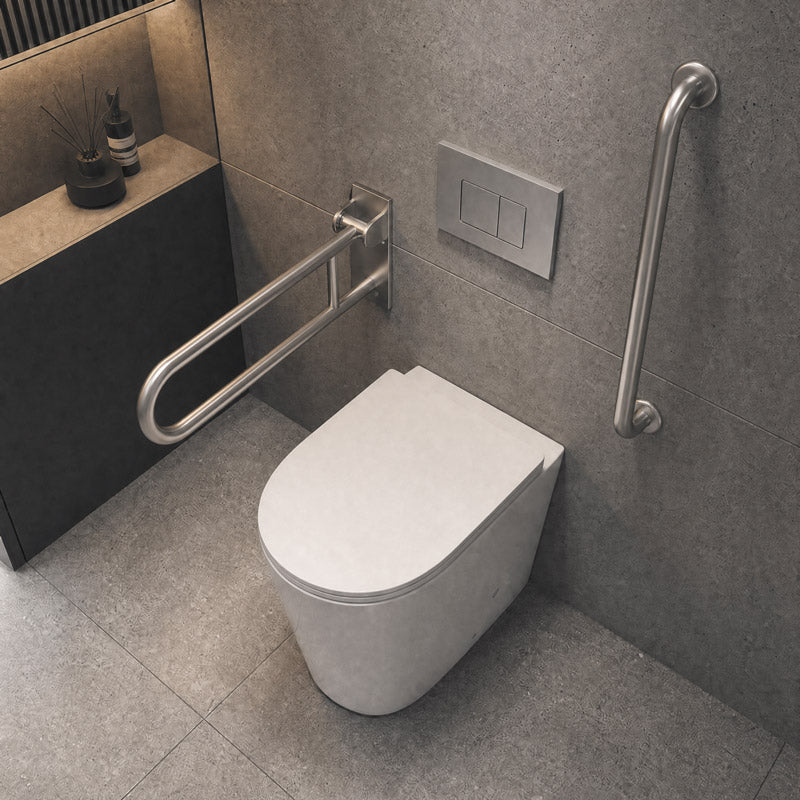

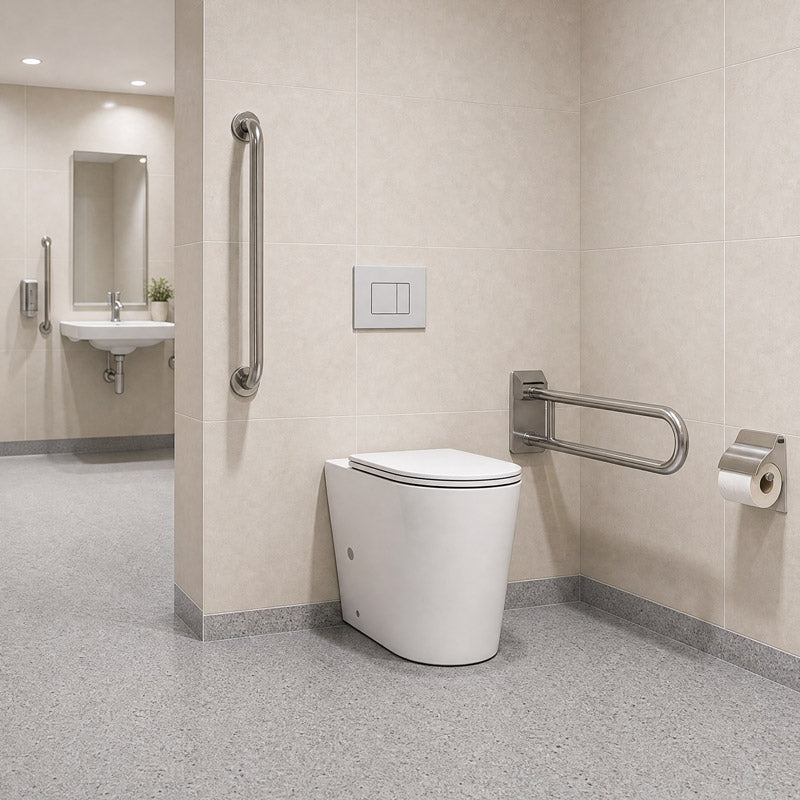

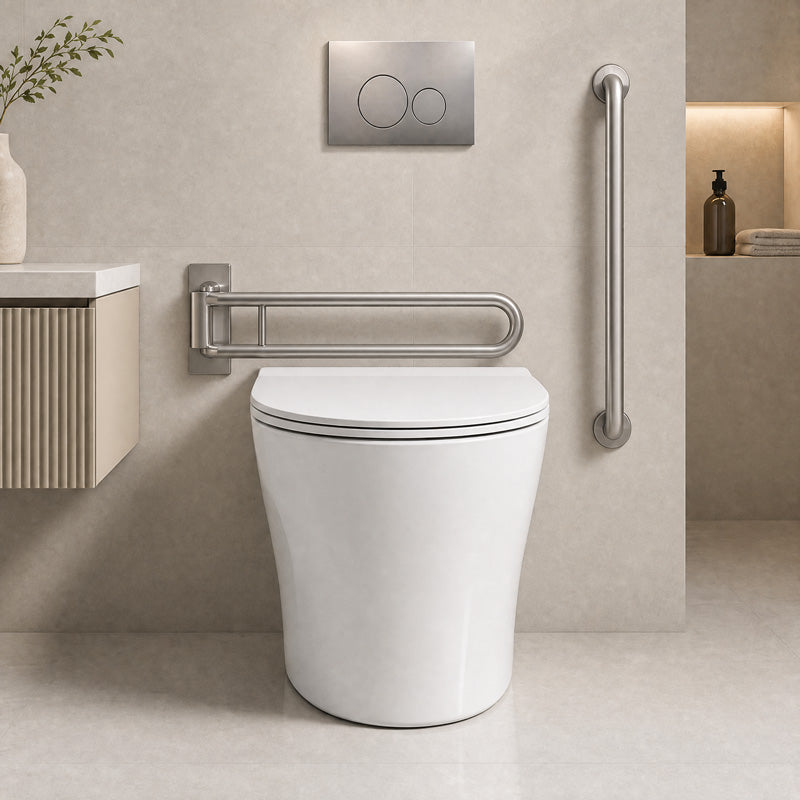

Lukka Orta Tornado Rimless Wall Faced Floor Ambulant Toilet Pan Only 570x360x430mm - Gloss / Matt White

SKU: LK-OR105WFP+LK-PWG004
$425
Color: Gloss WhiteOption Guide
Pick Up Usually Ready in ~1-5 Days

  • Fast Dispatch

  • 365-Day Returns

  • Price Match +5% Off

  • Live Chat Mon-Fri to 10PM

  • Sydney Warehouse & Showroom

  • Worry-Free After-Sales

Specifications

Features

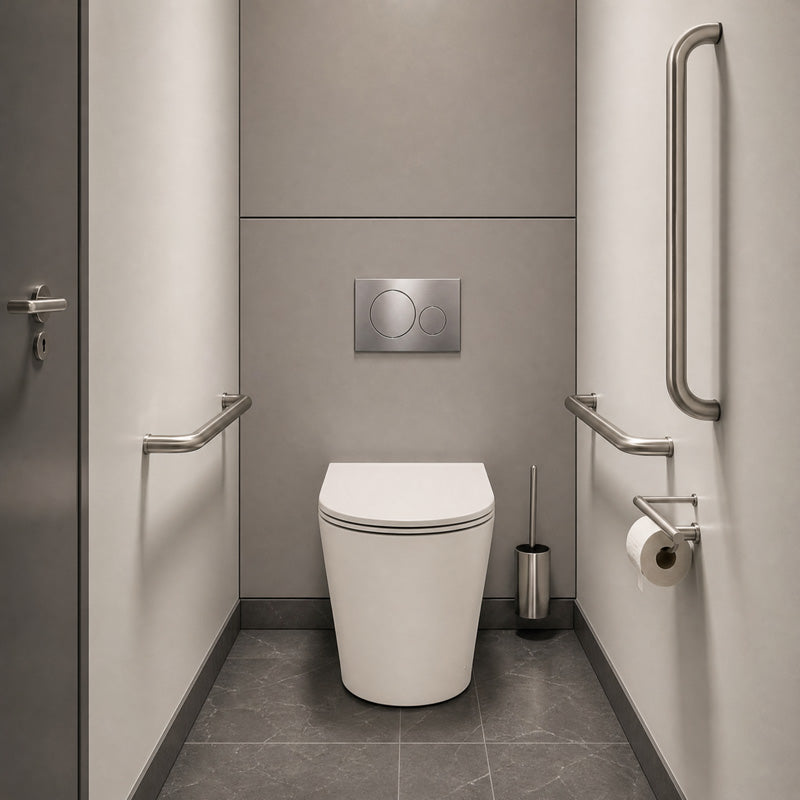

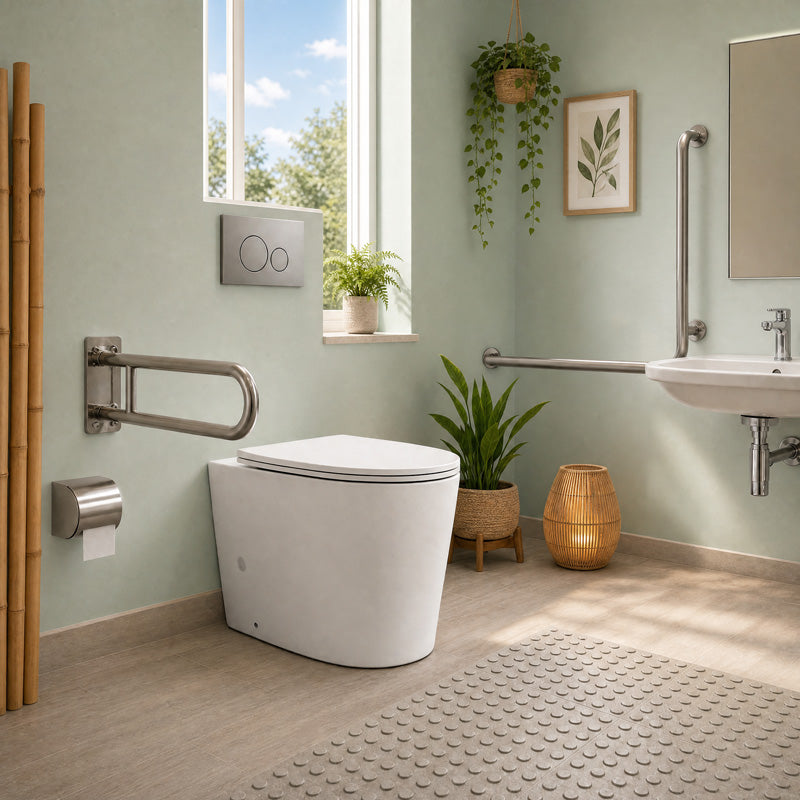

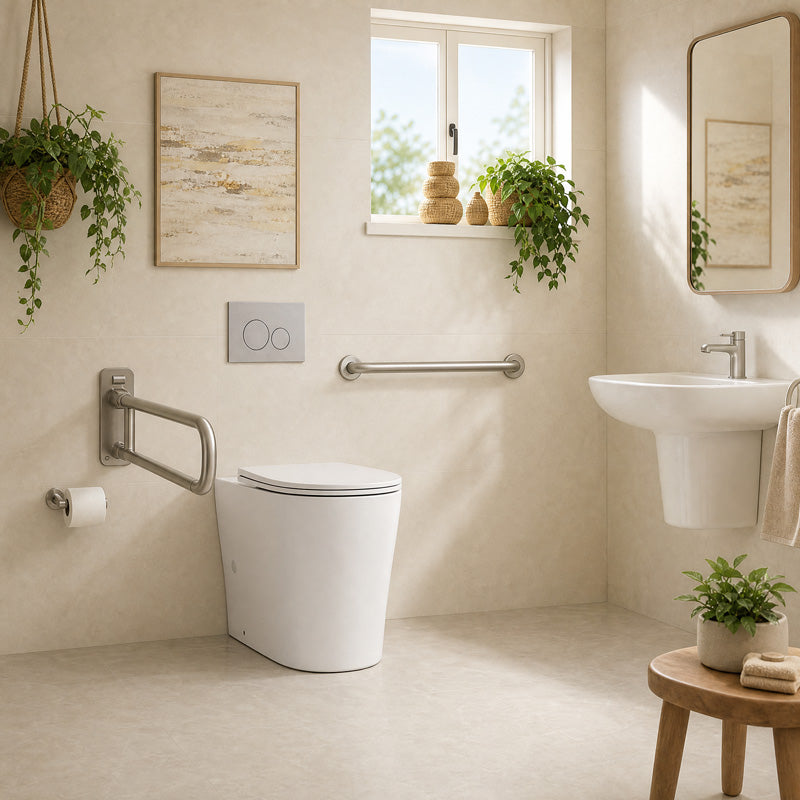

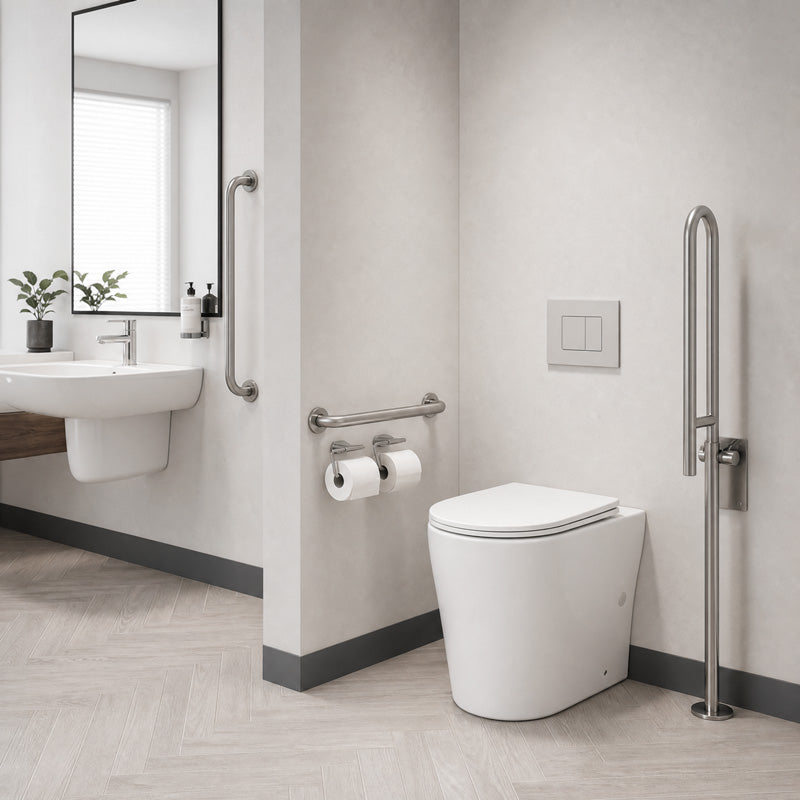

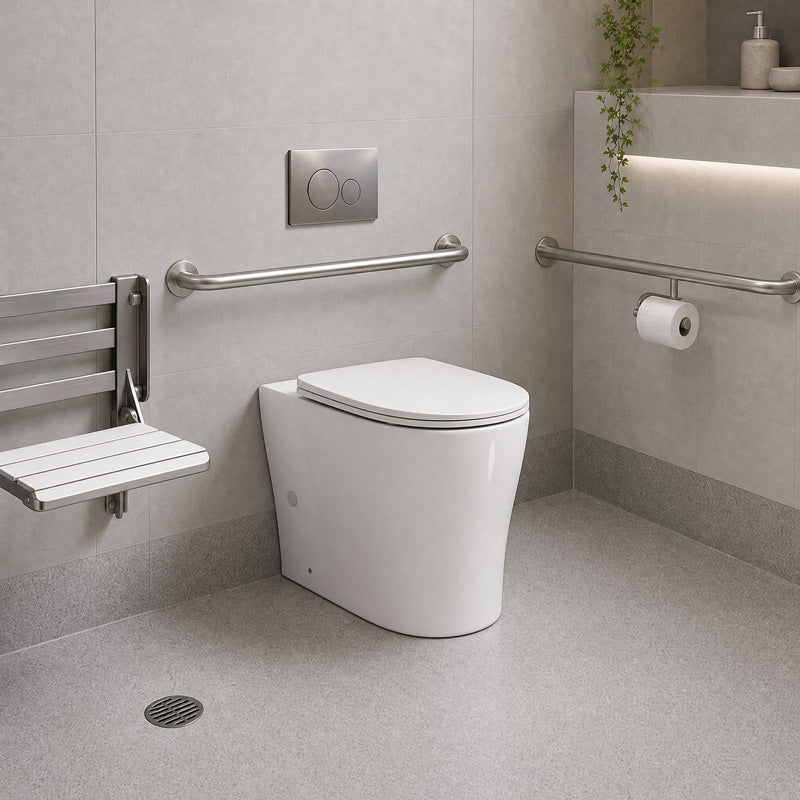

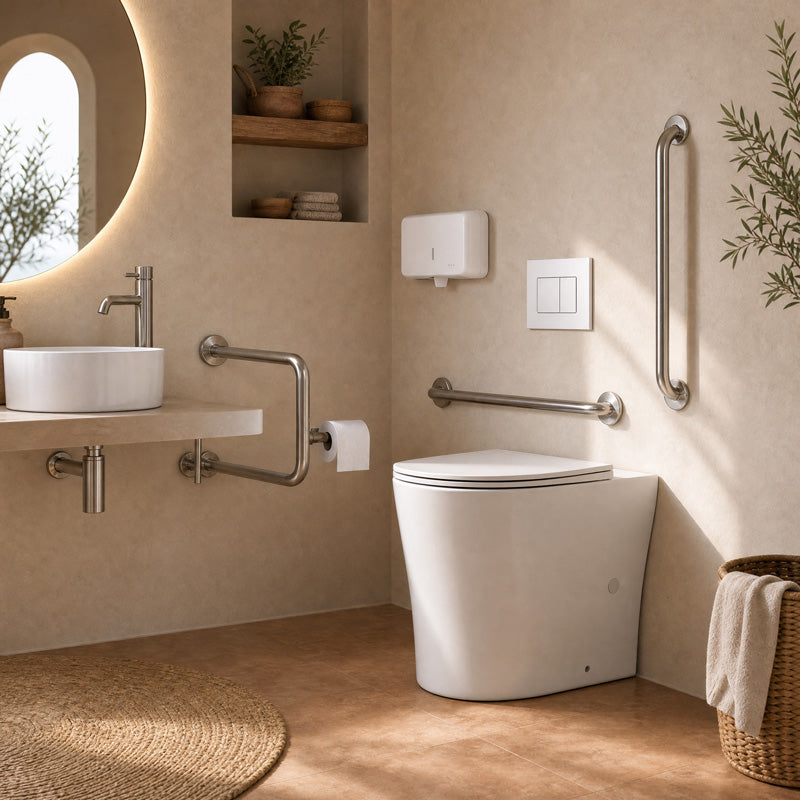

Lukka Orta Tornado Rimless Ambulant Toilet Pan

A wall-faced floor ambulant toilet pan featuring the integrated Rimless Tornado flush system for superior hygiene and water efficiency. Available in matte and gloss white, it meets AS1428.1 accessibility standards and offers a sleek, easy-clean design for modern bathrooms.

570x360x430mm Rimless Tornado 3.5L / WELS 4 Star AS1428.1 Ambulant 20 Year Warranty
Advanced Flush Technology

Rimless Tornado Flush System

The Rimless Tornado flush combines a rimless bowl design with a powerful centrifugal water action. Without the hidden rim where bacteria and residue typically accumulate, cleaning is effortless. The tornado effect generates a full-coverage rinse that removes waste effectively while using only 3.5 litres per flush — WELS 4 star rated.

Space-Saving Footprint

570mm Length Wall-Faced Pan

With overall dimensions of 570mm in length, 360mm in width and 430mm in height, this compact pan fits comfortably in restricted bathroom layouts. The wall-faced configuration conceals the floor fixing and plumbing, creating a seamless profile that also simplifies cleaning around the base.

Flexible Installation

S-Trap & P-Trap Rough-In Options

Supplied with a default S-Trap offset of 100–155mm, with optional S-Trap set-outs available (60–90mm and 150–200mm). P-Trap compatibility is also available (sold separately). Backed by a residential warranty: 20 years replacement on ceramic parts, 1 year labour on pan, plus coverage on trap components.

Note: A measurement deviation of ±5mm is acceptable for ceramic products. Cistern, seat, and flush buttons are required and sold separately. Always confirm your rough-in set-out before purchase.

Product Information

MODEL
Main Product Code LK-OR105WFP / LK-OR105WFP-MW
MATERIAL & FINISH
Material Ceramic
Colour White
Finish Gloss/Matt
TECHNICAL INFORMATION
Toilet Seat UF Slim Seat Cover (LK-SCU09)
S-Trap (Default) 100-155mm roughing-in
Option P-Trap

LK-PWG004: 180mm roughing-in.

Option S-Trap

LK-PWG001: 60-90mm roughing-in.

Option S-Trap

LK-PWG003 : 150-200mm roughing-in.

CERTIFICATION
WATERMARK Approved
WATERMARK Licence No 075026
WELS Approved
WELS Licence No 2068
WELS Registration No L46225
WELS Star Rating 4 Star, 3.5L per average flush
PACKAGE CONTENTS
Main Product 1*Toilet pan
Accessories Included: Standard S TRAP (100-155mm roughing-in)
FEATURES
Feature 1 Tornado Rimless Flush -- Powerful swirling flush for thorough cleaning with no hidden rim to harbour bacteria
Feature 2 Ambulant Compliant Design -- Meets Australian accessibility standards, suitable for ambulant users in residential and commercial bathrooms
WARRANTY
20 Years Warranty 20 years replacement ceramic, 1 year labour (Toilet Pan)
3 Years Warranty 3 years replacement product, 1 year Labour (Toilet Trap)
1 Year Warranty 1 year replacement product (Toilet Seat)

Supplier's Gallery

Dimensions

Product Options

📐 Lukka Orta — Product Option Guide

This guide helps you select the correct colour finish and toilet trap option for your Lukka Orta Tornado Rimless Wall-Faced Ambulant Toilet Pan.

Please verify your plumbing setup and colour preference before ordering.

🎨 1. Choose Your Finish

✨ Colour Option

Gloss White

High‑gloss surface — bright, reflective finish

Easy to clean Classic bright look
✔ Select Gloss White for a polished, shiny appearance.
🎨 Colour Option

Matt White

Soft matte finish — subtle, non‑reflective surface

Fingerprint resistant Contemporary aesthetic
✔ Select Matt White for a modern, low‑sheen look.

🚽 2. Select Your Toilet Trap (Rough‑In)

🔵 P‑TRAP

P Trap (LK‑PWG004)

Wall outlet — fixed 180mm rough‑in

180mm fixed For wall discharge
👉 Choose this if your waste pipe comes out of the wall at 180mm.
Lukka Orta 570x360x430mm Tornado Rimless Wall Faced Floor Pan Gloss / Matt White Available
🟢 S‑TRAP

Default S Trap (LK‑PWG002)

Floor outlet — rough‑in 100–155mm

100–155mm range Standard floor mount
👉 Choose this for floor waste between 100mm and 155mm.
🟠 S‑TRAP

S Trap (LK‑PWG001)

Floor outlet — short rough‑in 60–90mm

60–90mm range Compact set‑out
👉 Choose this for floor waste between 60mm and 90mm.
🟤 S‑TRAP

S Trap (LK‑PWG003)

Floor outlet — extended rough‑in 150–200mm

150–200mm range Long floor set‑out
👉 Choose this for floor waste between 150mm and 200mm.

🧭 Quick Selection Table

Your plumbing configuration Recommended trap option
Wall outlet, pipe centre at 180mm from finished wall P Trap (LK‑PWG004) – 180mm
Floor outlet with rough‑in 60–90mm S Trap (LK‑PWG001) – 60‑90mm
Floor outlet with rough‑in 100–155mm Default S Trap (LK‑PWG002) – 100‑155mm
Floor outlet with rough‑in 150–200mm S Trap (LK‑PWG003) – 150‑200mm

⚠️ Important notes before ordering

  • Always measure from the finished wall surface (not skirting board) to the centre of the waste pipe.
  • A measurement deviation of ±5mm is normal for ceramic products and trap tolerances.
  • For floor outlets, confirm whether your existing rough‑in matches one of the S‑Trap ranges.
  • If unsure, consult a licensed plumber before purchasing.
  • The toilet pan requires a separate cistern, seat and flush buttons (sold separately).

Buying Guide

About Brand

Luxurious bathroom setup with Lukka mirrors, vanities, and bathtub.

Lukka Bathware specialises in the design, development, and manufacturing of high-quality bathware solutions for global B2B clients. Partnering with retailers and distributors, the brand delivers reliable products backed by efficient logistics and supply chain. With a focus on quality and innovation performance, Lukka supports businesses in bringing bathware solutions to market.

🌍

Global B2B Solutions

Lukka partners with retailers and distributors worldwide, delivering tailored bathware solutions designed for diverse market needs.

🏭

Manufacturing Expertise

From design to production, Lukka manages the full development process, ensuring consistent quality and reliable supply.

🚚

Efficient Supply Chain

With a strategically located headquarters and strong logistics capabilities, Lukka ensures fast delivery and smooth distribution.

🛠️

Durable Products

Combining innovation with practical engineering, Lukka delivers functional products that meet international standards and long-term performance needs.

Explore the Lukka collection

Shop Lukka products

Browse the full Lukka range and use filters to find the right product, finish and style.

Shipping

MyHomeware Delivery/Returns/Refund Policy
Standard Delivery

2 - 7 Business Days for Metro Area's (ALL STATES).
7 - 15 Business Days for Regional Area's (ALL STATES).

Missed Delivery

If a scheduled delivery is missed due to the recipient not being available at the designated location during the agreed delivery time, an additional re-delivery fee may be applied. We kindly ask our customers to ensure they or an authorized representative are present at the delivery location at the specified time to avoid these additional costs. Any extra charges will be communicated and agreed upon prior to the second attempt of delivery.

Additional charges may apply under certain circumstances in addition to the base delivery fees. These special conditions include but are not limited to:

  • Elevator/stair delivery: If the delivery location requires the use of stairs, or if the location is not directly accessible by elevator, this will increase labor and time costs.
  • Difficult delivery locations: If the delivery location is particularly hard to reach, or if it requires more than one person to safely deliver the goods, this will require additional resources.

Please note that these circumstances will result in extra delivery fees. These charges will be evaluated on a case-by-case basis and, if applicable, will be billed separately to the customer in a supplementary invoice. We appreciate your understanding and cooperation on these matters.

Pick Up

Once order received, we will process and get the order ready for you ASAP. When your order is ready for collection, we'll send you an email notification, with the Booking number and all the details, so you may come and collect in time.

Order Processing and Delays

After you have completed your order through our website, you'll receive a system generated Order Confirmation Email.

Once the order has been shipped, we'll send you a Notification with the tracking information for your reference.

Order processing: Please allow 0-3 business days for your online order to be processed. In most cases it will be within the first 24hrs as we aim to get every order off as soon as possible.

Approximate delivery timeframe: After order has been shipped, standard shipping time normally take up to 2 - 7 business days in metro areas (all states), and 7 - 15 business days in regional areas (all states). The actual delivery time will depend on the courier that carries your parcel.

*Please Note:
All orders will be processed and sent as soon as possible after received. The Timeframe estimates from when the parcel is sent and only account for Business Days. We will do our best to ensure delivery within estimated delivery time, these do not include delays that outside our control. Factors such as public holidays and peak delivery times might cause delays. During Christmas and sale periods please allow extra time for your parcels to arrive. We aim to get your orders out ASAP, as we know how important it is to receive your items promptly. Please know that not always, but in some instances the volume of orders we receive may increase the delivery timeframe marginally.

There are limitations on all courier networks and for some remote delivery areas, the couriers will not deliver to door. In these cases, they will deliver to a local depot or to the local Australia Post office and you will be notified to collect your parcels.

Due to stock list updates and a high volume of demand for many products, there are times that the items you wish to purchase may show available but suddenly run out of stock just after you placed the order.

If your order was successfully placed, but the item turns out to be no stock, we will notify you via email with the following options:

  • Cancel back order items: We will remove the back order (BO) items and send out the available products to you first.
  • Cancel the entire order: We will cancel the entire order from that warehouse for immediate store credit or a money refund.
  • Wait for Replenishment: You may choose to wait for the BK item to restock.
Returns & Refund Policy

1. You are welcome to return products for a refund if they are;

  • (1) Deemed faulty,
  • (2) Damaged,
  • (3) Have missing parts,
  • (4) Incorrect product/s were sent to you in error
  • (5) Due to the following reasons, including but not limited to; product does not fit, change of mind, product is no longer required, or is unsuitable etc.
Products being returned need to be in a resalable condition; with original packaging intact. Please include your proof of purchase with the return of goods.

2. Customers can contact our Sales Support team via Email sales@myhomeware.com.au, or support@myhomeware.com.au; regarding a return, or make contact via Online Chat, Phone, or simply complete and forward the Online Return Form.

3. Return/Exchange is flexible depending on the status of the product/s.

3.1   Products in Unused and Resalable Condition:

You have 365 days to return your purchase for a full refund, as long as the product is in original condition, no writing or damage to the packaging, uninstalled and resalable condition. Feel free to contact us within 1 year of receipt regarding the return, the team will reply and advise the return/exchange process.

3.2   Product has been installed, however still in OK condition, Come with all parts.
  • 1-3 Months: Can return for refund, NO 'Restocking fee' will apply.
  • 3-12 Months: Accept returns. A 15% 'Restocking fee' will apply and the team will refund less than 15% restocking fee.
  • Over 12 months: Return and Refund WILL NOT be accepted unless the product is deemed defective.
Please Note: Days should be counted from the original date of purchase, or, for any back ordered items from the date item/s were received.

4. MyHomeware is not liable for any incidental, indirect, consequential, or damages of any nature and from the sale of the products.

5. Warning:

5.1   Custom orders and Special orders

Custom orders and Special orders are NOT RETURNABLE and CANNOT BE CANCELLED for any reason once placed due to the custom and made to order processes involved.

  • Custom orders/items including but not limit to, stone top with cut tap/waste hole(s); custom made vanity/stone top; custom made shower screen; smart bidet seat; custom cut to size shower grates etc...
5.2   Bulk Orders/Deliveries

Some restrictions will apply to bulk orders/deliveries. If the total return amount is Over $5000 including freight cost, 15% Restocking Fee will be applied accordingly, refund will be made after deducting 15% restocking fee.

Ambulant Toilets FAQs

What does ambulant toilet mean?

An ambulant toilet is designed for people who can walk but need extra support when using the bathroom, such as older adults or those recovering from injury.

It includes features like raised pan height, extended projection, and space for grab rails to assist with balance and movement.

Ambulent toilets must meet specific standards, such as AS1428.1 in Australia, to ensure accessibility and safety.

What are the standards for ambulant toilets in Australia?

In Australia, ambulant toilets must comply with ambulant toilet standards AS1428.1-2009 (Clause 16), ensuring safe access for individuals with limited mobility.

This means the toilet should have a seat height of 460–480 mm, sturdy grab rails on both sides that can support up to 1100 N, and a toilet roll holder and coat hook placed within easy reach. The cubicle must have a minimum 700mm door opening and proper circulation space.

MyHomeware’s ambulant toilet dimensions meet these standards, and the seat height is set at 465mm to provide comfortable use and added peace of mind.

What are the signage requirements for an ambulant toilet?

In Australia, ambulant toilet signage must follow NCC and Disability Standards. An ambulant toilet sign should be placed on the door or on the wall next to the latch side, no more than 50mm away, and mounted 1200mm to 1600mm above floor level.

The sign must include a clear pictogram, the word “Ambulant,” and use high-contrast colours for visibility. Consistent placement of ambulant toilet signs helps users easily identify facilities in public and commercial spaces.
