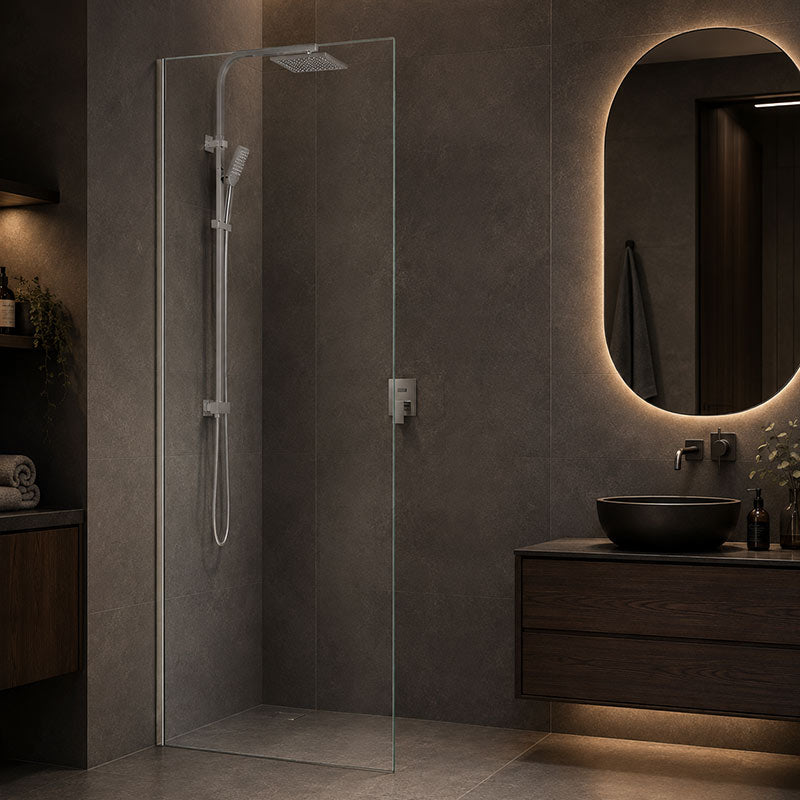

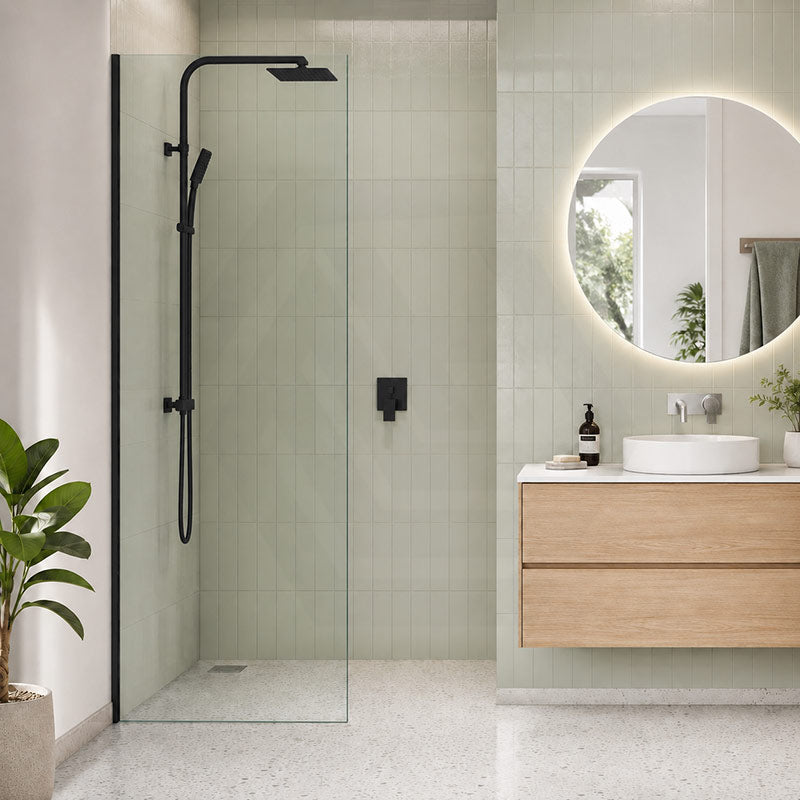

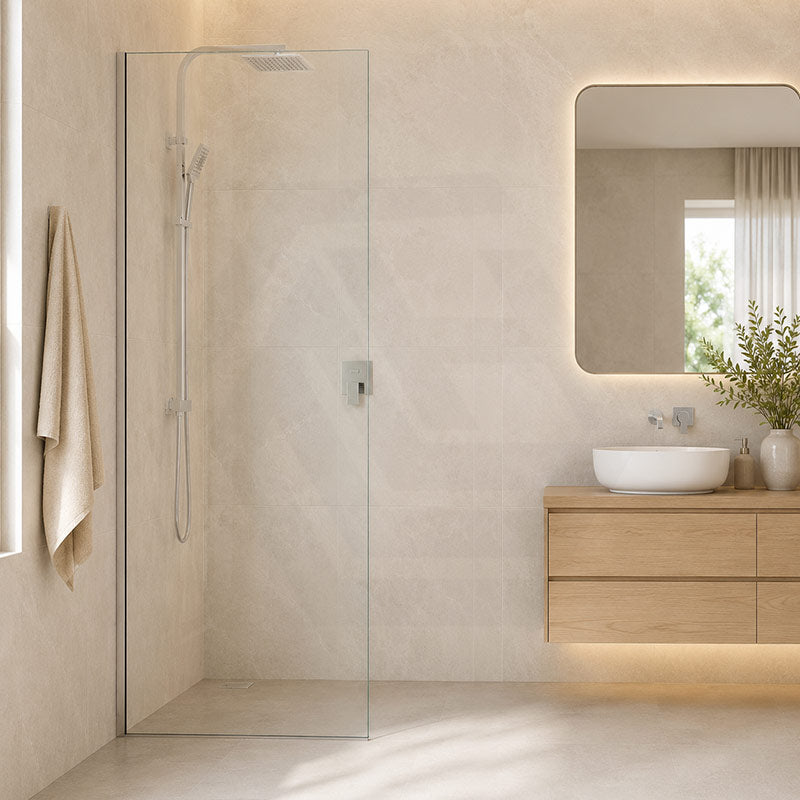

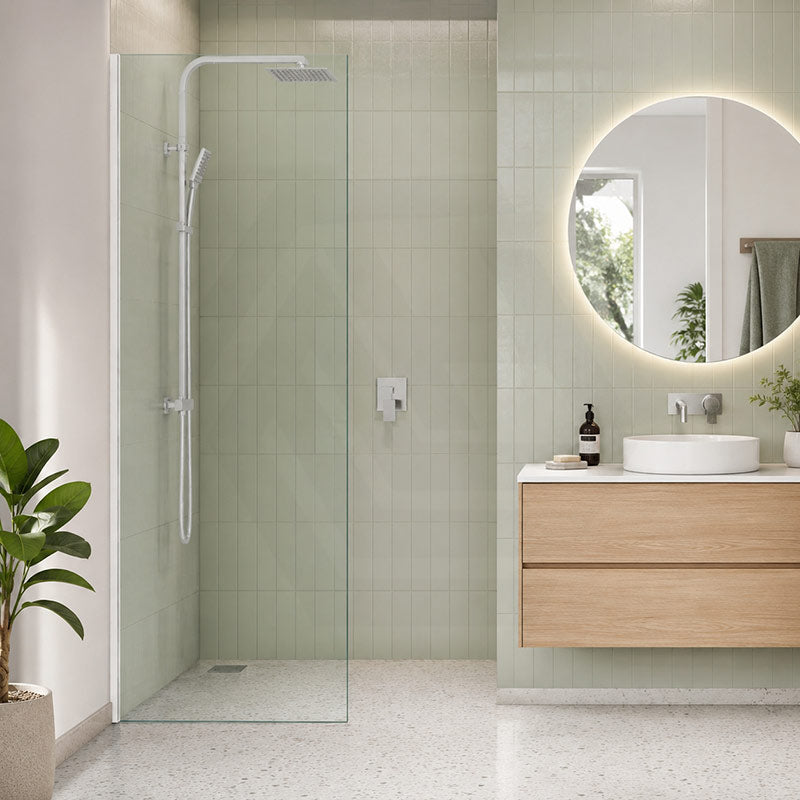

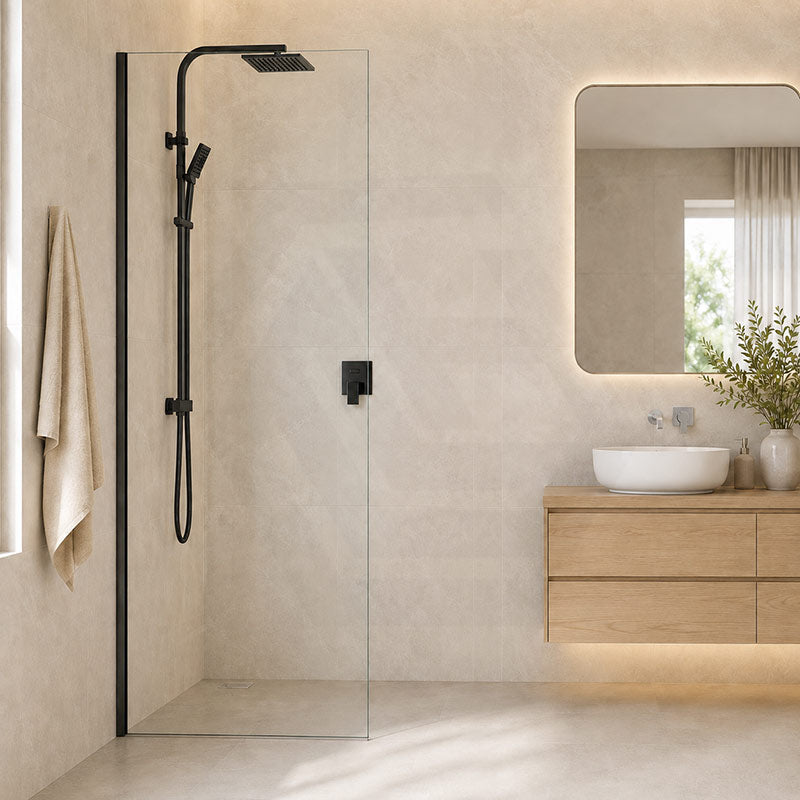

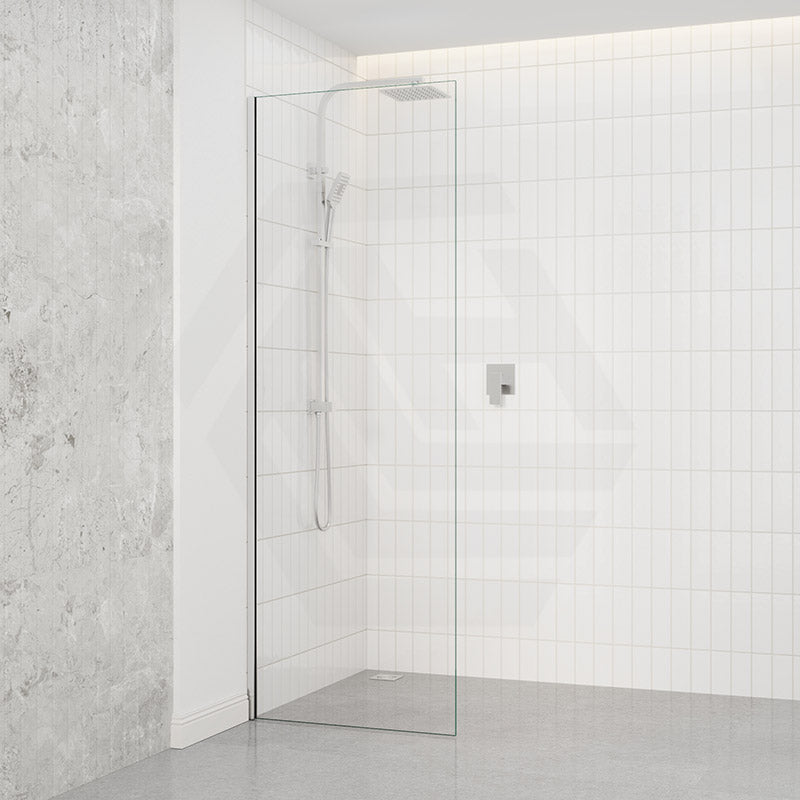

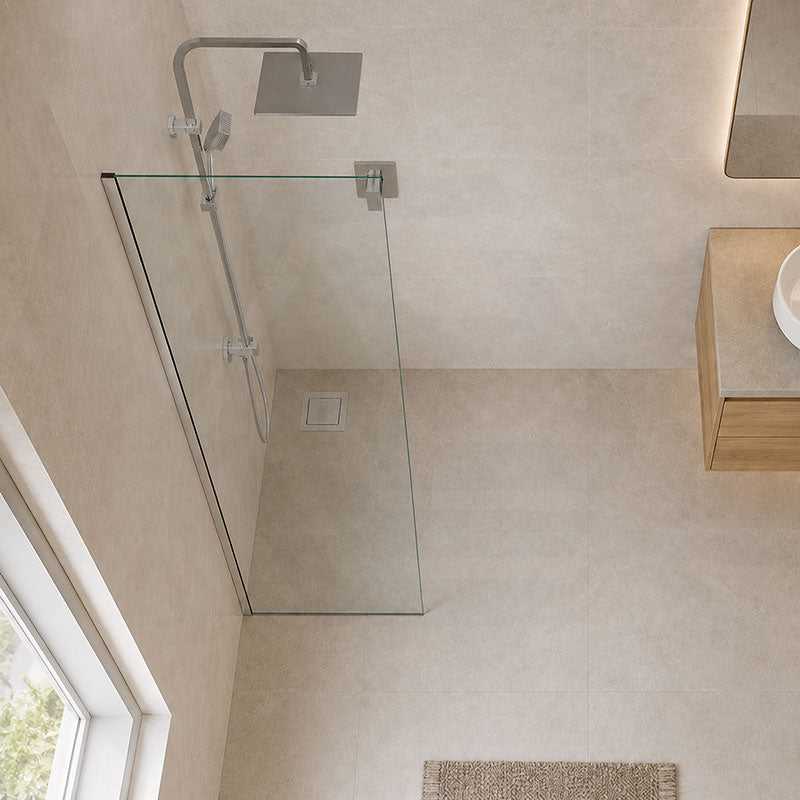

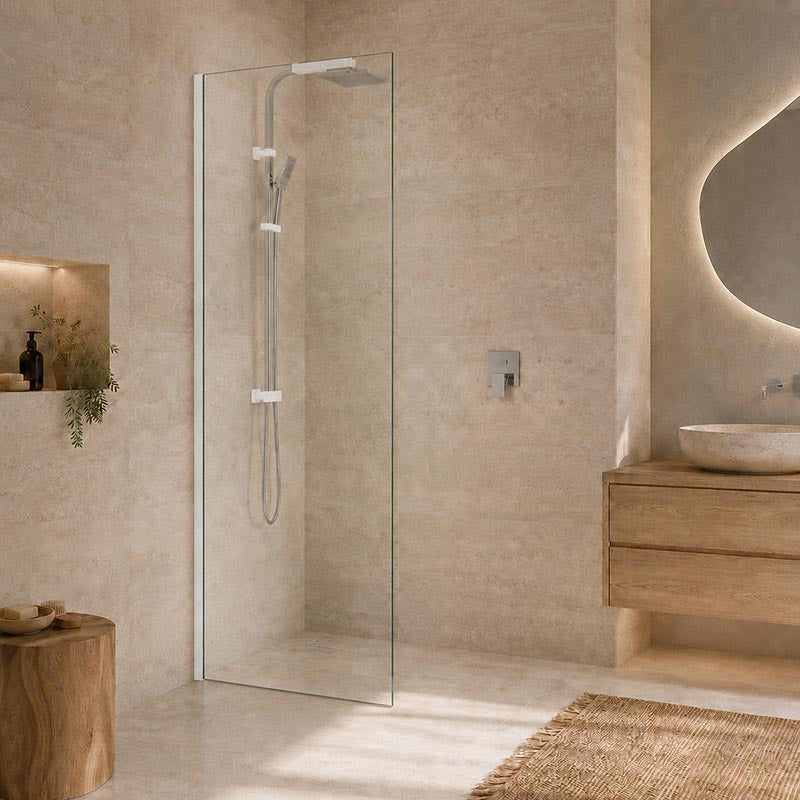

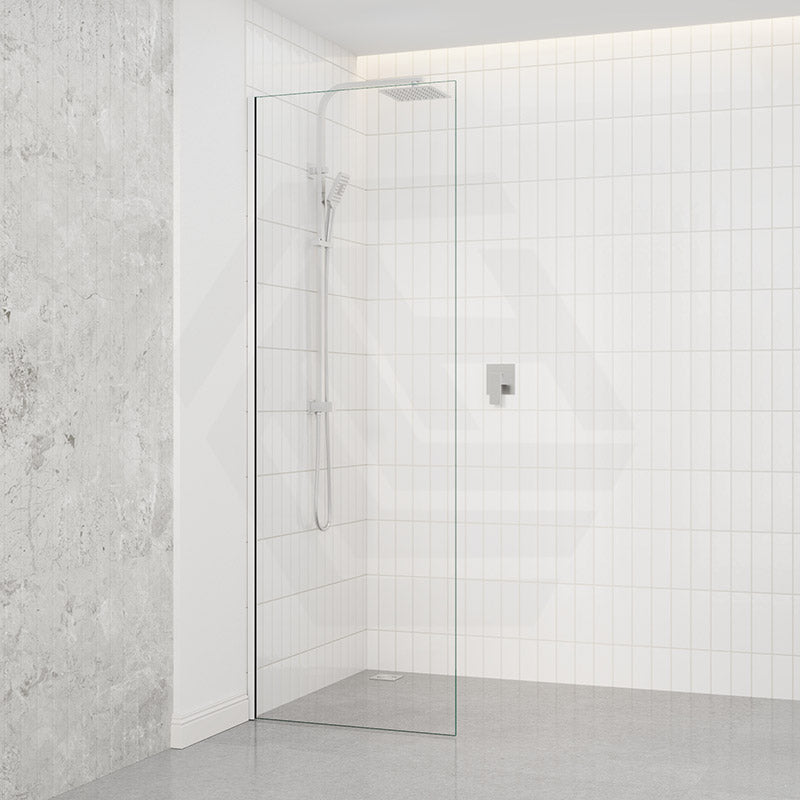

Fienza Rectangular Fixed Frameless Glass Shower Panel with Channel
Achieve a sleek, structural finish with the Fienza Rectangular Fixed Frameless Glass Shower Panel with Channel. Designed with a slimline wall channel for maximum stability and easy alignment, this premium toughened glass panel combines architectural linear aesthetics with effortless walk-in open-plan luxury.
Feature Highlights
Rock-Solid Wall Channel Mount
The full-height structural channel secures the entire glass edge to eliminate panel flex, providing significantly firmer support and rigidity for larger screens than minimalist point brackets.
Built-in 5–10mm adjustability absorbs uneven tiles and wall runout, making this channel a better choice for renovations with out-of-plumb walls. However, if wall deviation is within 0–3mm and you prefer a minimalist aesthetic, we recommend the bracket variant (FN-10R7B-C).
Crisp Geometric Rectangular Silhouette
Embrace timeless architectural symmetry. The classic rectangular profile delivers clean, straight vertical lines that anchor your shower enclosure with crisp modern elegance.
Its bold geometric structure complements linear tile patterns, creating a polished, highly structured focal point suitable for both contemporary and minimalist wet rooms.
7 Curated Designer Hardware Finish Options
Achieve complete color harmony across your entire wet room. The wall channels and hardware components are supplied in 7 luxury finishes engineered to match modern tapware trends.
Choose from Chrome, Matt Black, Matt White, Brushed Nickel, Gun Metal, Brushed Copper, or Brushed Gold to seamlessly complement your shower heads and bathroom accessories.
| MODEL | |
|---|---|

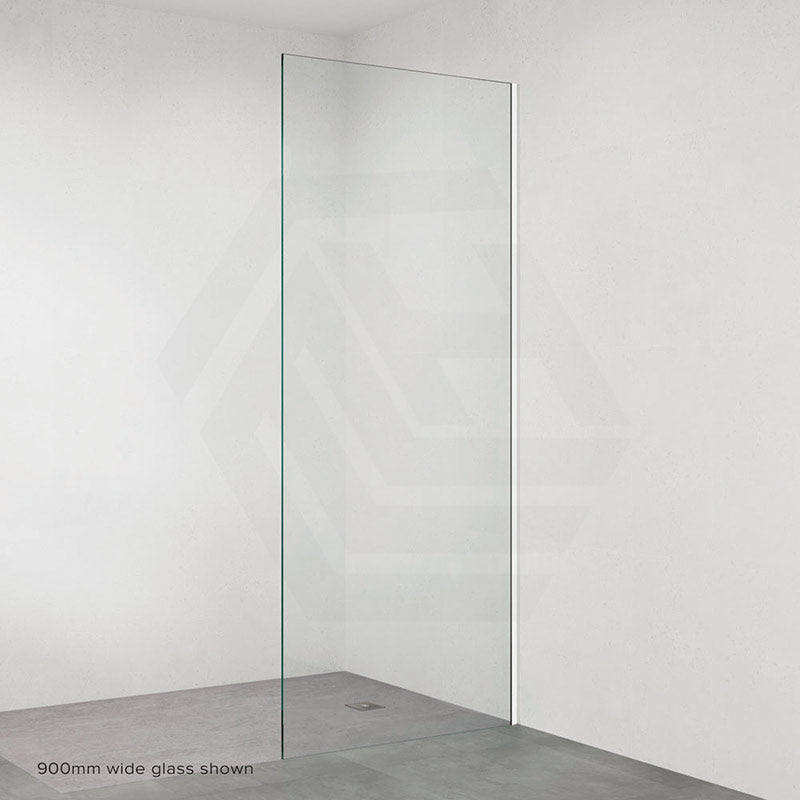

| Product Name | Fienza Rectangular Fixed Frameless Glass Shower Panel with Channel |
| Screen Style | Frameless Fixed Glass Shower Panel with Wall Channel (Walk-in Style) |
| DIMENSIONS & SPECIFICATION | |
| Height | 2050 mm High |
| Glass Profile | 10mm Heavy Duty Toughened Safety Glass with Classic Rectangular Straight Edge |
| MATERIAL & FINISH | |
| Wall Channel Finishes | Chrome / Matt Black / Matt White / Brushed Nickel / Gun Metal / Brushed Copper / Brushed Gold |
| Fixing Setup | Includes full-length aluminium wall channel for a clean, continuous recessed or surface-mounted installation |
| CERTIFICATION | |
| Safety Standard | Fully compliant with Australian Standard AS/NZS 2208 (Safety Glazing Materials in Buildings) |
| CLEANING & CARE | |
| Glass Care | For best results, clean glass with a solution of 30% methylated spirits and 70% water using a soft, non-abrasive cloth designed for glass surfaces. |
| Channel Care |
• Regularly clean wall channels with mild soapy water using a microfibre cloth. • In highly polluted or coastal areas, clean 2–3 times per week. • Wipe gently in one direction only without undue pressure. |
| WARRANTY | |
| Glass Panel Warranty | 1 Year replacement parts or product (Residential & Commercial) |
| Channels & Parts | 1 Year replacement parts or product (Residential & Commercial) |
| Exclusions | Excludes general wear and tear from daily use. |
| REMINDER | |
| Wall Fit & Stability Advisory | THE WALL CHANNEL MODEL IS THE SAFER, MORE FORGIVING CHOICE FOR RENOVATION PROJECTS, LARGER GLASS SIZES, OR NON-PLUMB WALLS, AS IT PROVIDES SUPERIOR STRUCTURAL STABILITY AND EASILY MASKS MINOR WALL RUNOUT. IF YOUR WALL IS PRECISELY LEVEL (0–3MM VARIANCE) AND YOU PREFER AN ULTRA-MINIMALIST FLOATING LOOK, WE RECOMMEND OUR BRACKET-FIXED MODEL. |
| Chemical Warning | DO NOT USE HARSH DETERGENTS, BLEACH, CREAM CLEANERS, OR CITRUS-BASED CLEANERS ON METAL WALL CHANNELS. THESE ABRASIVE SUBSTANCES WILL PERMANENTLY DAMAGE THE SURFACE FINISH. |
| Installation Note | DUE TO THE 2050MM HEIGHT AND WEIGHT OF 10MM GLASS, ENSURE PROPER STRUCTURAL TIMBER/BLOCKING BEHIND TILES AND SECURE WATERPROOF SEALING ALONG THE WALL CHANNEL. |
Field Guide: Configure Your Rectangular Glass Shower Panel with Channel
The Fienza Rectangular Fixed Frameless Glass Shower Panel with Channel Profile offers a clean, continuous mounting system for architectural walk-in wet rooms. Featuring heavy-duty 10mm toughened safety glass with an easy-clean coating, the wall-to-floor channel system ensures maximum structural stability and superior water containment. Follow our 2-step setup guide below to select your channel profile finish and panel width sizing.
🎨 Step 1: Select Your Hardware Finish Colour
Choose from 7 signature metallic and matte powder-coated finishes for your full-length wall and floor mounting channel profiles.

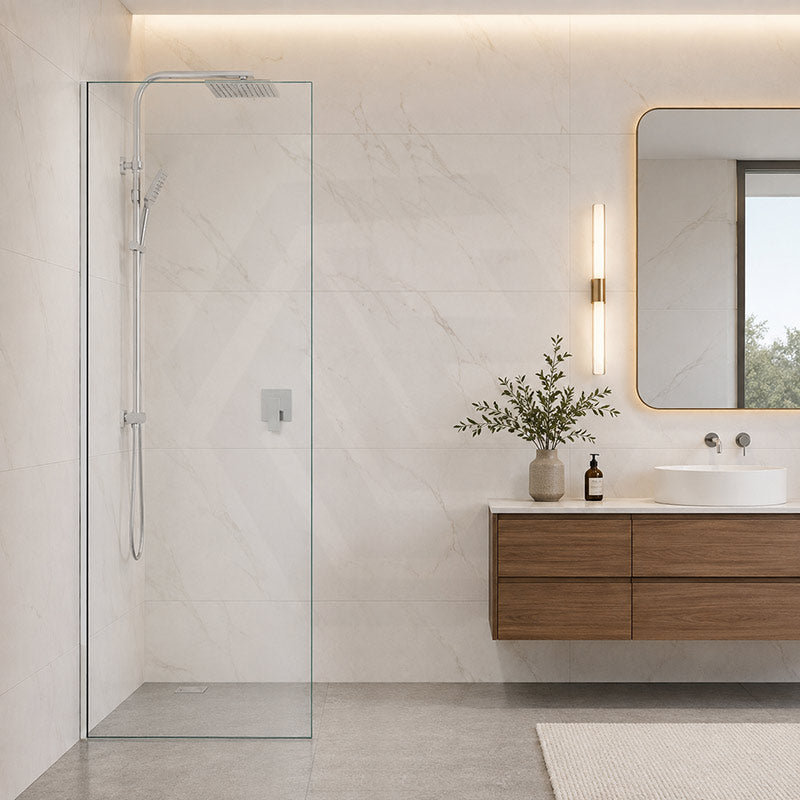

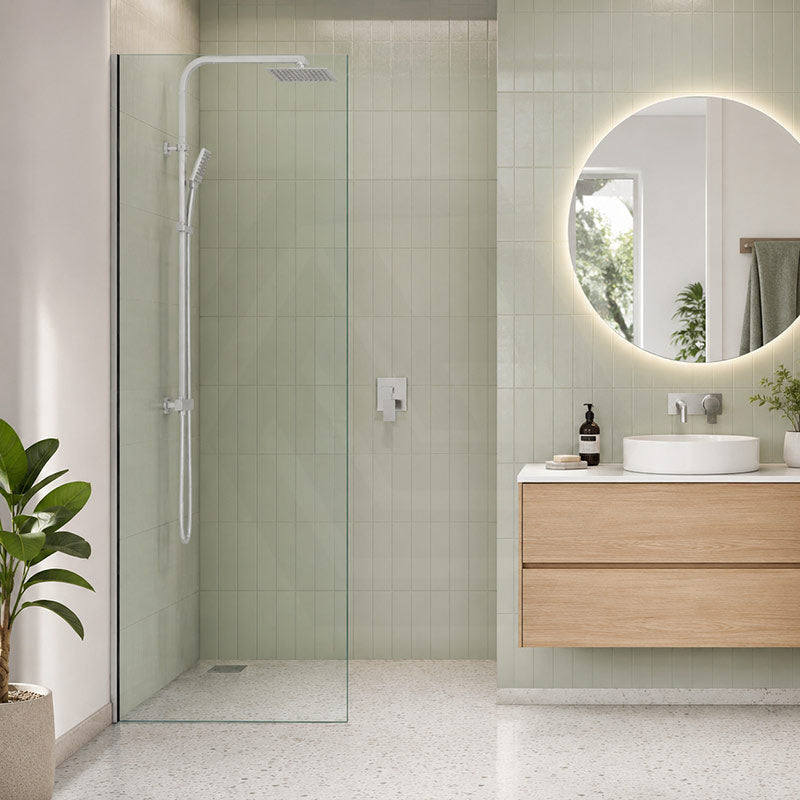

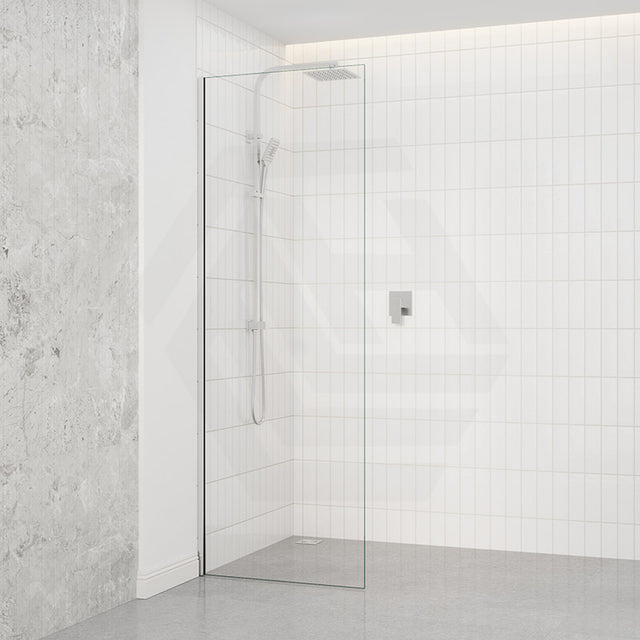

Chrome
Classic mirror-polished high-shine silver plating channel profile.

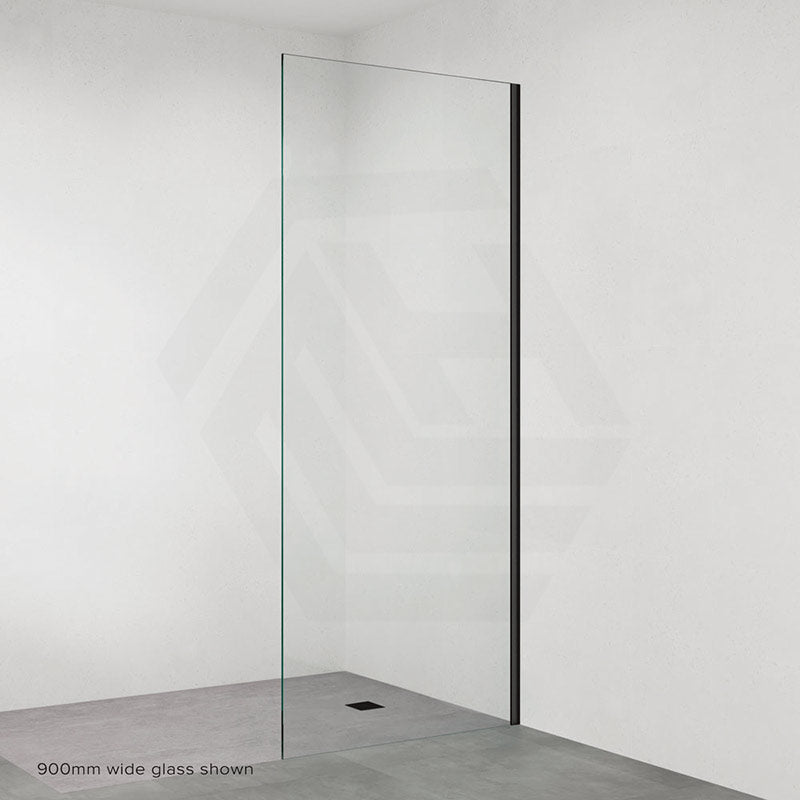

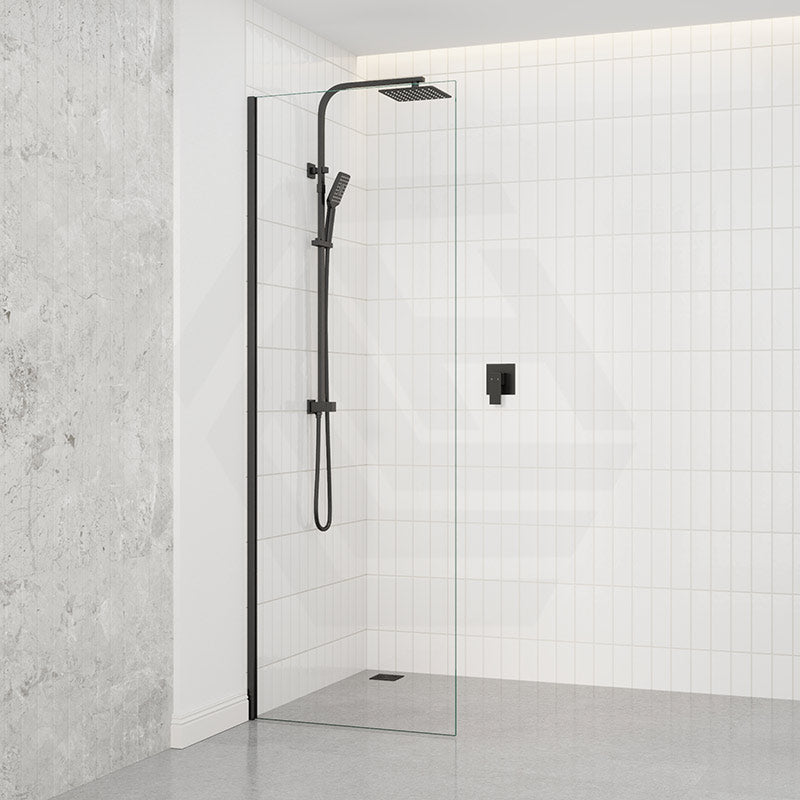

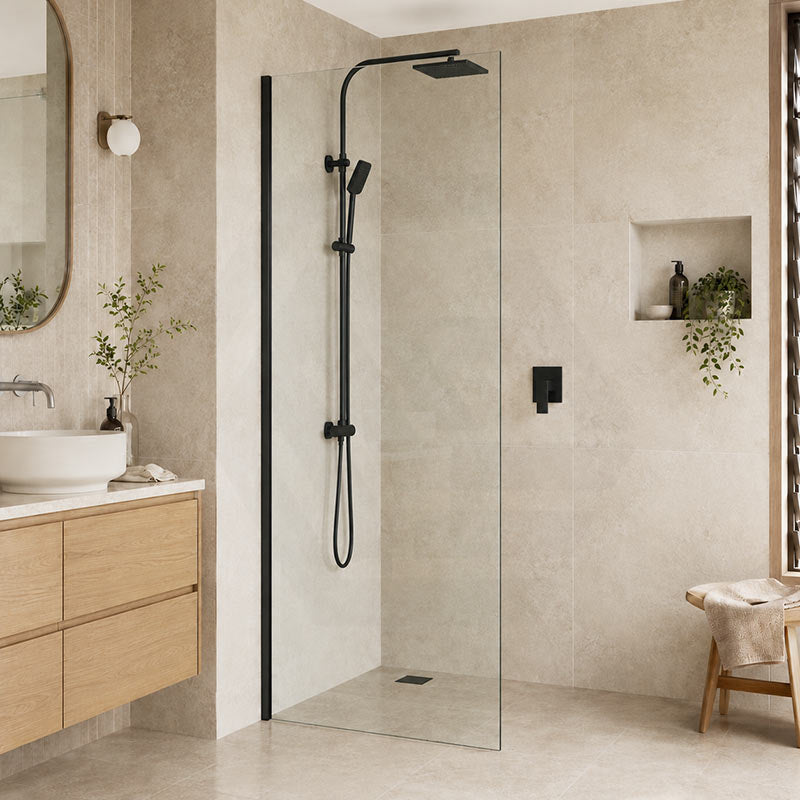

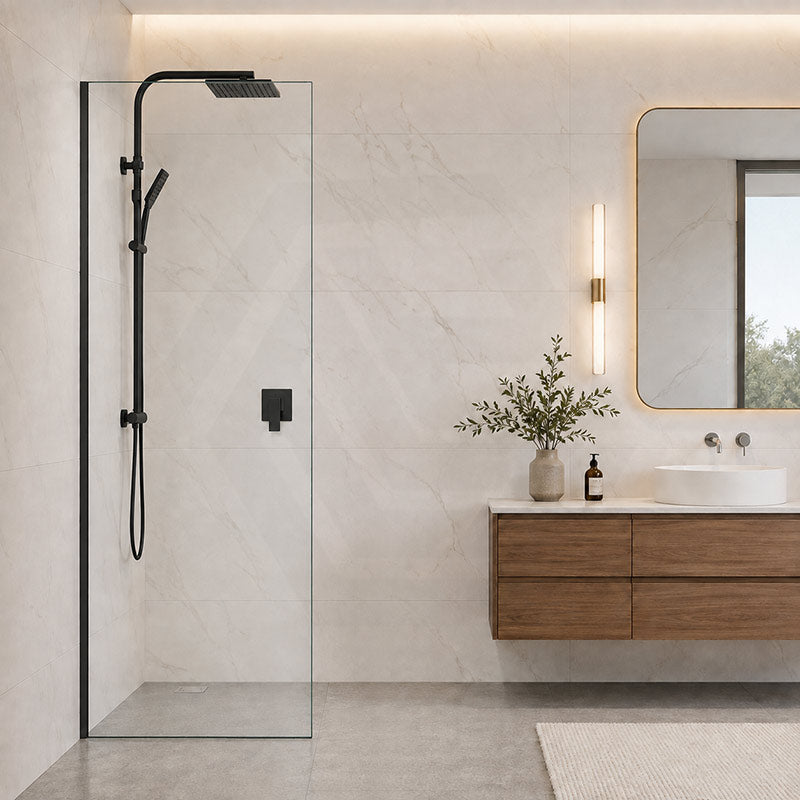

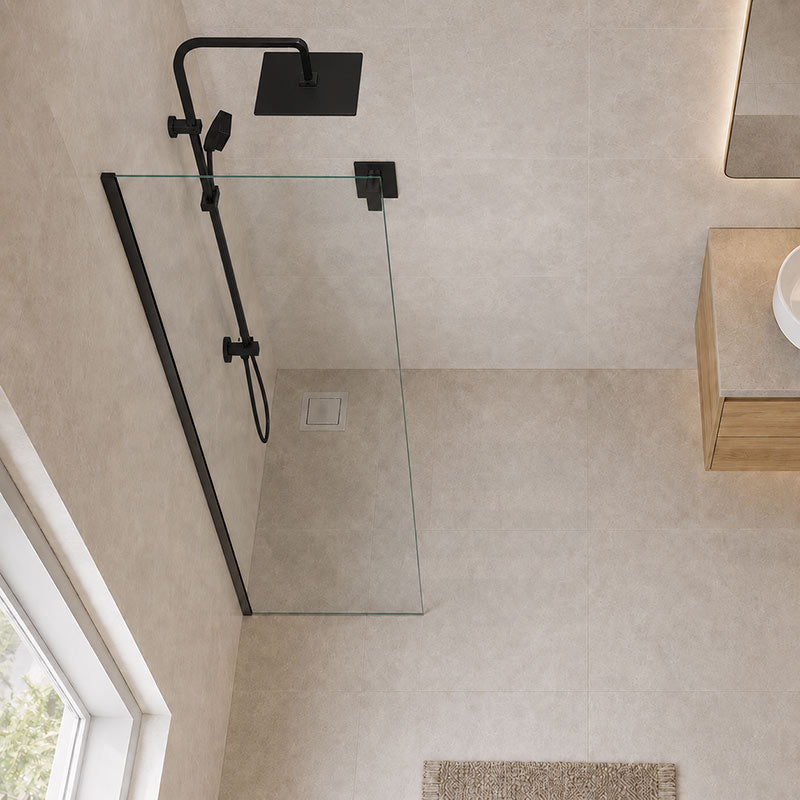

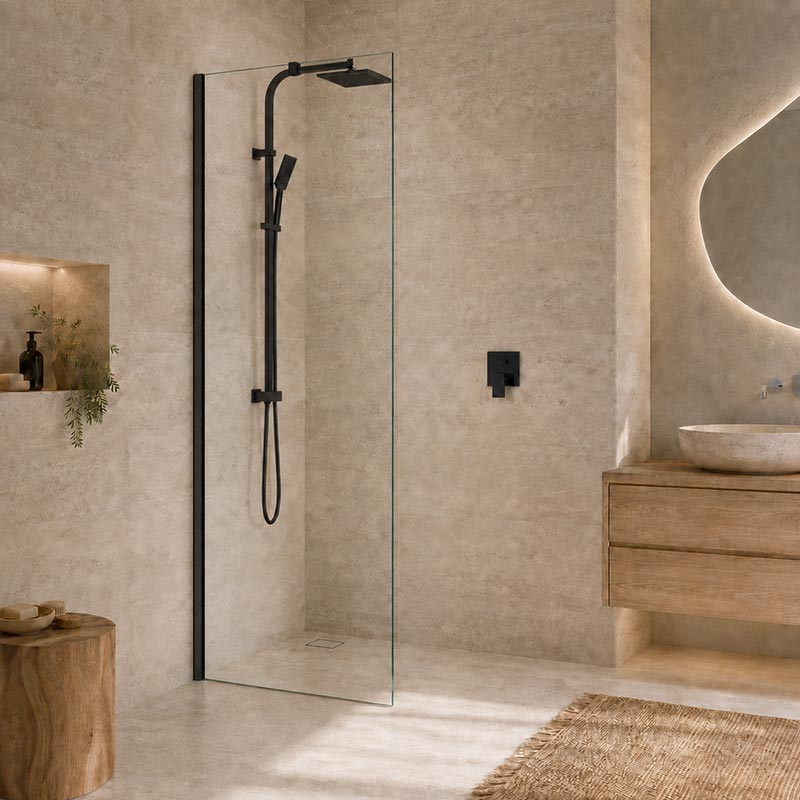

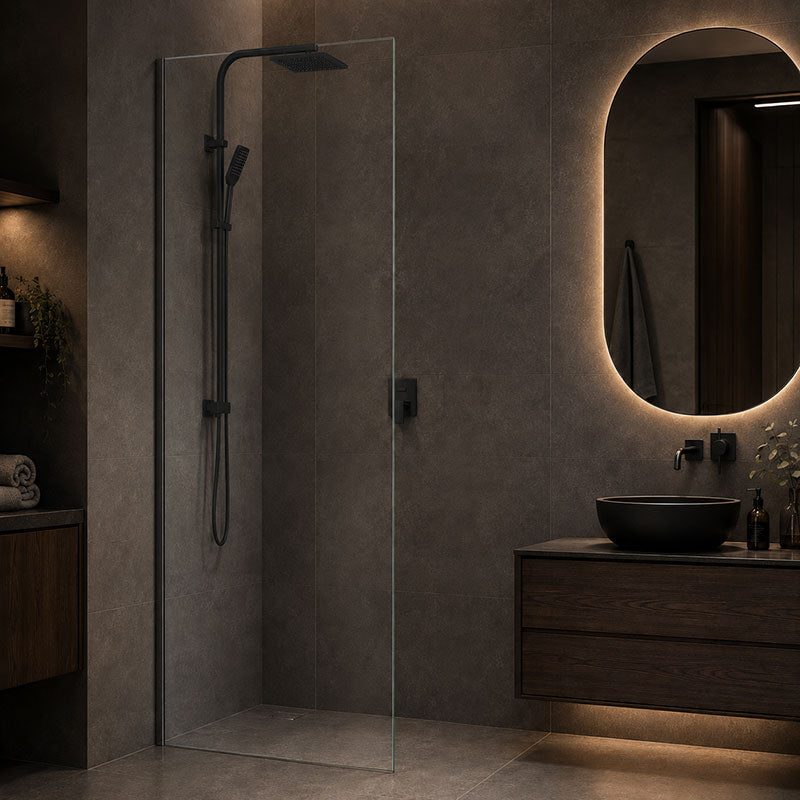

Matt Black
Bold graphic matte black powder-coated channel profile.

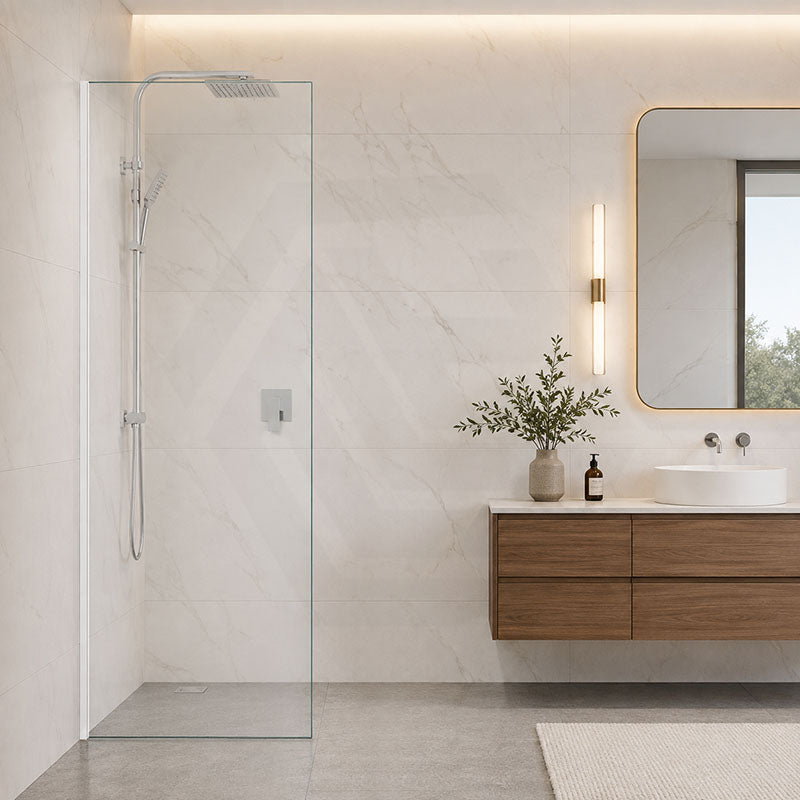

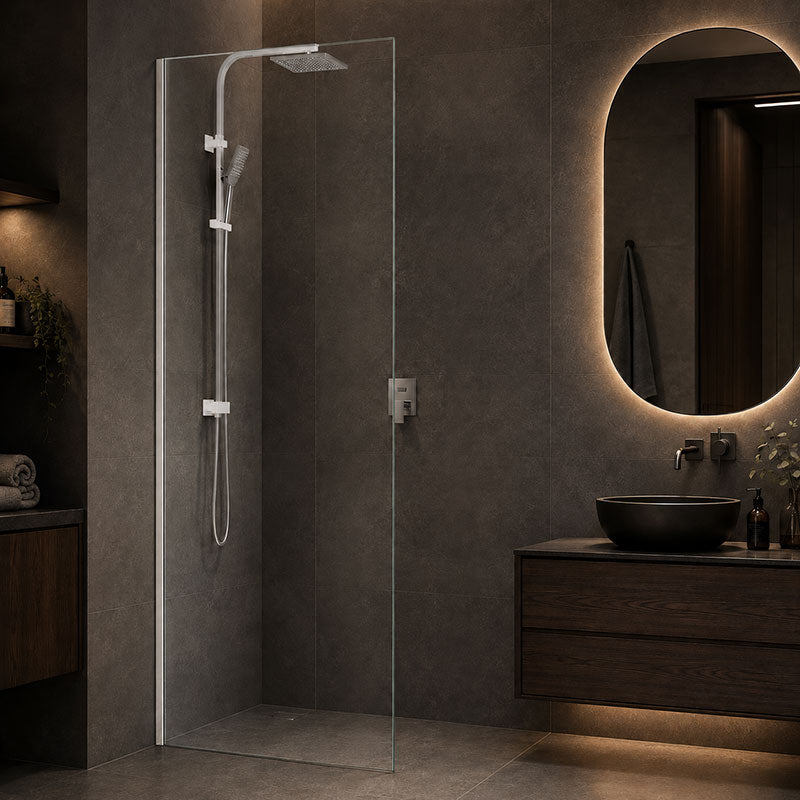

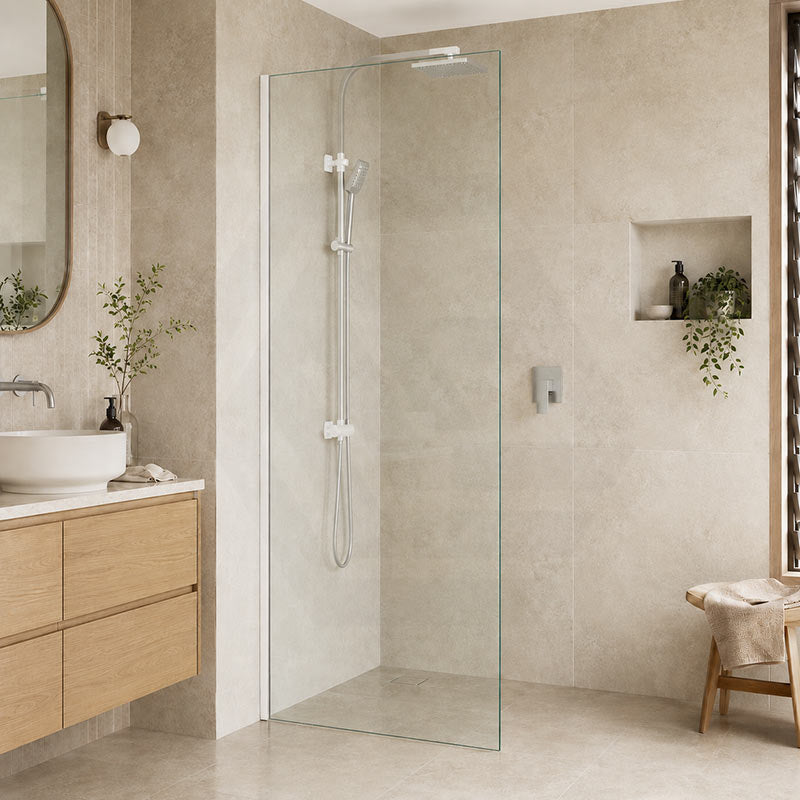

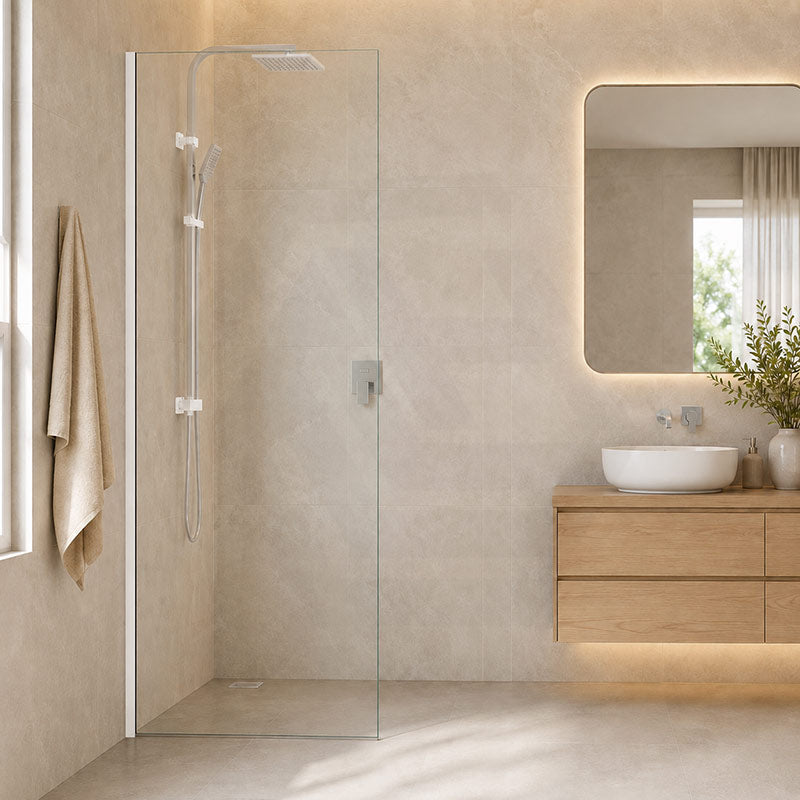

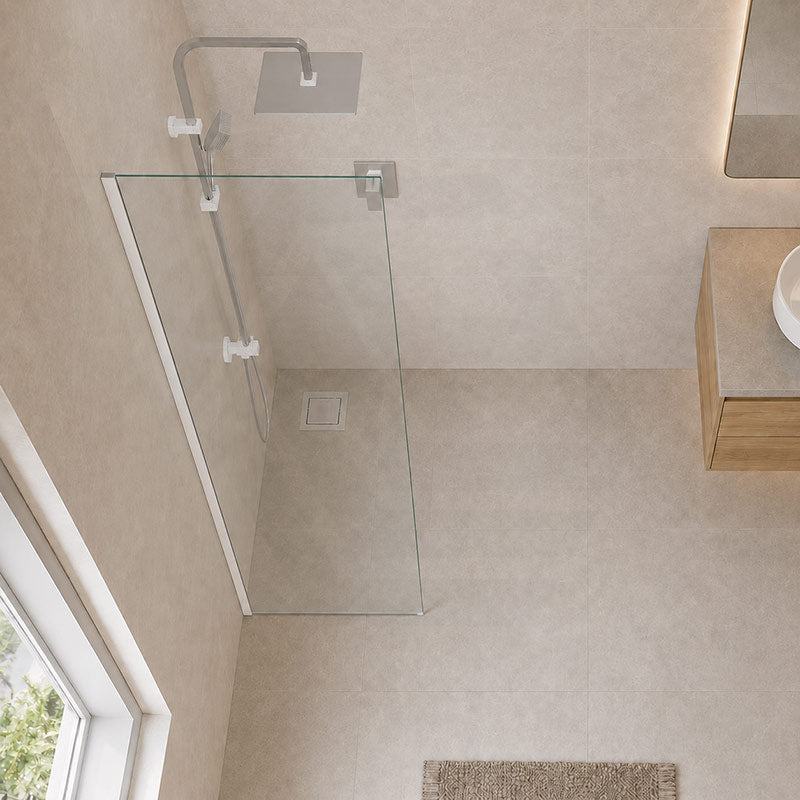

Matt White
Ultra-clean, crisp satin white channel profile finish.

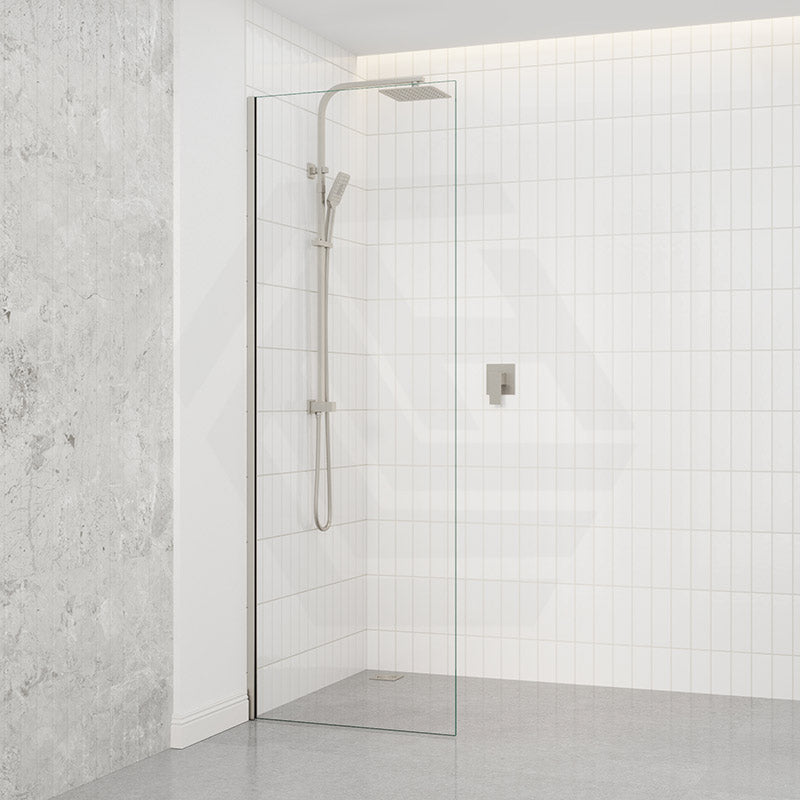

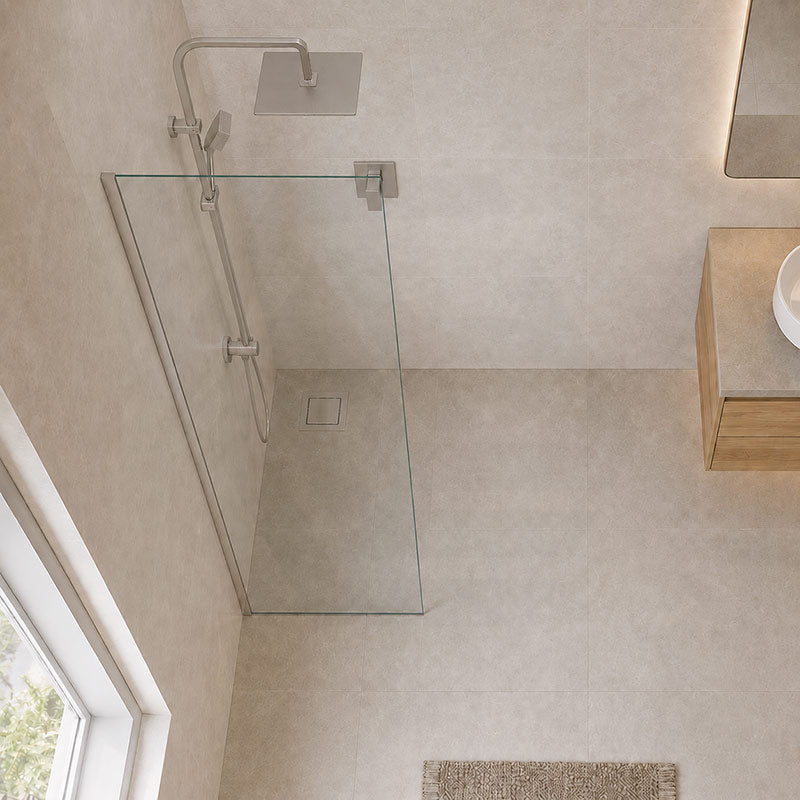

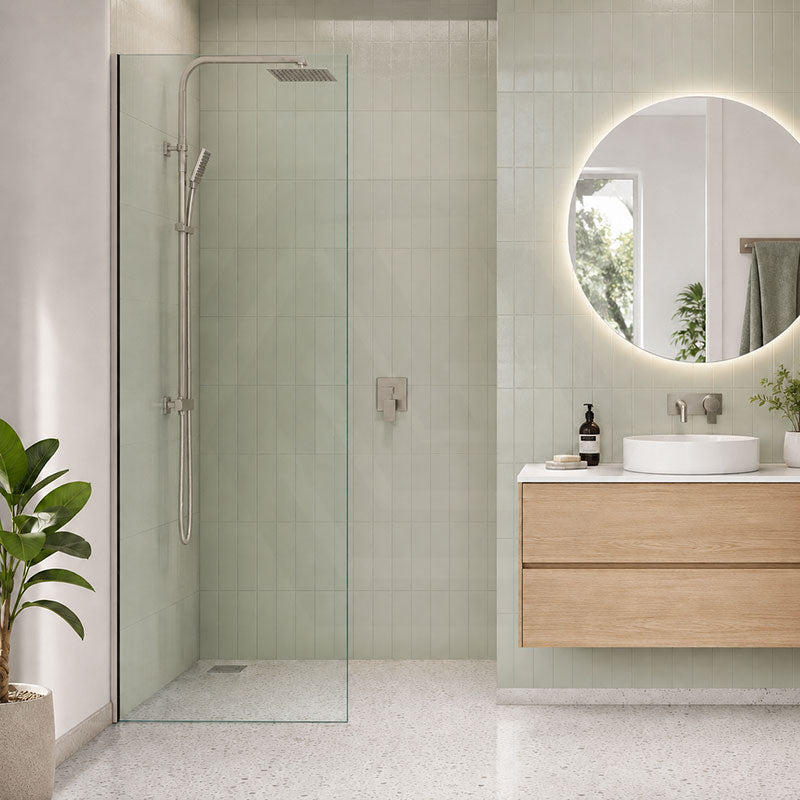

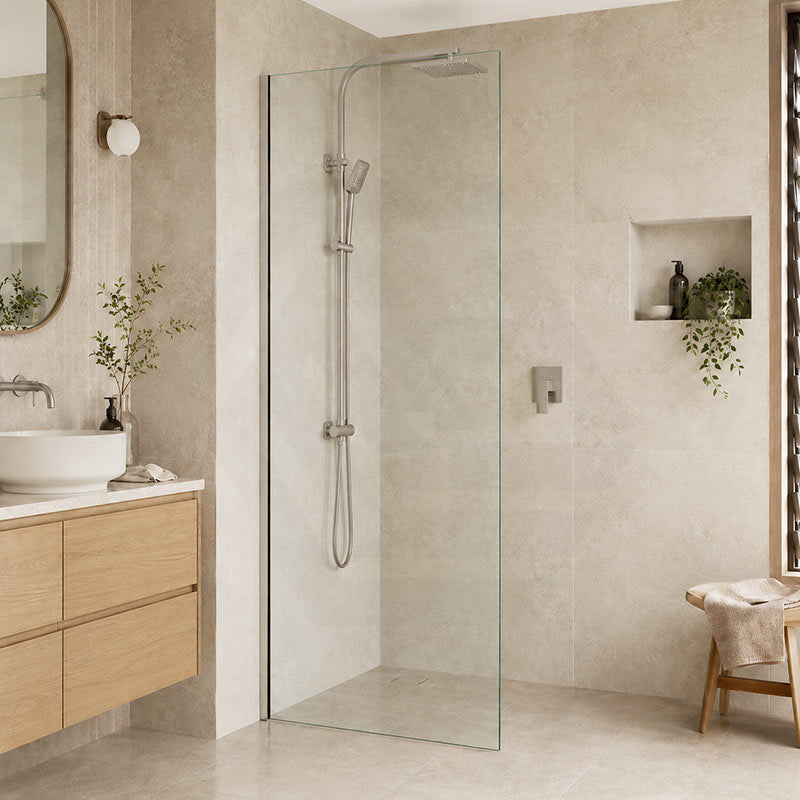

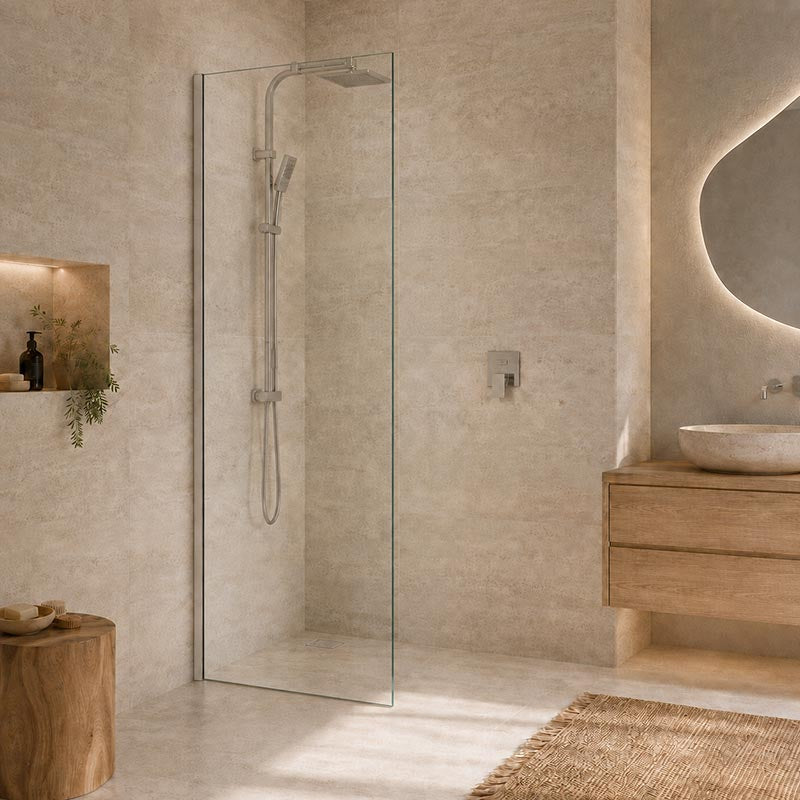

Brushed Nickel
Warm brushed silver channel with delicate linear texture.

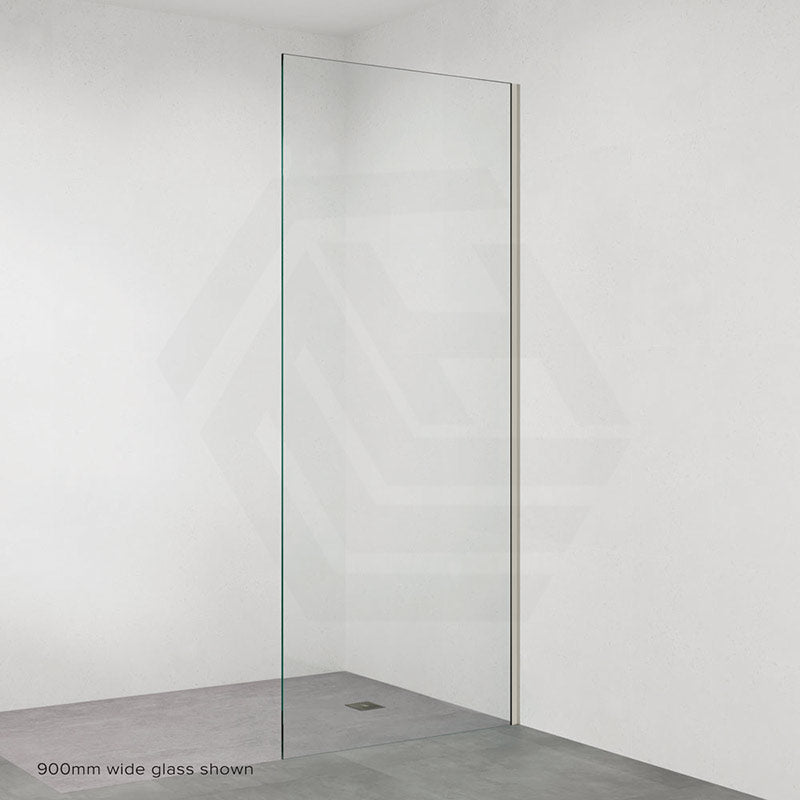

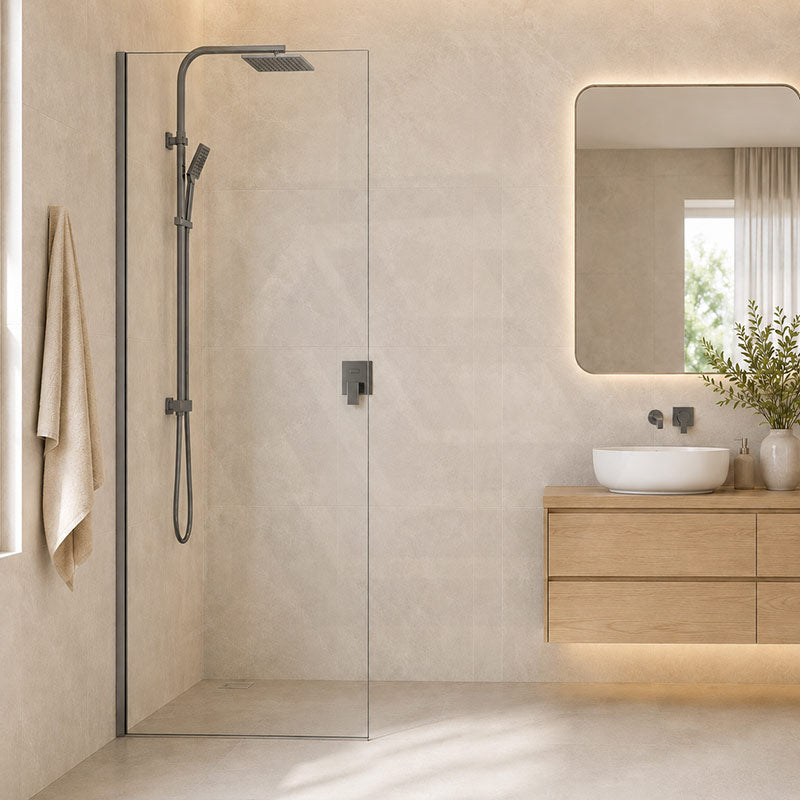

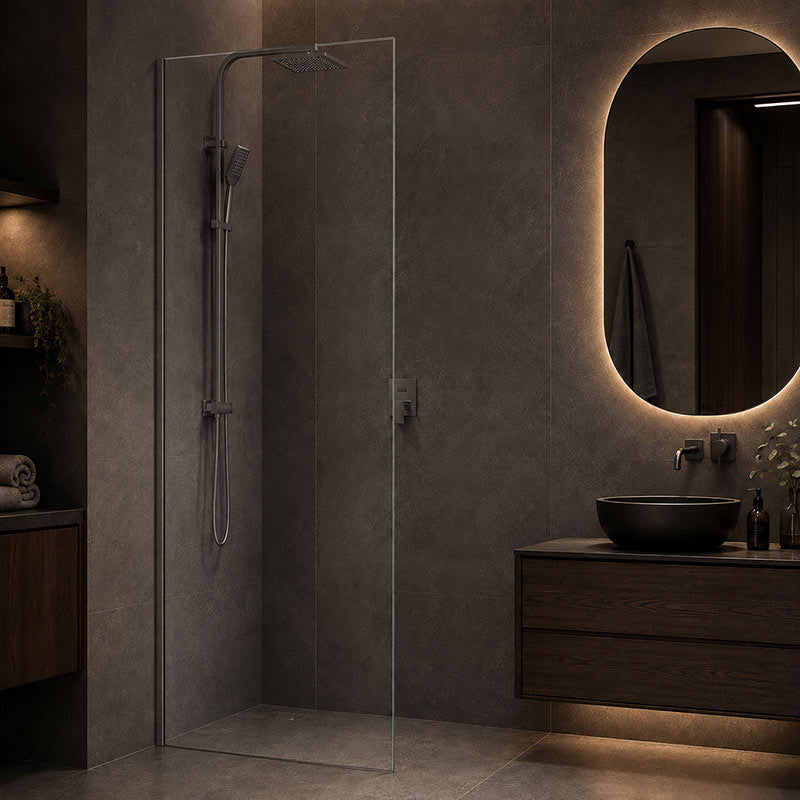

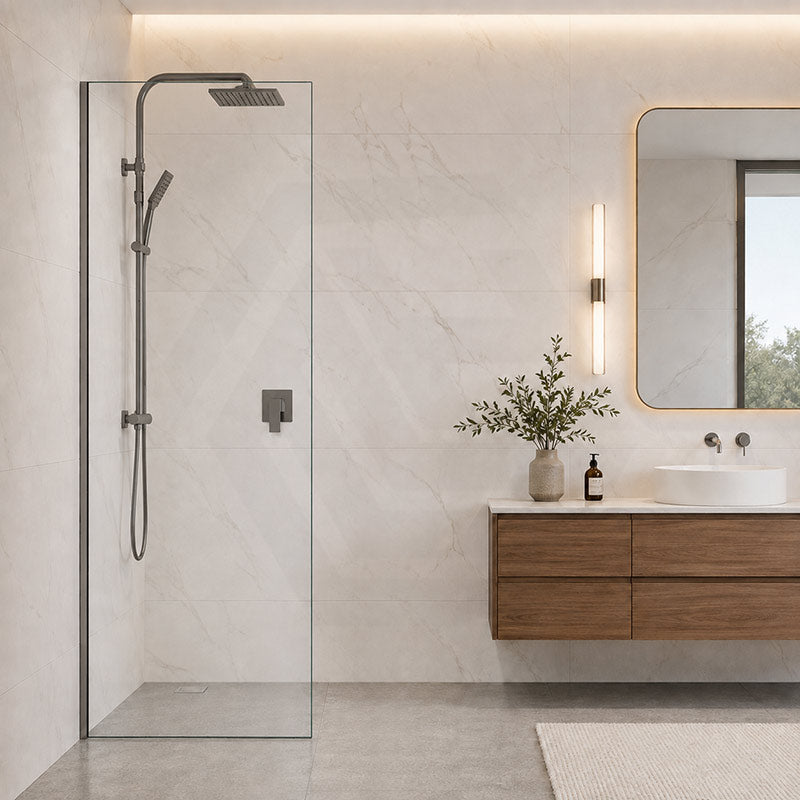

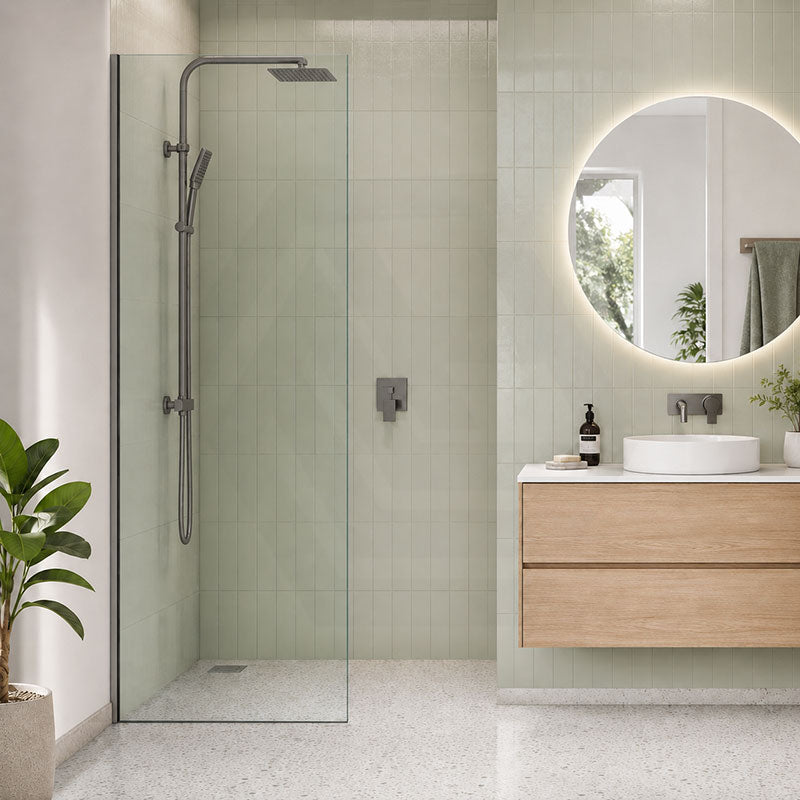

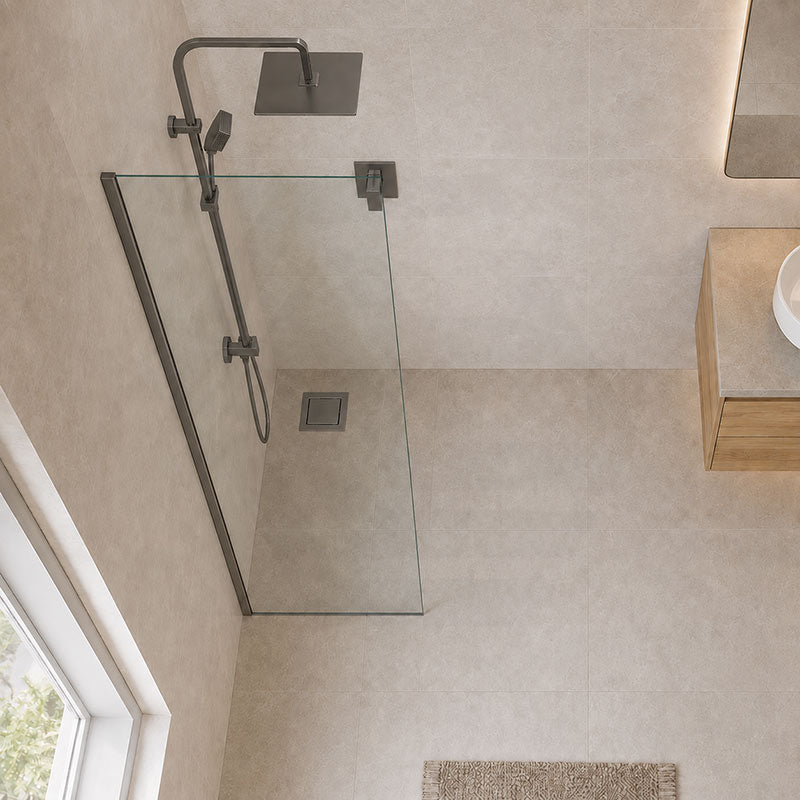

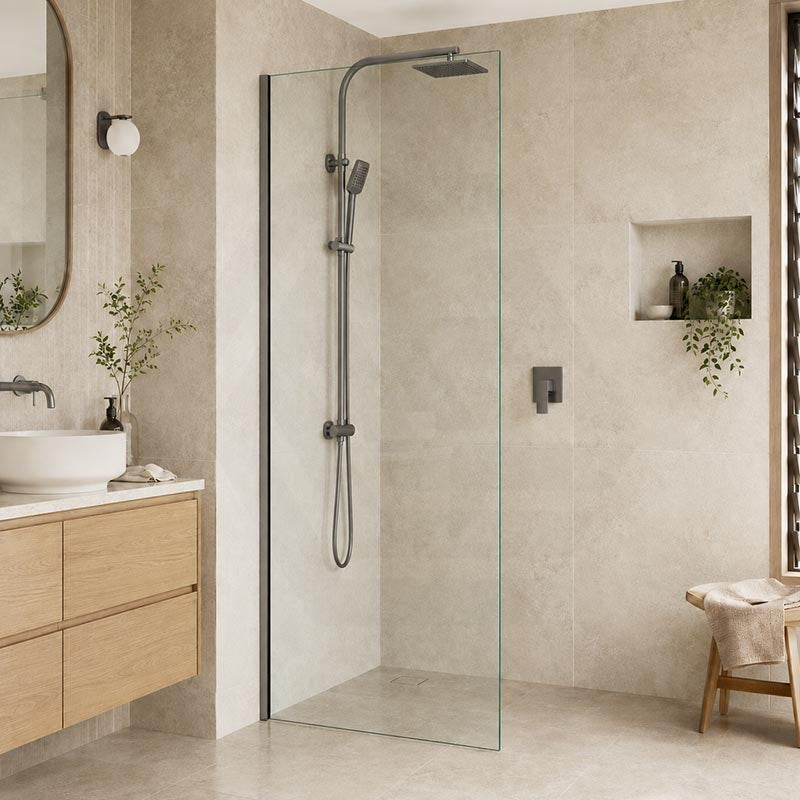

Gun Metal
Deep brushed graphite charcoal metallic channel finish.

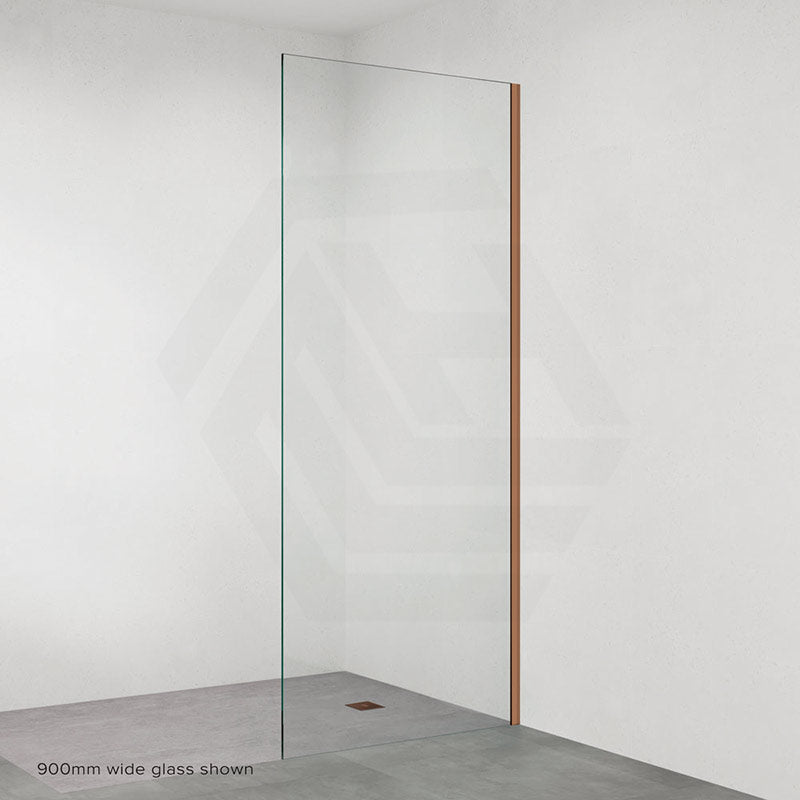

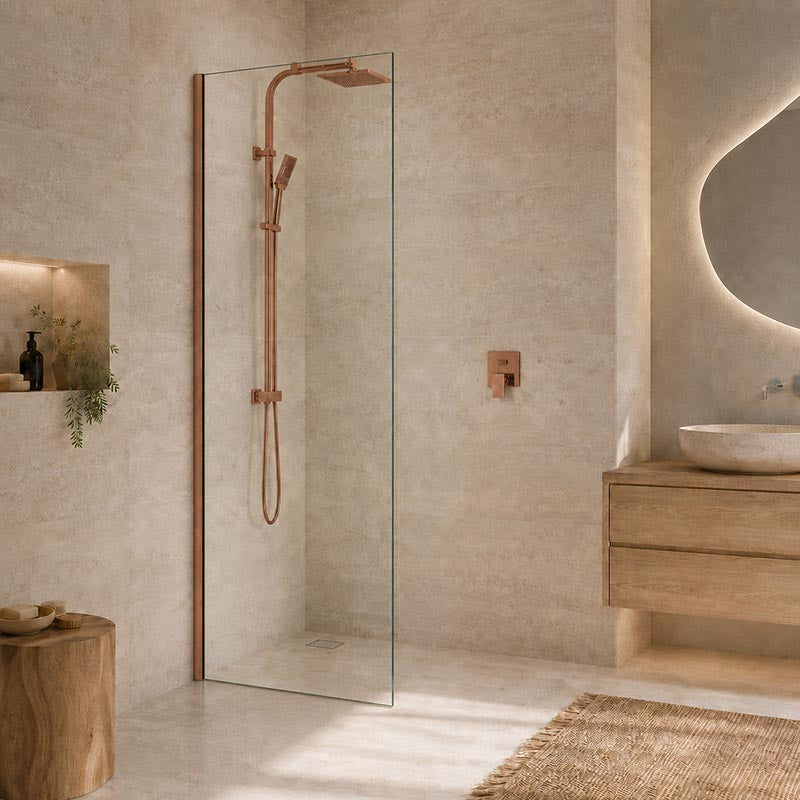

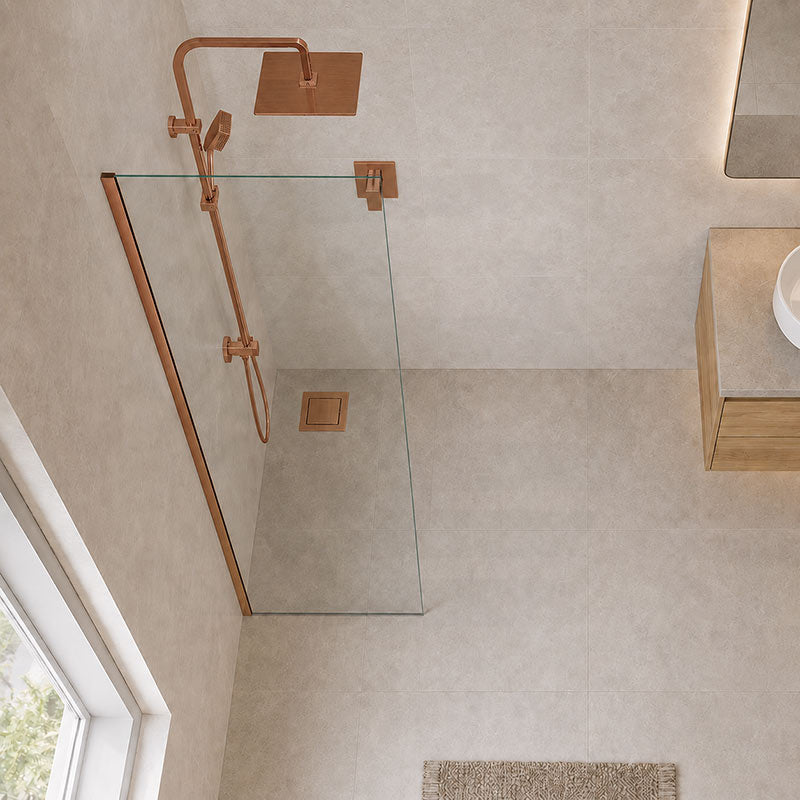

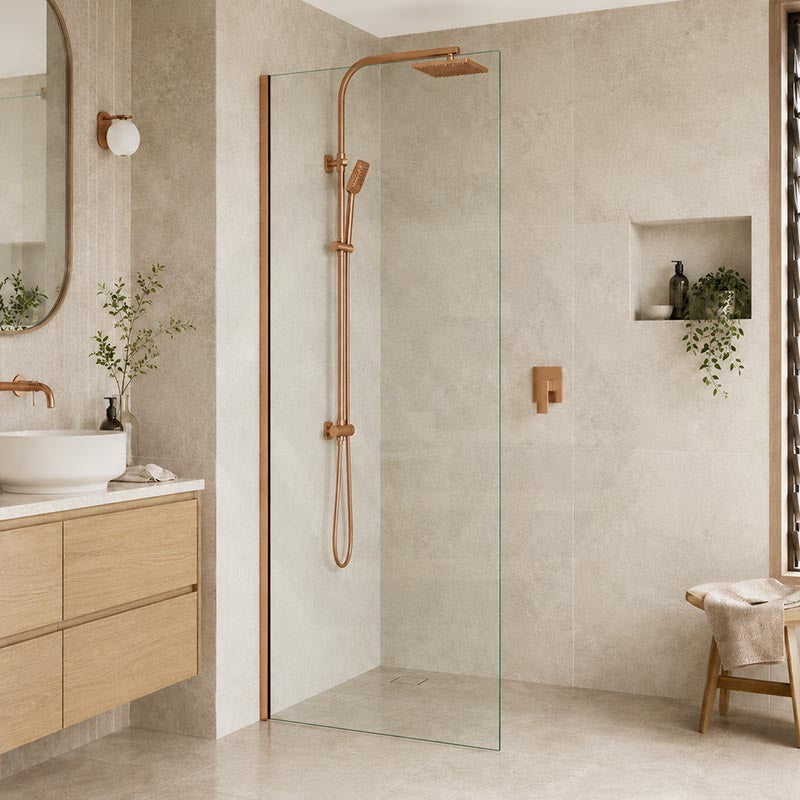

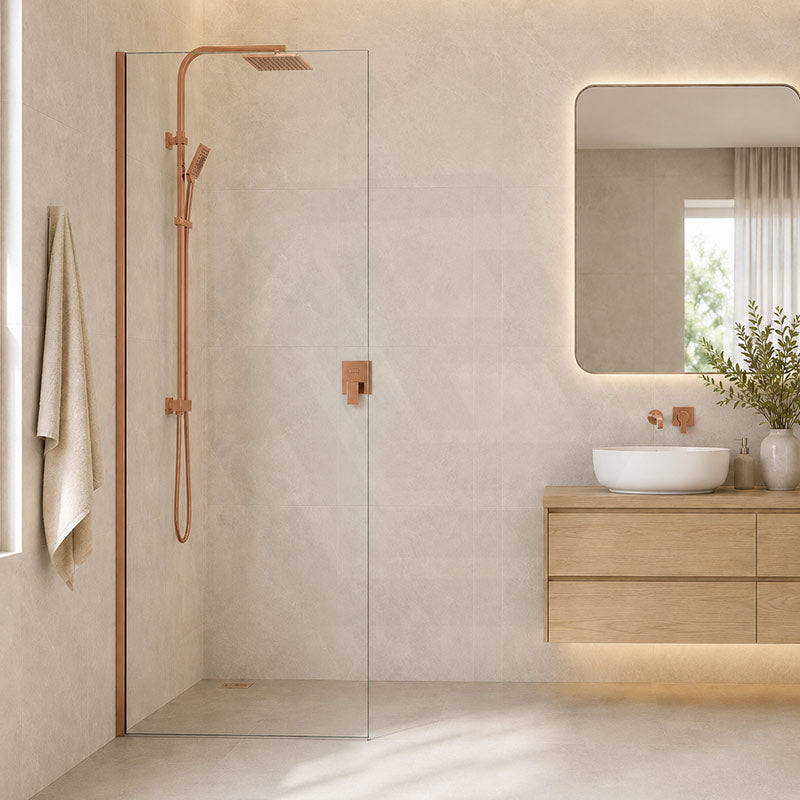

Brushed Copper
Rich, warm rose-copper metallic channel accent tone.

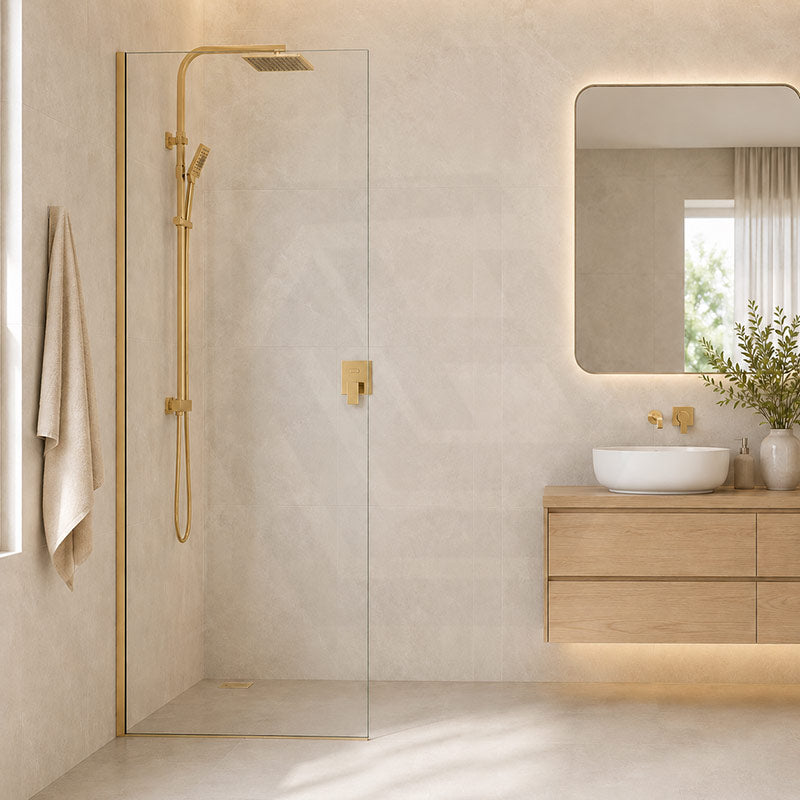

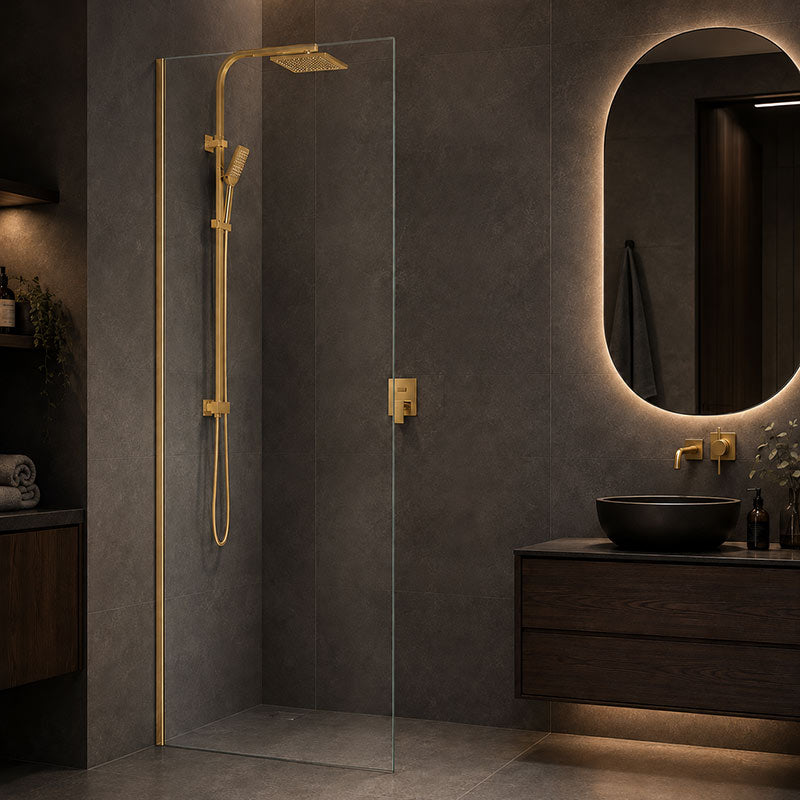

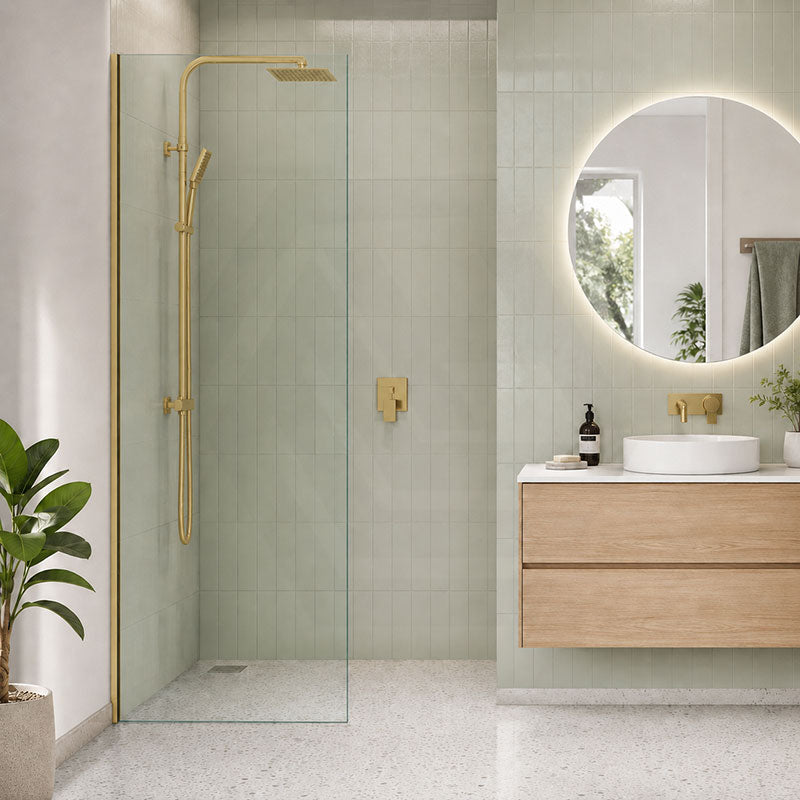

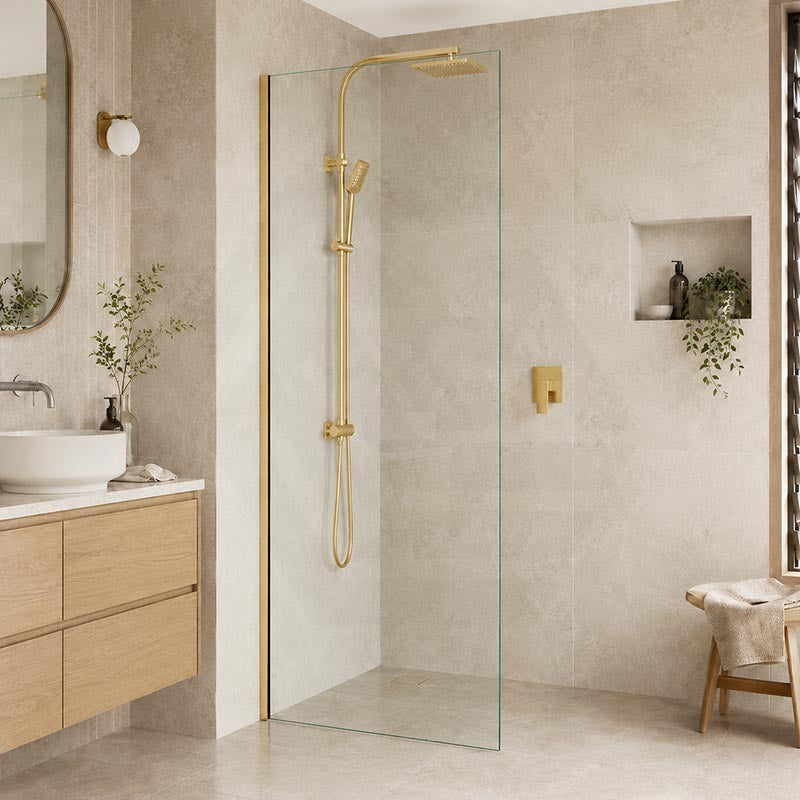

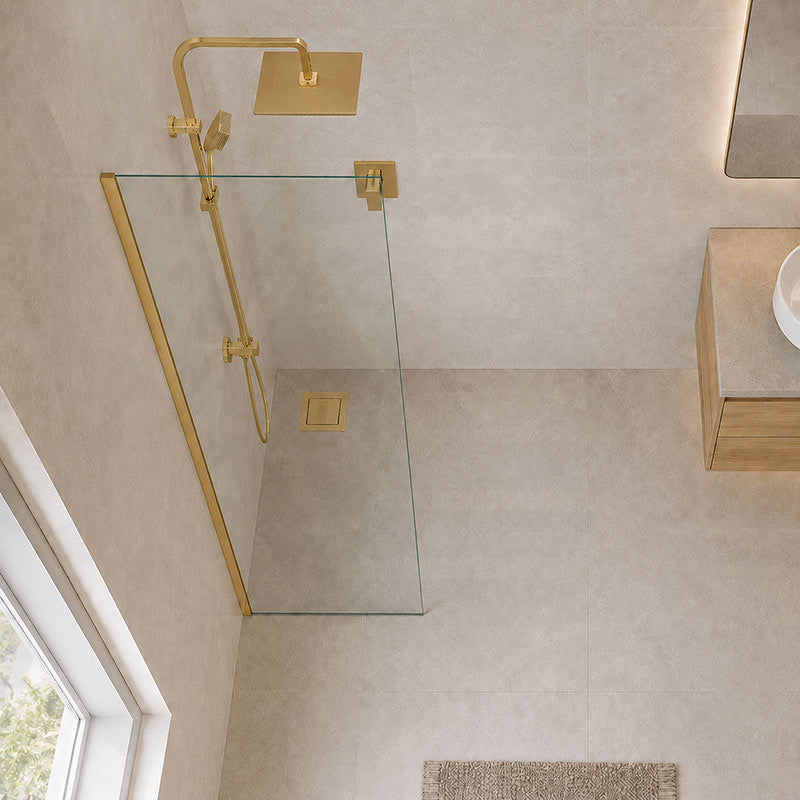

Urban Brass
Aged organic brushed gold brass channel profile finish.

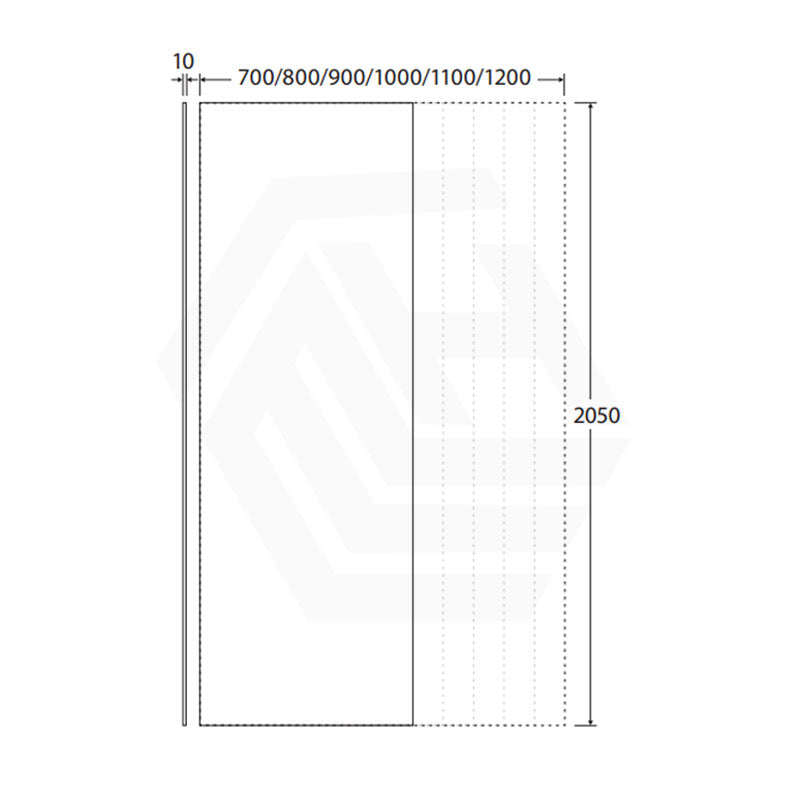

📏 Step 2: Choose Your Glass Panel Width Sizing
Select from 6 standard widths to balance splash containment with generous walk-in entry room.
700mm Panel Width
Dimensions: 700mm (W) x 2050mm (H) | 10mm Toughened Glass
800mm Panel Width
Dimensions: 800mm (W) x 2050mm (H) | 10mm Toughened Glass
900mm Panel Width
Dimensions: 900mm (W) x 2050mm (H) | 10mm Toughened Glass
1000mm Panel Width
Dimensions: 1000mm (W) x 2050mm (H) | 10mm Toughened Glass
1100mm Panel Width
Dimensions: 1100mm (W) x 2050mm (H) | 10mm Toughened Glass
1200mm Panel Width
Dimensions: 1200mm (W) x 2050mm (H) | 10mm Toughened Glass
🧭 Quick Sizing & Style Reference Matrix
| Shower Niche Length | Recommended Panel Sizing | Expected Walk-in Entry Clearance |
|---|---|---|
| 1200mm Total Niche | Select 700mm or 800mm Panel | Leaves 400mm - 500mm comfortable entry clearance. |
| 1400mm Total Niche | Select 800mm or 900mm Panel | Leaves 500mm - 600mm generous walk-in access. |
| 1600mm+ Large Wet Room | Select 1000mm, 1100mm, or 1200mm Panel | Provides maximum splash defense while maintaining 500mm+ entry. |
📐 Channel Profile Compatibility & Wall Tolerance Guide
This panel uses a full-length aluminium U-Channel fixing system, offering superior installation tolerance and structural anchoring compared to point-fix brackets:
| Wall Variance | Compatibility Status | Installer Advantage / Notes |
|---|---|---|
| 0 – 5 mm | ✔ Perfect Channel Fit | Ideal alignment. The channel depth neatly encases the glass with minimal sealant visible. |
| 5 – 10 mm | ✔ Ideal Choice (Channel Advantage) | Out-of-square walls are effortlessly absorbed inside the channel profile, hiding uneven gaps. |
| > 10 mm | ⚠️ Check Channel Capacity | Confirm channel adjustment capacity with your glazier; excessive out-of-plumb walls may require re-levelling or custom cut glass. |
📌 Technical Specifications & Installation Notes
Technical dimensions, fixed glass installation procedures, and official Fienza warranty details for the FN-10R Rectangular series.
