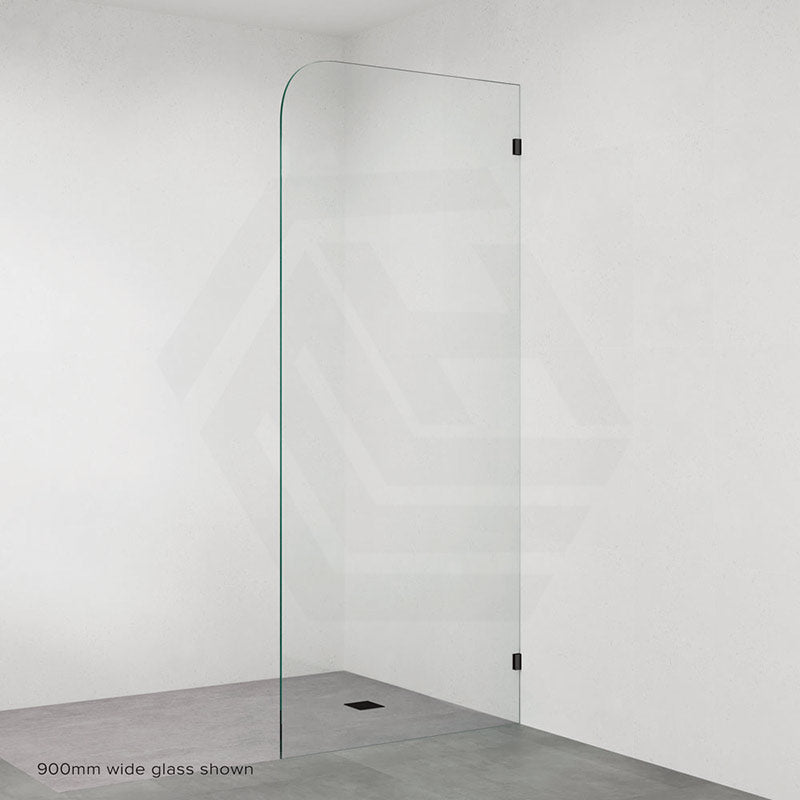

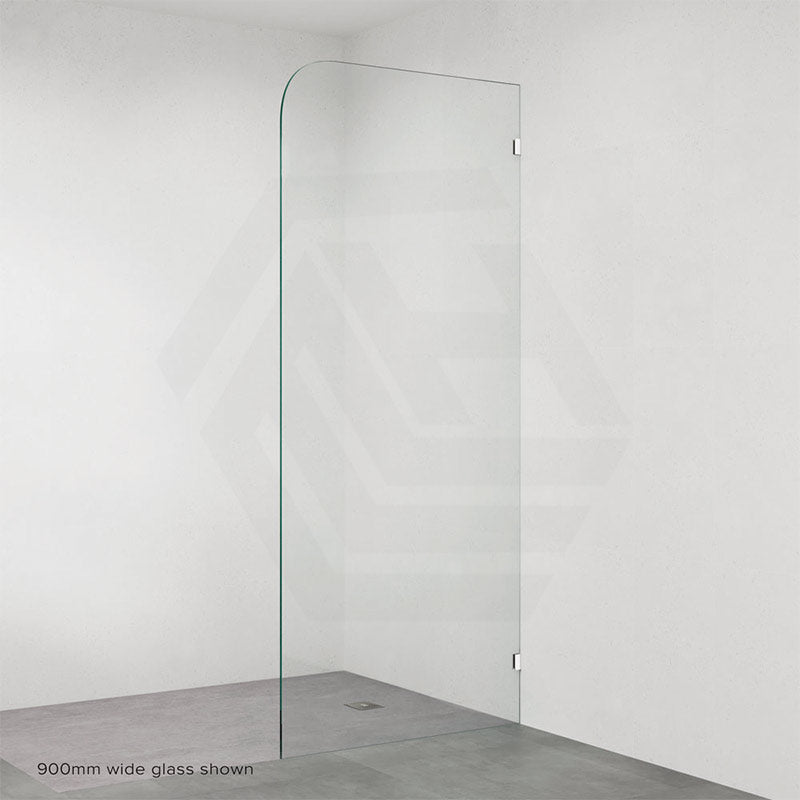

Fienza Curved Edge Fixed Frameless Glass Shower Panel
Elevate your bathroom into an architectural sanctuary with the Fienza Curved Edge Fixed Frameless Glass Shower Panel. Featuring a soft radiused corner, discrete solid mounting brackets, and a true frameless profile, this panel delivers an open, light-filled walk-in shower experience with an authentic "floating glass" aesthetic.

Feature Highlights
True Frameless Floating Look with U-Bracket Mount
Discrete heavy-duty U-brackets replace continuous wall channels, eliminating heavy metal tracks to achieve a truly weightless, floating glass aesthetic tailored for sleek, minimalist spaces.
Wall Suitability: Ideal for precision-tiled plumb walls (0–3mm vertical variance) common in new builds or gut renovations. If your wall deviation exceeds 5mm, we recommend our Wall Channel models(FN-10C7C-C) for extended out-of-plumb adjustability.

Soft Radiused Curved Corner Silhouette
Break away from rigid boxy layouts. The panel features a beautifully crafted curved top corner that introduces an organic, fluid contour into your shower enclosure space.
This subtle arched design softens hard geometric lines, serving as a stylish architectural focal point while enhancing overall safety by removing sharp upper glass corners.

7 Curated Designer Hardware Finish Options
Achieve complete color harmony throughout your wet room. The mounting brackets and channels are supplied in a comprehensive range of 7 luxury finishes to match your tapware theme.
Select from Chrome, Matt Black, Matt White, Brushed Nickel, Gun Metal, Brushed Copper, or Urban Brass to seamlessly coordinate with your shower heads and bathroom accessories.

Frameless Fixed Walk-In Spatial Openness
Embrace an unobstructed, resort-style open plan layout. The frameless construction eliminates heavy metal surround frames, creating an invisible visual boundary that enlarges small bathrooms.
Its fixed single-panel configuration provides effective water splash deflection, protecting vanity zones while maintaining a barrier-free walk-in entrance.

| MODEL | |
|---|---|
| Product Name | Fienza Curved Edge Fixed Frameless Glass Shower Panel |
| Screen Style | Frameless Fixed Glass Shower Panel (Walk-in Style) |
| DIMENSIONS & SPECIFICATION | |
| Height | 2050 mm High |
| Glass Profile | 10mm Heavy Duty Toughened Safety Glass with Elegant Rounded Corner |
| MATERIAL & FINISH | |
| Bracket / Channel Finishes | Chrome / Matt Black / Matt White / Brushed Nickel / Gun Metal / Brushed Copper / Urban Brass |
| Fixing Options | Requires a minimum of two wall brackets (included) OR one wall channel setup |
| CERTIFICATION | |
| Safety Standard | Fully compliant with Australian Standard AS/NZS 2208 (Safety Glazing Materials in Buildings) |
| CLEANING & CARE | |
| Glass Care | For best results, clean glass with a solution of 30% methylated spirits and 70% water using a soft, non-abrasive cloth designed for glass surfaces. |
| Bracket Care |
• Regularly clean brackets with mild soapy water using a microfibre cloth. • In highly polluted or coastal areas, clean 2–3 times per week. • Wipe gently in one direction only without undue pressure. |
| WARRANTY | |
| Glass Panel Warranty | 1 Year replacement parts or product (Residential & Commercial) |
| Brackets & Parts | 1 Year replacement parts or product (Residential & Commercial) |
| Exclusions | Excludes general wear and tear from daily use. |
| REMINDER | |
| Wall Plumb Advisory | U-BRACKET FIXING IS IDEAL FOR LEVEL, PLUMB WALLS (0–3MM VARIANCE). IF YOUR WALL DEVIATION EXCEEDS 5MM (COMMON IN RETROFITS/OLDER BUILDS), A WALL CHANNEL MODEL IS STRONGLY RECOMMENDED TO ALLOW PROPER ADJUSTMENT. |
| Chemical Warning | DO NOT USE HARSH DETERGENTS, BLEACH, CREAM CLEANERS, OR CITRUS-BASED CLEANERS ON METAL BRACKETS. THESE ABRASIVE SUBSTANCES WILL PERMANENTLY DAMAGE THE SURFACE FINISH. |
| Installation Note | DUE TO THE 2050MM HEIGHT AND WEIGHT OF 10MM GLASS, ENSURE ADEQUATE STRUCTURAL TIMBER/BLOCKING BEHIND THE TILES BEFORE ANCHORING WALL BRACKETS OR CHANNELS. |
Field Guide: Configure Your Curved Edge Fixed Glass Shower Panel
The Fienza Curved Edge Fixed Frameless Glass Shower Panel brings an elegant, organic arc to modern walk-in shower spaces. Crafted from heavy-duty 10mm toughened safety glass with an easy-clean coating, it softens sharp bathroom lines while maintaining an airy, light-filled aesthetic. Follow our 2-step setup guide below to select your matching hardware finish and panel width sizing.
🎨 Step 1: Select Your Hardware Finish Colour
Choose from 7 designer metallic and matte finishes for your wall brackets, floor channel, and stabilizing arm fittings.

Chrome
Classic mirror-polished high-shine silver plating.

Matt Black
Bold graphic matte black powder-coated finish.

Matt White
Ultra-clean, crisp satin white hardware finish.

Brushed Nickel
Warm brushed silver with delicate linear texture.

Gun Metal
Deep brushed graphite charcoal metallic hue.

Brushed Copper
Rich, warm rose-copper metallic accent tone.

Urban Brass
Aged organic brushed gold brass profile finish.

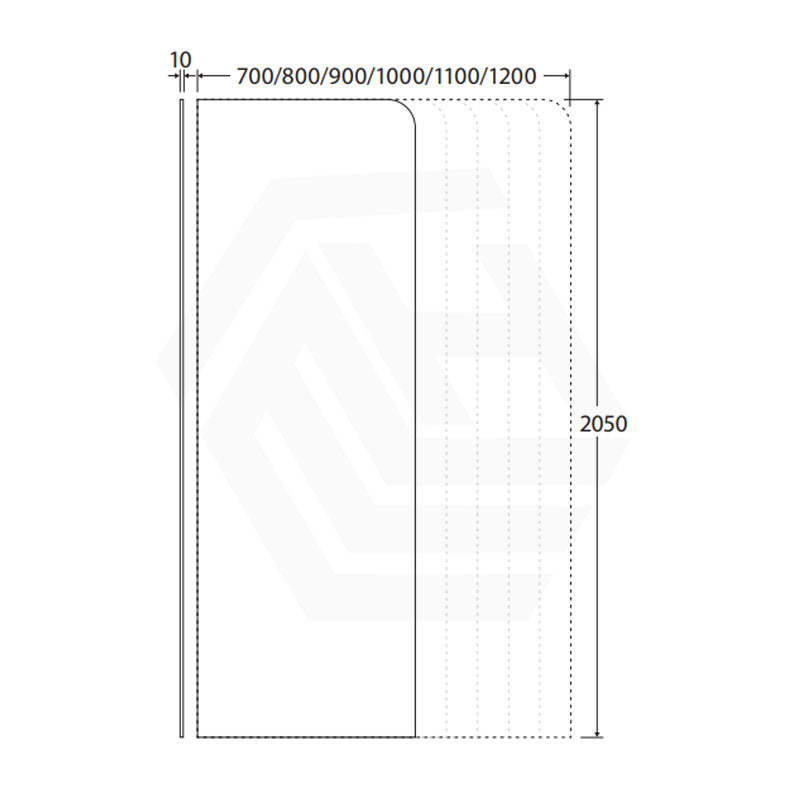

📏 Step 2: Choose Your Glass Panel Width Sizing
Select the optimal panel width to balance splash coverage with easy walk-in entry clearance.
700mm Panel Width
Dimensions: 700mm (W) x 2050mm (H) | 10mm Toughened Glass
800mm Panel Width
Dimensions: 800mm (W) x 2050mm (H) | 10mm Toughened Glass
900mm Panel Width
Dimensions: 900mm (W) x 2050mm (H) | 10mm Toughened Glass
1000mm Panel Width
Dimensions: 1000mm (W) x 2050mm (H) | 10mm Toughened Glass
1100mm Panel Width
Dimensions: 1100mm (W) x 2050mm (H) | 10mm Toughened Glass
1200mm Panel Width
Dimensions: 1200mm (W) x 2050mm (H) | 10mm Toughened Glass
🧭 Quick Sizing & Style Reference Matrix
| Shower Niche Length | Recommended Panel Sizing | Expected Walk-in Entry Clearance |
|---|---|---|
| 1200mm Total Niche | Select 700mm or 800mm Panel | Leaves 400mm - 500mm comfortable entry clearance. |
| 1400mm Total Niche | Select 800mm or 900mm Panel | Leaves 500mm - 600mm generous walk-in access. |
| 1600mm+ Large Wet Room | Select 1000mm, 1100mm, or 1200mm Panel | Provides maximum splash defense while maintaining 500mm+ entry. |
📐 Pre-Installation Check: Bracket vs. U-Channel Fixing
Before confirming your hardware configuration, check your tiled wall vertical alignment (out-of-plumb variance from top to bottom) with a spirit level to ensure a seamless fit:
| Wall Variance | Recommended Fixing | Reason / Glazier Advice |
|---|---|---|
| 0 – 3 mm | ✔ Fixed Panel (Brackets) | Wall is straight and plumb. Perfect for minimal, frameless bracket mounting. |
| 3 – 5 mm | ⚠️ Brackets / U-Channel | Brackets are usable, but slight uneven gaps may show. Confirm measurements with your glazier. |
| 5 – 10 mm | 💡 Wall Channel Preferred | A continuous U-Channel absorbs out-of-square walls and conceals uneven margins cleanly. |
| > 10 mm |
⛔ Not Recommended for Brackets |
Standard bracket fixing not viable due to excessive gap. Requires deep U-Channel or wall re-levelling. |
📌 Technical Specifications & Installation Notes
Technical dimensions, fixed glass installation procedures, and official Fienza warranty details for the FN-10C Curved Edge series.
