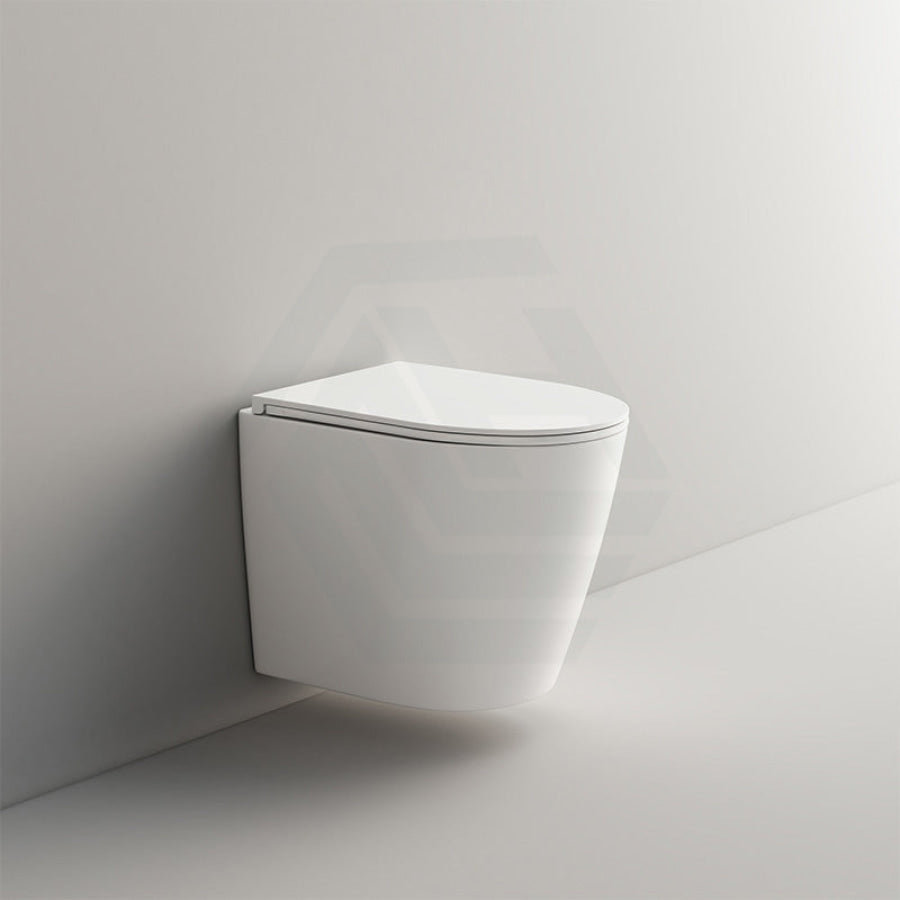

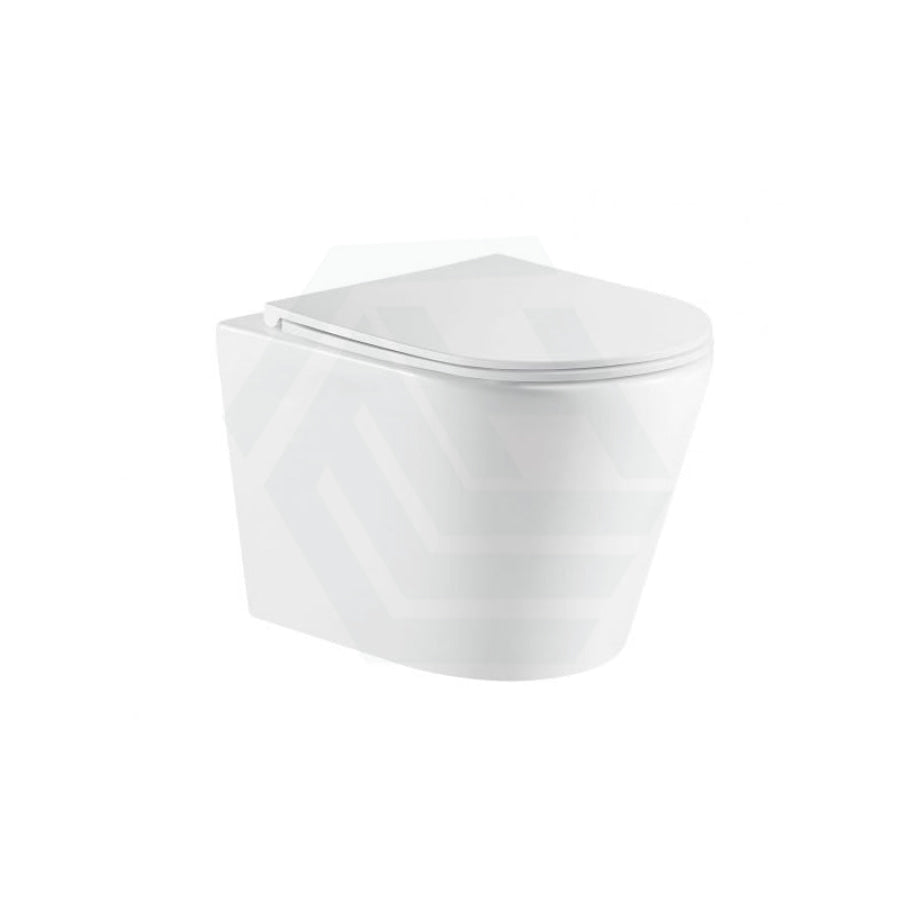

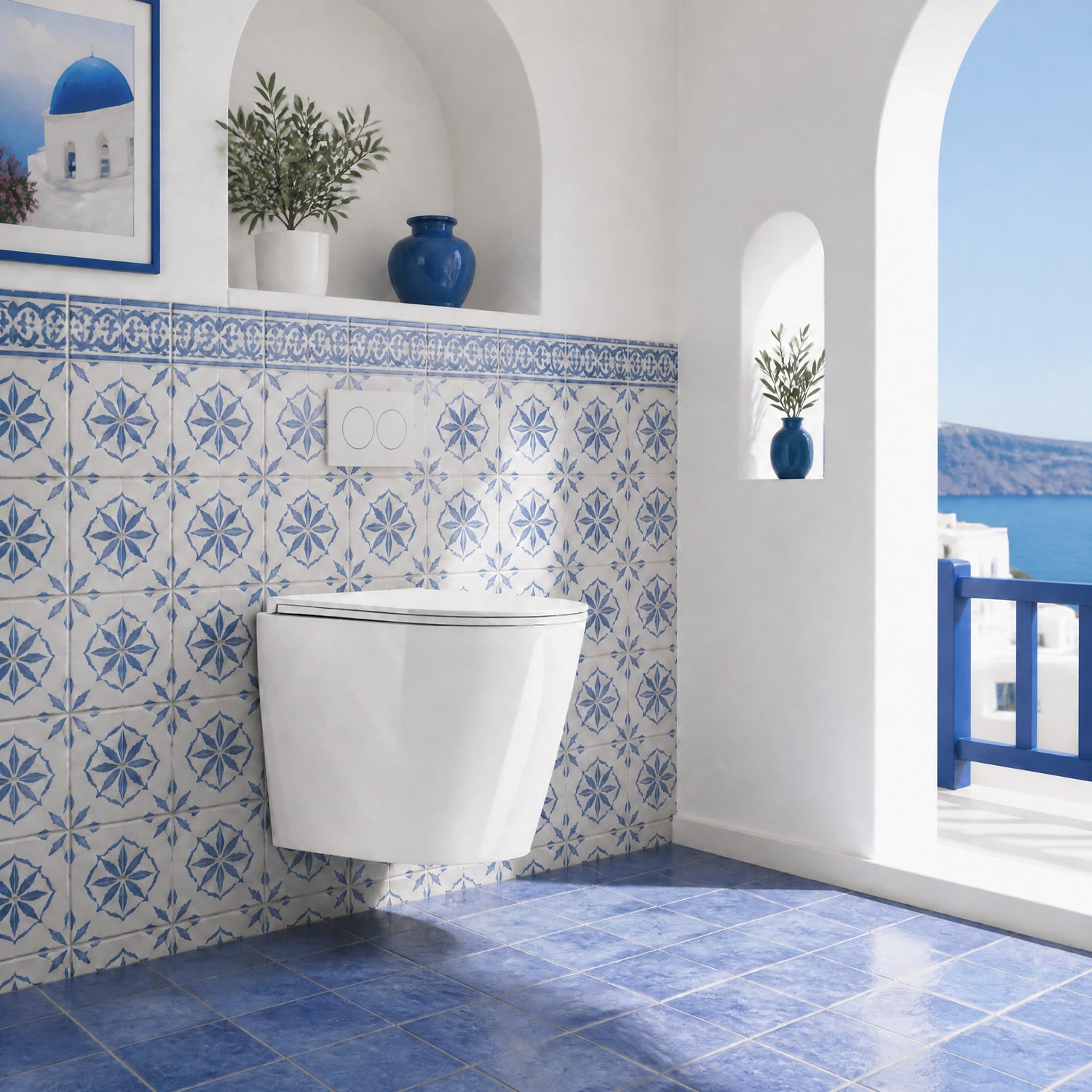

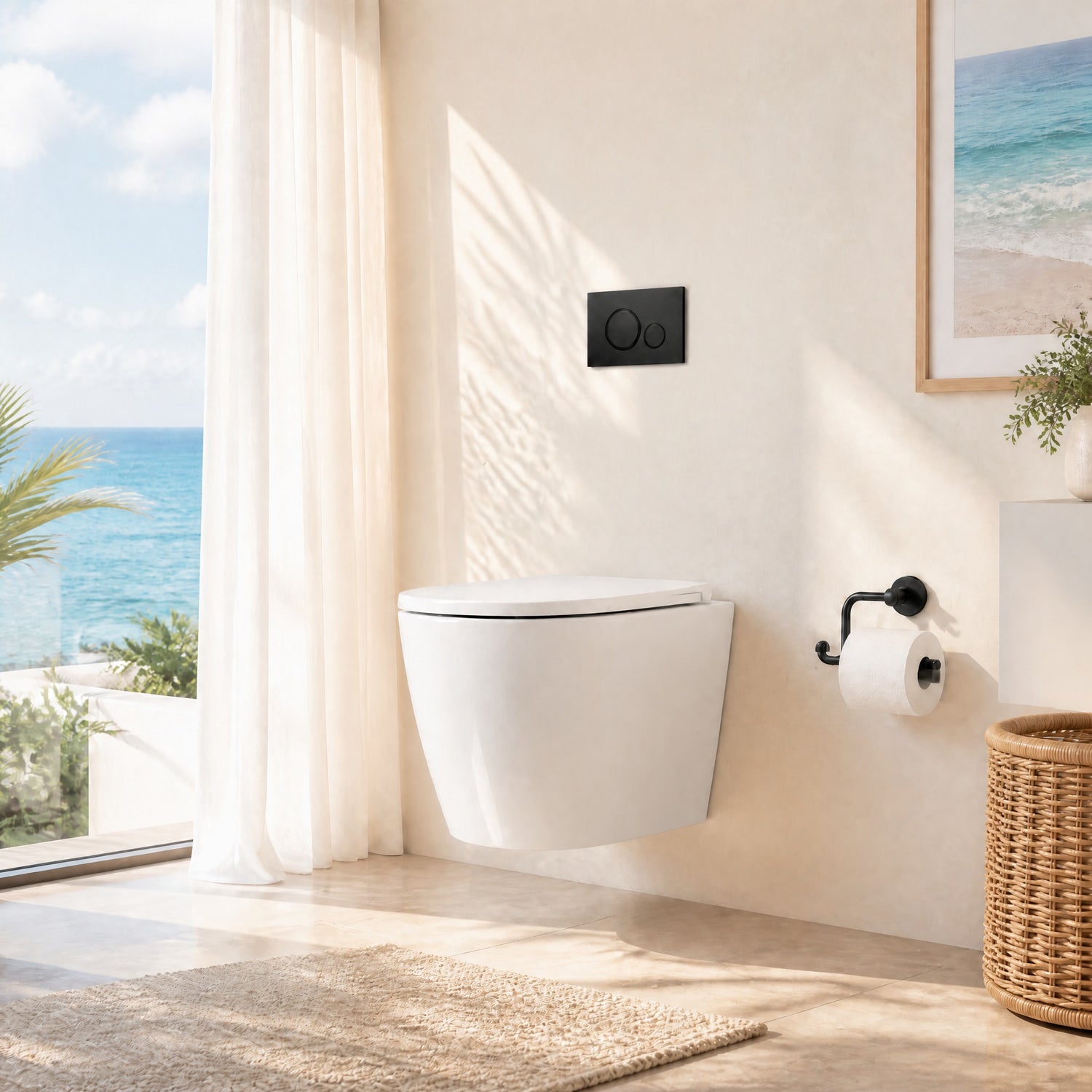

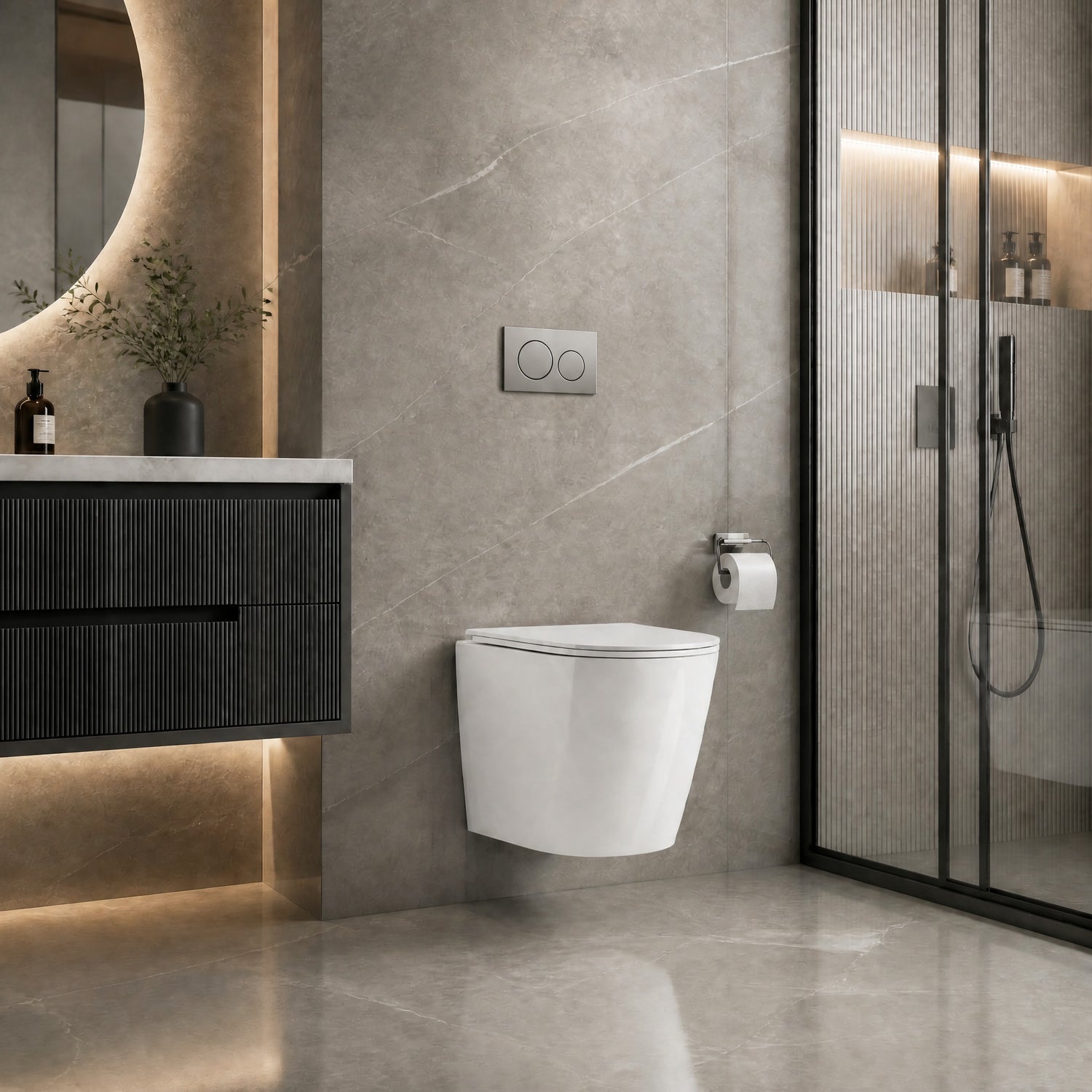

ZARA Rimless Wall Hung Toilet Pan Only with VORTEX Flushing Technology - Gloss White

SKU: UN-ZAWH

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Zara Rimless VORTEX Flushing Wall Hung Toilet Pan

Elevate your home with the Zara Rimless Wall Hung Toilet Pan. Engineered with cutting-edge VORTEX flushing technology, this premium floating toilet bowl combines sleek, minimalist elegance with exceptional space-saving performance for modern bathroom designs.

Vortex Flushing Tech Premium Rimless Pan Wall Hung / Floating Look Space-Saving Design

Advanced Performance

Vortex Flushing Technology

The Zara toilet pan features a powerful rimless design integrated with vortex flushing dynamics. This ensures a thorough, hygienic, and water-efficient rinse across the entire bowl, making day-to-day maintenance effortless.

Silent Comfort

Premium UF Soft-Close Seat

Paired with a durable Urea-Formaldehyde (UF) toilet seat that offers superior scratch resistance and a ceramic-like texture. The built-in soft-close hinges eliminate slamming, ensuring quiet operation and protecting the pan's structural integrity.

Hygiene & Care

Rimless Design & Easy Clean Glaze

By removing the traditional rim where dirt and bacteria build up, the Zara wall-hung pan drastically improves bathroom hygiene. The high-quality vitreous china glaze prevents staining and allows for a quick wipe-down to maintain its polished gloss appearance.

Manufacturing Note: Due to the nature of ceramic manufacturing processes, a standard measurement deviation of ±5mm is expected and regarded as an acceptable variation.

Product Information

MODEL
Main Product Code	ZARA66 (UN-ZAWH)
Trap Code	TSP-P180
MATERIAL & FINISH
Material	Ceramic
Finish	Gloss White
SPECIFICATION
Product Type	Wall hung pan
TECHNICAL INFORMATION
Installation	Wall hung
Flushing	Rimless vortex flushing technology for more hygienic cleaning. Maximum cleaning result of the inner bowl is achieved through the Rimless Design, which prevents water splashing over the edge.
Toilet Seat	Easy-relase slim UF Duraplas seat
P Trap Setout	NOT included, 180mm roughing in
SIZE & DIMENSIONS

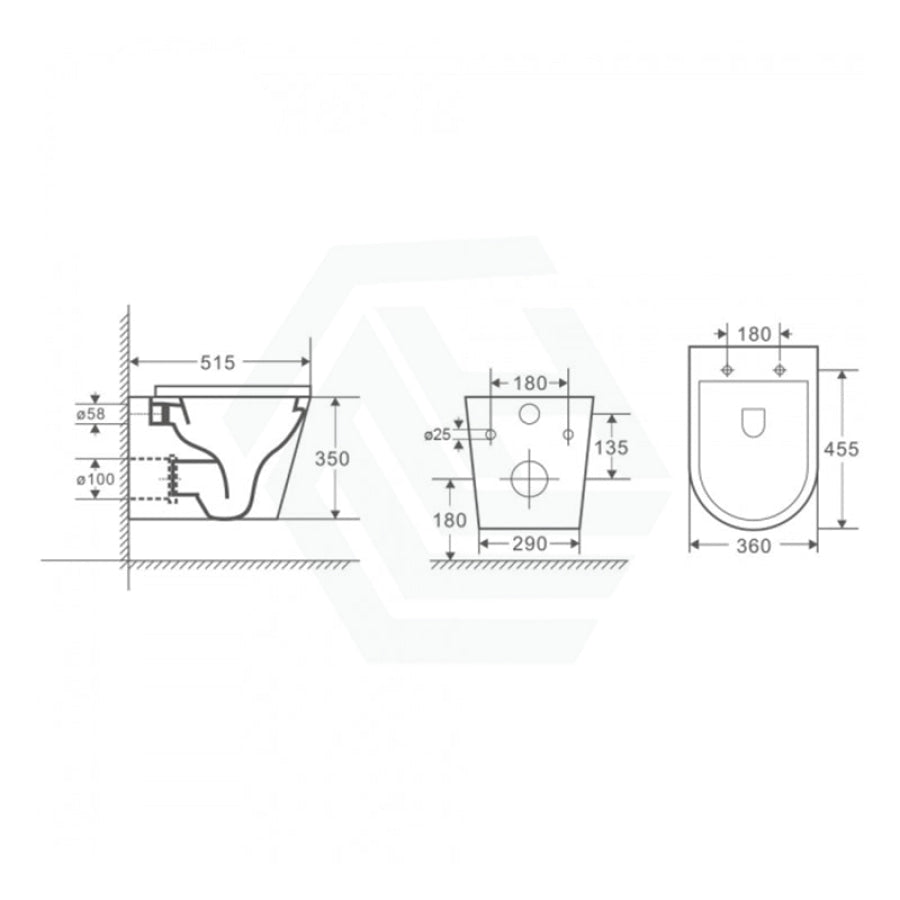

Overall Size	515 x 360 x 350mm ( Please check the drawing for more details )
Hinge Cover Size	Thickness: 6mm, Diameter: 60mm
CERTIFICATION
WATERMARK	Approval
WATERMARK Licence No	WMK26315
WELS	Approval
WELS Licence No	1743
WELS Registration No	L07137
WELS Star Rating	4 Stars
WELS Water Consumption	4.5/2.9 Litres Dual Flush, 3.3 Litres Average Flush
PACKAGE CONTENTS
Main Product	1 x Wall hung toilet pan
Installation Accessories	Included
Accessories	SS304 fitting kits
FEATURES
Feature 1	Unique trap design – 100% clean water
Feature 2	The porcelain is fired at a high temperature of 1240 °C to ensure its hardness and applied a special glazing formula to protect the WC surface from scratches and it is easy to maintain too.
WARRANTY
15 Years Warranty	15 years warranty for general use of the ceramic toilet pan
1 Year Warranty	1 year warranty on parts
Warranty Note	Extent Warranty Plans provides you with an extended warranty period. Please contact us now or get more informations about the Warranty Extensions & Extra Services Upgrades at checkout page.

Supplier's Gallery

Dimensions

Product Options

📐 Choose Your Zara Toilet Trap Option

The Zara Rimless Wall Hung Toilet Pan features a premium floating bowl engineered with cutting-edge VORTEX flushing technology. Combining sleek, minimalist elegance with exceptional space-saving performance, this pan includes a high-grade Urea-Formaldehyde (UF) soft-close seat.

Please select the correct trap configuration based on your bathroom's existing plumbing layout:

🟢 Option 1

Default Trap Configuration

Standard Connection Included Setup Floating Look

👉 Select this if you are using the standard installation kit setup provided with the suite.

🔵 Option 2

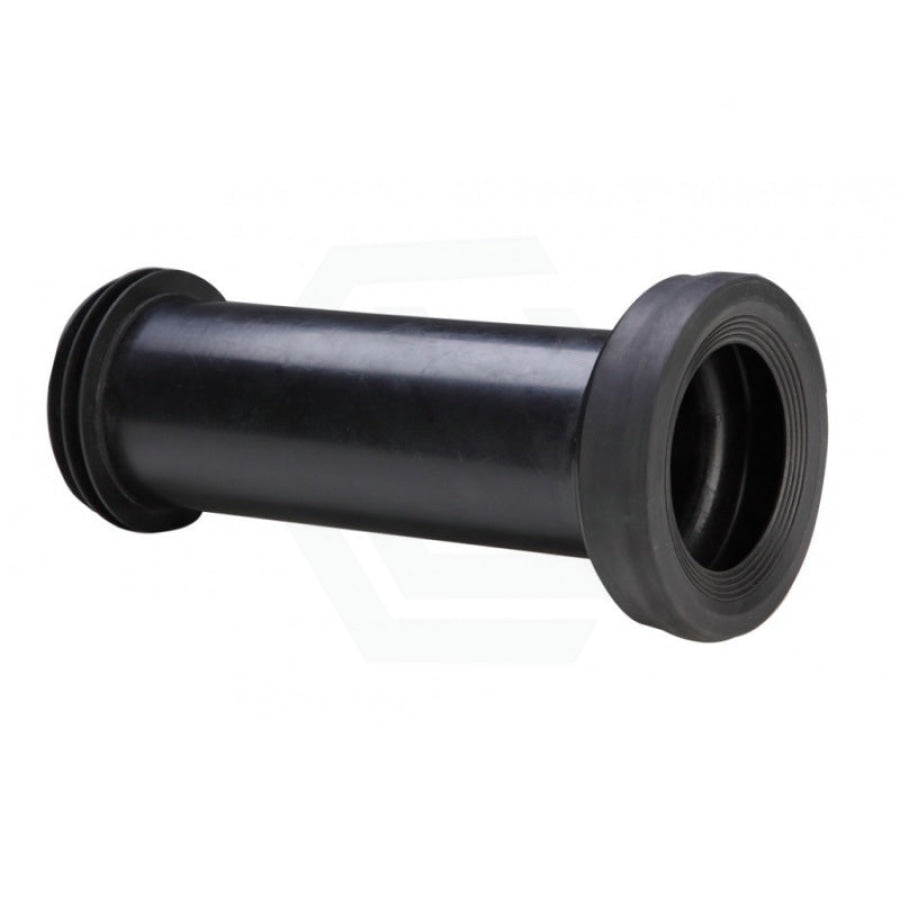

Standard P-Trap 180mm Option

Wall Outlet Connection Horizontal Routing Seamless Fitting

👉 Select this if your bathroom plumbing layout routes the main waste pipe directly into the wall.

🧭 Quick Selection Guide

Your Installation Requirements	Recommended Setup Option
Standard floating setup / Regular plumbing layout	Default Trap Option
Main waste pipe exits horizontally into the wall	Standard P-Trap 180mm Option
Premium rimless hygiene & vortex flushing action	Zara VORTEX Wall Hung Pan (All Options)

⚠️ Manufacturing & Care Reminders

Easy Clean Glaze: Premium vitreous china glaze protects against staining. Clean using a soft cloth with mild soapy water.
Measurement Variation: Due to the nature of ceramic manufacturing processes, a standard deviation of ±5mm is expected and regarded as an acceptable variation.
Professional Fit: Professional plumbing installation is highly recommended to ensure secure mounting and proper sealing of wall-hung pans.
