Dimension

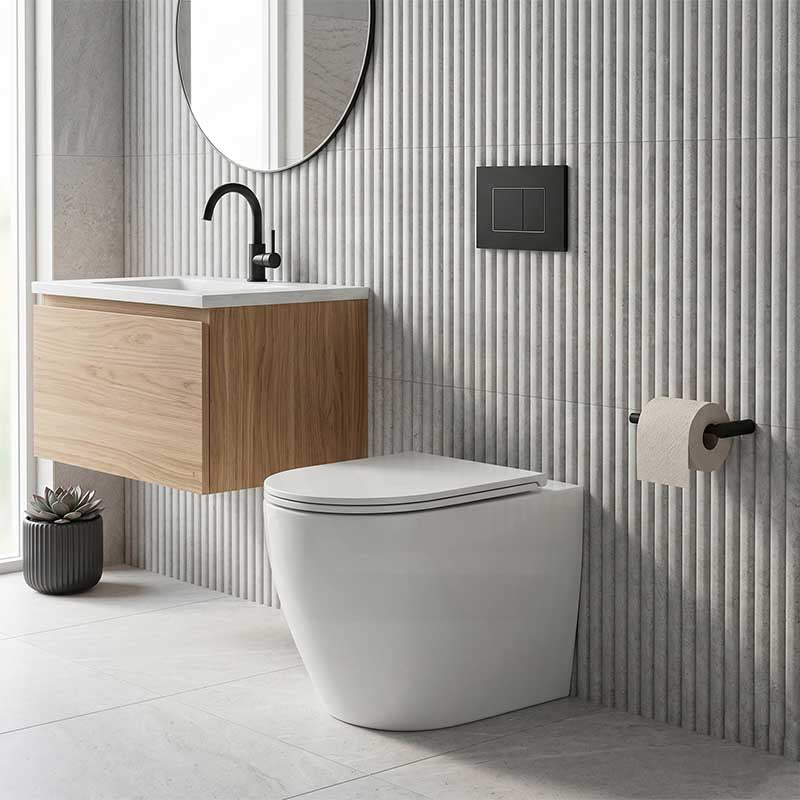

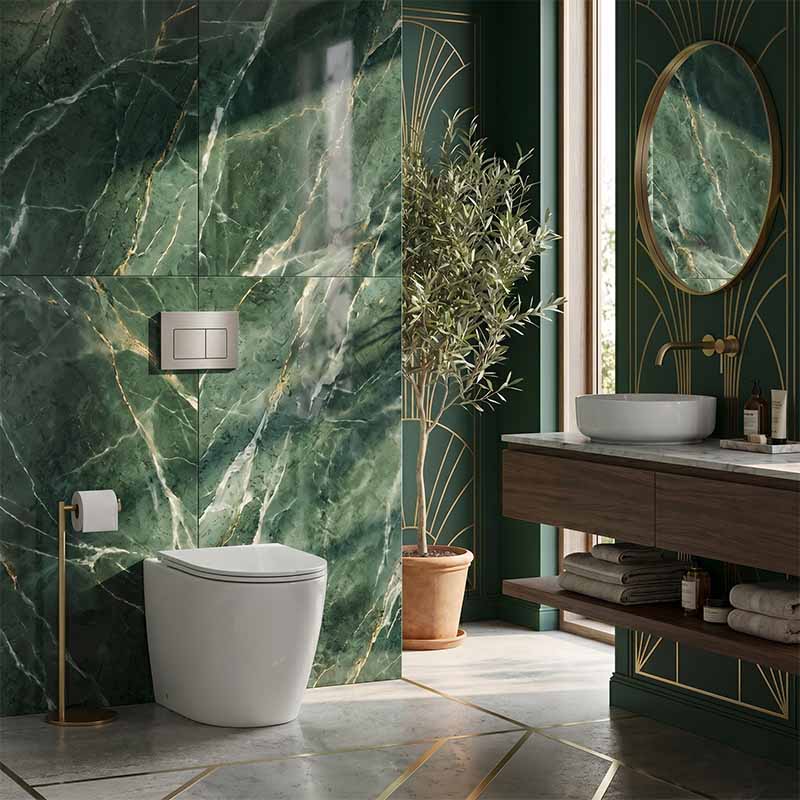

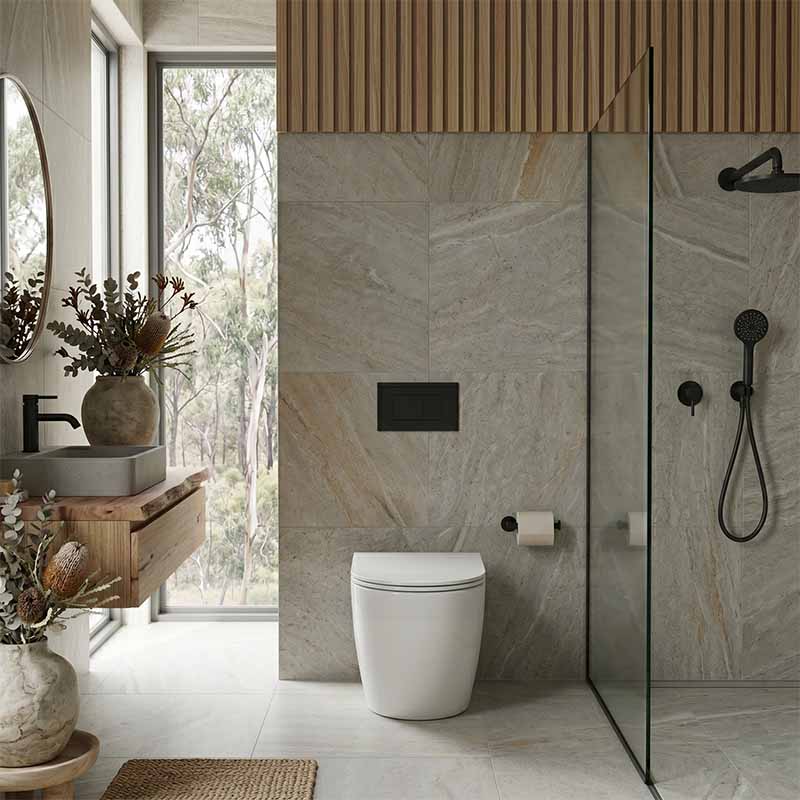

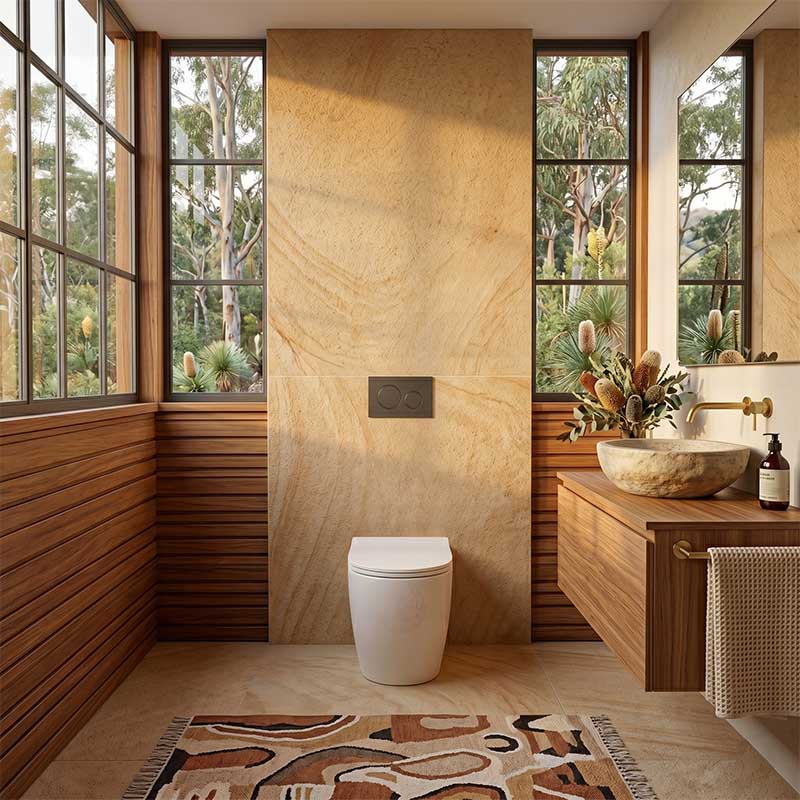

R&T Frameless Inwall Concealed Cistern with Tornado Rimless Wall Faced Toilet Pan with Push Button VORTEX Flushing 400x570x360mm

SKU: MIC-G30032+TS2141D-TR+UN-IWC-BR880-CH
$638
Button: Chrome Plate Chrome Trim-RoundOption Guide
Pick Up Usually Ready in ~1-5 Days

  • Fast Dispatch

  • 365-Day Returns

  • Price Match +5% Off

  • Live Chat Mon-Fri to 10PM

  • Sydney Warehouse & Showroom

  • Worry-Free After-Sales

Specifications

Features

R&T Frameless In-Wall Toilet Package

A complete in-wall toilet suite combining the R&T Frameless concealed cistern (MIC-G30032) with the TS2141D-TR rimless tornado wall-faced pan. Designed for modern Australian bathrooms with VORTEX flushing technology, superior hygiene, and flexible button finish options.

VORTEX Rimless Tornado Pan Frameless Concealed Cistern S-Trap / P-Trap Compatible 4-Star WELS Rated WaterMark Approved
R&T Frameless Inwall Concealed Cistern with Rimless Tornado Wall Faced Toilet Pan Push Button
Hygiene

VORTEX Rimless Tornado Flush Technology

The TS2141D-TR pan features a fully rimless bowl with VORTEX Tornado flush action — a powerful dual-jet system that creates a cyclonic water flow to clean the entire bowl surface with every flush.

Without a concealed inner rim, there are no hidden areas for bacteria or residue to accumulate, making cleaning faster and more effective.

VORTEX Rimless Tornado flush toilet pan diagram
Concealed Cistern

R&T Frameless In-Wall Cistern System

The R&T MIC-G30032 frameless concealed cistern is engineered for straightforward installation, long-term durability, and low-maintenance operation. Compatible with a range of push button finishes to suit your bathroom design.

Operating pressure range: 10–1000 kPa. Dual flush: 4.5L / 3L. Mechanical front flush actuation.

R&T Frameless Inwall Concealed Cistern MIC-G30032 diagram
Renovation Ready

S-Trap & P-Trap Rough-In Options

This package supports both S-Trap (floor outlet, 100–145mm adjustable) and P-Trap (wall outlet, 180mm rough-in) configurations, making it compatible with most existing Australian plumbing set-outs.

S-Trap ribbed cut lines allow on-site adjustment. Always confirm your set-out measurement before purchase.

S-Trap and P-Trap rough-in options for R&T in-wall toilet
Customisable Finish

Choice of Push Button Plates

Select from six button finish options to match your bathroom aesthetic — available in Chrome, Gloss White, or Matt Black, with Square or Round plate profiles:

Chrome Plate-Square — SKU: MIC-G30032+TS2141D-TR+LK-G3004109
Chrome Plate Chrome Trim-Round — SKU: MIC-G30032+TS2141D-TR+UN-IWC-BR880-CH
Gloss White Plate-Square — SKU: MIC-G30032+TS2141D-TR+LK-G3004109W
Gloss White Plate Chrome Trim-Round — SKU: MIC-G30032+TS2141D-TR+CE-G30045020W
Matt Black Plate-Square — SKU: MIC-G30032+TS2141D-TR+LK-G3004109B
Matt Black Plate Chrome Trim-Round — SKU: MIC-G30032+TS2141D-TR+LK-G3004111B

R&T push button options chrome gloss white matt black square round
Note: A measurement deviation of ±5mm is regarded as a common and acceptable variation in ceramic products. Confirm trap type and set-out before purchase. TS2141D-TR availability: see current stock notice above.

Certified & Warranted
This package holds WaterMark approval (WMK26168) and WELS 4-Star certification (Licence No: 1743 / 0313, Reg. No: L07658 / L05964) with a dual-flush consumption of 4.5L / 3L.

Warranty coverage:
15 years — ceramic pan & cistern
3 years — valve products
1 year — parts & accessories

Product Information

Product Specifications – TS2141D-TR
Model
Main Product Code Toilet Pan: TS2141D-TR  ; R&T Cistern: MIC-G30032
Material & Finish
Material Fine Ceramic toilet pan
Colour Gloss White toilet pan, Chrome / Matt Black / Gloss White buttons
Specification
Product Type Back to wall toilet pan / Inwall Concealed Cistern
Surface Material High-quality vitreous china
Cistern Operation Mechanical Front Flush
Operating Pressure of Cistern 10–1000 kPa
Technical Information
Installation Wall floor (faced) toilet pan / Cistern: In-wall. A minimum wall cavity of 100mm is required.
Flushing Rimless Tornado Pan for more hygienic cleaning. Maximum cleaning result of the inner bowl is achieved through the Rimless Design, which prevents water splashing over the edge.
Toilet Seat Slim Soft Close Duraplas toilet seat
S-Trap (Default) Included, 100–145mm set-out
Option P-Trap 180mm roughing-in. (260mm straight pipe, can be cut to size to suit set-out distance)
Option S-Trap 180mm of ribbed cut lines, 60–160mm roughing-in. (Adjustable height: 80–200mm)
Option Button Chrome / Matt Black / Gloss White buttons
Size & Dimensions
Toilet Pan 570 × 360 × 400 mm
Buttons 245 × 165 × 9 mm
R&T Cistern Please check the drawing for more details
Certification
WATERMARK Approval
WATERMARK Licence No Toilet Pan: WMK26168
WELS Approval
WELS Licence No Toilet Pan: 1743 / R&T Cistern: 0313
WELS Registration No Toilet Pan: L07658 / R&T Cistern: L05964
WELS Star Rating 4 Stars
WELS Water Consumption Toilet Pan: 4.5/3L dual flush, 3.3L avg / R&T Cistern: 4.5L full flush, 3L half flush, 3.8L avg
Package Contents
Main Product 1 × Wall faced floor toilet pan / 1 × Inwall cistern / 1 × Button
Installation Accessories Flush pipe, key seal & fixings included
Accessories Standard S-Trap (100–145mm roughing-in) and installation accessories
Features
Feature 1 R&T Cistern: Options of mechanical, pneumatic or electronic buttons give greater design freedom.
Feature 2 R&T Cistern compatible with all mechanical and pneumatic R&T buttons available in Australia.
Warranty
15 Years Warranty 15 years for general use of the ceramic toilet pan; 15 years on cistern tanks and frames
3 Years Warranty 3 years on valve products
1 Year Warranty 1 year warranty on parts
Warranty Note Extent Warranty Plans provides you with an extended warranty period. Please contact us now or get more information about Warranty Extensions & Extra Services Upgrades at checkout.
Reminder
Notes *Product dimensions are approximate and can vary slightly due to manufacturing variances. Information provided in this data sheet is representative of the product available at the time and date of printing, 11/08/2018. Myhomeware reserves the right to vary specifications at any time without notice.

Supplier's Gallery

Dimensions

Product Options

🔘 How to Choose the Correct Push Button

The R&T Frameless in-wall cistern is compatible with a range of push button plates. Choose the plate finish and shape that best suits your bathroom design — all options deliver the same VORTEX dual-flush performance (4.5L / 3L).

Tip: Chrome finishes suit classic and contemporary bathrooms; Gloss White creates a seamless, clean look; Matt Black delivers a bold, high-contrast statement.

Chrome Plate Chrome Trim Round Button
🔵 Option 1

Chrome Plate Chrome Trim — Round

R&T Cistern + TS2141D-TR + Chrome Round Button

Finish: Full Chrome  |  Shape: Round

Chrome plate Chrome trim ring Round profile Classic & versatile
👉 Choose this option if you prefer a timeless all-chrome round button — suits most classic and contemporary bathroom styles.

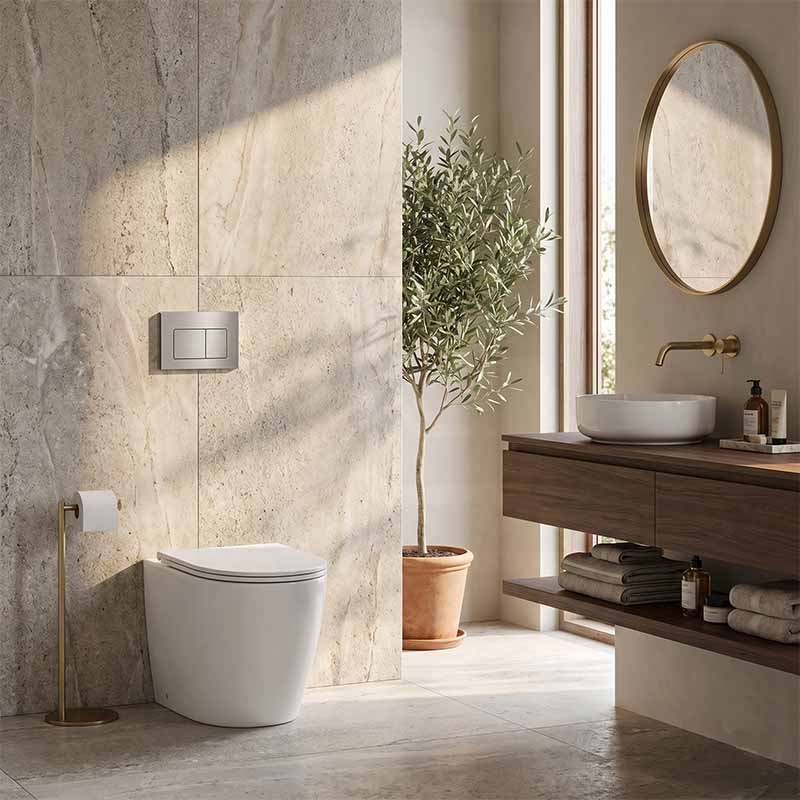

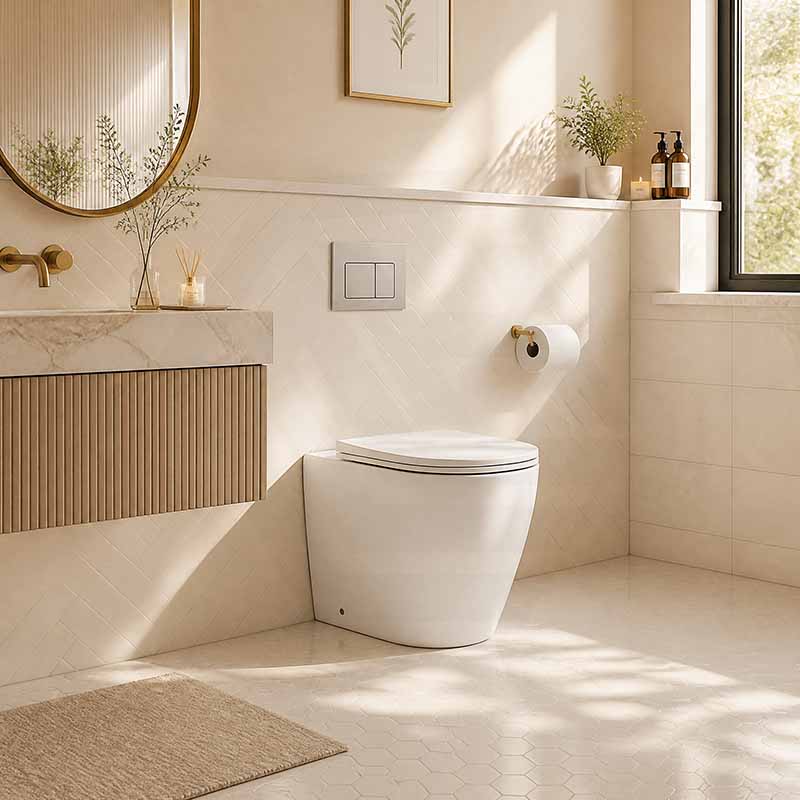

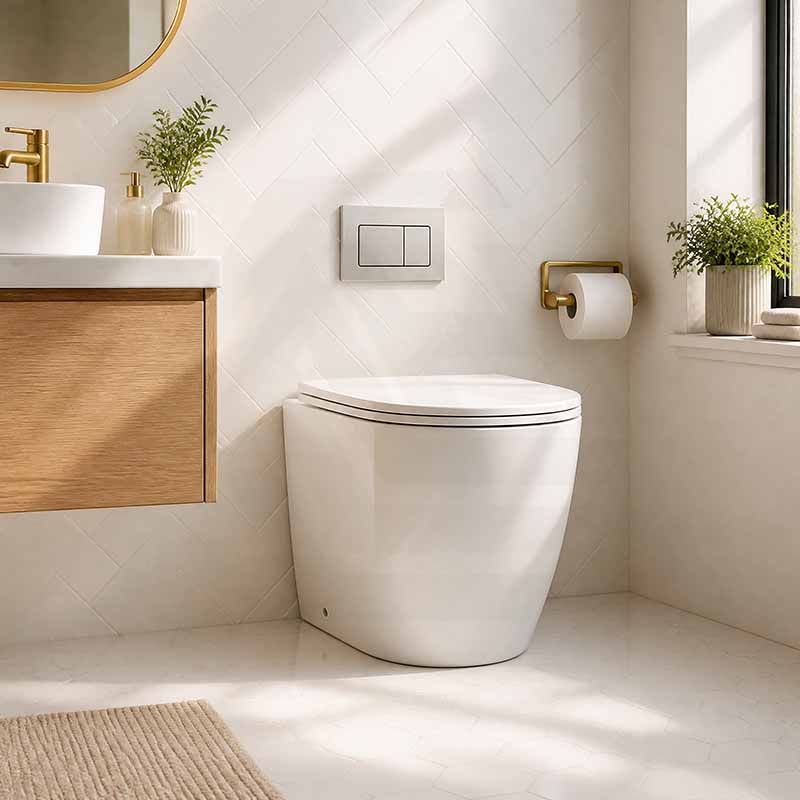

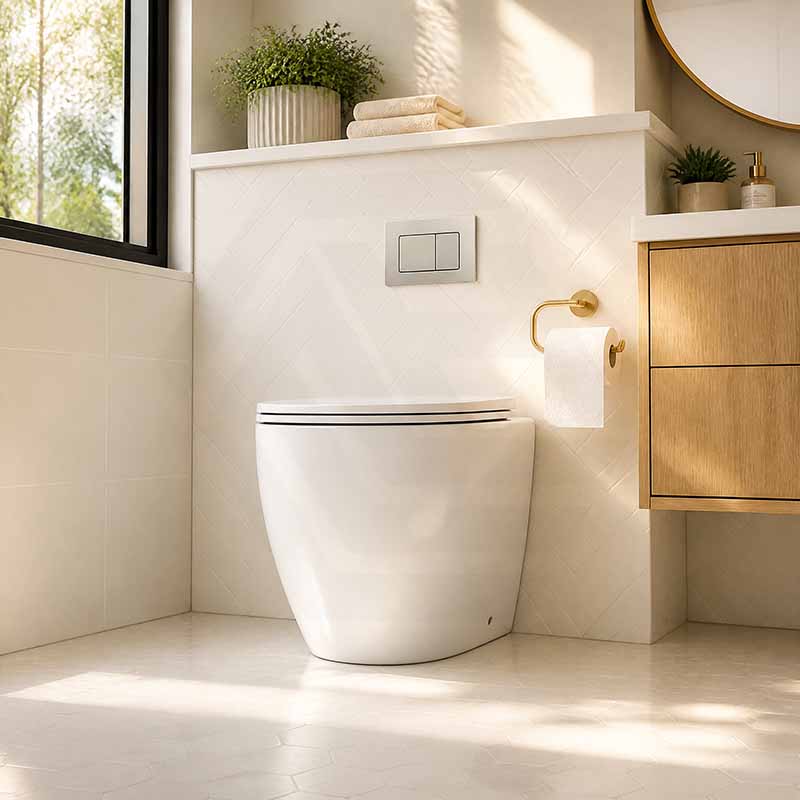

Chrome Plate Square Button
🟢 Option 2

Chrome Plate — Square

R&T Cistern + TS2141D-TR + Chrome Square Button

Finish: Chrome  |  Shape: Square

Chrome plate Square profile Sleek & geometric Modern minimalist
👉 Choose this option if you prefer chrome with a clean square profile — perfect for minimalist or architectural bathrooms.

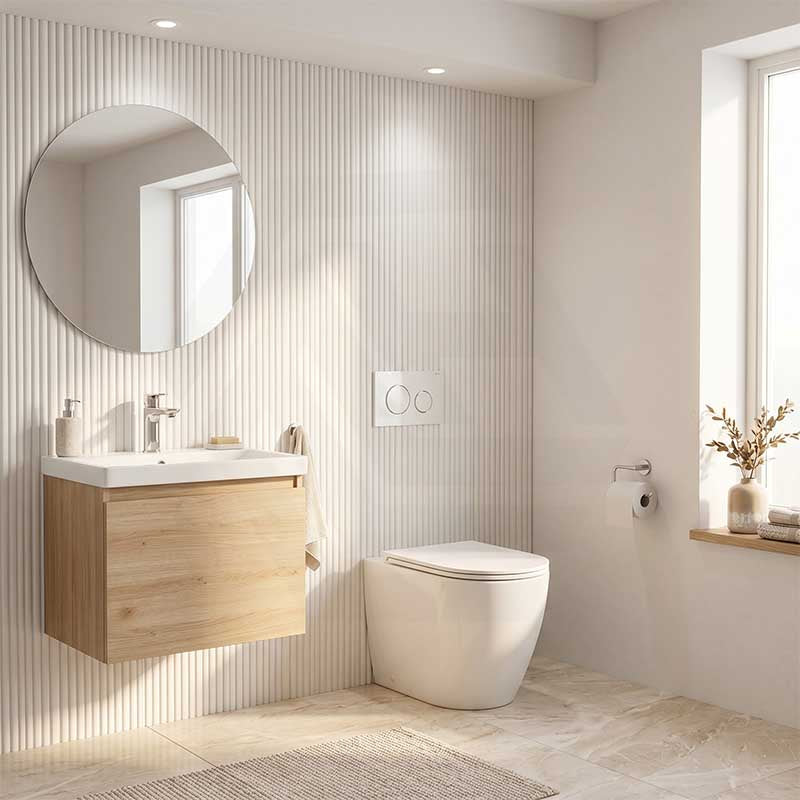

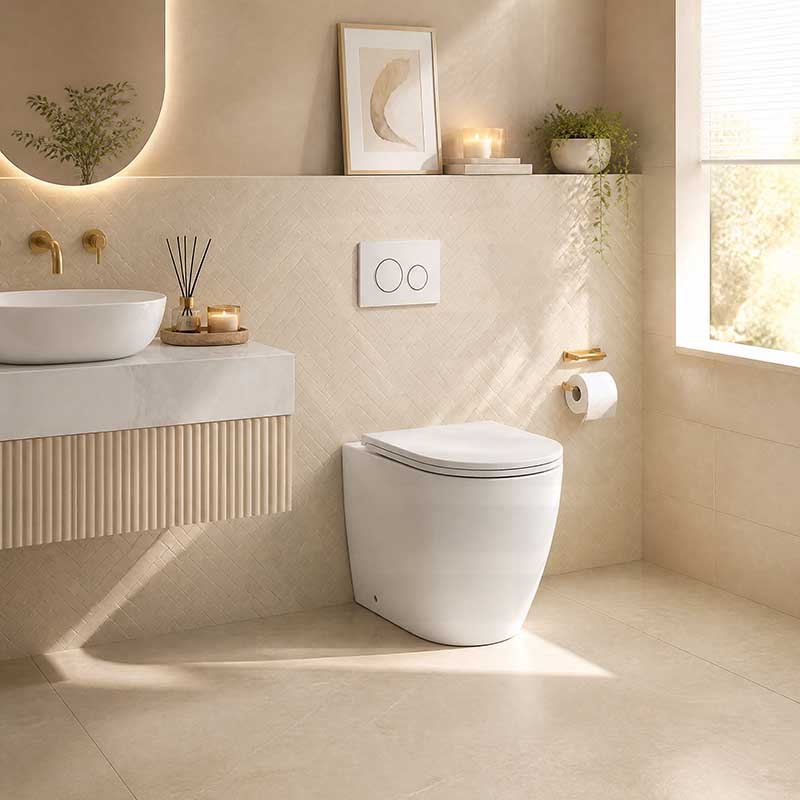

Gloss White Plate Chrome Trim Round Button
🟠 Option 3

Gloss White Plate Chrome Trim — Round

R&T Cistern + TS2141D-TR + White Chrome Trim Round Button

Finish: Gloss White & Chrome Trim  |  Shape: Round

Gloss white plate Chrome trim ring Round profile Seamless & clean
👉 Choose this option if you want a seamless white-on-white look with a chrome accent — ideal for all-white or spa-inspired bathrooms.

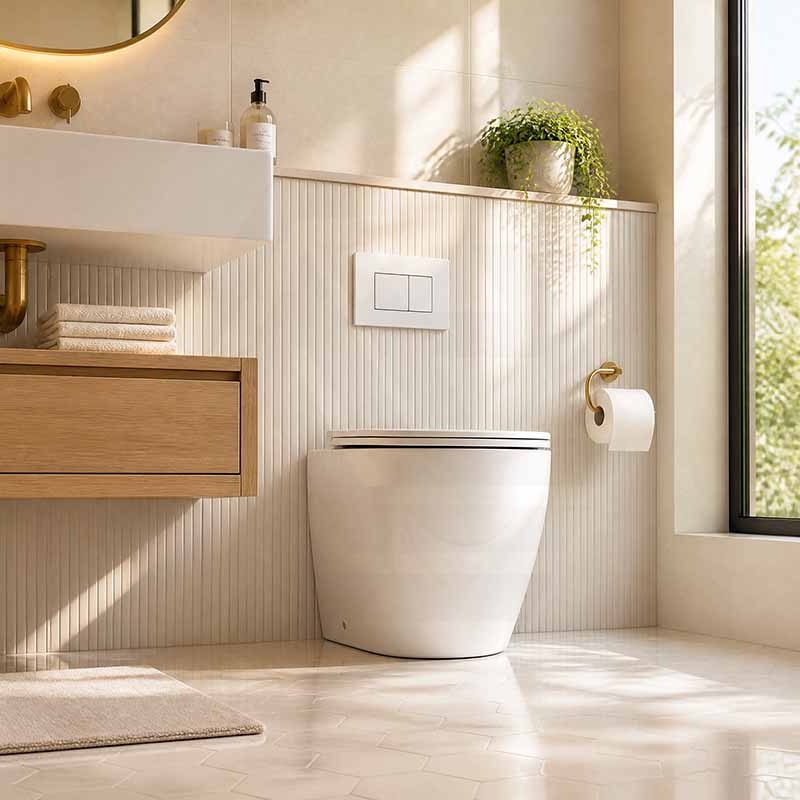

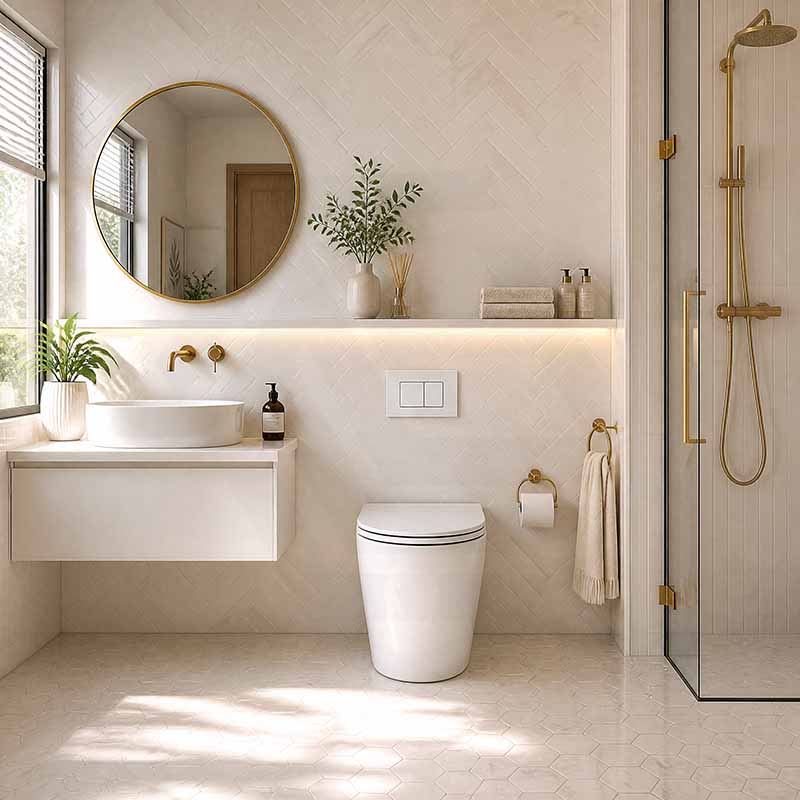

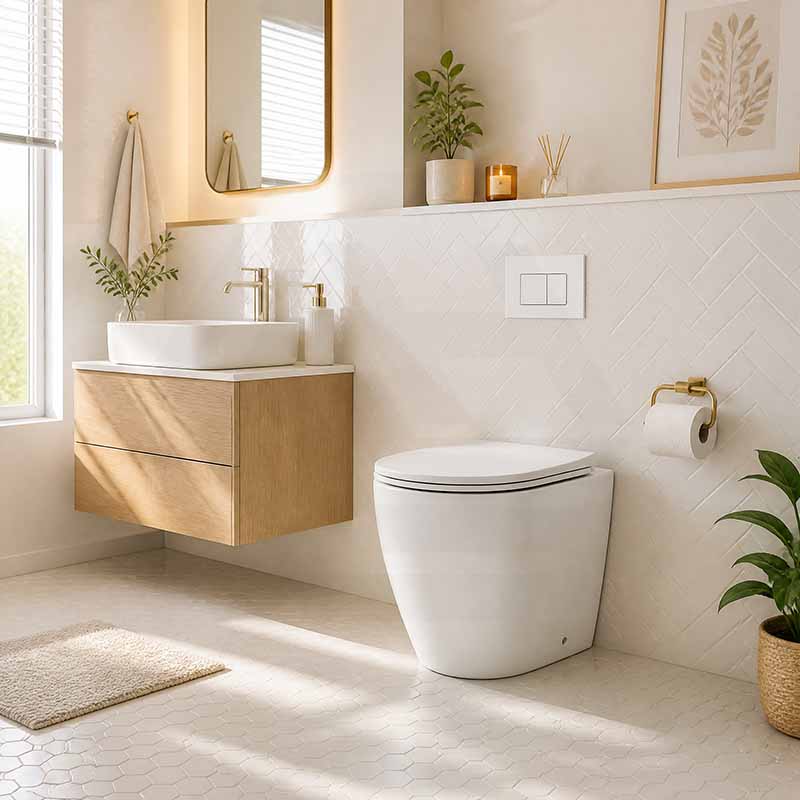

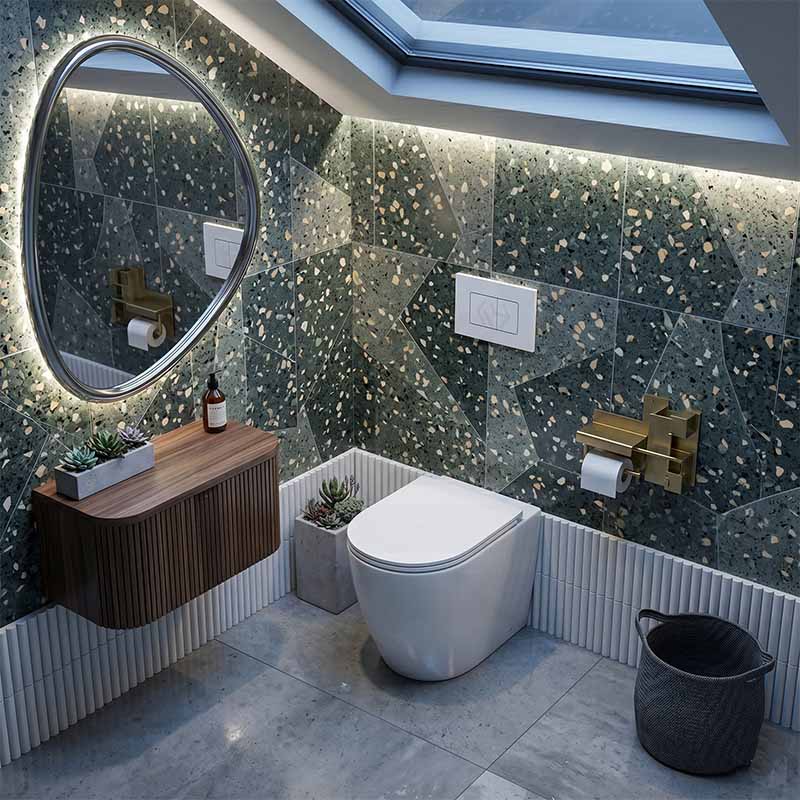

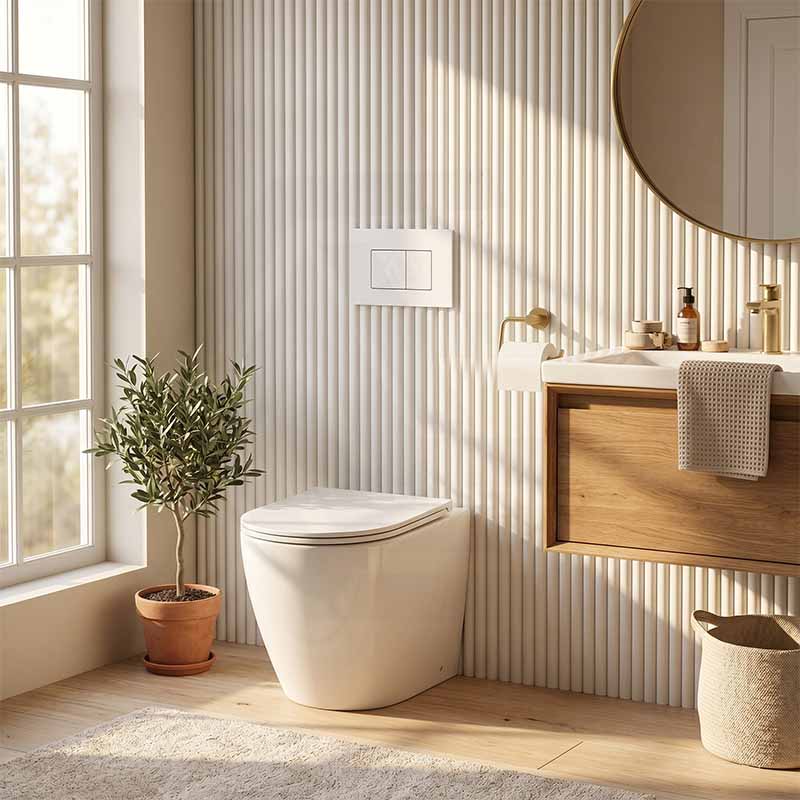

Gloss White Plate Square Button
🟣 Option 4

Gloss White Plate — Square

R&T Cistern + TS2141D-TR + White Square Button

Finish: Gloss White  |  Shape: Square

Gloss white plate Square profile Minimalist & refined Spa-inspired
👉 Choose this option if you want a fully concealed, flush white square button — the ultimate minimalist choice for white bathrooms.

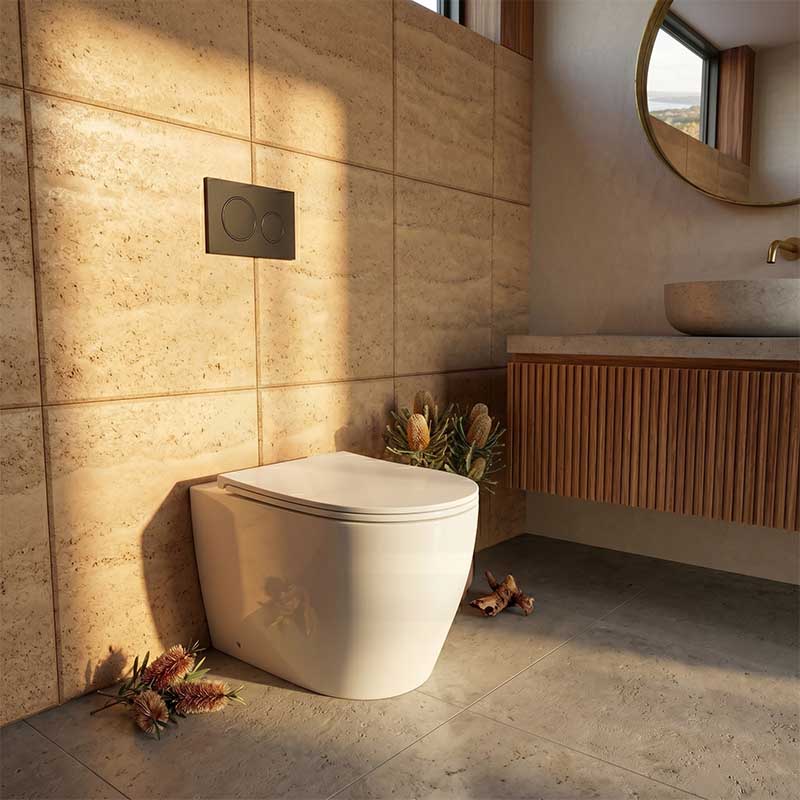

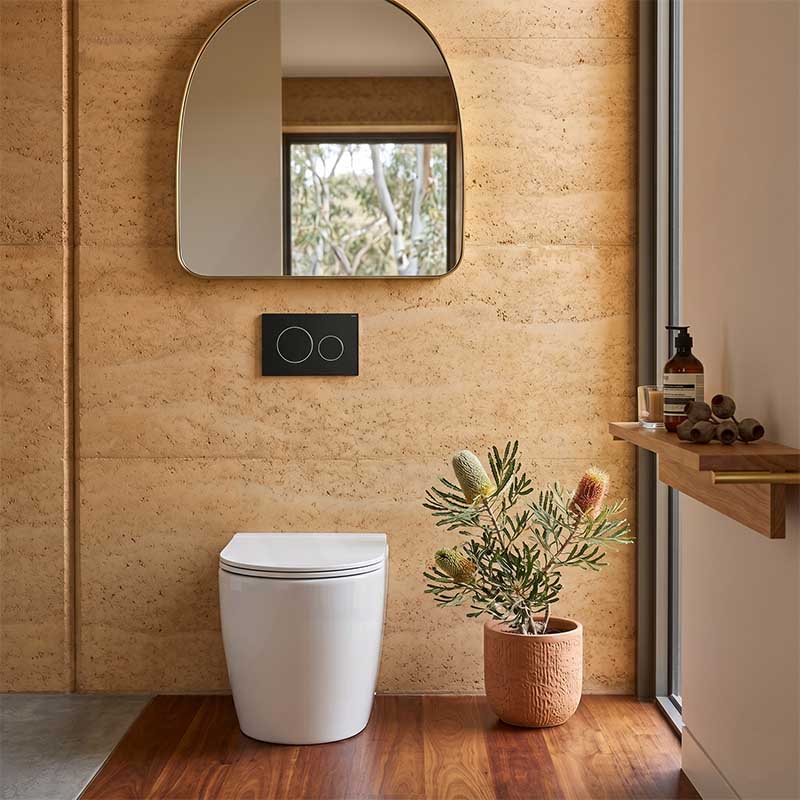

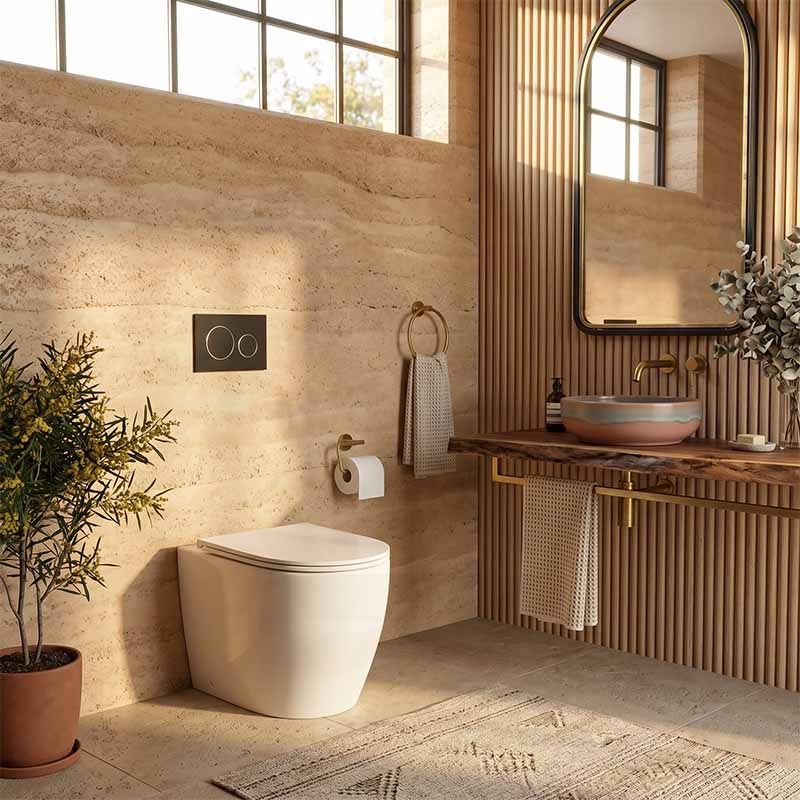

Matt Black Plate Chrome Trim Round Button
🔵 Option 5

Matt Black Plate Chrome Trim — Round

R&T Cistern + TS2141D-TR + Black Chrome Trim Round Button

Finish: Matt Black & Chrome Trim  |  Shape: Round

Matt black plate Chrome trim ring Round profile Bold & contemporary
👉 Choose this option if you want a striking matt black round button with a chrome accent — ideal for contrast-themed or luxury bathrooms.

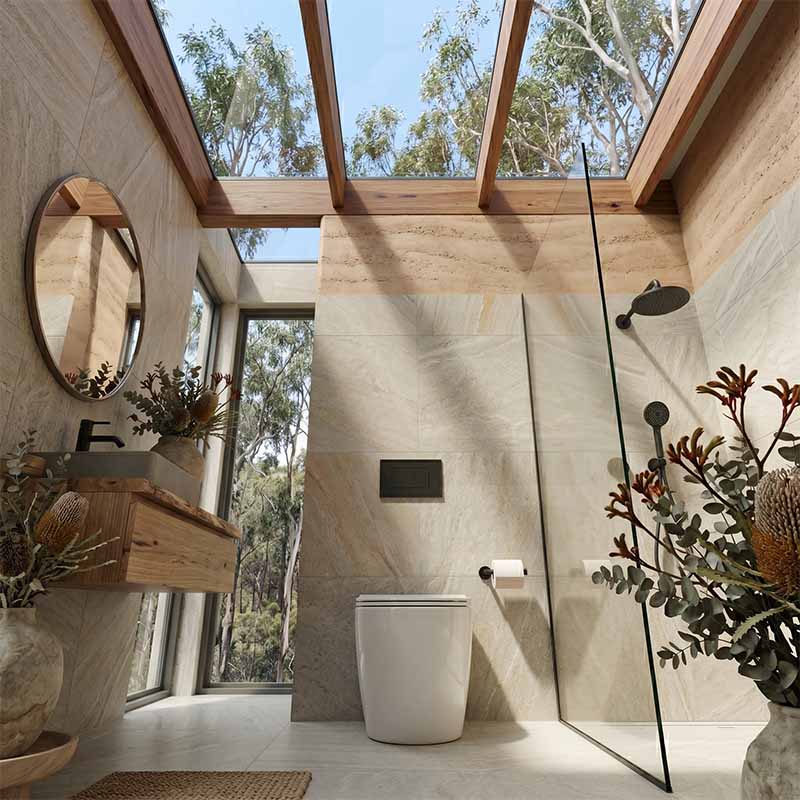

Matt Black Plate Square Button
🌸 Option 6

Matt Black Plate — Square

R&T Cistern + TS2141D-TR + Black Square Button

Finish: Matt Black  |  Shape: Square

Matt black plate Square profile Dramatic & luxe Architectural finish
👉 Choose this option if you want the boldest look — matt black with a square profile for a high-end, architectural statement.

🧭 Quick Button Selection Guide

Your Preference Recommended Option
🎨 Finish
Classic chrome, versatile style Option 1 or 2 (Chrome)
Seamless white, spa-inspired look Option 3 or 4 (Gloss White)
Bold, on-trend dark finish Option 5 or 6 (Matt Black)
⬜ Shape
Soft, rounded aesthetic Option 1, 3 or 5 (Round)
Geometric, architectural look Option 2, 4 or 6 (Square)
🏆 Most Popular Combinations
Chrome + Round (classic) Option 1
Gloss White + Square (spa minimalist) Option 4
Matt Black + Square (luxury) Option 6

📐 How to Choose the Correct Trap Option

Before selecting your toilet trap option, it's important to measure the set-out distance (rough-in) — the distance from the finished wall to the centre of the waste outlet on the floor.

Tip: Measure from the tiled wall (not the skirting board) to the centre of the pipe. If unsure, consult your plumber before purchase.

180mm Cut Lines S-Trap 60-160mm
🔵 Trap Option 1

180mm Cut Lines S-Trap (60–160mm)

SKU: TSP-VB-60

Type: Adjustable floor outlet  |  Rough-in: 60–160mm

S-Trap 180mm ribbed cut lines Rough-in: 60–160mm Floor outlet Adjustable on-site
👉 Choose this option if your waste pipe exits through the floor and the set-out distance is between 60mm and 160mm from the finished wall.
Standard P-Trap 180mm
🟢 Trap Option 2

Standard P-Trap: 180mm

SKU: TSP-P180

Type: Wall outlet  |  Rough-in: Fixed 180mm

P-Trap Fixed 180mm rough-in Includes 260mm straight pipe Pipe can be trimmed Wall outlet
👉 Choose this option if your waste pipe exits through the wall at a standard 180mm set-out — common in apartments and some renovations.

🧭 Quick Trap Selection Guide

Your Plumbing Setup Recommended Trap
Waste pipe through the floor, set-out 60–160mm 180mm Cut Lines S-Trap (TSP-VB-60)
Waste pipe through the wall, 180mm set-out Standard P-Trap 180mm (TSP-P180)
Unsure of your rough-in Consult a licensed plumber before ordering

⚠️ Important Notes

  • All six button options are compatible with the R&T Frameless in-wall cistern included in this package.
  • VORTEX dual-flush performance is identical across all button options: 4.5L full flush / 3L half flush.
  • Button plates are mechanical (no electrical connection required).
  • Always measure from the finished tile surface to the centre of the floor waste outlet — not from the skirting board or subfloor.
  • Trap installation must be carried out by a licensed plumber to maintain WaterMark certification and warranty validity.
  • A ±5mm tolerance is standard for ceramic products. Confirm your exact measurement before selecting a trap.
  • Warranty: Please refer to the product specification tab for full warranty details.
