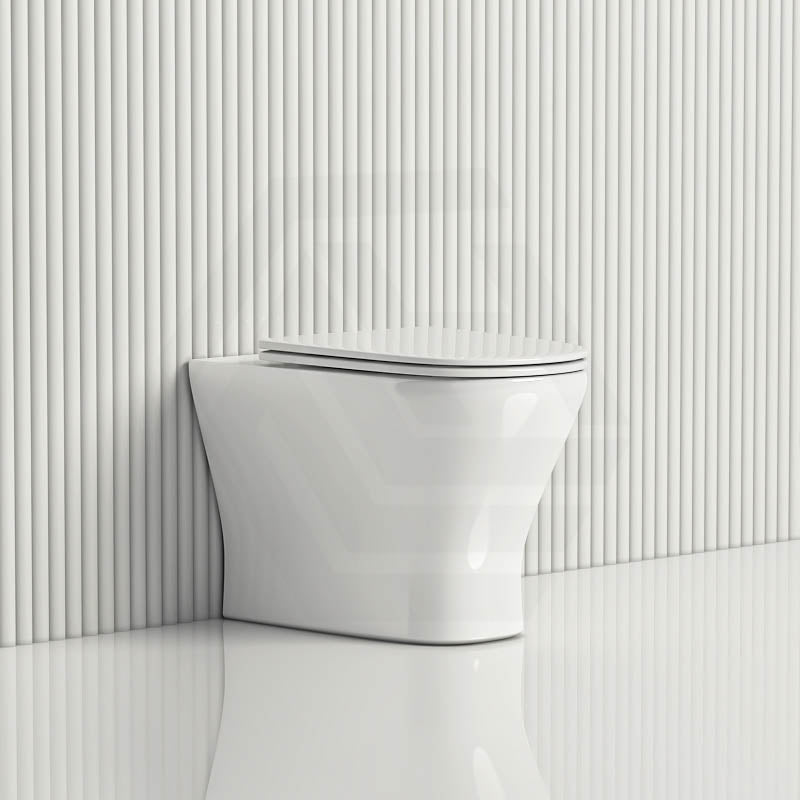

Kohler Reach II Ceramic Rimless Wall Faced Toilet Pan Only with Slim Seat 565x370x395mm - Gloss White

Name: Kohler Reach II Ceramic Rimless Wall Faced Toilet Pan Only with Slim Seat 565x370x395mm - Gloss White
Brand: Kohler
SKU: KH-28766A-0+KH-28773A-0
Price: 629.00 AUD
Availability: InStock

SKU: KH-28766A-0+KH-28773A-0

Product Overview

Feature	Essential	Advantage	Ultimate
Extended Warranty	+5 Years	+10 Years	+15 Years
Transit Damage Coverage	up to $500	up to $3,000	up to $10,000
On-Site Support	--	--	3 Years
Price	$15	$10	$5

Specifications

Features

Kohler Reach II Rimless Toilet Pan

The Kohler Reach II combines contemporary European styling with ultimate hygiene. Featuring a space-saving wall-faced profile, advanced rimless technology, and a premium ceramic finish, it's the perfect choice for modern Australian renovations.

Wall Faced Rimless Bowl 565mm Short Projection Premium Ceramic

Space Saving

Short Projection Design

The compact 565mm depth is ideal for maximizing small bathrooms and powder rooms. This reduced projection frees up valuable floor space without compromising on seat comfort or performance.

Premium Material

High-Density Ceramic

High-density fired glaze creates a smooth surface for easier cleaning. The premium ceramic finish is resistant to scratches and stains, ensuring a long-lasting brilliant white appearance.

Sanitary Innovation

Slim Seat Profile

Minimizes ceramic contact for a cleaner and more hygienic experience. The slim, soft-close seat adds a minimalist aesthetic while providing quiet, gentle operation for the modern home.

Superior Hygiene

Rimless Flushing Technology

Rimless Design — Eliminates hidden channels to prevent dirt and bacteria accumulation. The smooth interior allows for more efficient water distribution and a thorough flush every time.

Note: A measurement deviation of ±5mm is regarded as common in ceramic products. Always confirm your plumbing set-out with a licensed plumber.

Product Information

FEATURES
MODEL & DESIGN
Main Product Code	KH-28766A-0+KH-28773A-0
MATERIAL & FINISH
Material	Ceramic (Vitreous China)
Colour	Gloss White
TECHNICAL INFORMATION
Size (Toilet Pan)	565 x 370 x 395mm
Toilet Seat	Reach Up Slim Seat
Flush Type	Dual Flush
Roughing-in	Standard P-Trap only: 180mm
Installation Notes	Inwall cistern and flush buttons required (sold separately)
CERTIFICATION
WELS Star Rating	4 Star Rated
WELS Registration	L06300
WELS Flush Rates	Average flush: 3.4L , Full flush: 4.48L , Half flush: 3.09L
Feature 1	Rimless Design -- Eliminates hidden channels to prevent dirt and bacteria accumulation.
Feature 2	Slim Seat Profile -- Minimizes ceramic contact for a cleaner and more hygienic experience.
WARRANTY
10 Years Warranty	10 Year warranty for ceramic pan (Excluding fill and flush valves and seals) * First 5 years parts, labour and freight, year 5 to 10 parts only
2 Years Warranty	2 Years warranty for toilet seat (Except Battery Operated Features)
1 Year Warranty	1 Year warranty for toilet seat (Battery Operated Features)

Supplier's Gallery

Dimensions

Product Options

📐 Kohler Reach Up Trap Option Guide

To ensure the correct installation of your Reach Up™ Wall Faced Toilet, please verify your bathroom's waste outlet position. Measure the "Rough-in" distance (wall to pipe centre for S-Trap, or floor to pipe centre for P-Trap).

Note: Fixture dimensions are nominal and conform to AS1172.1-2014 and ASME/CSA standards.

🔵 Option 1

Standard P-Trap (185mm)

Waste Outlet: Horizontal (Through Wall)

185mm Wall Rough-in Flush pipe: 353mm height Concealed fixings

👉 Choose this if your waste pipe is located in the wall at a 185mm height.

🟠 Option 2

S-Trap Installation (155mm)

Waste Outlet: Vertical (Into Floor)

155mm Floor Rough-in S-Trap connector included Wall faced design

👉 Choose this if your waste pipe is in the floor with a 155mm rough-in distance.

🧭 Reach Up™ Technical Summary

Reach Up Specifications	Measurement / Requirement
S-Trap Rough-in (Floor)	155mm
P-Trap Rough-in (Wall)	185mm
Flush Pipe Height	353mm
Installation Standards	AS/NZS 3500 & AS/NZS 6400

⚠️ Care and Maintenance Guidance

No In-tank Cleaners: WARNING: Products containing chlorine (calcium hypochlorite) can seriously damage tank fittings and cause leakage.
Immediate Rinse: Wipe surfaces clean and rinse completely with water immediately after any cleaner application.
Avoid Abrasives: Never use abrasive materials such as brushes or scouring pads; use a soft, dampened cloth instead.
Plumbing Compliance: Installation must be performed by a licensed plumber in accordance with local regulations.

Instruction

KOHLER Installation and Care Guide

Detailed technical specifications and maintenance instructions for Kohler Wall-Faced Toilets, covering both P-Trap and S-Trap configurations.

📄

KOHLER Wall-Faced Toilet Installation Guide (PDF)

Comprehensive instructions including roughing-in dimensions, floor mounting, and trap connection steps.

Download PDF

Note: The toilet pictured in the installation steps may differ from the model being installed.
