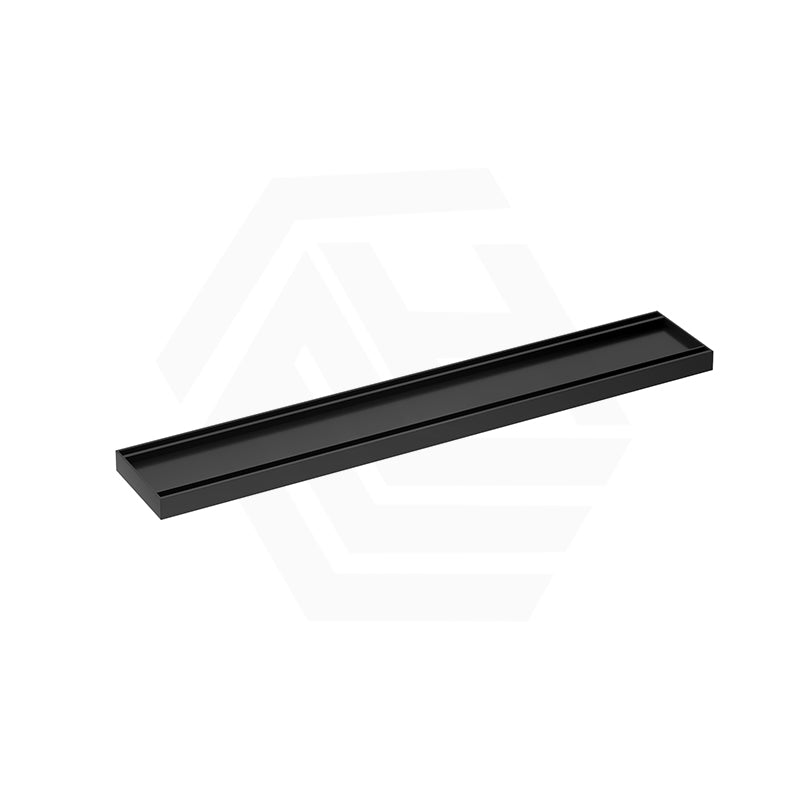

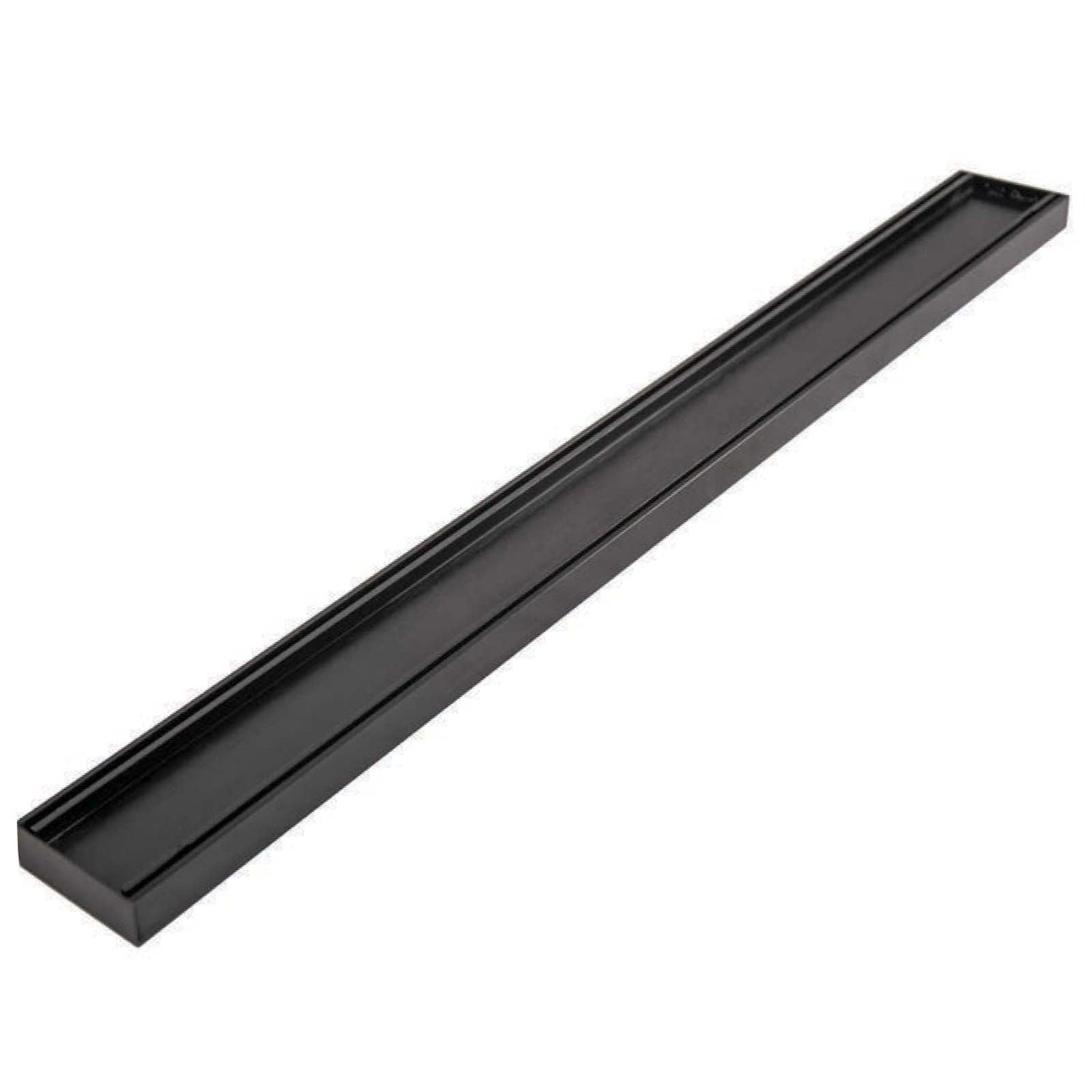

100-5600mm Lauxes Black Shower Grate Drain Any Size Indoor Aluminium Midnight Slimline Tile Insert
or 4 interest-free payments of $6.25 with available for orders up to $20,000
Selected item and quantity only. Accessories excluded. Final freight confirmed at checkout.
Specifications
Features
Features
Lauxes Shower Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor wet area. With Lauxes Shower Grates there is no compromise on functionality or style when creating designer living spaces.
Specifications:
-
Model : LCMSTIG+LCFG-C100SB
-

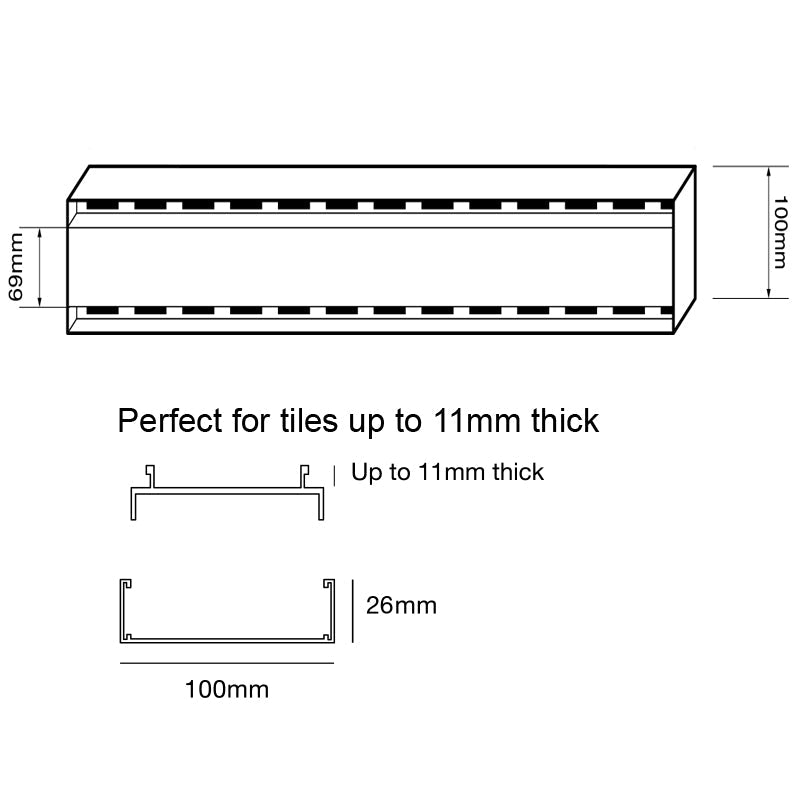

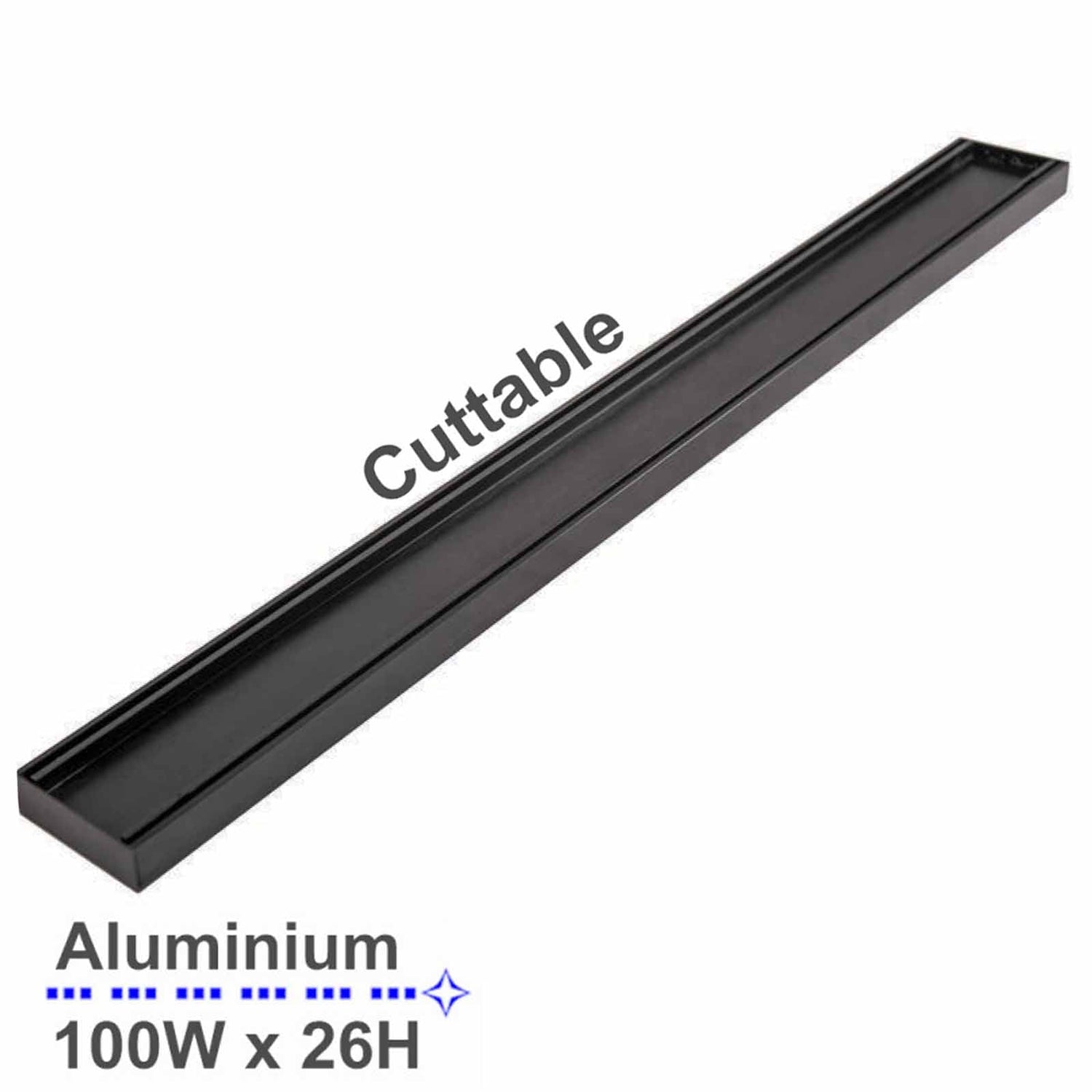

Size (mm): (100-2000)L x 100W x 26H
-
(2100-5600)L x 100W x 26H SYD Metro Only
-

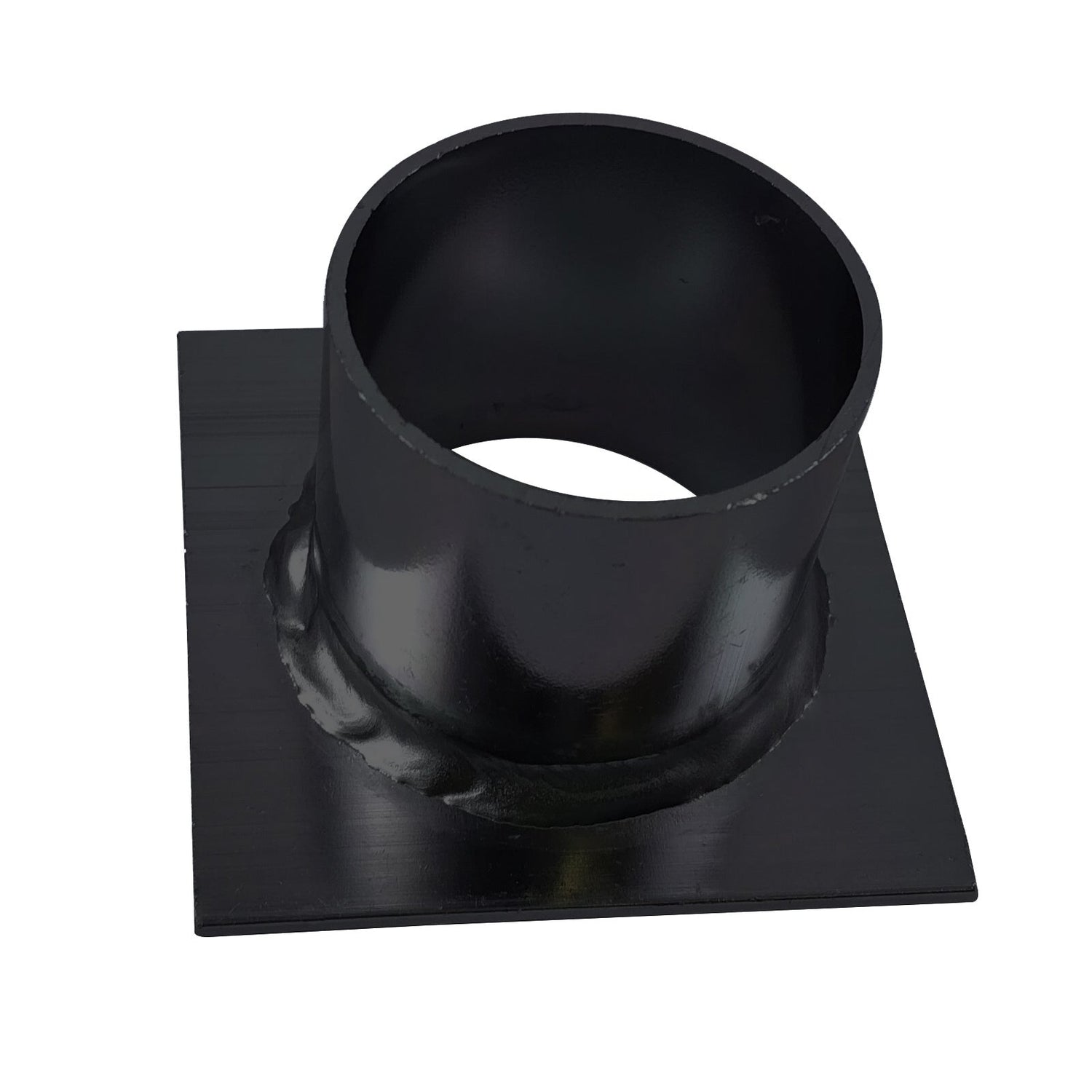

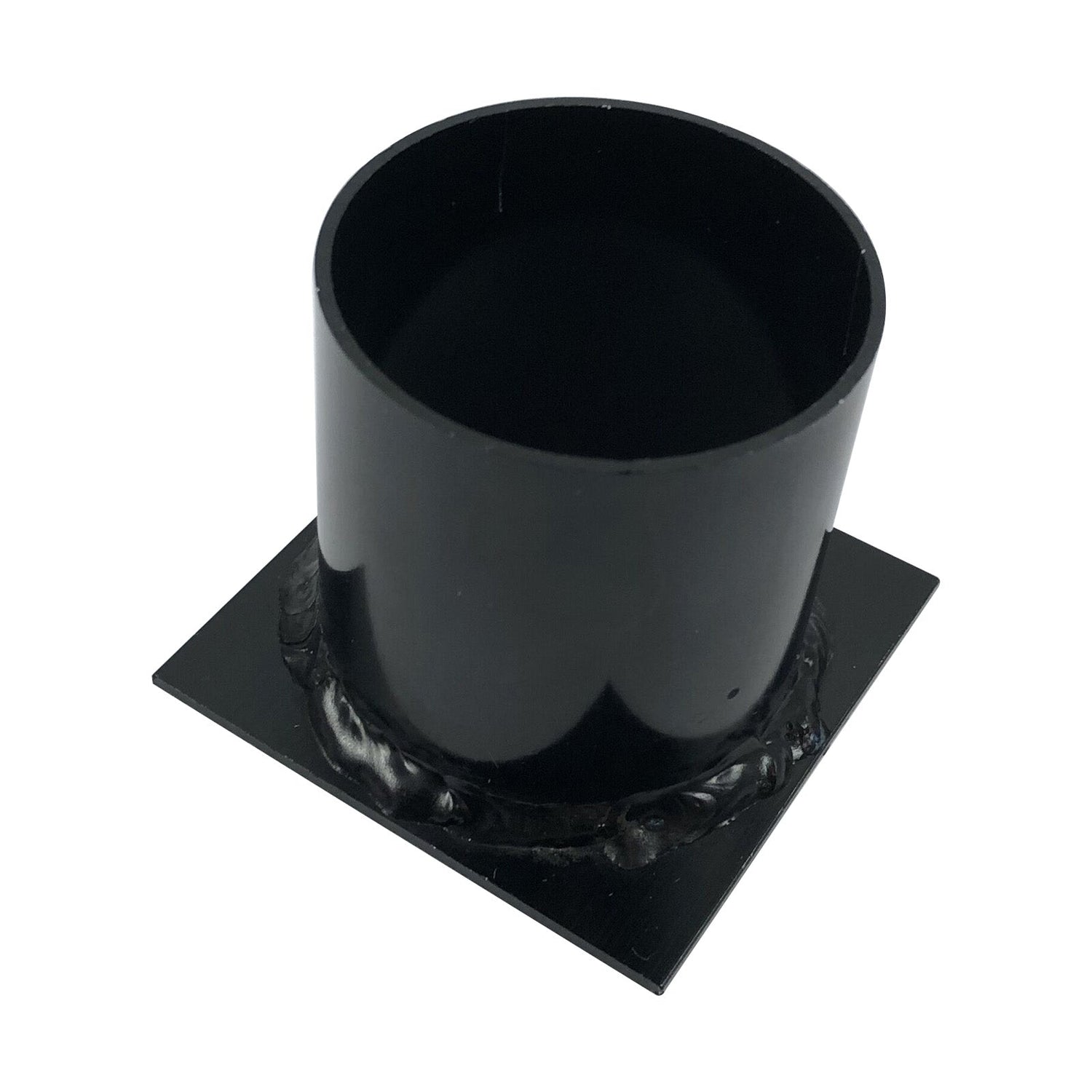

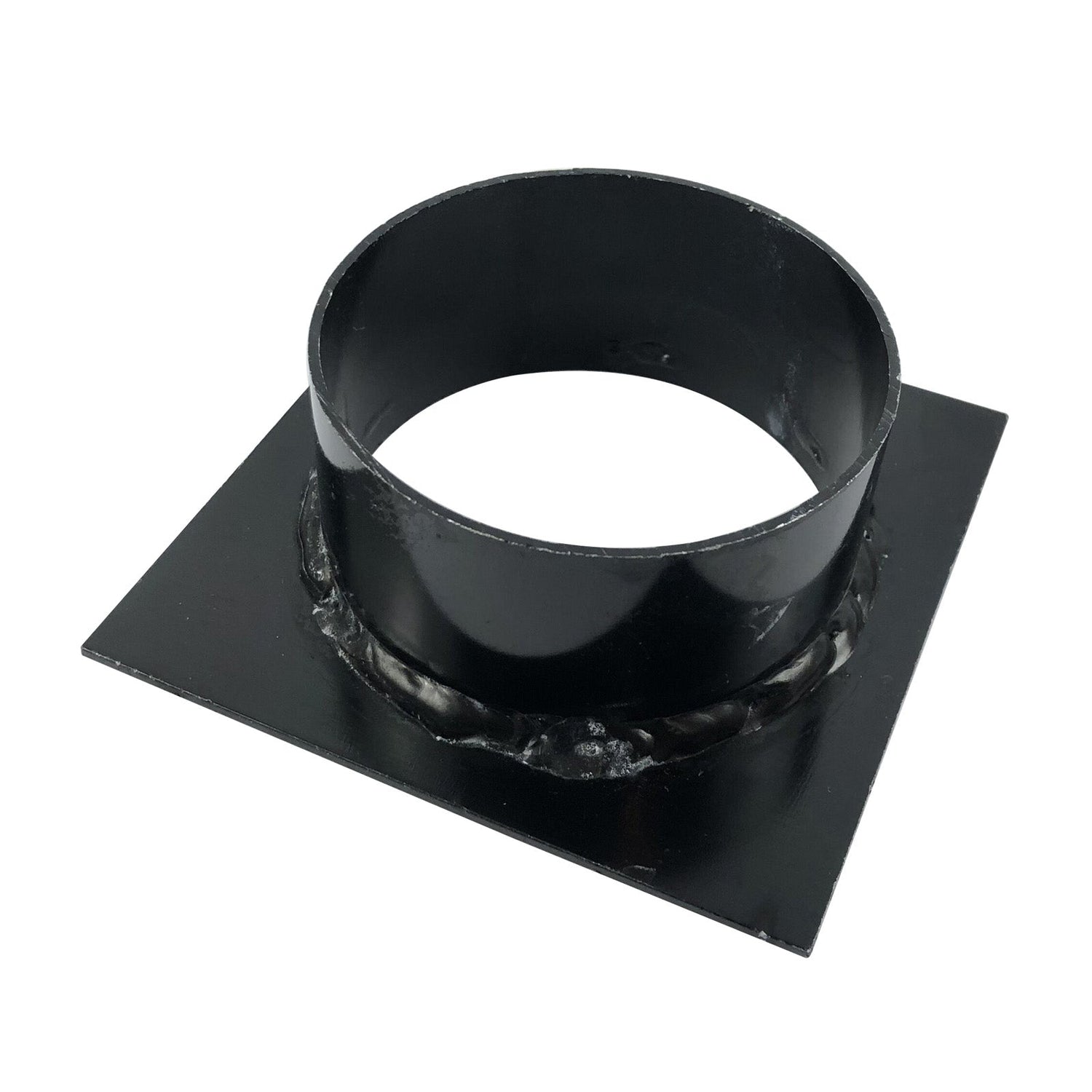

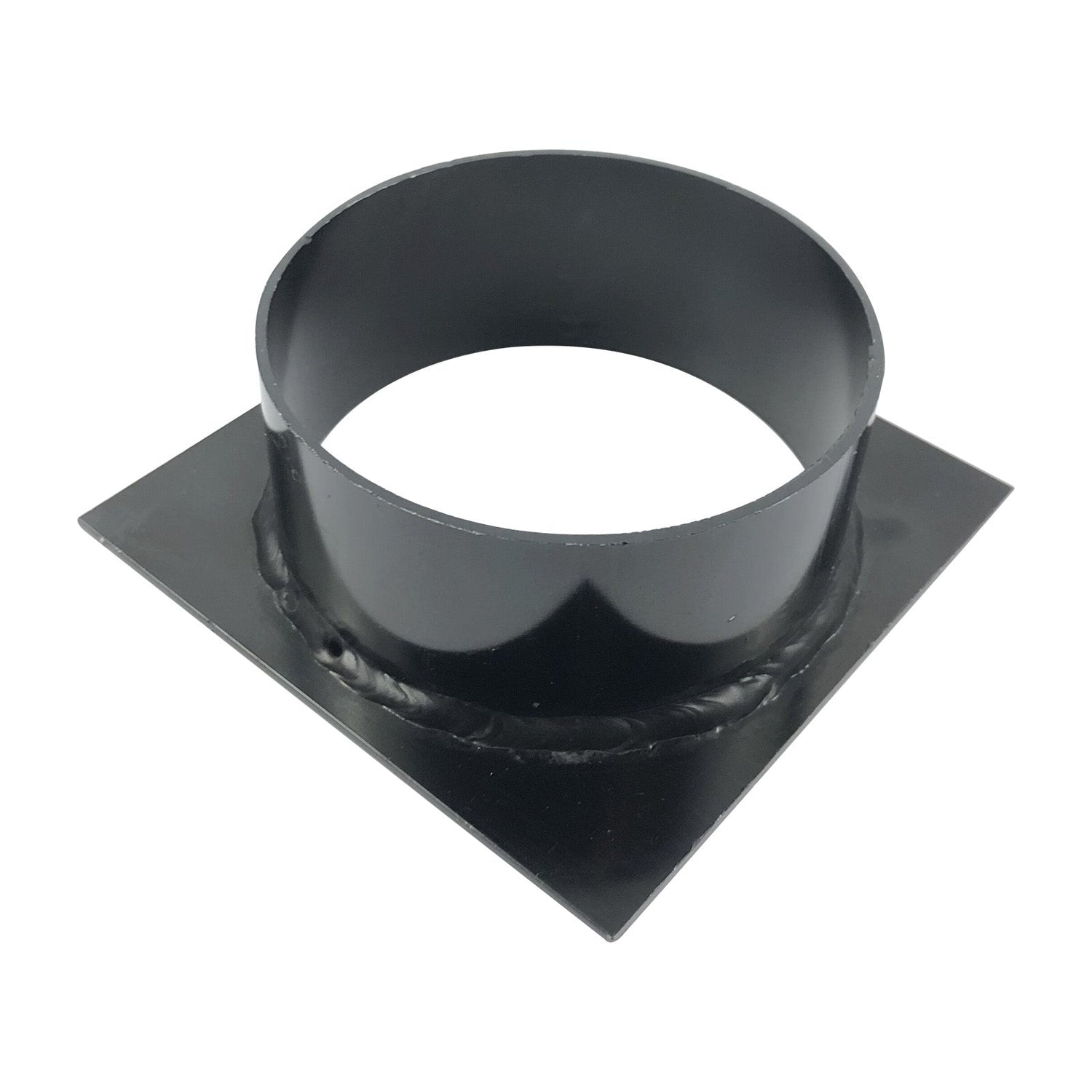

4 Waste Sizes: 40/50/72/80mm
-
Color: Black
-
Rust proof
-
Lightweight
-
Top grate easily removed for cleaning
-
Different colour choices to suit application
-
Easy to cut to desired length
-
No welding required
-
No major plumbing involved as waste can be positioned anywhere along the bottom tray
-
Perfect use for indoor applications
-
Lifetime: Rustproof Warranty
-
Package Contents:
-
1 x Shower grate
-
1 x Waste
-

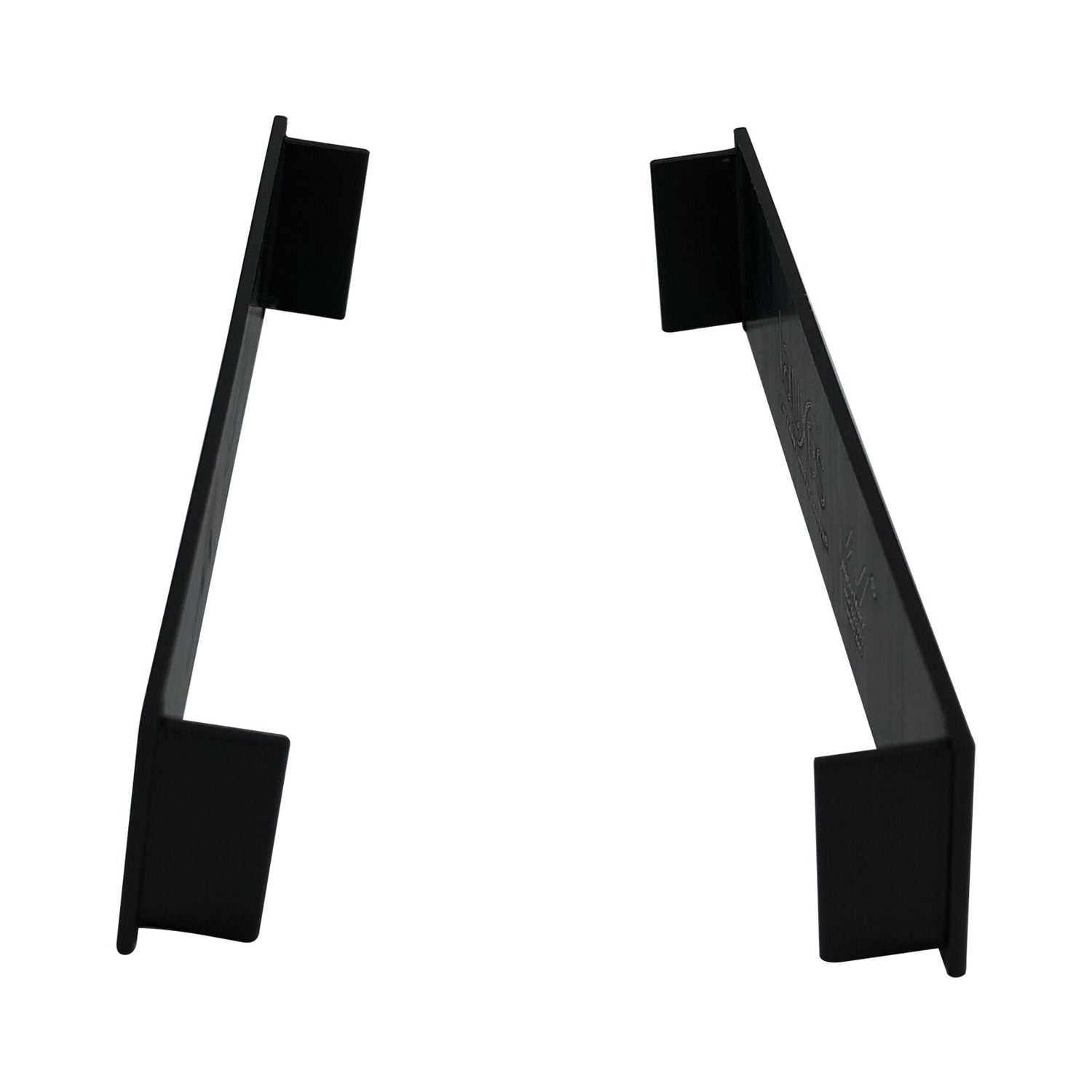

1 pair of end cap
Cutting & Assembly Instructions:
For easy cutting of shower grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
-
1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
-
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
-

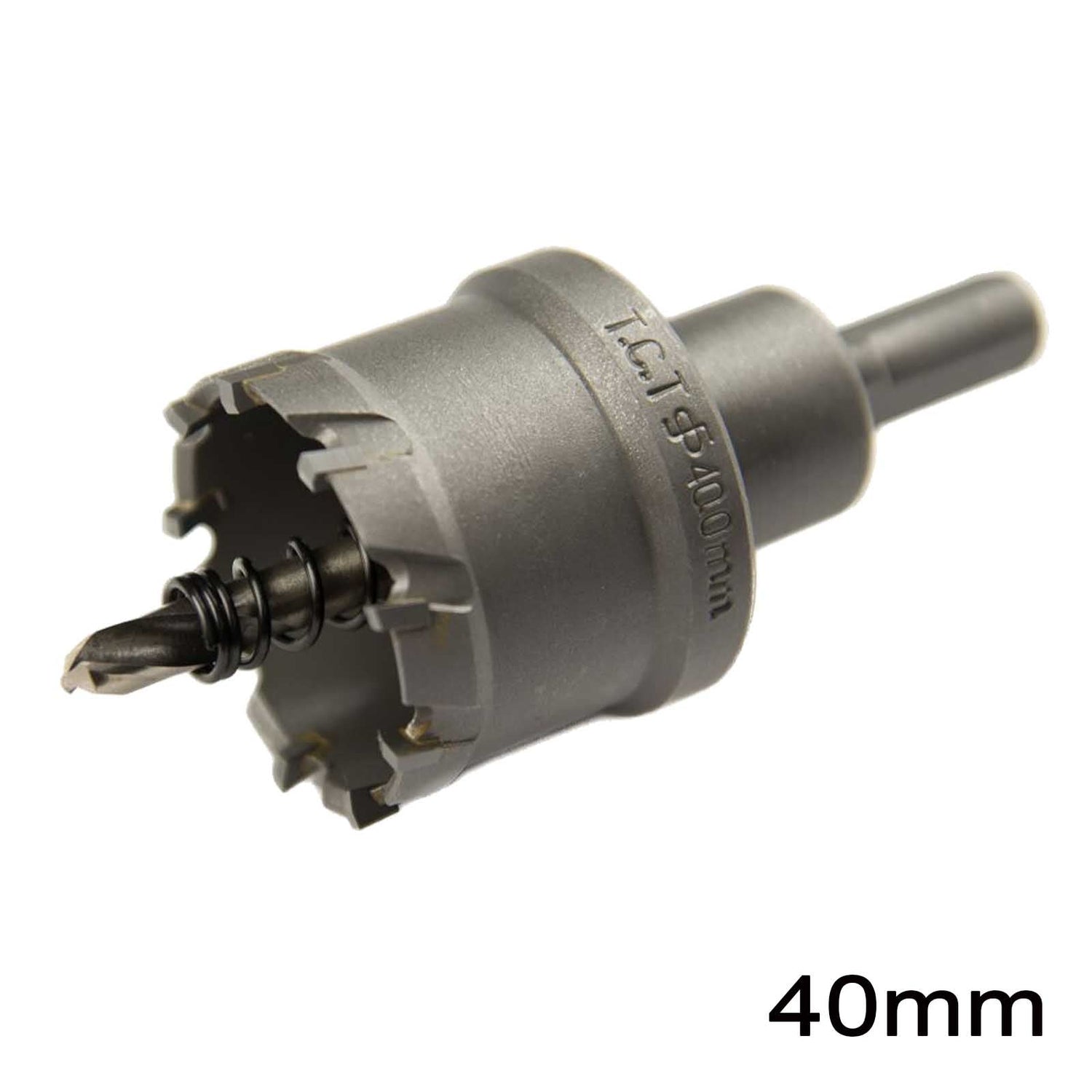

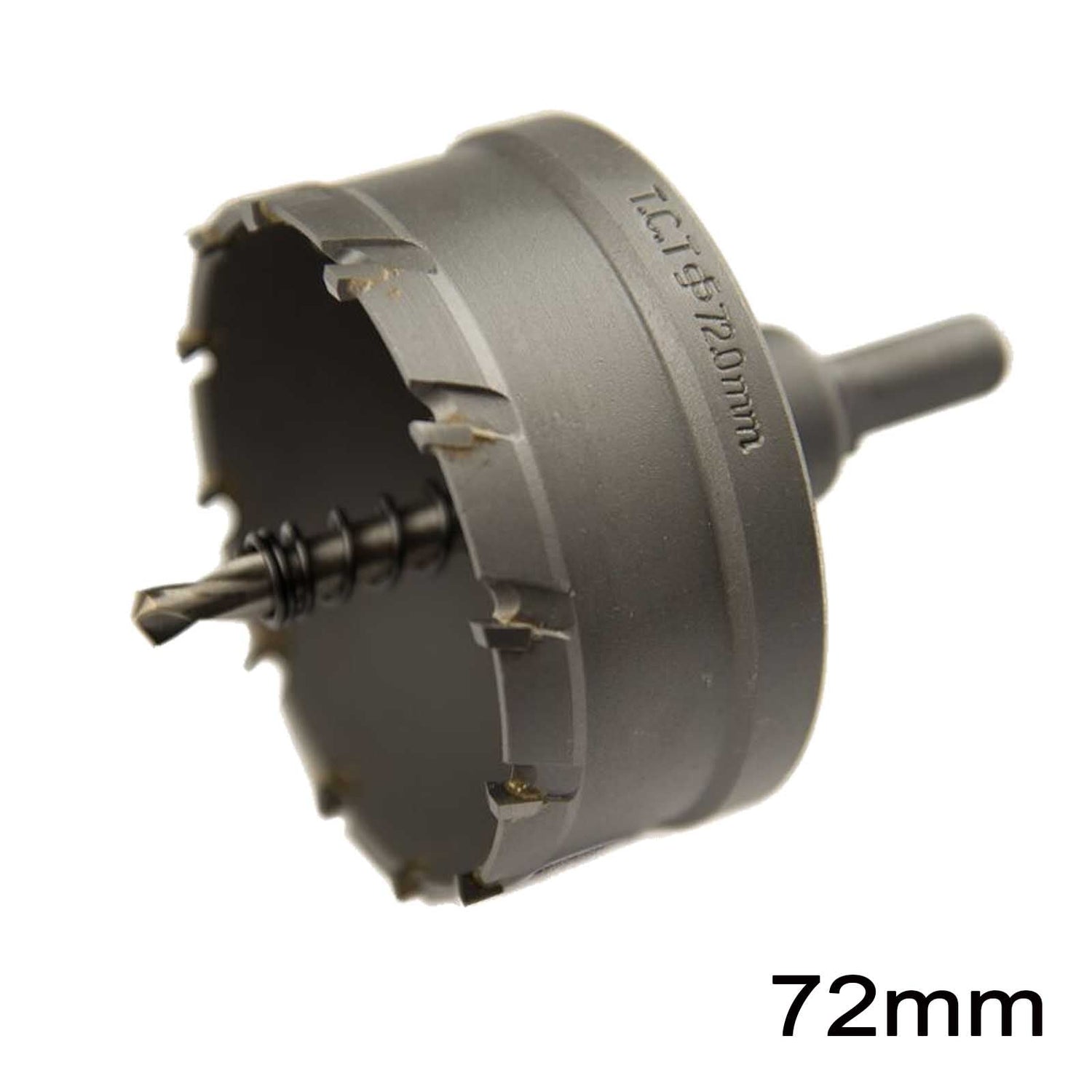

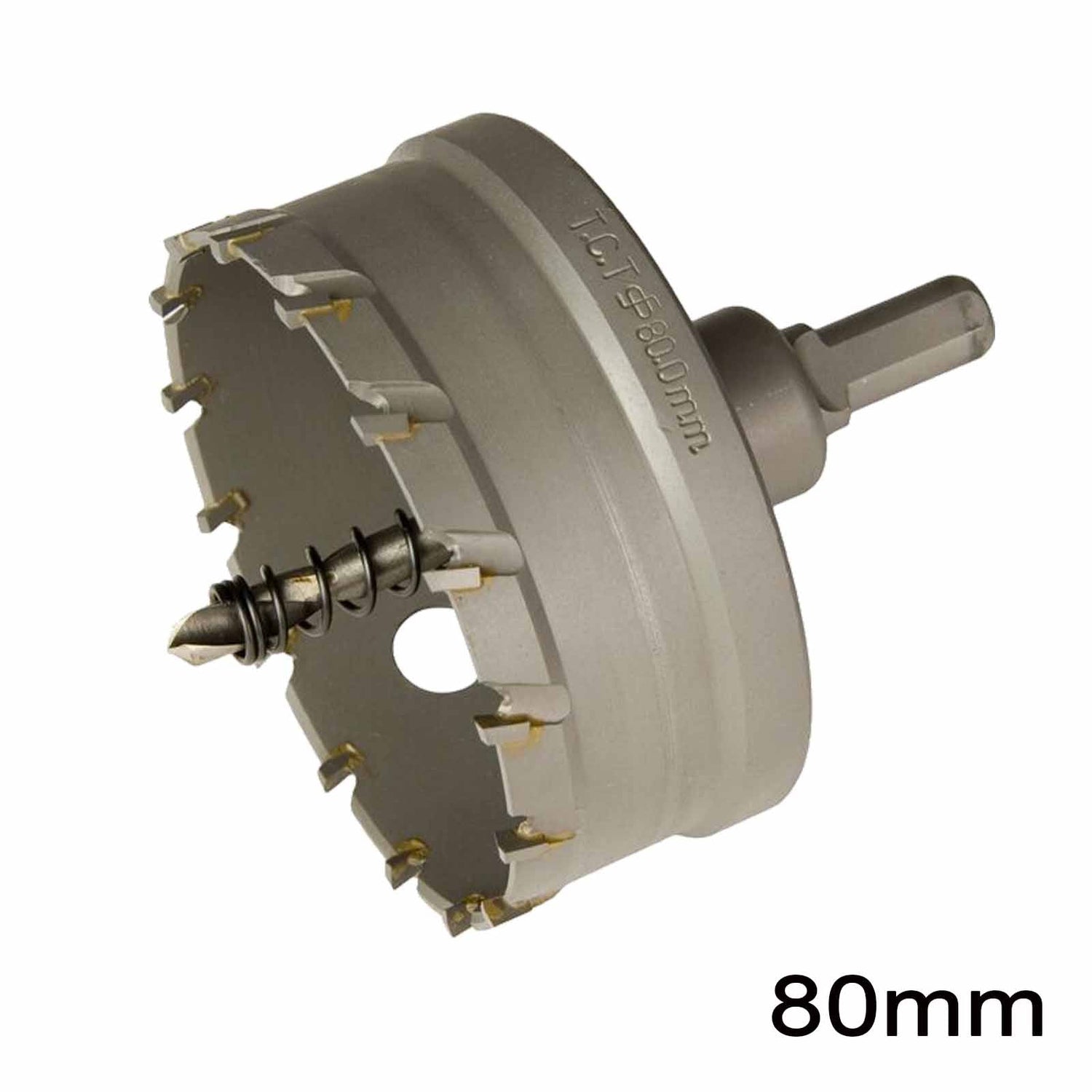

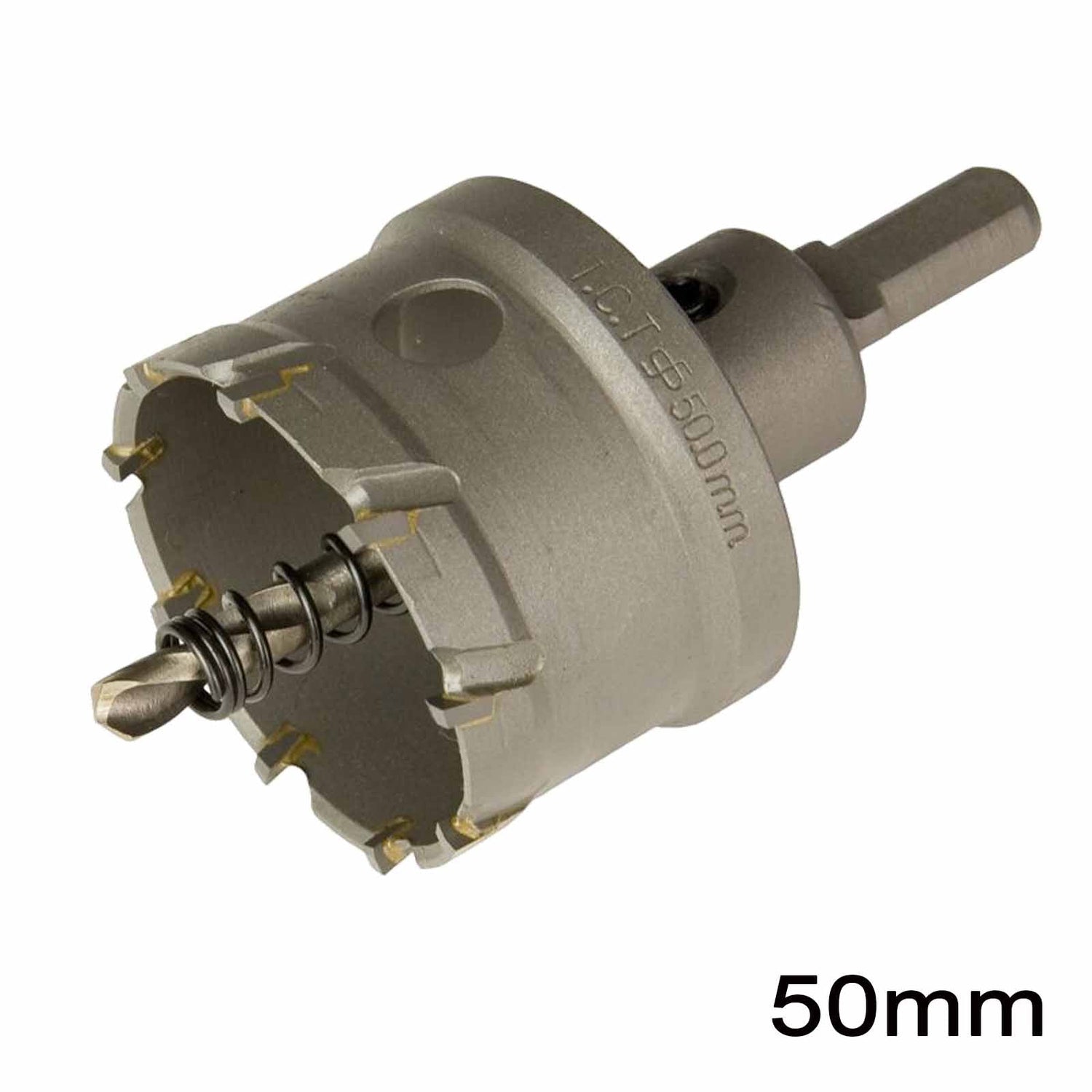

3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
-
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
-
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
Optional Accessories 1 – Internal End Caps(Sold Separately)
Designed to fit at both ends of the top grate (insert tray), Internal End Caps provide a neat, symmetrical finish around the tiled insert. They help maintain consistent spacing on all four sides, creating a clean and professionally framed appearance.
-
Colour: Black
-
Material: Anodised Aluminium
-
Size: 26 x 100mm
-
Suitable for Indoor and Outdoor Applications
-
25-Year Warranty Against Fading
-
Lifetime Rustproof Warranty
Optional Accessories 2 – Thick End Caps(Sold Separately)
Thick End Caps feature a thicker, solid end profile compared to standard end caps, providing a more substantial finish to the shower grate. The anodised aluminium construction provides a durable finish that complements the shower grate, making them suitable for both indoor and outdoor applications.
-
Colour: Black
-
Material: Anodised Aluminium
-
Size: 26 x 100mm
-
Suitable for Indoor and Outdoor Applications
-
25-Year Warranty Against Fading
-
Lifetime Rustproof Warranty
Optional Accessories 3 – Shower Pack(Sold Separately)
The Shower Pack 26 offers a modern bathroom drainage solution, designed for use with the Slimline Tile Insert 26. It allows shower glass to be mounted directly onto the grate, with water draining from both sides. Available in multiple lengths, it creates a seamless finish without requiring a separate square floor waste.
-
Product Type: Shower Pack Top Tray Only
-
Colour: Black
-
Material: Anodised Aluminium
-
Size: 1000/2000/3000 x 100 x 26mm(L x W x H)
-
Shower Glass-Mountable Design with Dual-Sided Drainage
-
Anti-Water Tracking Design
-
Suitable for Tiles up to 11mm Thick
-
Cut-to-Length Design for Easy Installation
-
Lightweight, Rustproof and UV Stable
-
Suitable for Indoor and Outdoor Applications
-
Easy Roll-Out Design for Cleaning and Maintenance
-
Class B Load Rating (10.2 Tonnes)
-
25-Year Warranty Against Fading
-
Lifetime Rustproof Warranty
Cutting & Assembly Instructions:
For easy cutting of the shower grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
-
1.Determine the length of the grate by making sure the grate reaches wall to wall. Now cut 3mm shorter than desired length to allow end caps to be fitted.
-
2.Using a hole saw, drill the waste hole from the underside of the tray wherever needed.
-
3.Fit end caps and the waste outlet using neutral-cure silicone. Clean all excess silicone away from the tray.
-
4.Cut the glass support and the thinner tile-insert top tray to the exact length of the shower glass.
-
5.Cut the remaining standard tile insert top tray 3 mm shorter than the walkway opening. (This clearance is vital for removing the tops for cleaning later).
NOTE: Custom orders and special orders are NON RETURNABLE and CANNOT BE CANCELLED for any reason once placed due to the custom and made to order processes involved.
